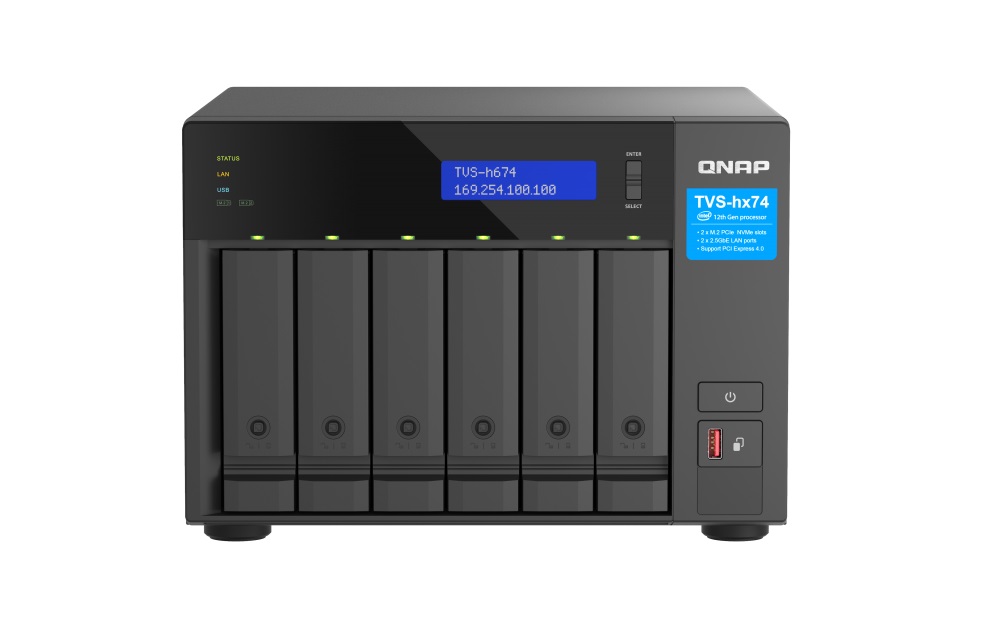

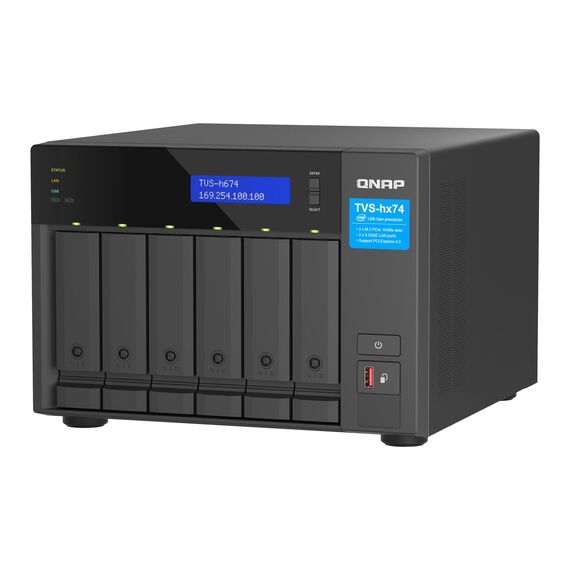

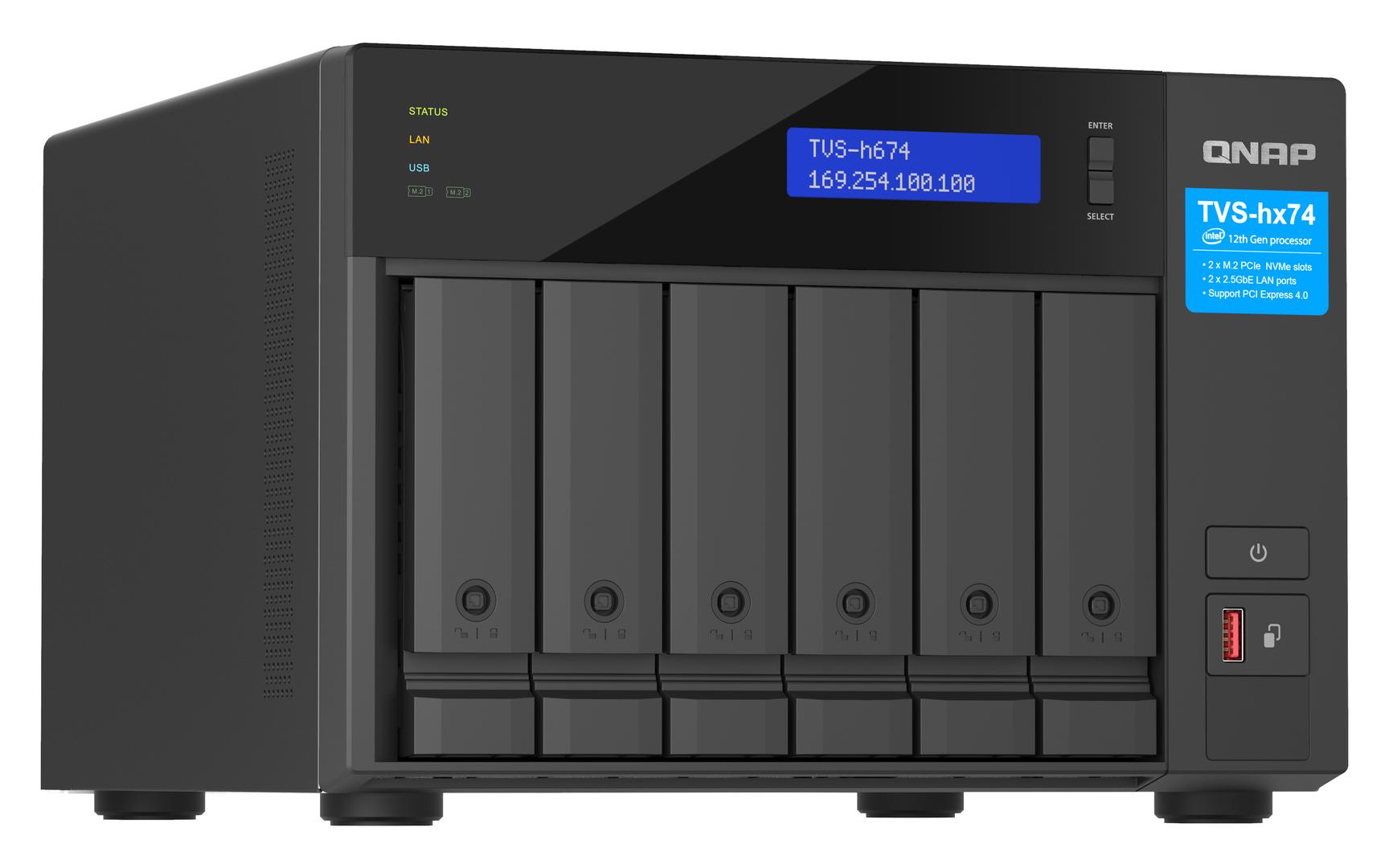

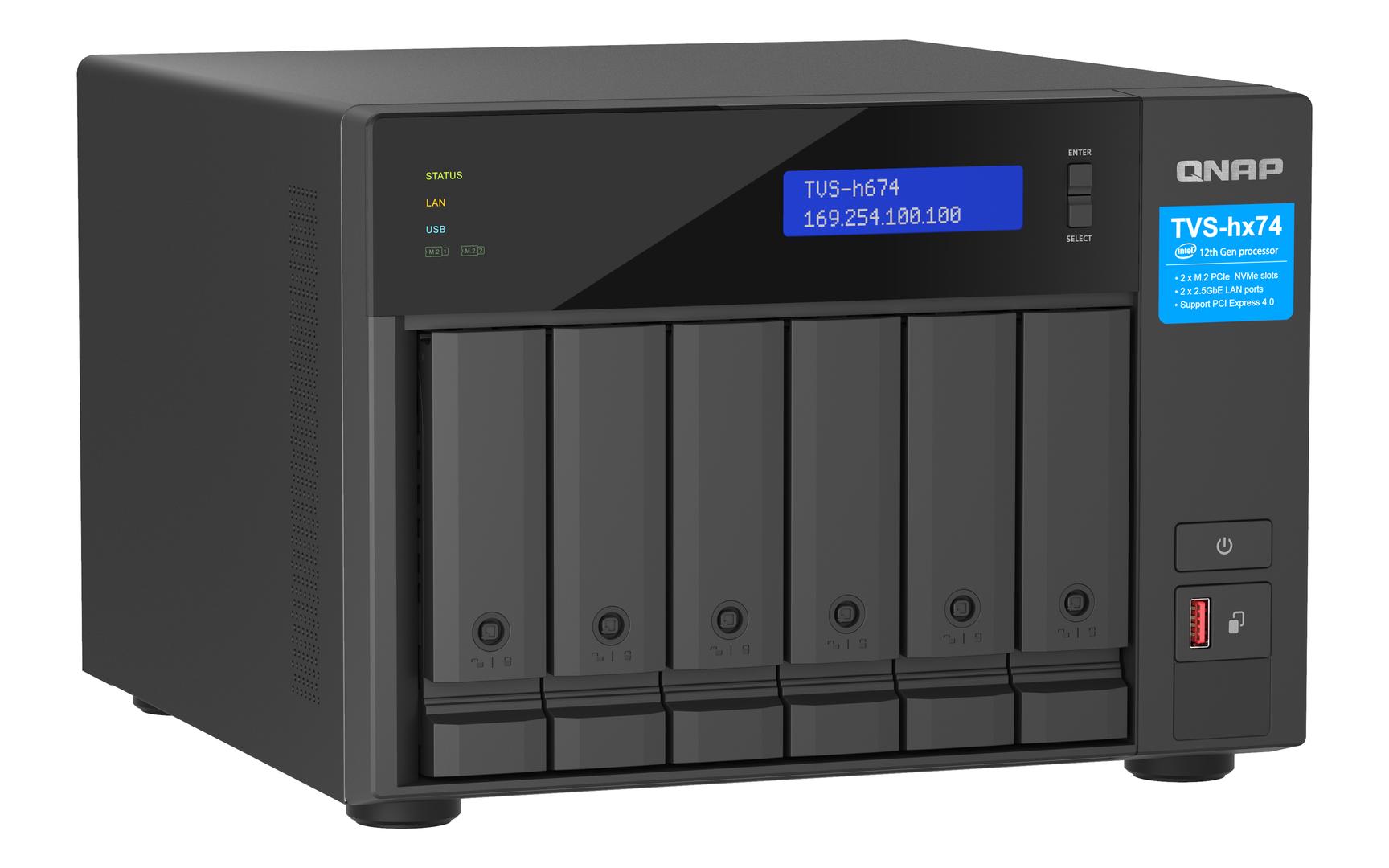

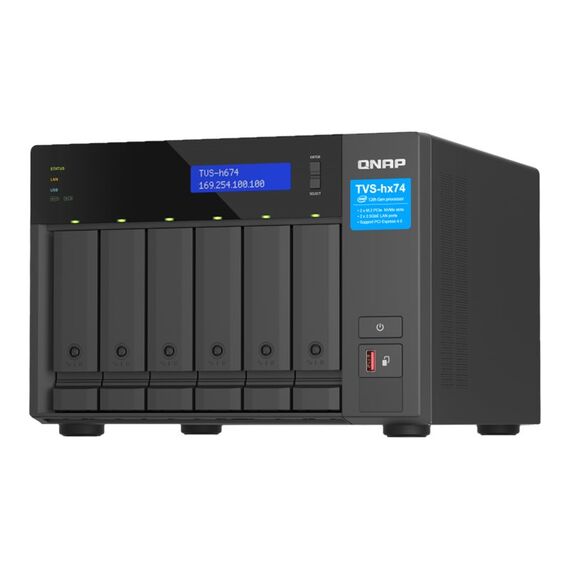

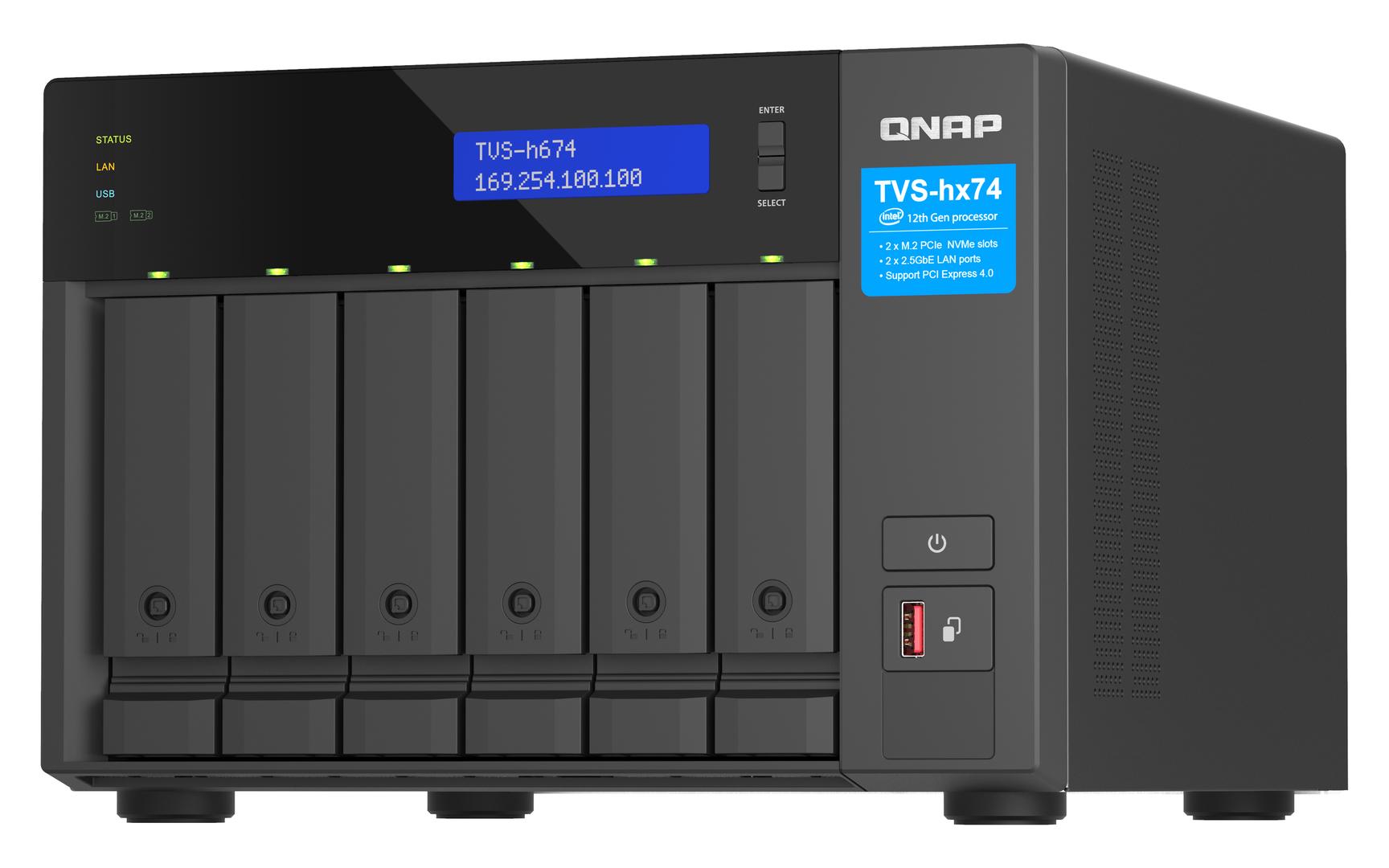

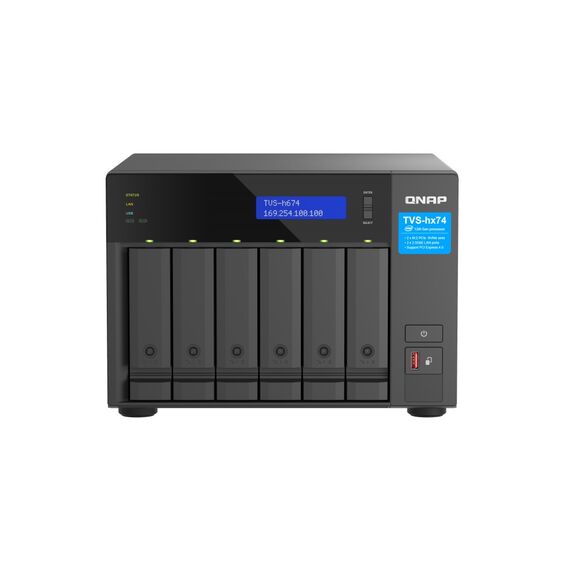

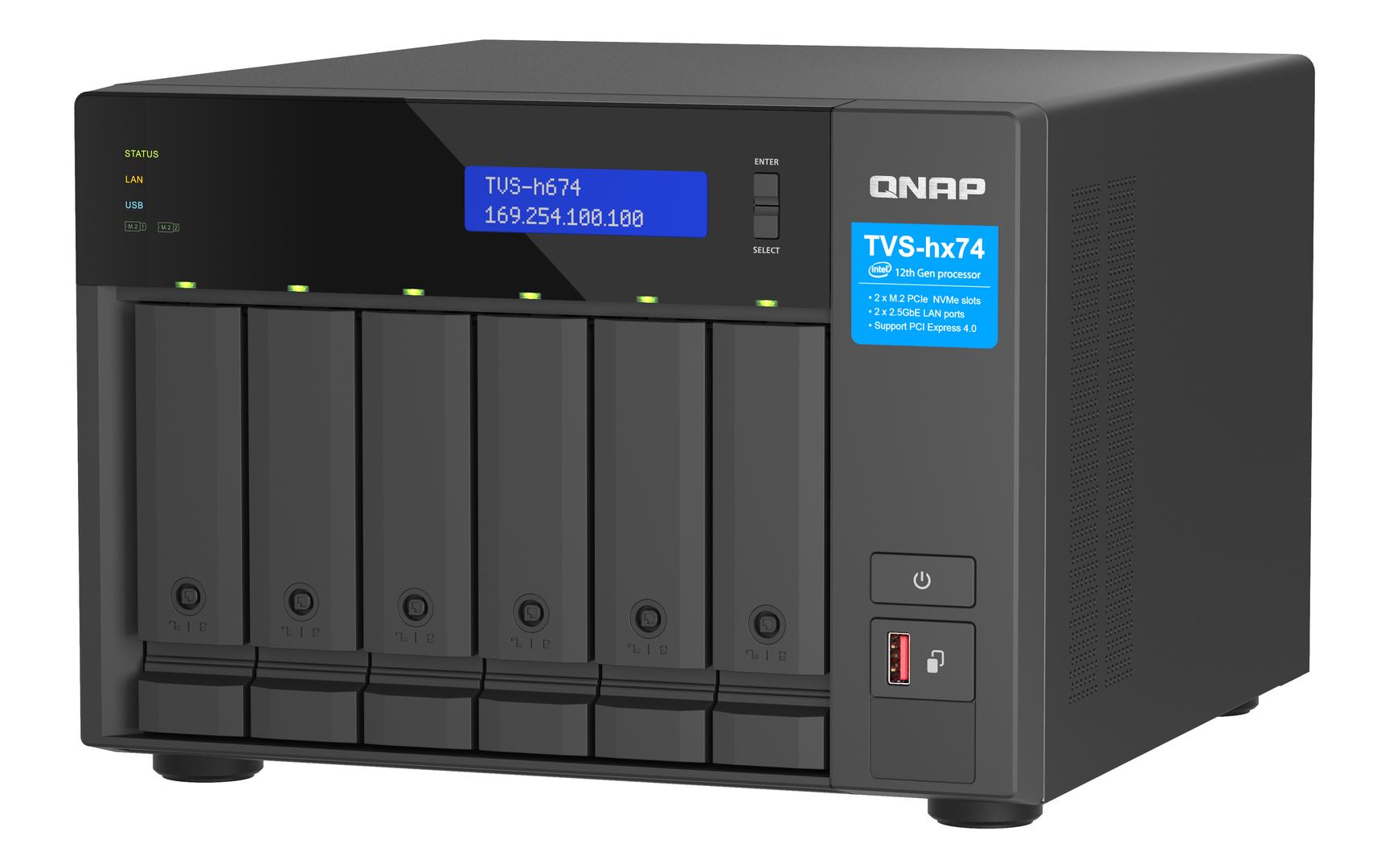

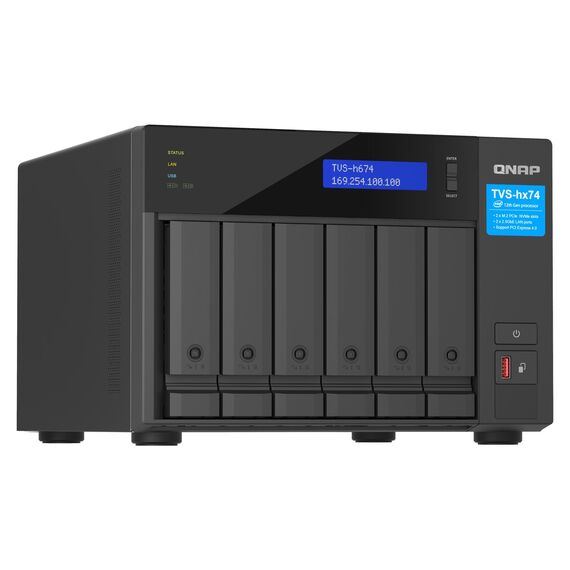

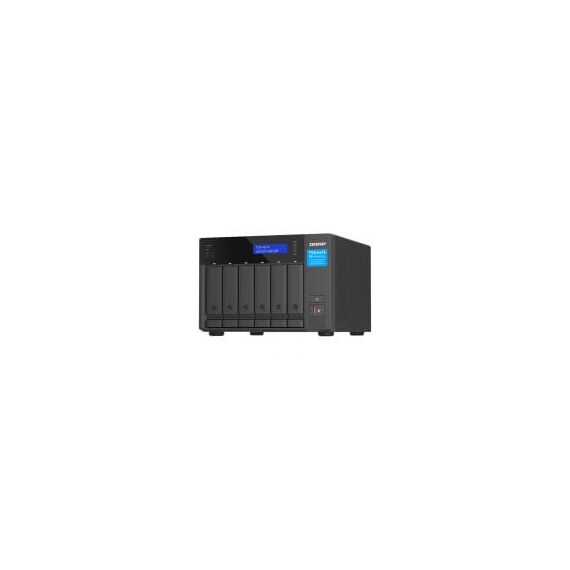

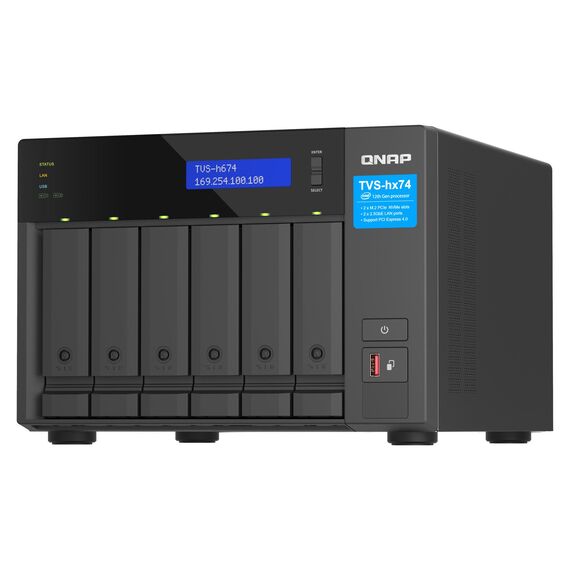

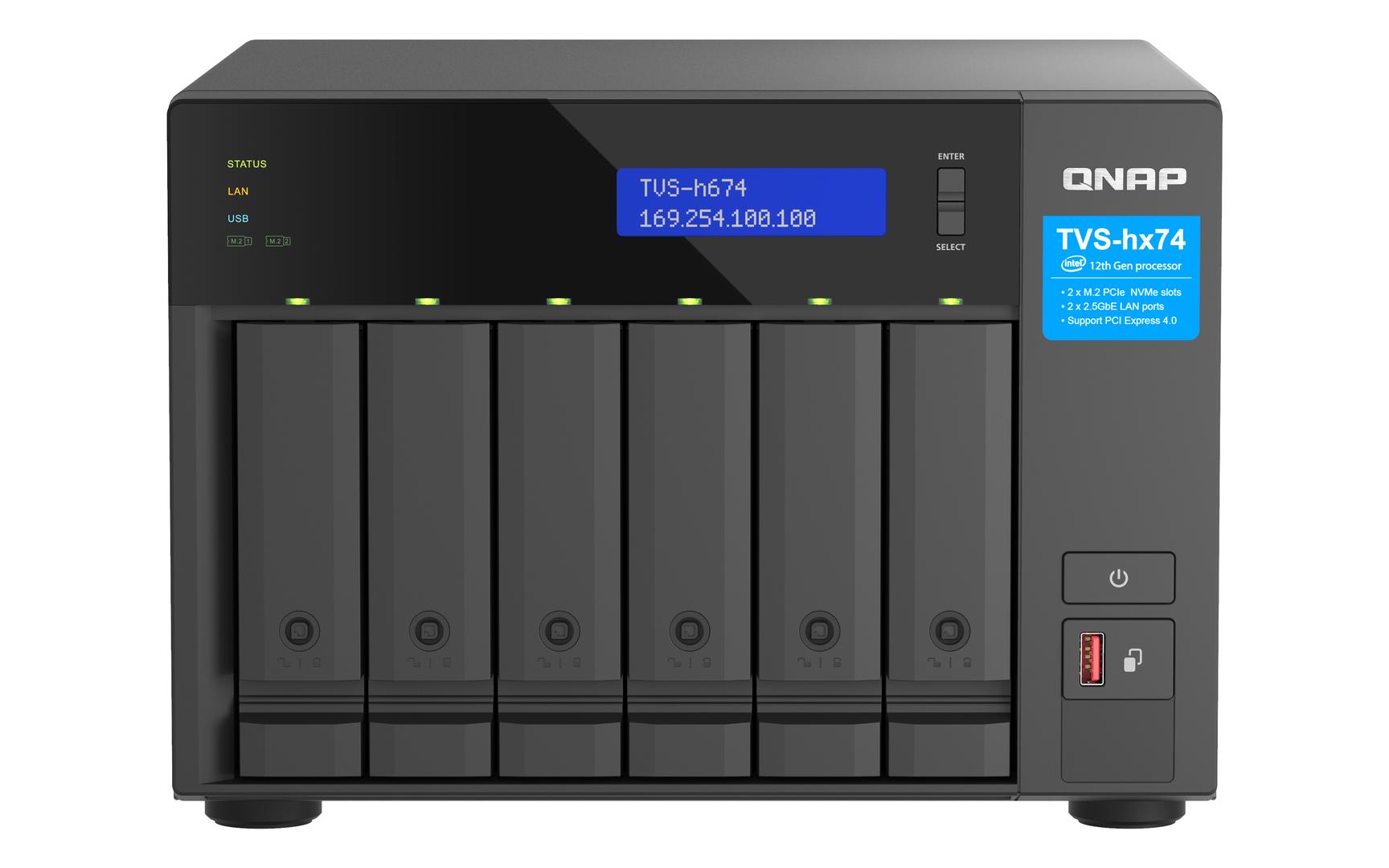

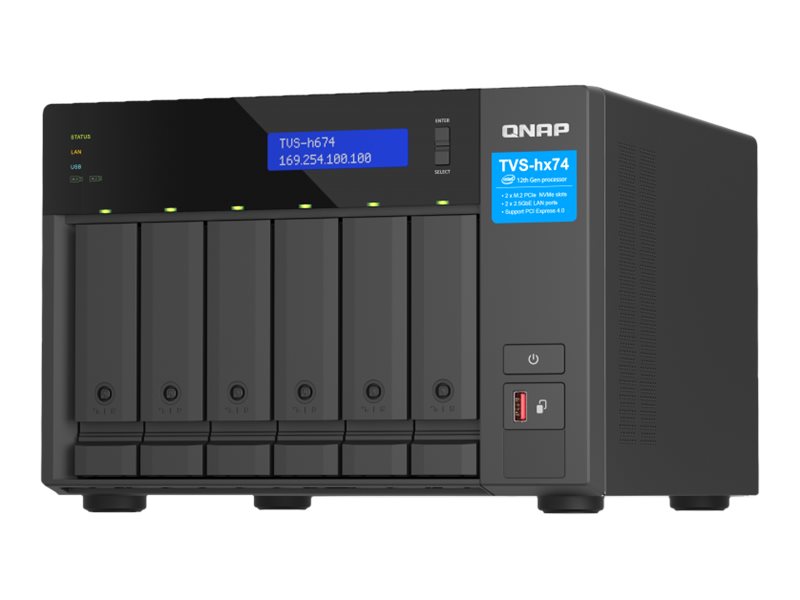

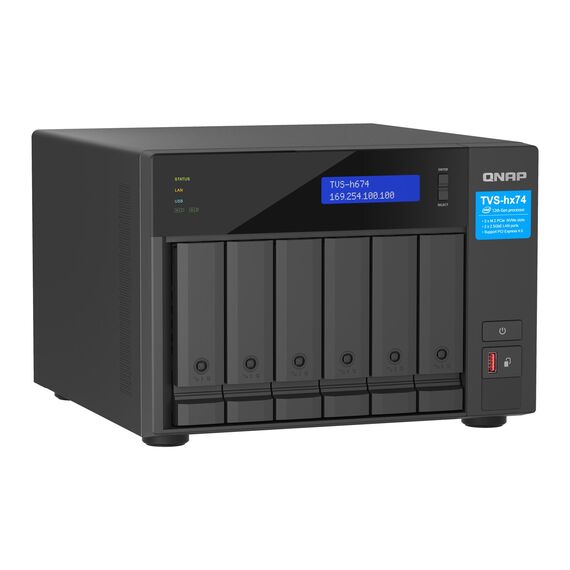

QNAP TVS-H674 - NAS server - 6 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, RAID TP, TM - RAM 32 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support | TVS-H674-I5-32G

TVS-h674-i5-32G
2,957.09
(3,518.94 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code04:417755 EAN Code4711103082386 ManufacturerQNAP

Product Features

  • High-performance Intel Core processor bursts up to 4.4 GHz
    The TVS-H674 adopts an Intel Core i5 six-core Processor or Intel Core i3 quad-core Processor with Intel UHD Graphics 730 to increase multi-tasking capabilities, offering SMBs a secure, reliable, and high-performance NAS solution.
  • Boost NAS performance with M.2 SSDs or TPU
    The TVS-H674 has two M.2 PCIe slots, enabling SSD caching or SSD storage pools for improved performance, or other applications.
  • Build a high-speed 2.5GbE network environment
    QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

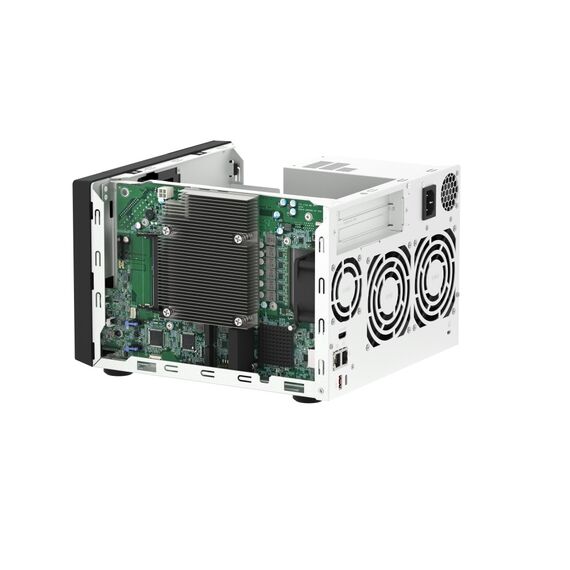

  • Abundant I/O capabilities with PCIe expansion
    The TVS-H674 has two PCIe slots that allow for installing various expansion cards for expanding application potential.
  • Comprehensive backup and disaster recovery solution
    The TVS-H674 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
  • Multi-version snapshots mitigate ransomware threats
    The TVS-H674 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
  • All-in-one solution for hosting virtual machines and containers
    By running multiple virtual machines and containers on the TVS-H674, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network and Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
  • Comprehensive security and privilege settings
    The TVS-H674 is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
  • The best file storage and collaboration center
    The TVS-H674 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files.
  • Flexible and economical storage expansion
    QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TVS-H674 storage as needed to accommodate data and business growth.
  • More productivity-boosting applications
    The TVS-H674 provides an App Center that includes feature-rich apps to expand your NAS potential!
  • Flexibly switch to QTS operating system
    The TVS-H674 also supports QTS - QNAP's standard NAS operating system - that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TVS-H674.

Special Fetures

  • High-performance Intel Core processor bursts up to 4.4 GHz
  • Boost NAS performance with M.2 SSDs or TPU
  • Build a high-speed 2.5GbE network environment
  • Abundant I/O capabilities with PCIe expansion
  • Comprehensive backup and disaster recovery solution
  • Multi-version snapshots mitigate ransomware threats
  • All-in-one solution for hosting virtual machines and containers
  • Comprehensive security and privilege settings
  • The best file storage and collaboration center
  • Flexible and economical storage expansion
  • More productivity-boosting applications
  • Flexibly switch to QTS operating system

Product Specification

Device TypeNAS server
Host ConnectivityGigabit Ethernet / 2.5 Gigabit Ethernet
Total Storage Capacity0 GB
Installed Devices / Modules Qty0 (installed) / 6 (max)
Width26.43 cm
Depth27.96 cm
Height18.82 cm
Weight6.553 kg ()
Built-in DevicesDisplay, 2 x 92 mm fan, 1 x 60 mm CPU fan
Processor / Memory
Processors Installed1 x Intel Core i5 12400 2.5 GHz
Number of Cores6-core
Max Supported Qty1
Max Turbo Speed4.4 GHz
RAM32 GB (installed) / 128 GB (supported) - DDR4
Flash Memory Installed5 GB
Storage Controller
TypeRAID
Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID TP, RAID TM
Networking
Data Link Protocol100Mb LAN, 1GbE, 2.5GbE
Network / Transport ProtocolPPTP, L2TP, IPSec, FTP, IPv4, IPv6, Telnet, TFTP, QBelt, OpenVPN
Remote Management ProtocolSNMP 2, SNMP 3, RADIUS
Network Services CompatibilityMicrosoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, SFTP
PerformanceMaximum LUN size: 1024 TB ¦ Maximum number of targets LUN: 256 ¦ Maximum shared folder size: 1024 TB ¦ Maximum number of shared folder: 256 ¦ Maximum pool size: 1024 TB ¦ Maximum number of storage pool: 128 ¦ Minimum snapshot interval: 1 minute ¦ Maximum FTP connection: 1024 ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64
FeaturesVLAN support, wake on LAN (WOL), SSH support, Jumbo Frames support, DHCP server, FTP server, Domain Controller, system log, built-in hardware transcoding, file station, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, WORM (Write Once Read Many protection), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, Shared Folder Snapshot, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, External Device Management, Mount Smart Phone (MTP), Object Storage, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, block-based iSCSI LUN, LUN snapshot, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, SSD Cache RAID, GPU pass-through, Secure Erase, QVPN Service, End-to-End Data Integrity, silent error detection and self-healing, Snapshot Instant Clone, SSD read & write log cache, SSD dedicated ZIL cache, External RAID Device Management, Shared Folder Data Compression, Shared Folder WORM, user quota, DDNS (Dynamic Domain Name Service)
Encryption AlgorithmTLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Expansion / Connectivity
Expansion Bays6 (total) / 6 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x16 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x4

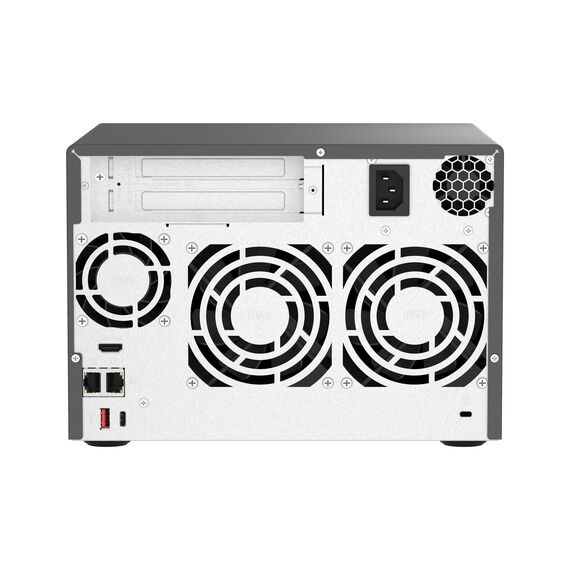

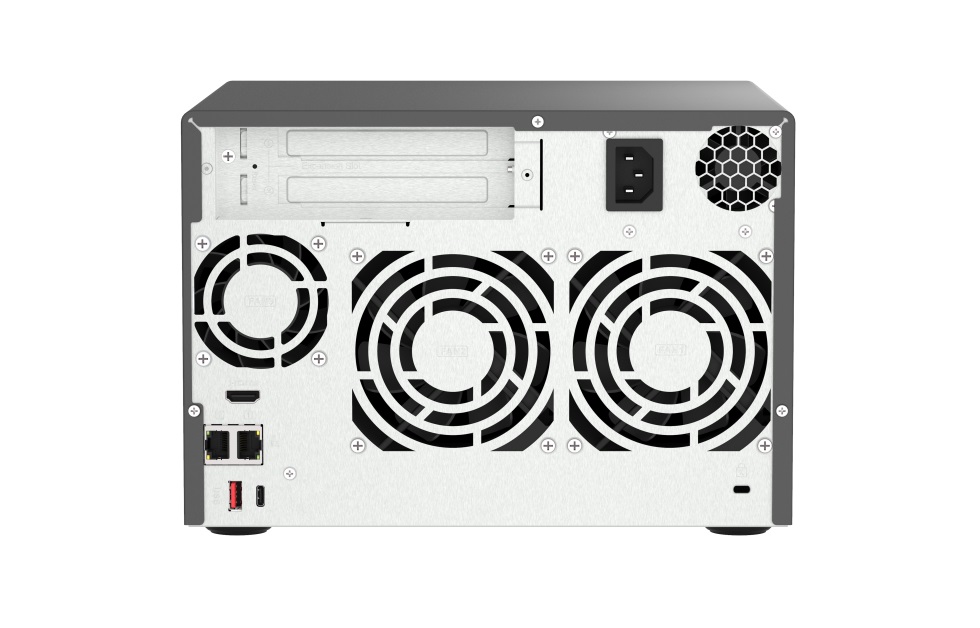

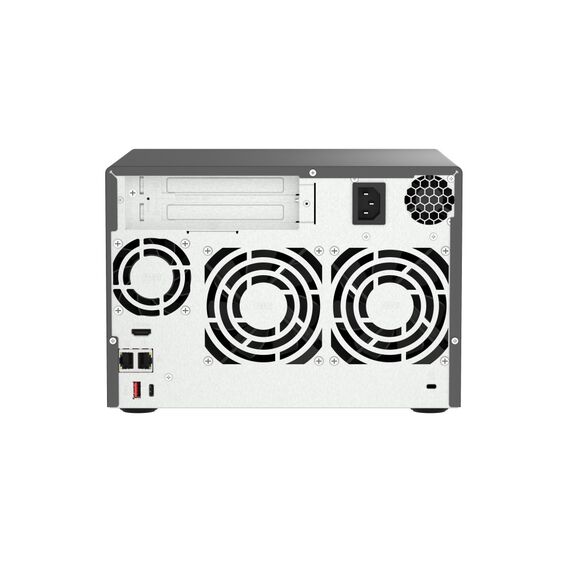

Interfaces2 x USB 3.2 Gen 2 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output
Miscellaneous
Cables Included1 x network cable
FeaturesSecurity lock slot (cable lock sold separately)
Security Slot TypeKensington security slot
Included Accessories2 x M.2 SSD heatsink, 24 x flat head screws (for 3.5" HDD), 18 x flat head screws (for 2.5" HDD), 2 x drive tray keys
Power
Power DeviceInternal power supply
Installed Qty1
Voltage RequiredAC 100-240 V
Power Consumption Operational79.363 Watt
Power Provided250 Watt
Software / System Requirements
Storage Operating SystemQNAP QuTS hero h5.0.0
OS RequiredMicrosoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight8.07 kg
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating5 - 95% (non-condensing)
