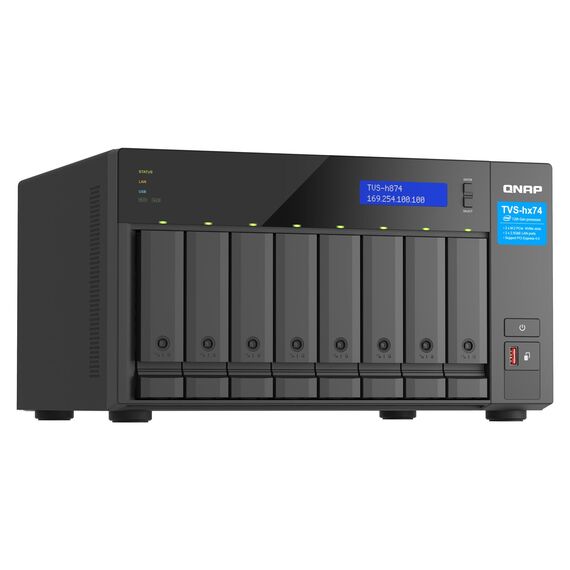

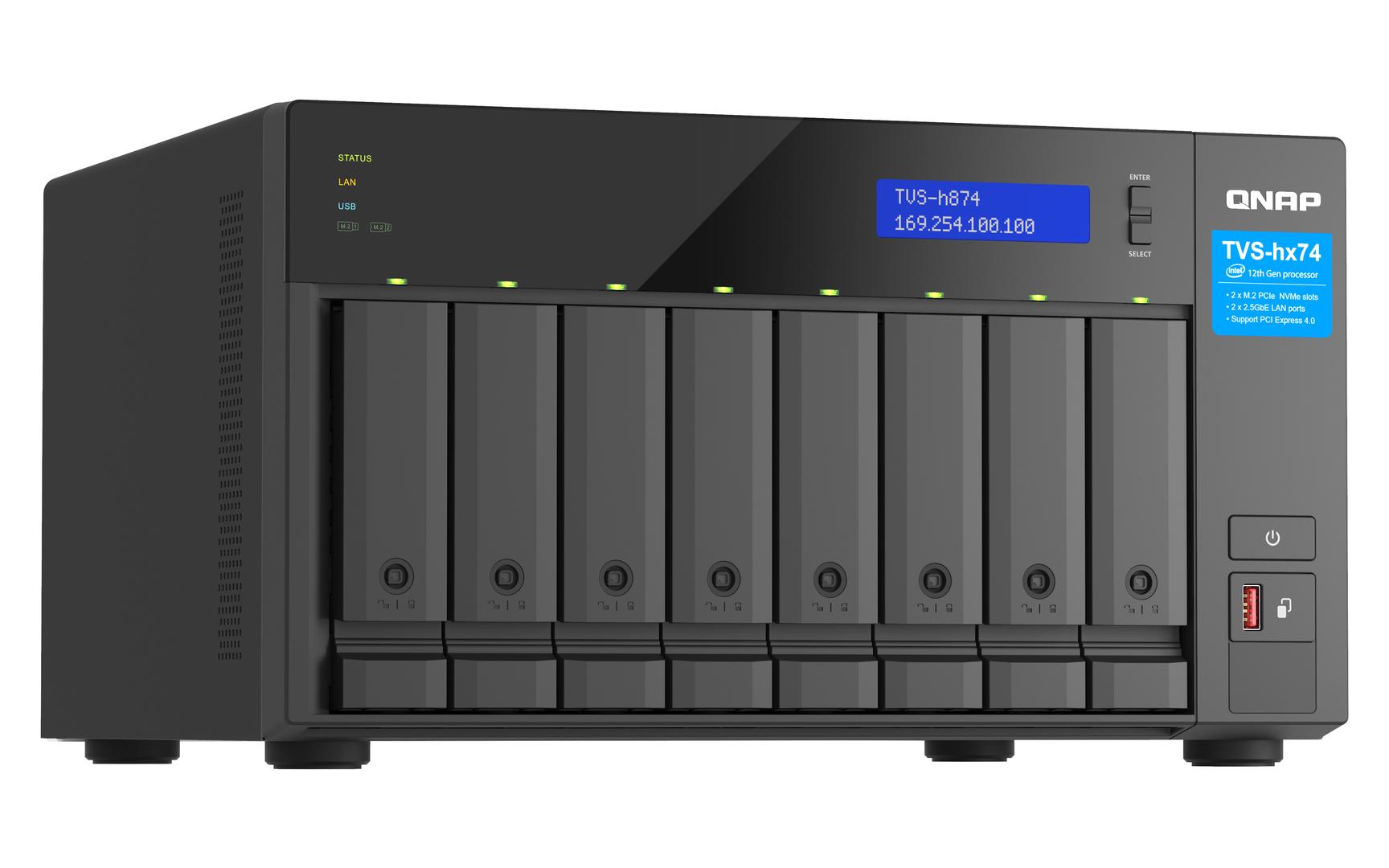

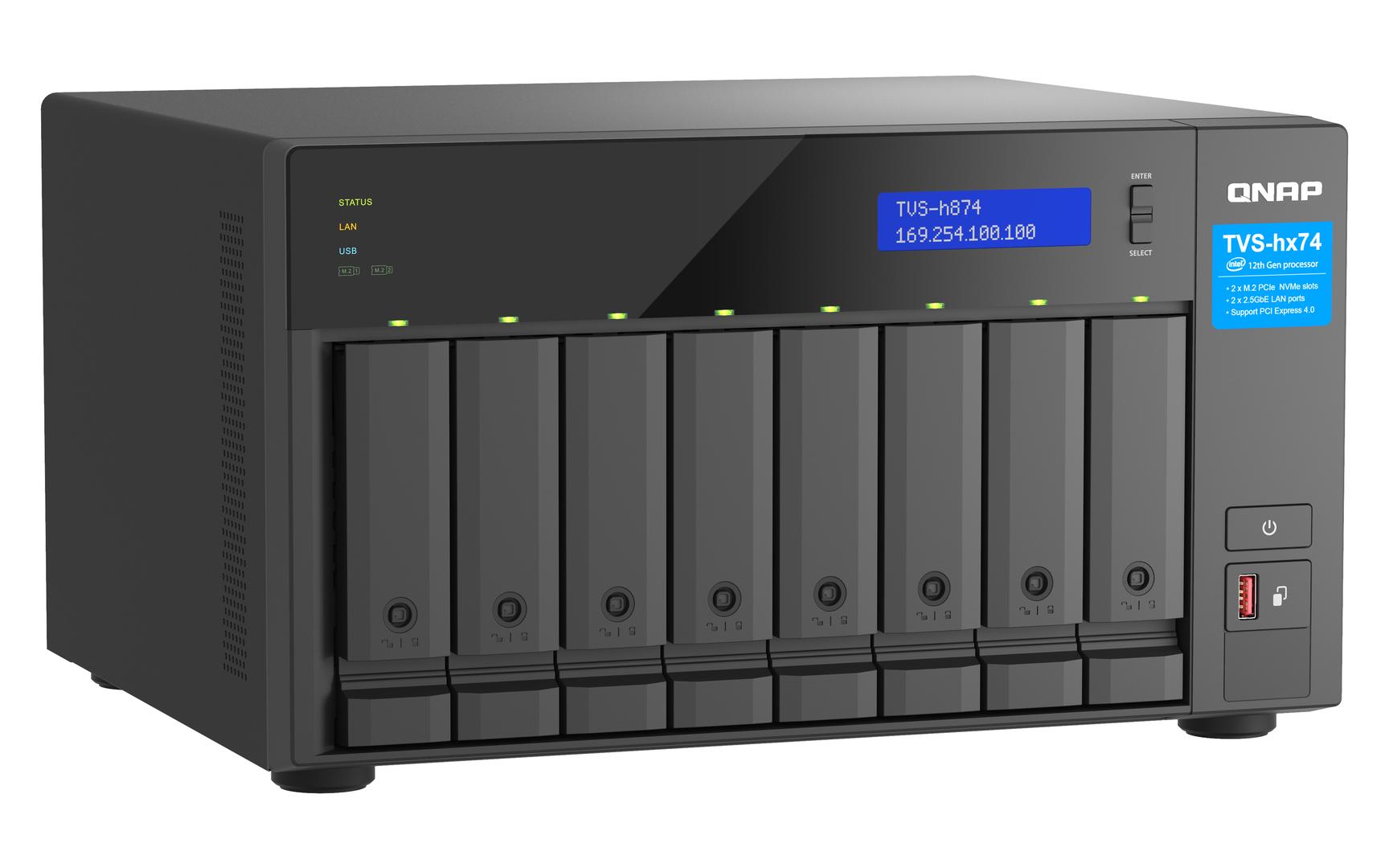

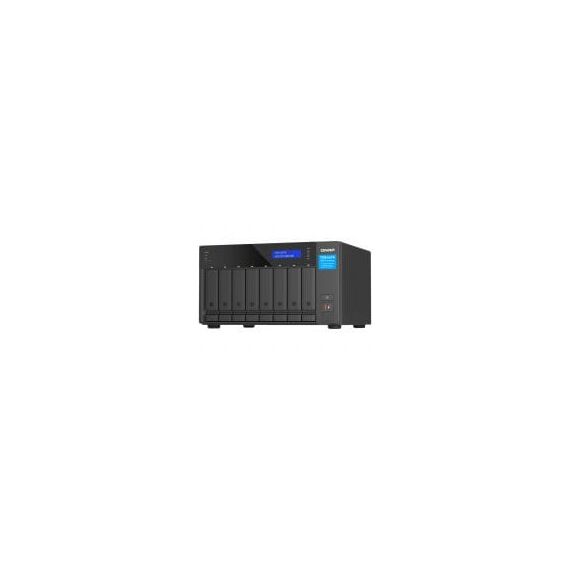

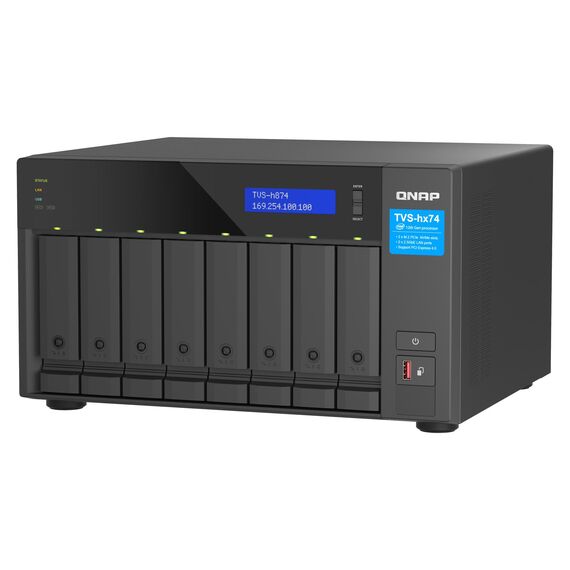

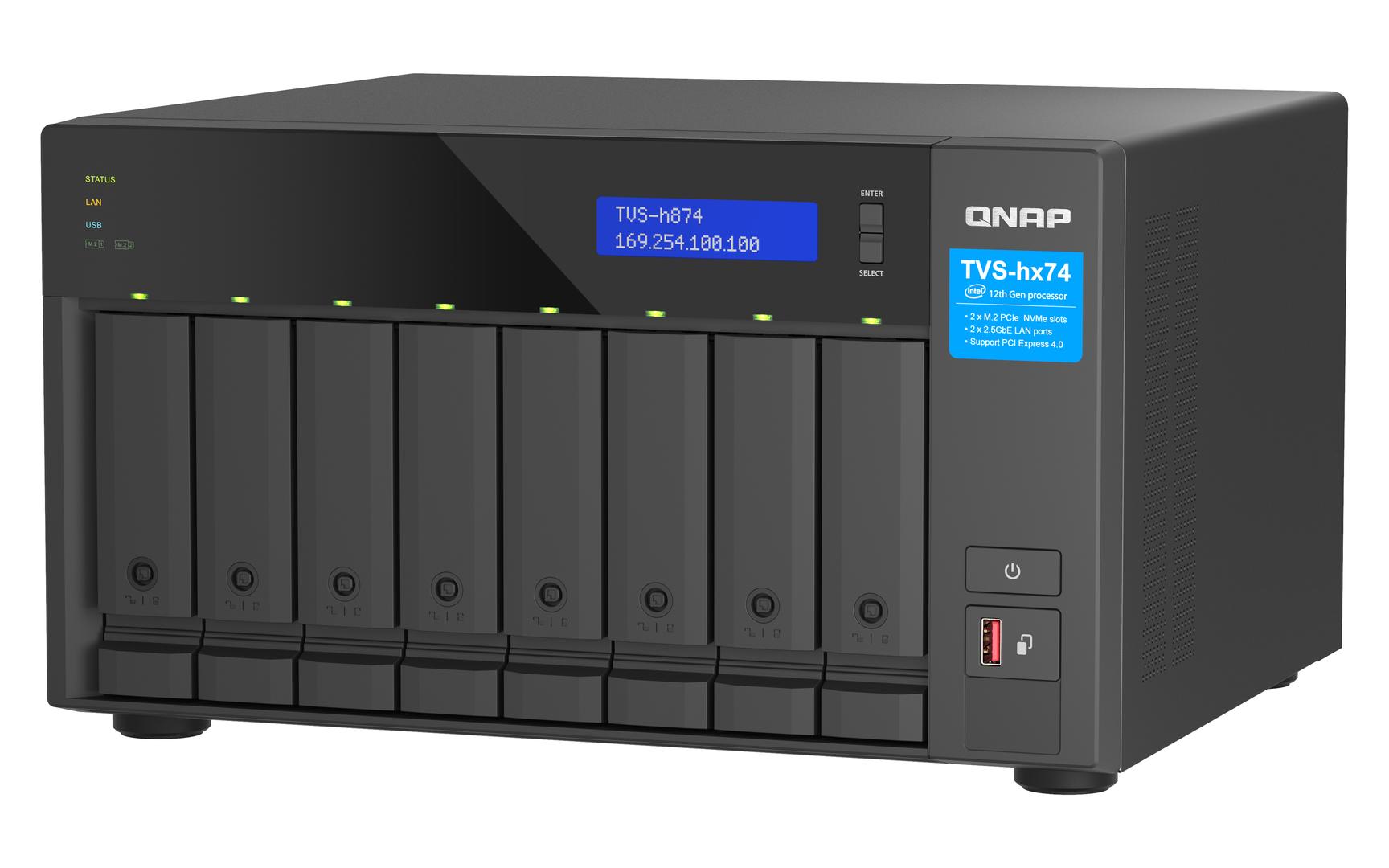

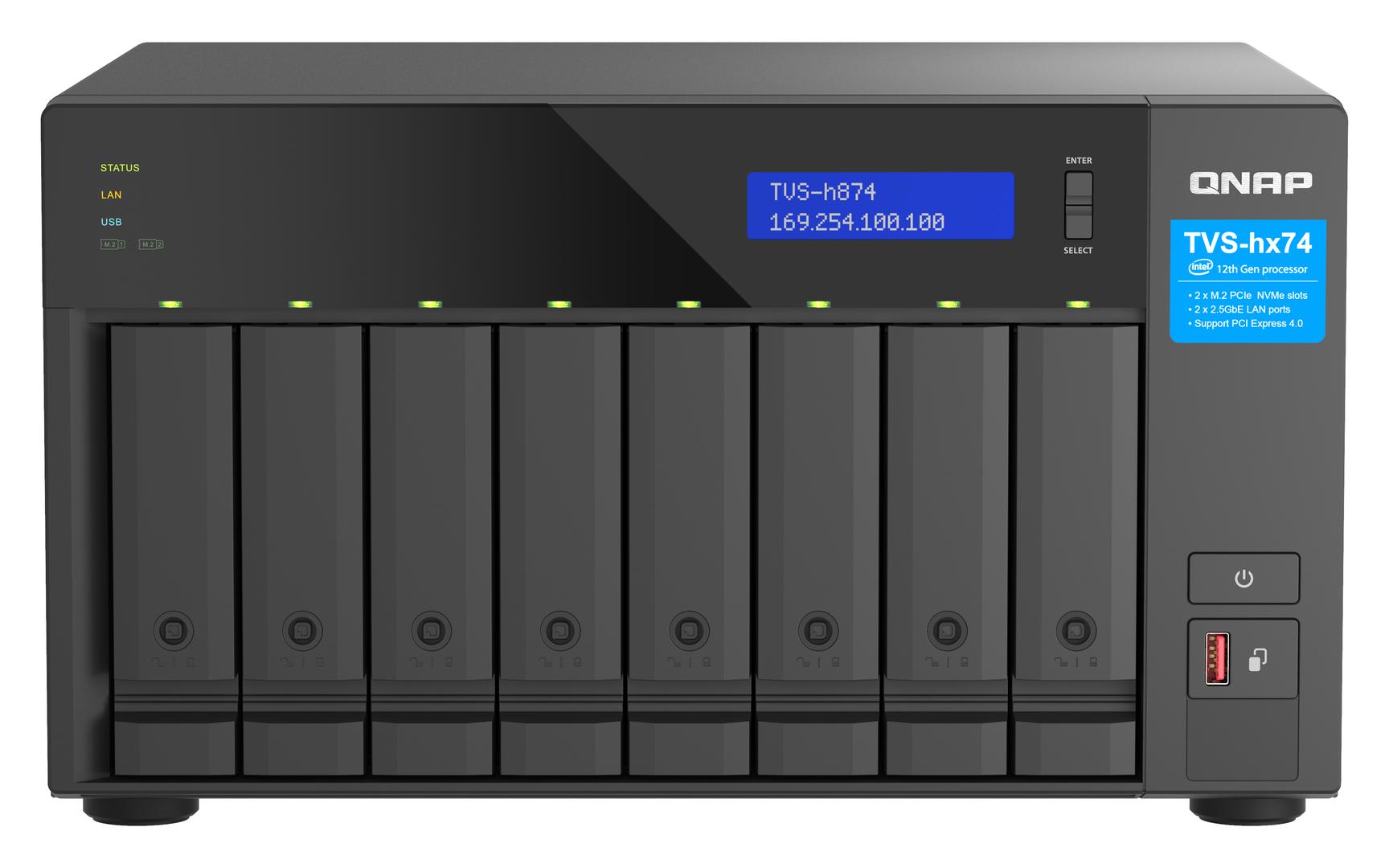

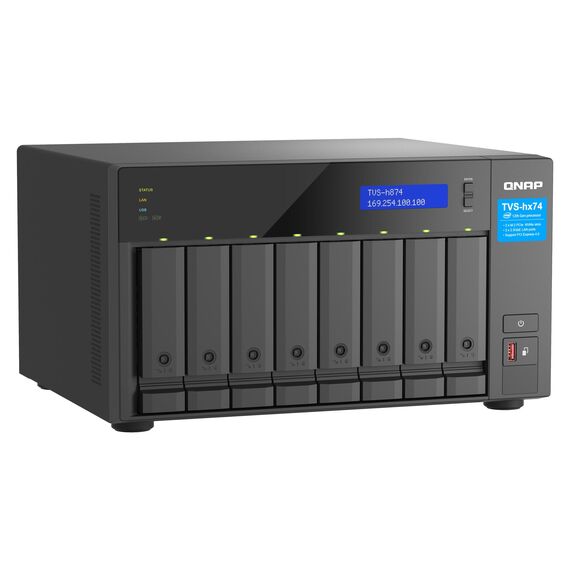

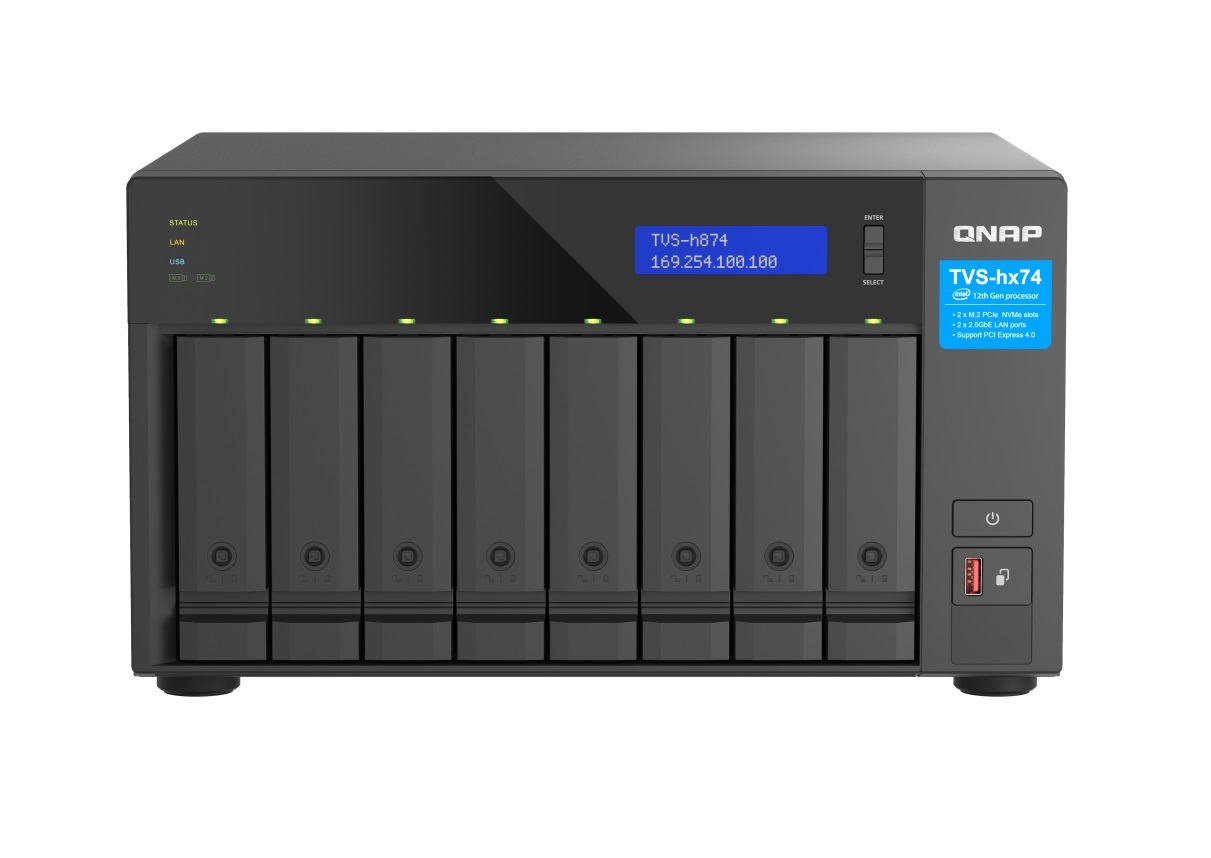

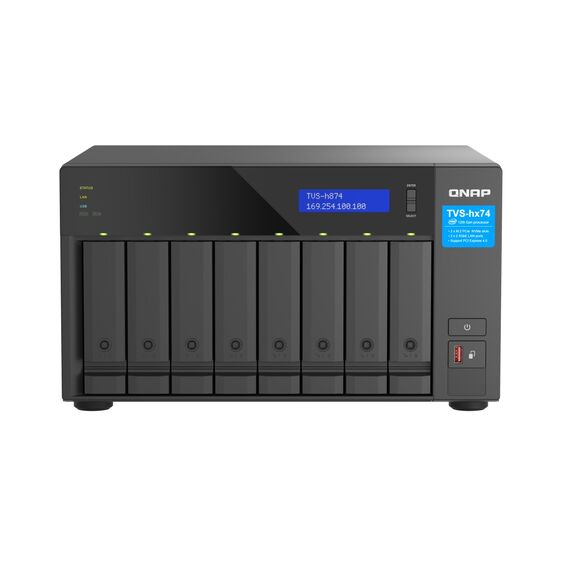

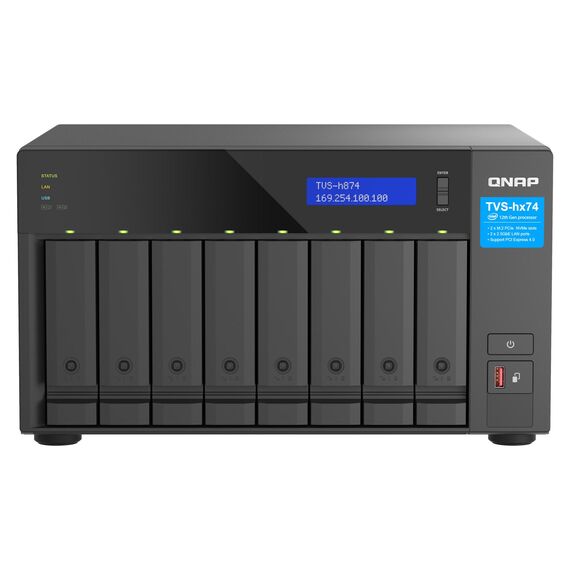

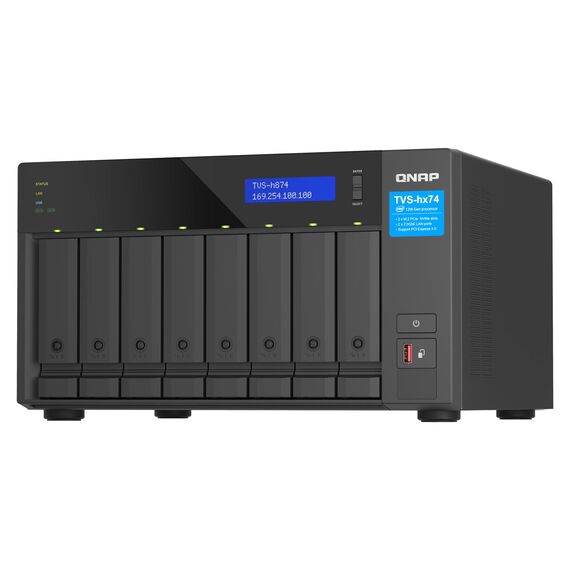

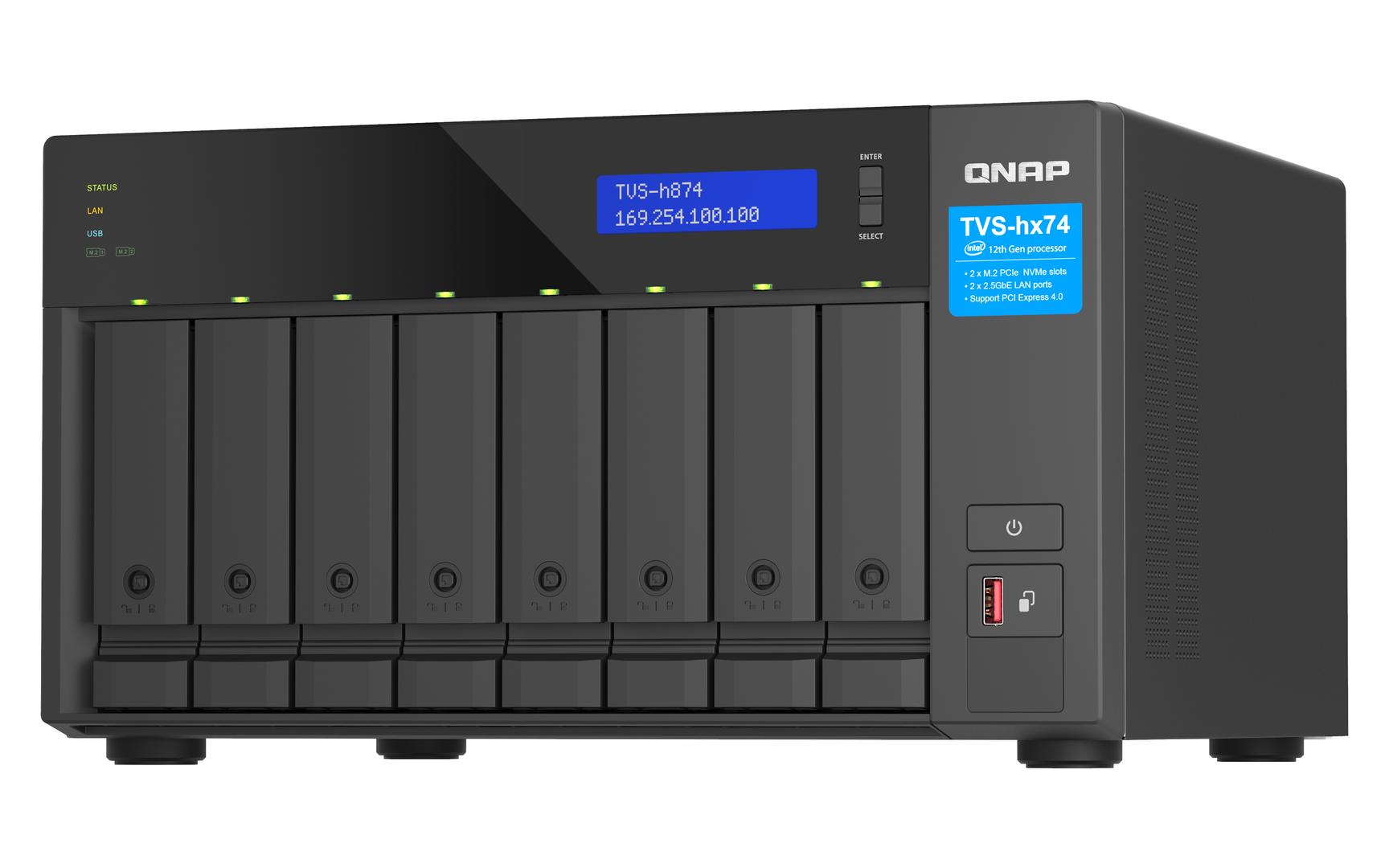

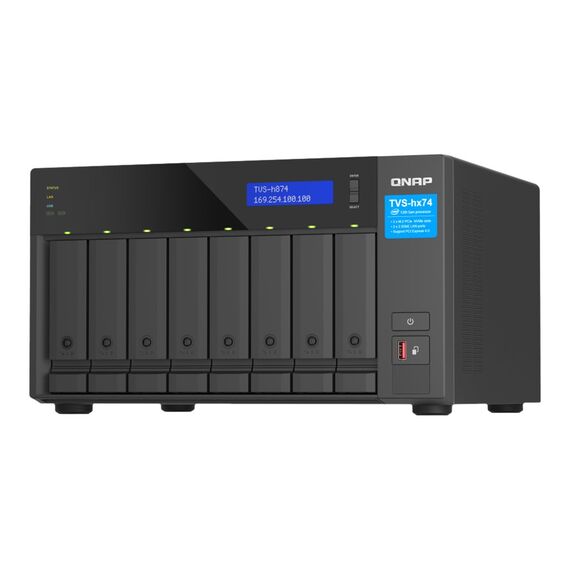

QNAP TVS-H874 - NAS server - 8 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP, TM - RAM 32 GB - 2.5 Gigabit Ethernet - iSCSI support | TVS-H874-I7-32G
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 32.9 cm |
| Depth | 28.1 cm |
| Height | 18.8 cm |
| Weight | 7.14 kg () |
| Built-in Devices | Status LCD |
| Processor / Memory | |
| Processors Installed | 1 x Intel Core i7 |
| Number of Cores | 12-core |
| Max Supported Qty | 1 |
| RAM | 32 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP, RAID TM |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, FTP, IPv4, IPv6, Telnet, TFTP, QBelt, QuFTP, OpenVPN |
| Remote Management Protocol | SNMP 2, SNMP 3, RADIUS |
| Network Services Compatibility | Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 3500 - (with maximum memory) |
| Features | Firewall protection, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, file station, port trunking, EXT4 file system, SSD trim, FXP support, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, SSD Cache RAID, GPU pass-through |
| Encryption Algorithm | TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 0 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x16 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x4 |

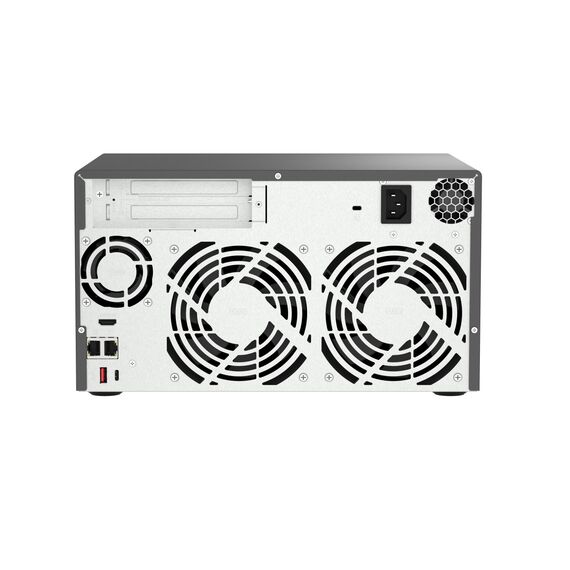

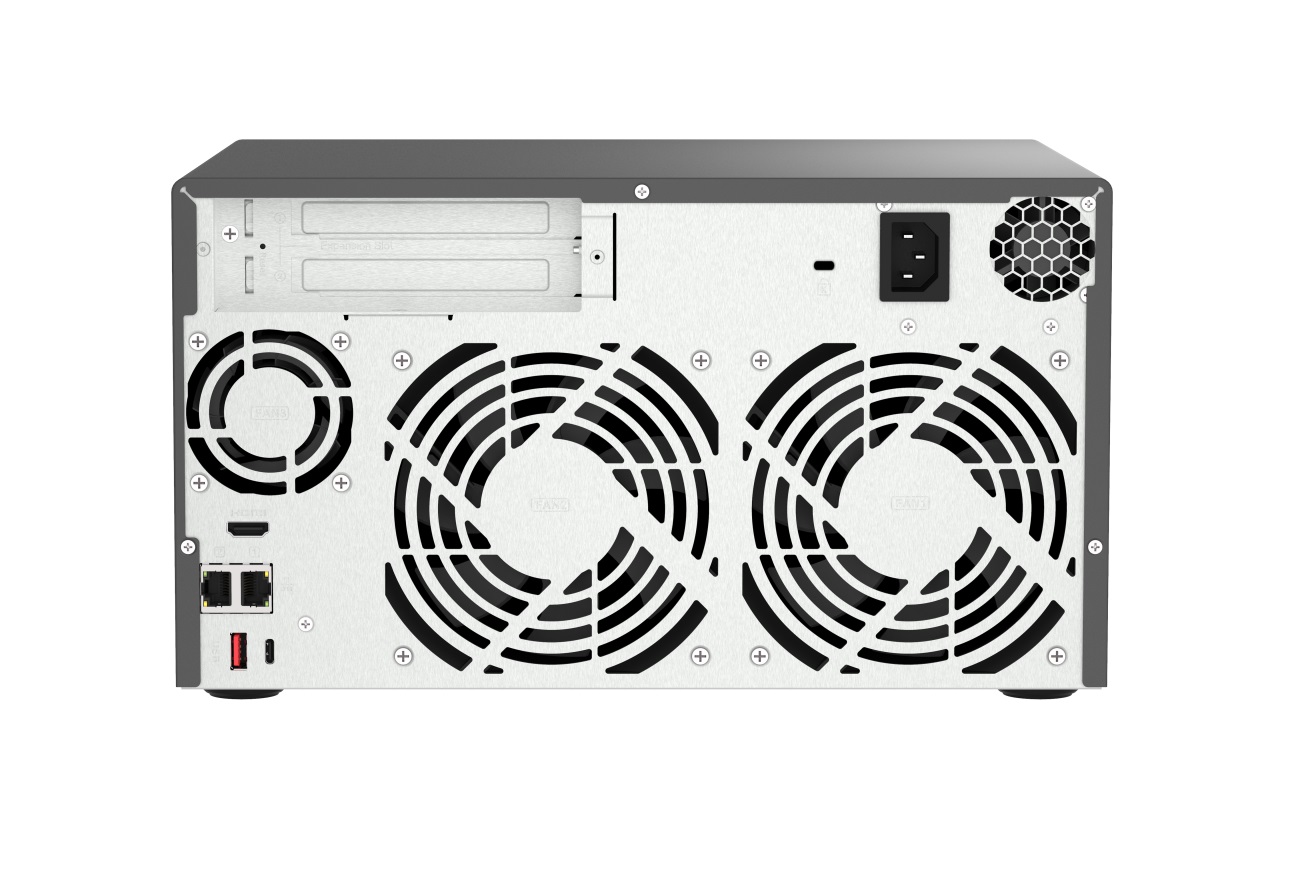

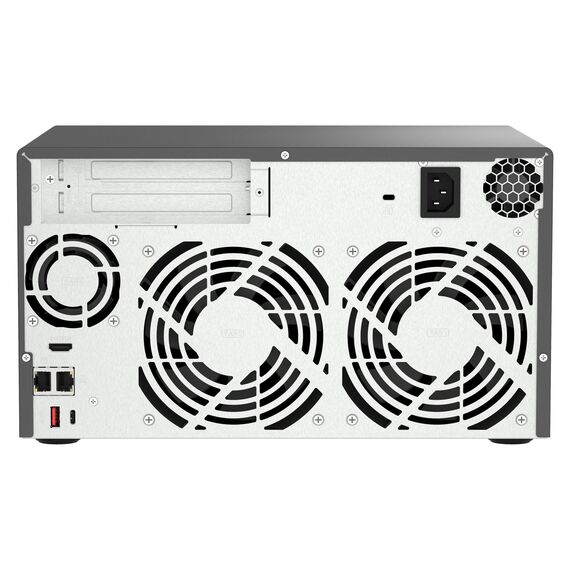

| Interfaces | 2 x USB 3.2 Gen 2 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately), reset button, Secure Erase, dual boot, alarm buzzer, built-in cooling fans, USB copy button |
| Security Slot Type | Kensington security slot |
| Included Accessories | 2 x M.2 SSD heatsink, 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), power cable, 2 x drive tray keys |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 98.959 Watt (with drives fully populated) |
| Power Consumption Stand by | 81.798 Watt |
| Power Provided | 350 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero h5.0.1 / QTS 5.0.1 |
| Software Included | McAfee, IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.95 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TVS-h874-i7-32G
More Details
Product Code
04:424612
EAN Code
4711103082409
Manufacturer
QNAP
