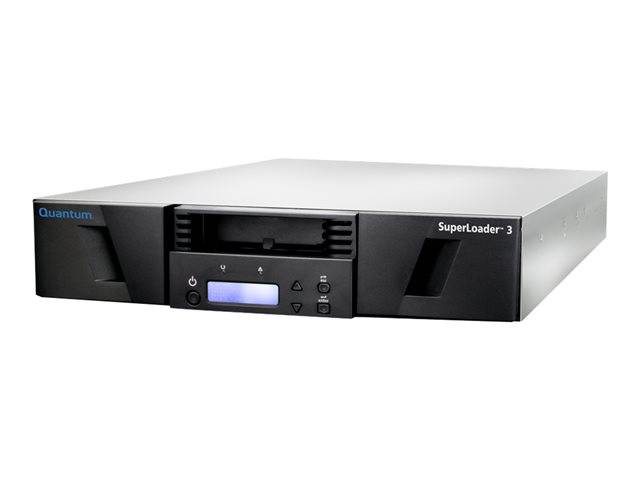

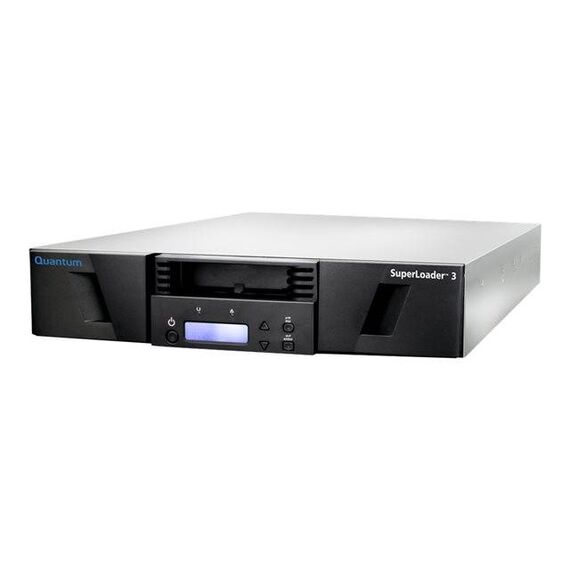

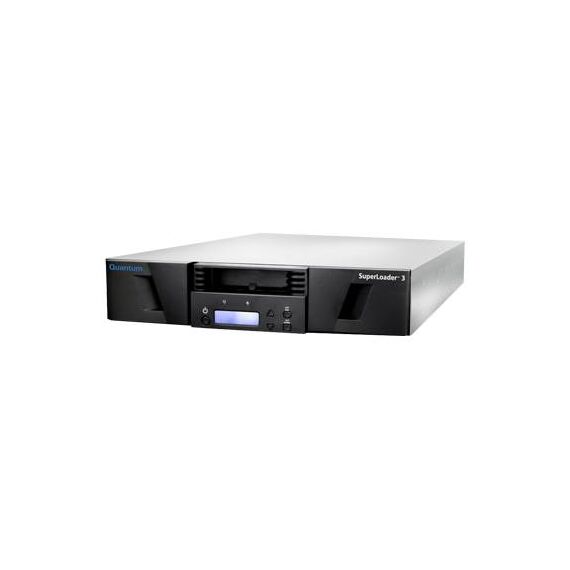

Quantum SuperLoader 3 with (Model C) drive(s) / Tape autoloader / 48 TB / 120 TB / slots: 8 / LTO Ultrium (6 TB / 15 TB) / Ultrium 7 / SAS-2 / rack-mountable / 2U / barcode reader, with 1 mail slot | E7-LLYAE-YE
Quantum SuperLoader 3 with (Model C) drive(s) / Tape autoloader / 48 TB / 120 TB / slots: 8 / LTO Ultrium (6 TB / 15 TB) / Ultrium 7 / SAS-2 / rack-mountable / 2U / barcode reader, with 1 mail slot | E7-LLYAE-YE
Description
Designed for simple and reliable backups, the SuperLoader 3 offers an exclusive package of advanced features including StorageCare Guardian, remote management, and barcode reader - all at no additional cost. It also gives you the widest range of drive options in the industry to support data requirements up to 100TB - with the flexibility to expand as your storage needs grow.The SuperLoader 3 brings you a full suite of advanced features at an affordable price with easy integration, an intuitive user interface, and compatibility with a broad range of backup software packages. And because you can easily expand from 8 to 16 cartridge slots, your investment is protected as your needs grow. In addition, the SuperLoader 3 packs up to 40TB of native capacity and 100TB of compressed data into a 2U rackmount form factor.
Quantum SuperLoader 3 with (Model C) drive(s) / Tape autoloader | E7-LLYAE-YE
Special Features
- Complete Solution with StorageCare Guardian - a remote monitoring and diagnostics tool that proactively monitors your SuperLoader 3 over the Internet and uses intelligent diagnostics to remotely service the unit if necessary
- Compatible with all major backup software packages, environments, and infrastructures
- The only autoloader that supports 16 cartridges in a 2U rackmount unit
- Access from any web-based browser for remote diagnostics, operations, software upgrades and maintenance
- Removable magazine(s) provide fast, easy cartridge access
- Up to 100TB capacity
- Up to 1.4TB/hr transfer rate
- Scalable from 8 to 16 cartridge slots
- 2U rackmountable form factor
- "Backup Ready" solution
- State-of-the-art performance and energy efficiency
Product Specification
| Device Type | Tape autoloader - LTO Ultrium |
| Recording Standard | LTO Ultrium 7 |
| Enclosure Type | Rack-mountable - 2U |
| Interface Type | SAS-2 |
| Total Storage Capacity | 48 TB (native) / 120 TB (compressed) |
| Removable Media Capacity | 8 |
| Supported Tape Drives | LTO Ultrium 7 |
| Key Features | Barcode reader, with 1 mail slot |
| Built-in Devices | Display, remote management adapter |
| Width | 42.42 cm |
| Depth | 69.85 cm |
| Height | 8.66 cm |
| Weight | 14.06 kg |
| Localisation | EMEA |
| Type | LTO Ultrium |
| Capacity | 6 TB (native) / 15 TB (compressed) |
| Supported Tape Cartridges (Read and Write) | Ultrium 6, Ultrium 7 |
| Recording Standard | Ultrium 6, Ultrium 7 |
| Data Transfer Rate (native) | 300 MBps (1.08 TBph) |
| Data Transfer Rate (compressed) | 750 MBps (2.7 TBph) |
| Interfaces | 1 x SAS 6Gb/s - 26 pin 4x Mini SAS (SFF-8088) ¦ 1 x Ethernet 100Base-TX (management) - RJ-45 |
| Included Accessories | 5 barcode labels for cleaning cartridges, 30 barcode labels |
| Cables Included | 1 x SAS cable - 2 m ¦ 1 x network cable - 3.1 m |
| Rack Mounting Kit | Included |
| MSBF | 1,500,000 |
| Compliant Standards | CSA, UL, VCCI, C-Tick, BSMI CNS 13438 Class A, EN 60950, EN55022, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 3548, FCC, EMI, VCCI Class B, FCC CFR47 Part 15 B Class B |
| Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software Included | Deduplication |
| Type | Limited warranty - parts - 3 years - shipment - response time: 2 business days ¦ Technical support - phone consulting - 3 years - availability: 9 hours a day / Monday-Friday |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
