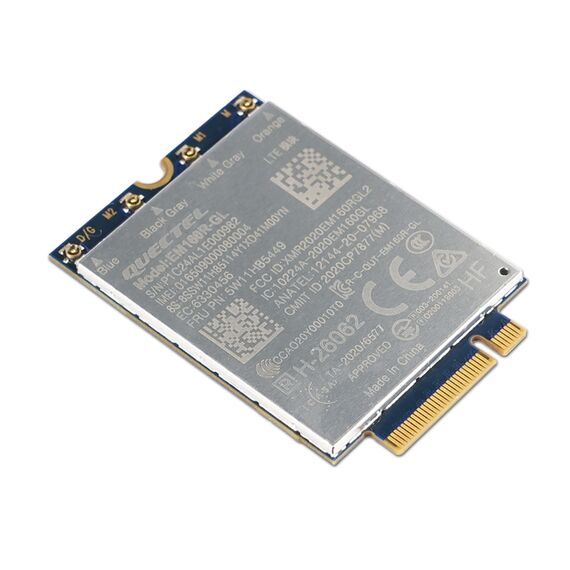

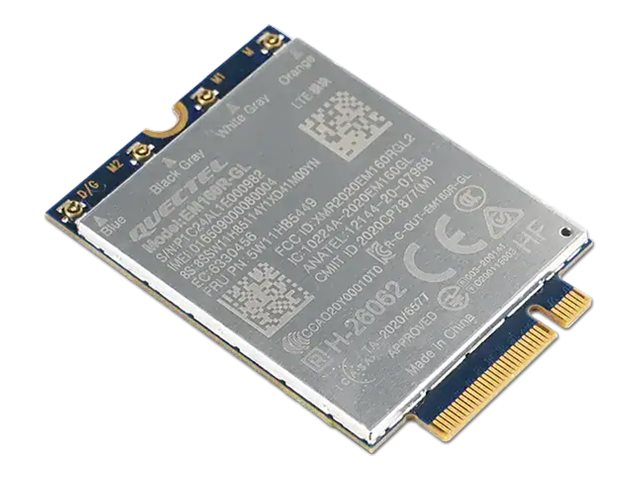

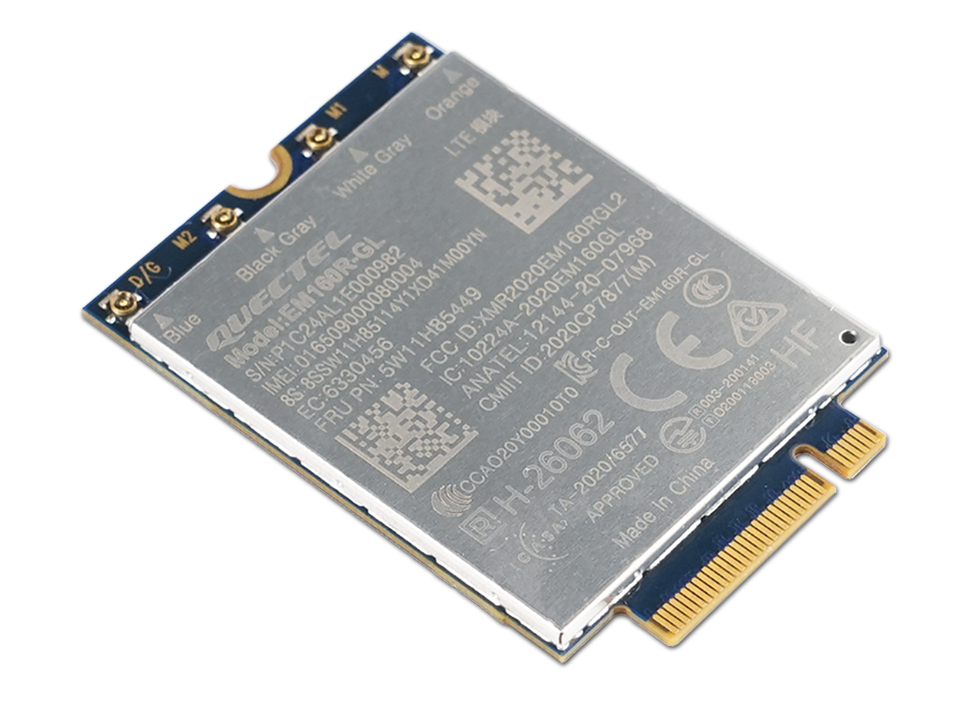

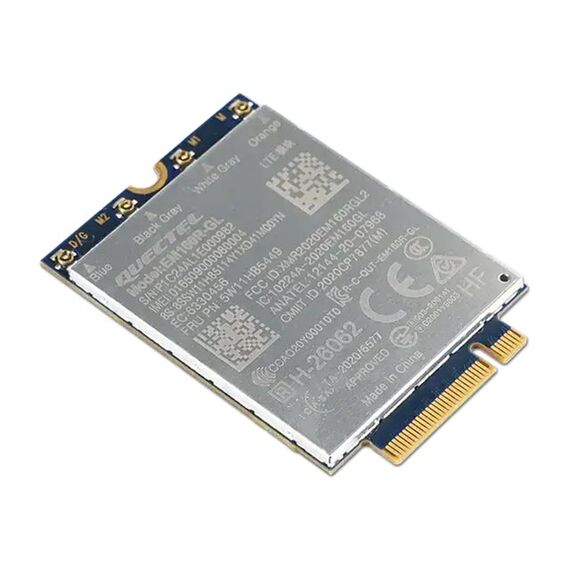

ThinkPadQuectel EM160R-GL / Wireless cellular modem / 4G LTE Advanced / M.2 Card | 4XC1Q24437
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
The Lenovo Quectel EM160R-GL is equipped with LTE Advanced, offering faster data rates and improved efficiency for high-speed communication. This feature ensures reliable and swift Internet connectivity, making it ideal for applications requiring robust mobile broadband. - Versatile compatibility
Designed with an M.2 card form factor and supporting a wide range of cellular protocols including FDD LTE, TDD LTE, and WCDMA, this wireless cellular modem is built for seamless integration into various devices. Its compatibility with multiple standards like CCC, FCC, GCF, and PTCRB ensures adherence to global regulatory requirements.
Special Features
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
Product Specification
| Device Type | Wireless cellular modem |
| Form Factor | Internal |
| Built-in Devices | GNSS receiver |
| Modem | Modem |
| Bus | M.2 Card |
| Connectivity Technology | Wireless |
| Mobile Communication Protocol | FDD LTE, TDD LTE, WCDMA, LTE CAT16 |
| Networking | Networking |
| Features | eSIM support |
| Miscellaneous | Miscellaneous |
| Compliant Standards | NCC, ANATEL, SRRC, NAL, CCC, FCC, IC, RCM, PTCRB, GCF, KC, JATE, TELEC, NBTC, IMDA, ICASA |
| Software / System Requirements | Software / System Requirements |
| OS Required | Windows 10, Windows 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.2 cm |
| Depth | 3 cm |
| Height | 0.23 cm |
| Weight | 6.8 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 5.3 cm |
| Shipping Depth | 14.4 cm |
| Shipping Height | 17.7 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% |
Features - Lenovo - 4XC1Q24437
More Details
Product Code
CK91274
EAN Code
0195892105817
