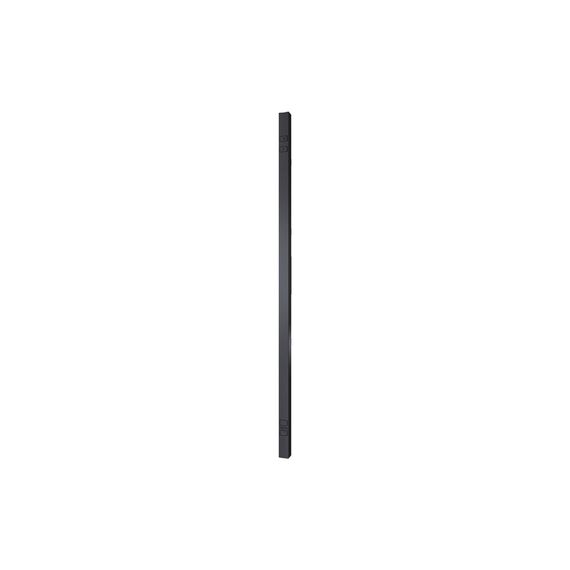

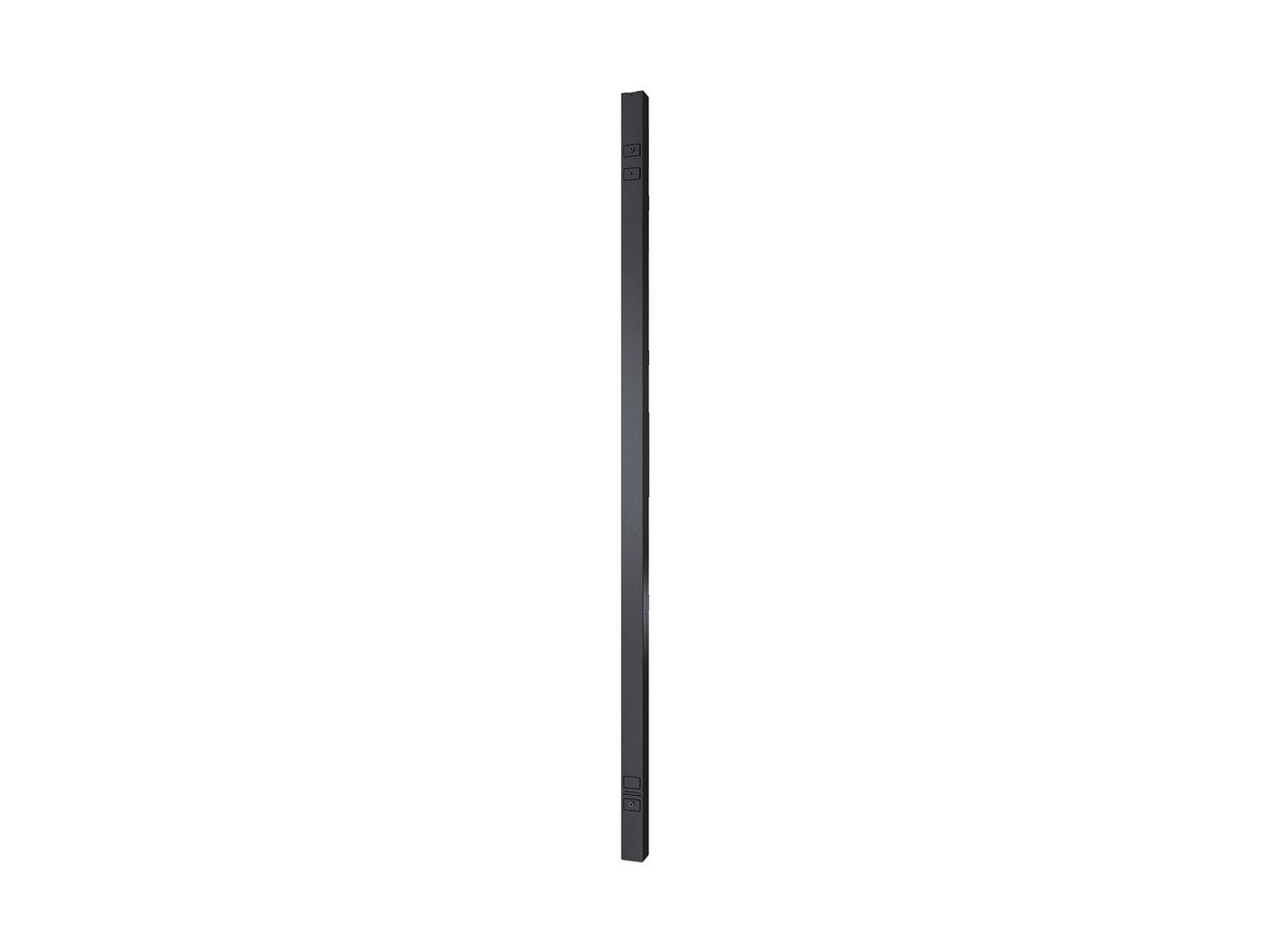

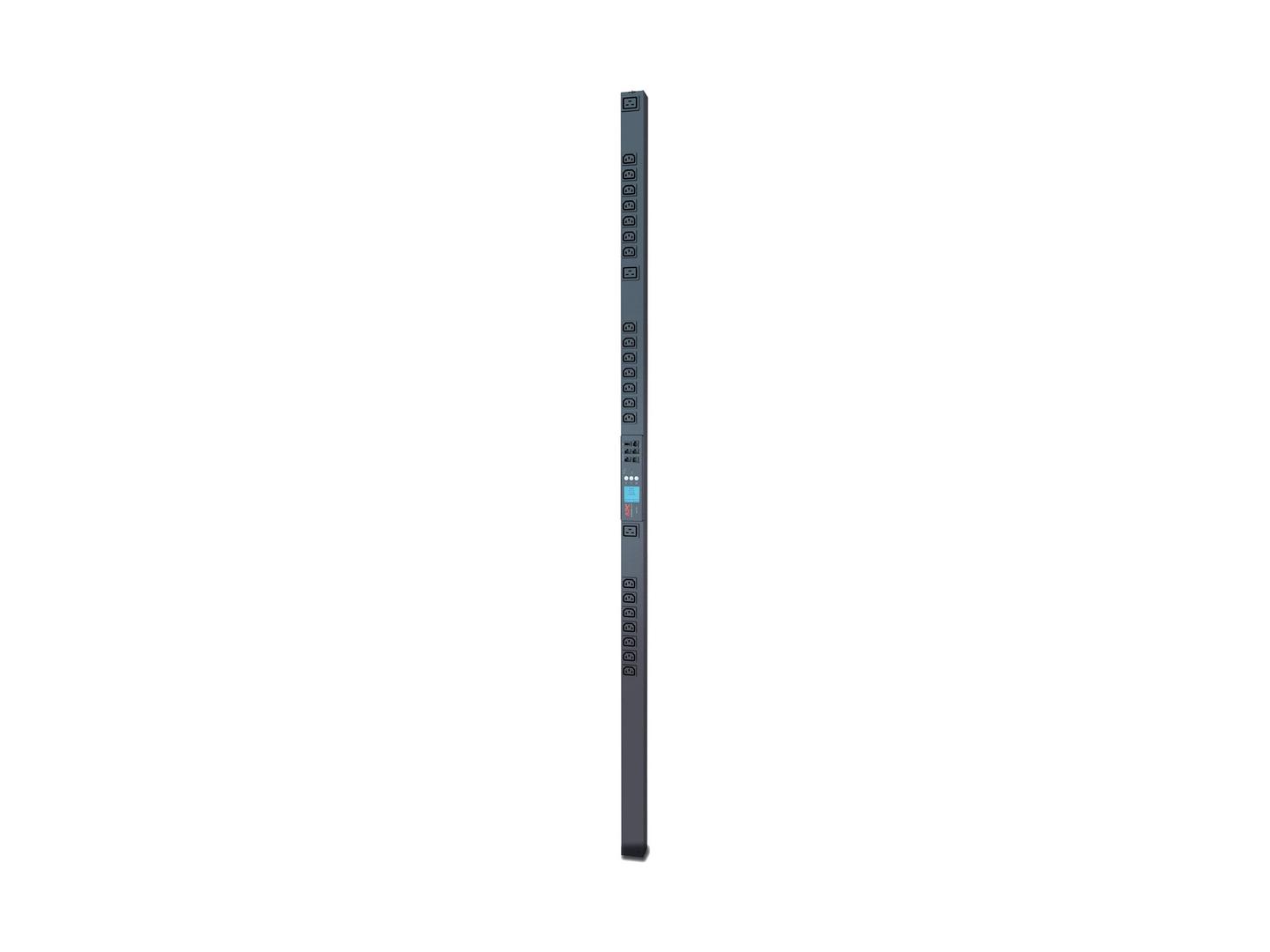

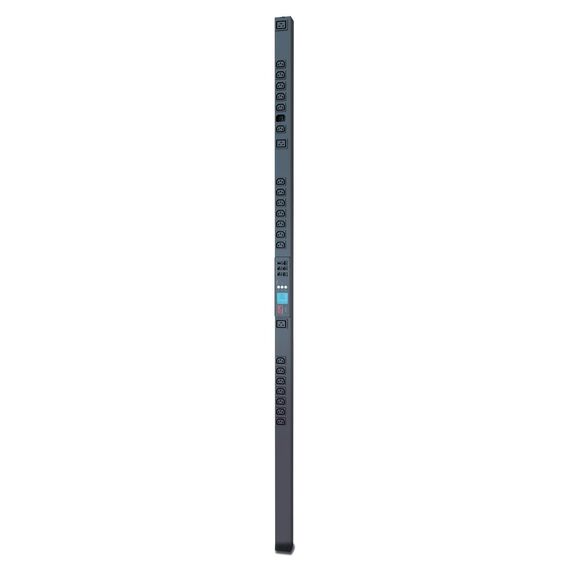

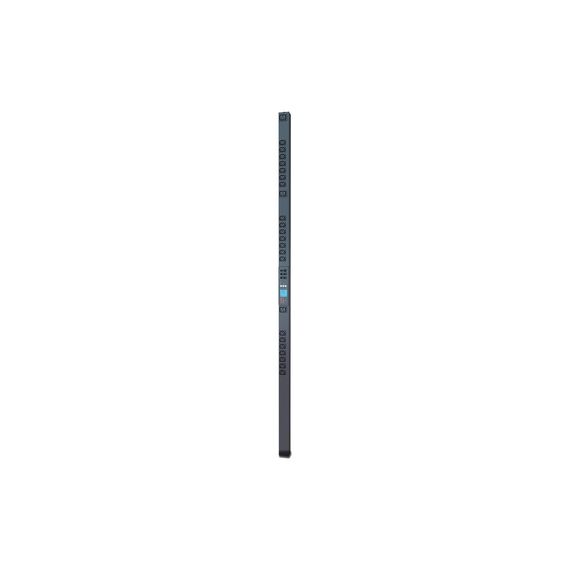

Power distribution unit (rack-mountable) - AC 200/208/230 V - Ethernet - input: IEC 60309 - output connectors: 24 - 0U - black - for P/N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW | AP8459EU3
Please sign in so that we can notify you about a reply
Product Features
- Metering-by-outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning. - Network management capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. - Alarm thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. - Local current monitoring display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. - Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. - Flash upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. - Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
Special Fetures
- Metering-by-outlet capability
- Network management capabilities
- Alarm thresholds
- Local current monitoring display
- Load indicator LED
- Flash upgradeable
- Integrates with StruxureWare Data Center Expert
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 200/208/230 V |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 |
| Power Output Connectors Details | 21 x power IEC 60320 C13 <br /> 3 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 16 A |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Telnet |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable |
| Rack Mounting Kit | Included |
| Features | LCD display, LED indicators, firmware upgradable |
| Compliant Standards | UL, EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, REACH, VCCI Class A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 5.6 cm |
| Depth | 5.1 cm |
| Height | 182.9 cm |
| Weight | 6.76 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.3 cm |
| Shipping Depth | 11.7 cm |
| Shipping Height | 203.7 cm |
| Shipping Weight | 9.03 kg |
| Compatibility Information | |
| Designed For | P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMT3000RMT2U, SMT750RM2U, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2000RMLV2U, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLV2U, SMX2200RMLVUS, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLV2U, SMX3000RMLV2UNC, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA3000RMXL3U-BR, SURT3000XLI-ET, SURT5000XLIX438, SYA12K16RMICH, SYA16K16RMICH, SYA8K16RMICH, SYAF16KRMICH |
Features - APC - AP8459EU3
More Details
Product Code
270B128
EAN Code
0731304317562
Manufacturer
APC
