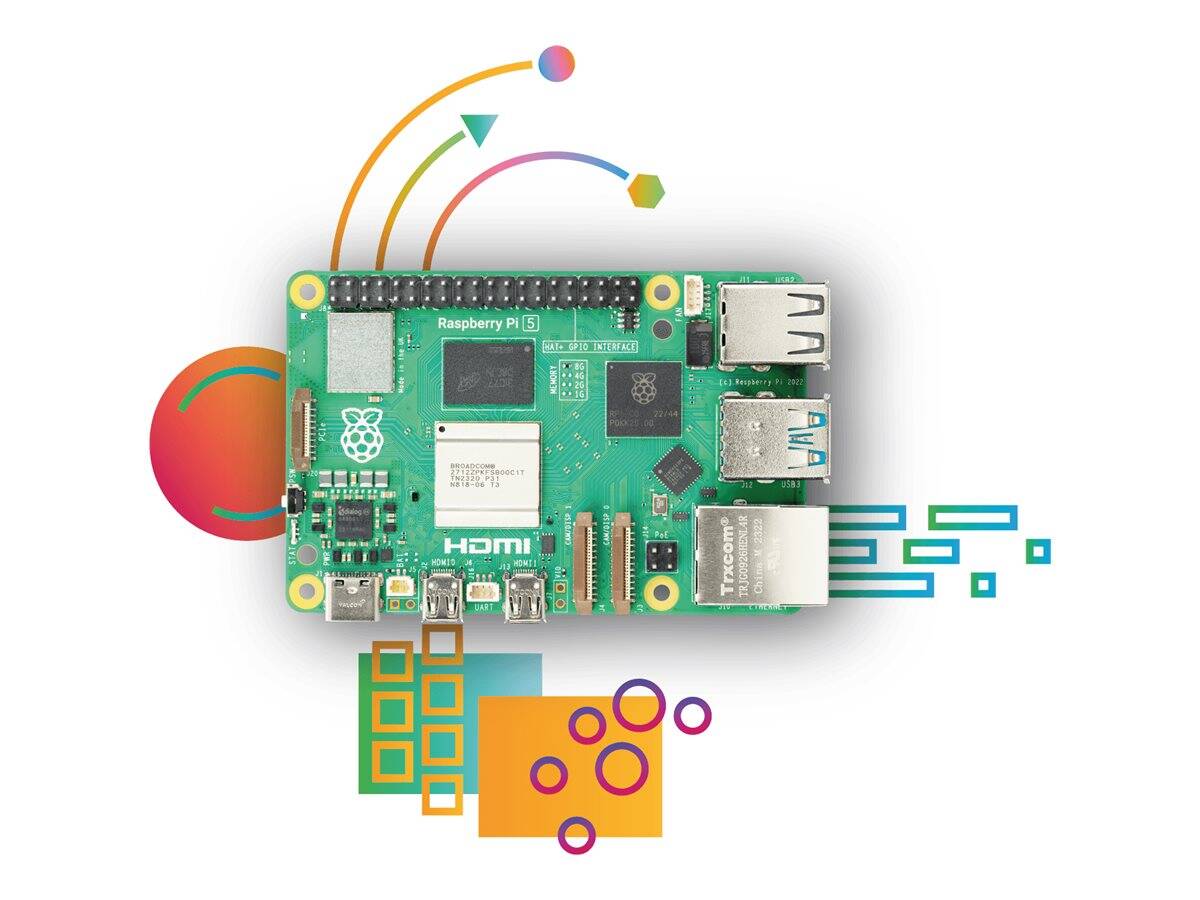

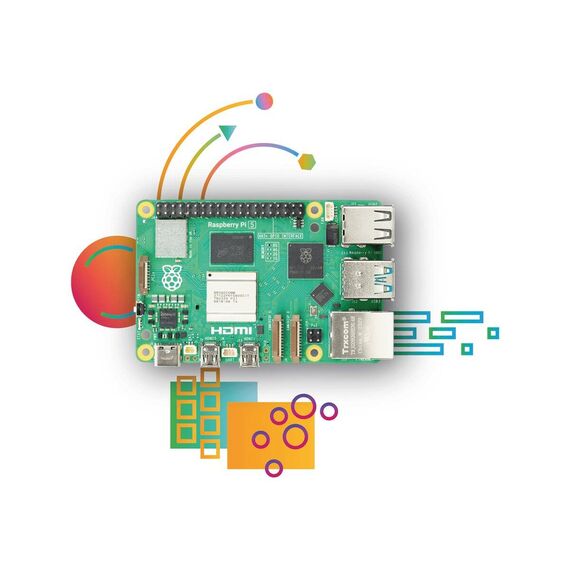

Raspberry Pi 5 Model B / Single-board computer / Broadcom BCM2712 / 2.4 GHz / RAM 4 GB / 802.11a/b/g/n/ac, Bluetooth 5.0 | RP-5B-4GB
Please sign in so that we can notify you about a reply
Product Features
- RP1 controller
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same. - Fast and infinitely smooth
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor at 2.4 GHz, making it up to three times faster than the previous generation. With 4 GB RAM, it is a fast and smooth Pi experience. - All aboard the PCI express
You can connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
Special Features
- RP1 controller
- Fast and infinitely smooth
- All aboard the PCI express
Product Specification
| Product Type | Single-board computer |
| Parameters | H.265 (4Kp60 decode), up to 4kp60 graphics output, OpenGL ES 3.1, Vulkan 1.2 |
| Processor | Processor |
| Type | Broadcom |
| Processor Number | BCM2712 |
| Clock Speed | 2.4 GHz |
| Number of Cores | Quad-Core |
| 64-bit Architecture | Yes |
| RAM | RAM |
| Technology | LPDDR4X SDRAM |
| Installed Size | 4 GB |
| Flash Memory | Flash Memory |
| Supported Flash Memory Cards | microSD |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Wireless Protocol | 802.11a/b/g/n/ac, Bluetooth 5.0 |
| Wired Protocol | Gigabit Ethernet |
| Interface Provided | Interface Provided |
| Interface Provided | LAN (Gigabit Ethernet) - RJ-45 ¦ CSI - ZIF ¦ 2 x USB 2.0 - Type A ¦ GPIO - 40 pin IDC ¦ DSI - ZIF ¦ 2 x HDMI output - micro HDMI ¦ 2 x USB 3.0 - Type A ¦ USB-C (power only) ¦ PCIe Gen2x1 ¦ UART ¦ RP1 I/O |
| Power Device | Power Device |
| Power Source | AC power adapter, GPIO |
Features - Raspberry - RP-5B-4GB
CPU Type
- Apple M2 Chip
More Details
Product Code
04:474851
EAN Code
5056561803319
Manufacturer
Raspberry
