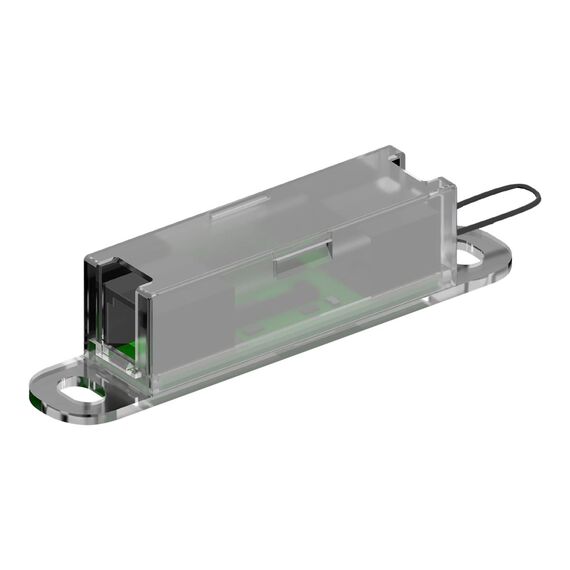

Rittal DK CMC III - Environmental monitoring sensor - rack mountable, enclosure mountable - for Rittal TS8; VX Basic Cabinet VX25 | 7030128
7030128
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Fast connection and automatic detection via Plug-and-Play
- Power is supplied via the CAN-BUS interface
- Settings can be made via the CMC III processing unit or IoT interface
- The CMC III temperature/humidity sensor monitors the ambient temperature and air humidity in the enclosure
- The sensor has an integrated temperature sensor and an integrated air humidity sensor
Product Specification
| Product Type | Environmental monitoring sensor |
| Placing / Mounting | Rack mountable, enclosure mountable |
| Product Material | Plastic |
| Package Content | Mounting plate, assembly parts, RJ-12 cable (0.5m) |
| Shipping Dimensions (WxDxH) / Weight | 90 g |
| Interface Provided | |
| Connector Provided | RJ-12 (6 pin) x 2 |
| Miscellaneous | |
| Mounting Kit | Included |
| Features | Humidity range 5% - 95% (non-condensing), magnetic |
| Compliant Standards | IP20, cUL+UL, ETIM 6.0, ETIM 7.0, ECLASS 8.0, ECLASS 8.1, ECLASS 6.1, ECLASS 6.0 |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 45 °C |
| Compatibility Information | |
| Designed For | Rittal TS8 Network Cabinet, TS8 Network Enclosure, TS8 Server Cabinet, TS8 Server Enclosure, TS8 SERVER RACK <br /> Rittal VX Basic Cabinet VX25 |
Features - Rittal - 7030128
More Details
Product Code
04:348062
EAN Code
4028177925830
Manufacturer
Rittal
