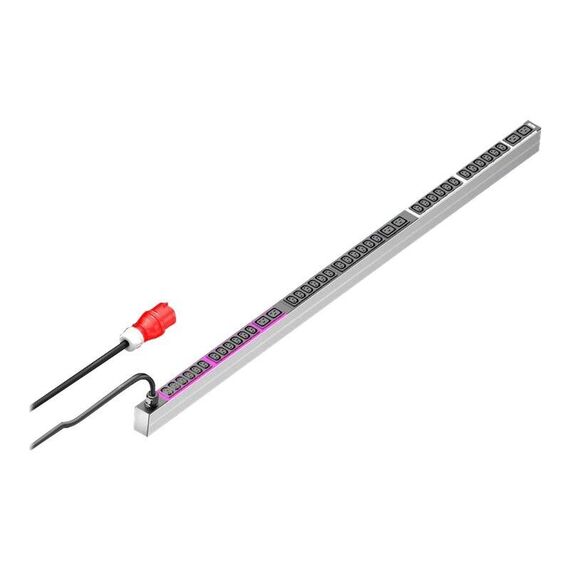

Rittal PDU Basic - Power distribution unit - AC 400 V - 11 kW - 3-phase - output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - 3 m cord | 7979140
7979140
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - external |
| Height (Rack Units) | 0U |
| Cord Length | 3 m |
| Power Device | |
| Input Voltage | AC 400 V |
| Input Wiring | 3-phase |
| Input Connectors | 1 |
| Power Output Connectors Details | 6 x power IEC 60320 C19 ¦ 36 x power IEC 60320 C13 |
| Max Electric Current | 16 A |
| Power Capacity | 11 kW |
| Circuit Protection | Circuit breaker |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Features | Vertical orientation |
| Compliant Standards | IP20, EN 61000-3, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, EN 62053-21, EN 61000-4, EN 61000-6 |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.4 cm |
| Depth | 7 cm |
| Height | 149.5 cm |
Features - Rittal - 7979140
More Details
Product Code
04:347721
EAN Code
4028177947566
Manufacturer
Rittal
