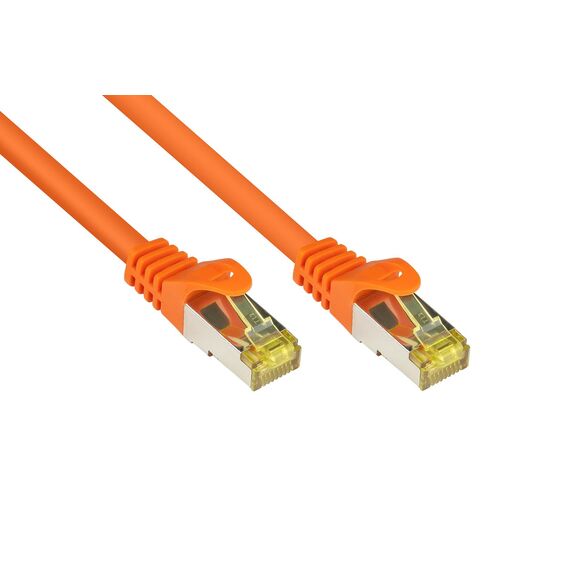

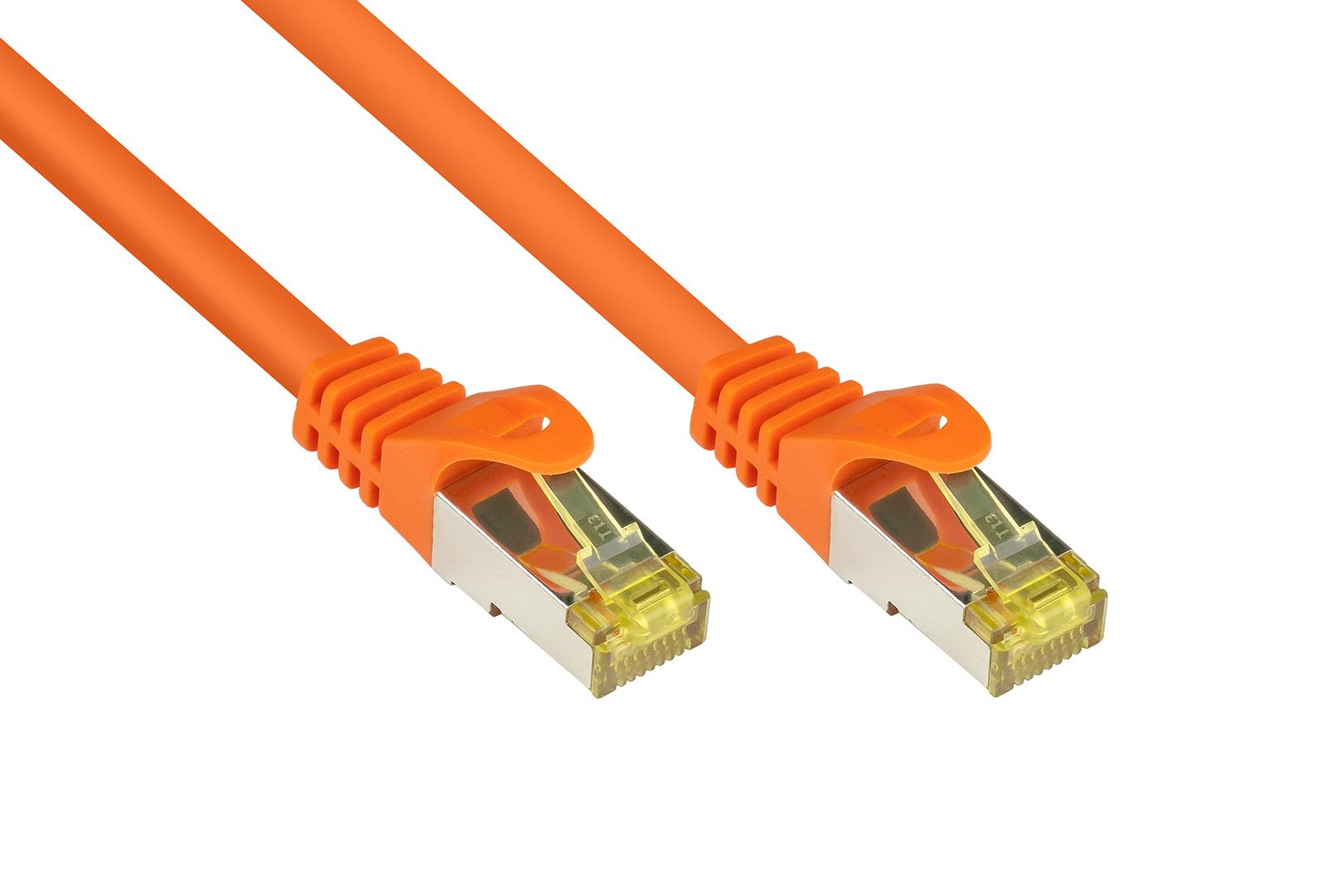

Good Connections RNS - Patch cable - RJ-45 (M) to RJ-45 (M) - 50 cm - SFTP, PiMF - CAT 7 - halogen-free, molded, snagless, stranded - orange | 8070R-005O
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 7 |
| Technology | SFTP, PiMF |

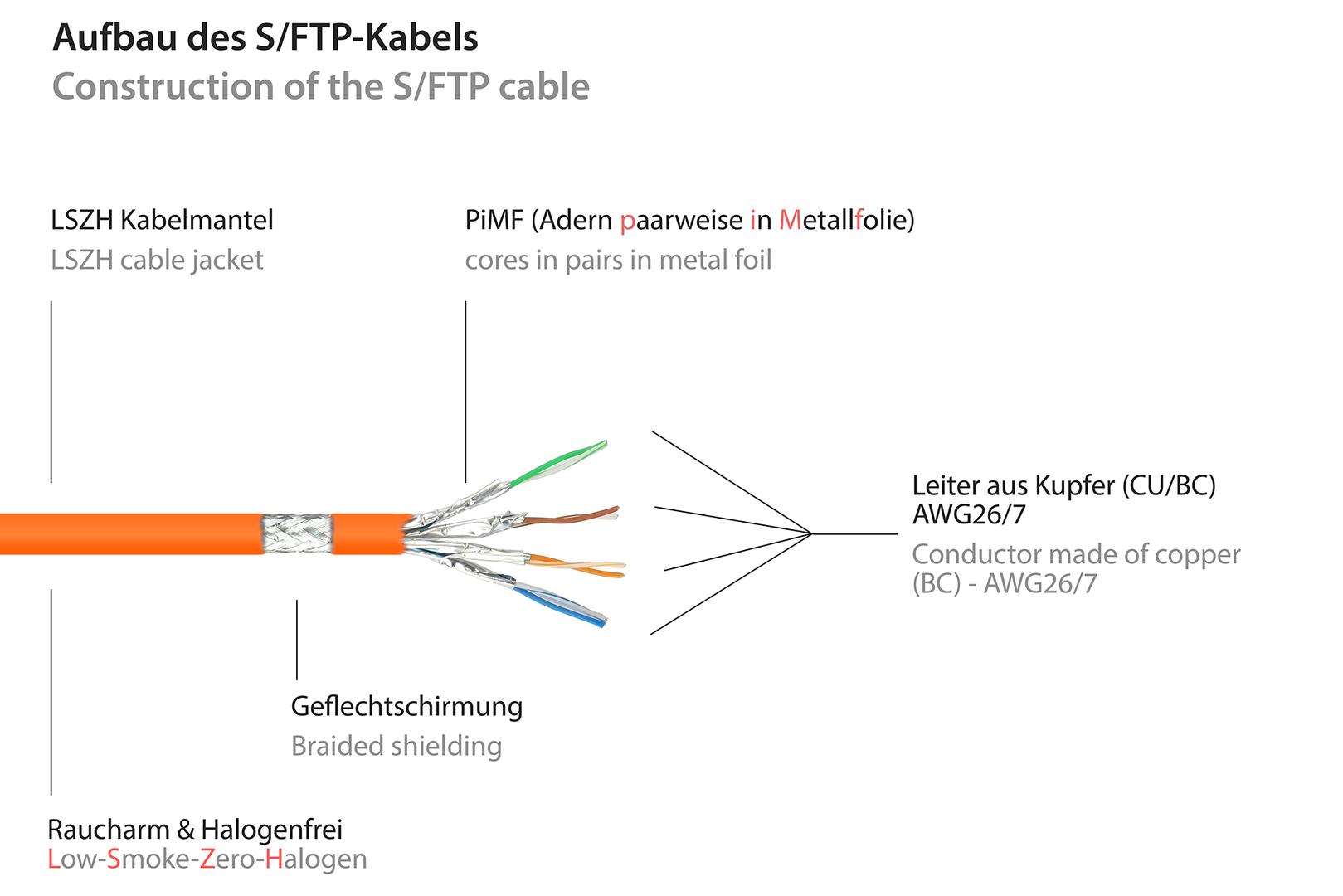

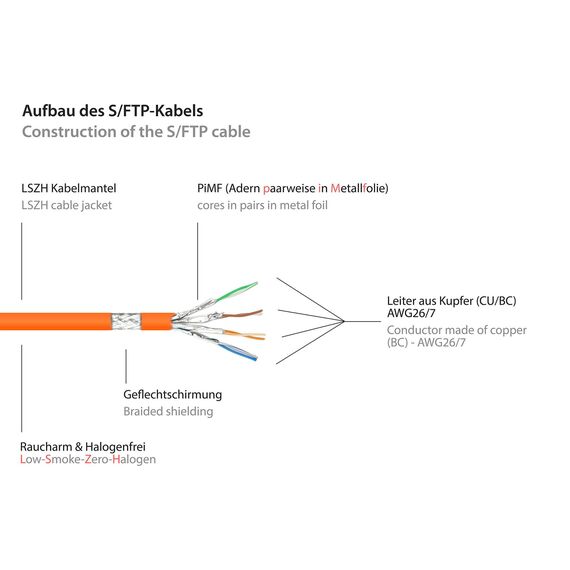

| Shielding Material | Metal foil with aluminium-magnesium braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |

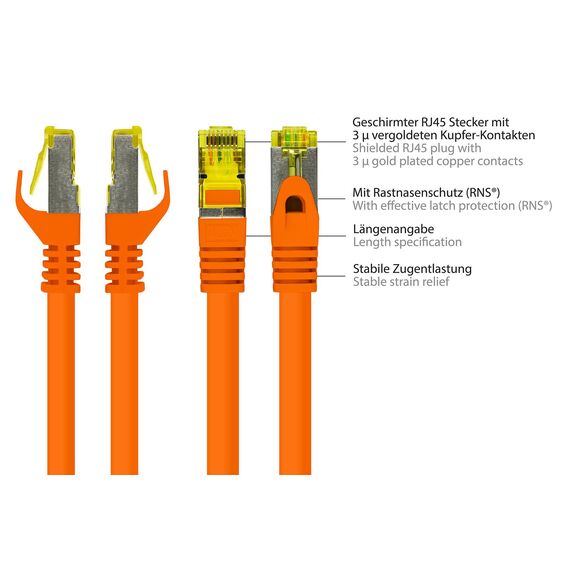

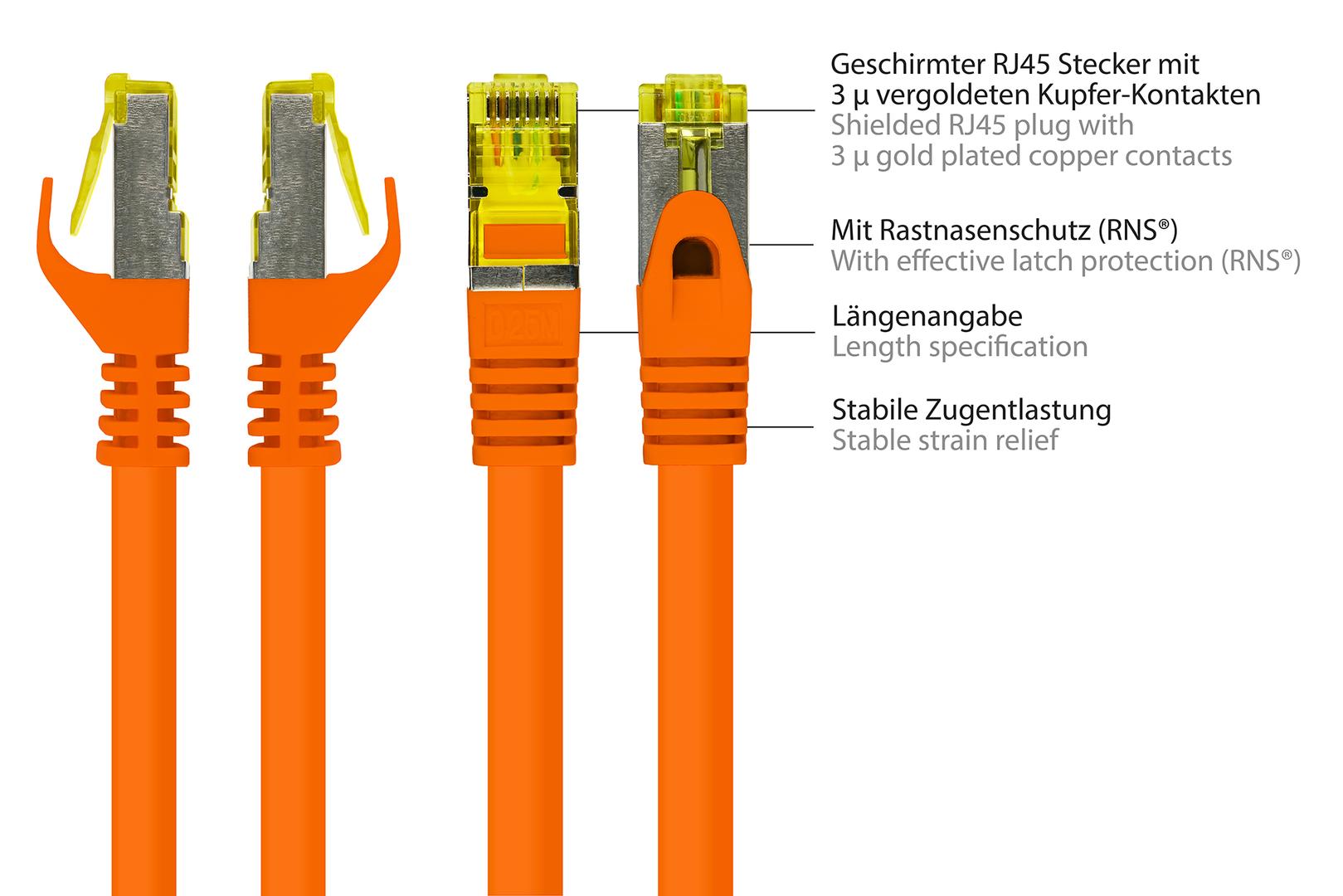

| Features | Halogen-free, molded, snagless, stranded, flame retardant, shielded connectors, strain relief, length indication, RNS latch protection, yellow connector, 99.9% OFC (Oxygen Free Copper) conductors, bend protection |
| Length | 50 cm |
| Colour | Orange |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | RoHS, EN 50173-1, IEC 60332-1, ISO/IEC 11801, TIA/EIA-568-B, IEC 60754-2, IEC 61034, TIA/EIA-568-B-2.1 - up to 500 MHz |
Features - GoodConnections - 8070R-005O
Colour
orange
Length
0.5m
General
CAT7
More Details
Product Code
04:479591
EAN Code
4014619323890
Manufacturer
GoodConnections
