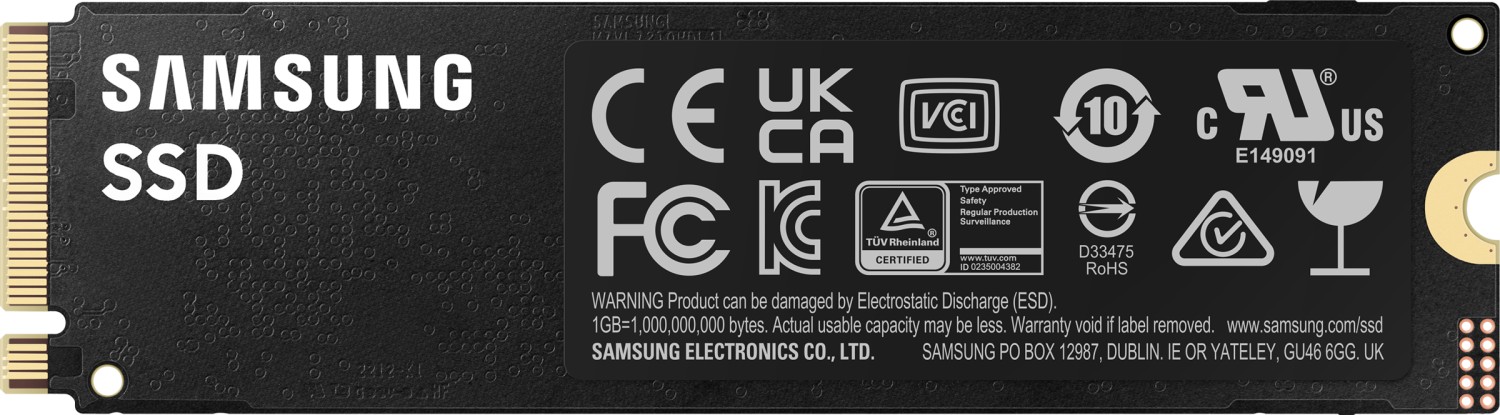

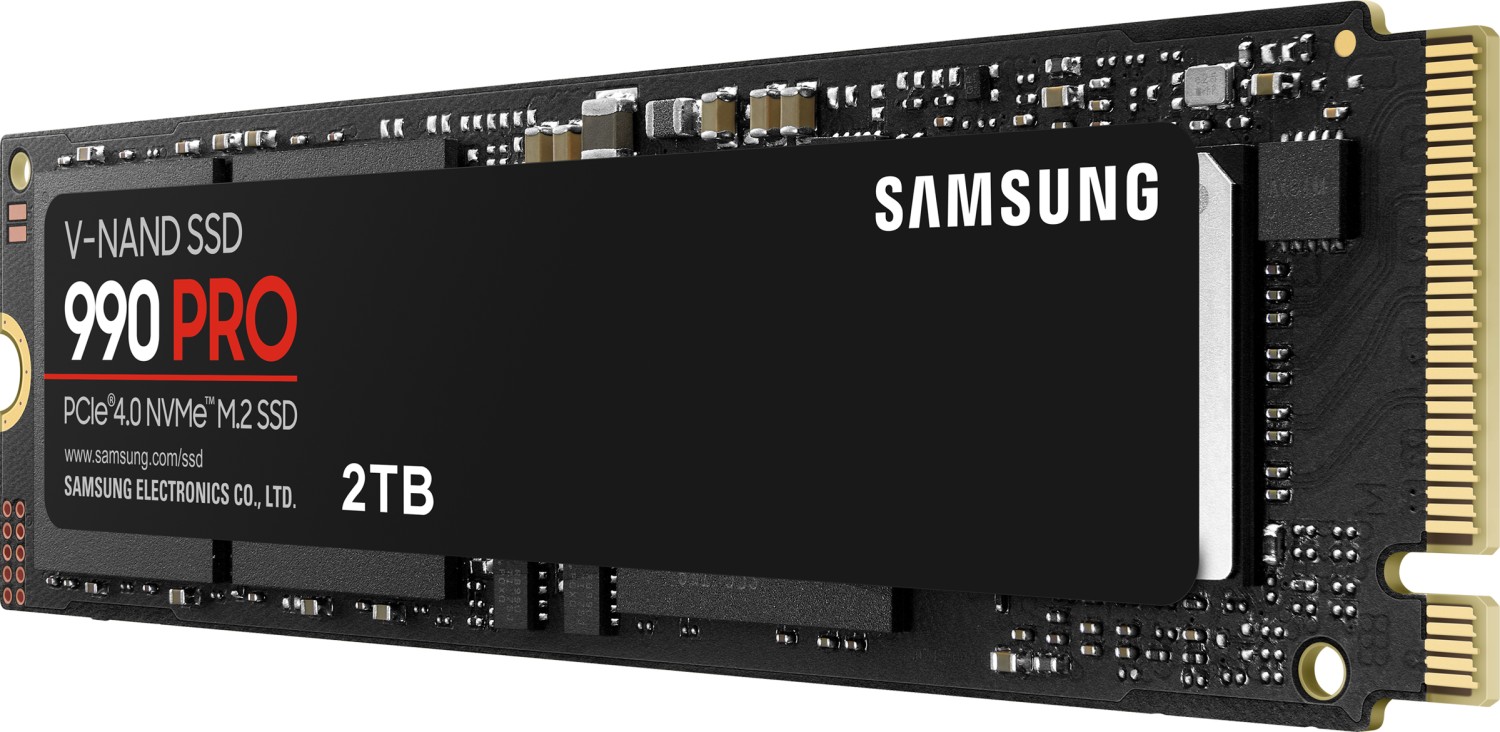

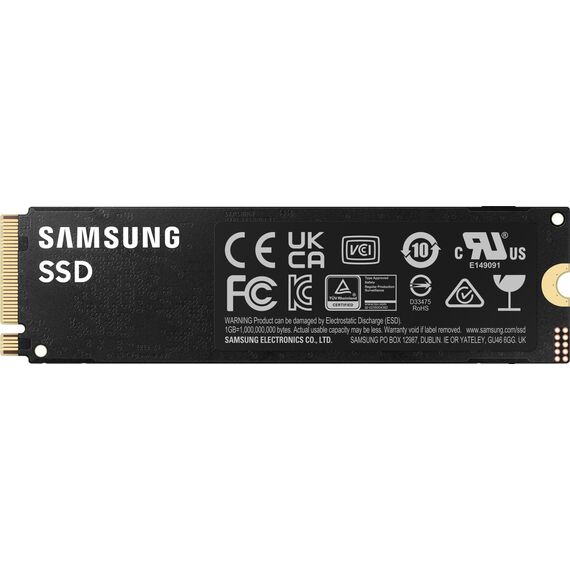

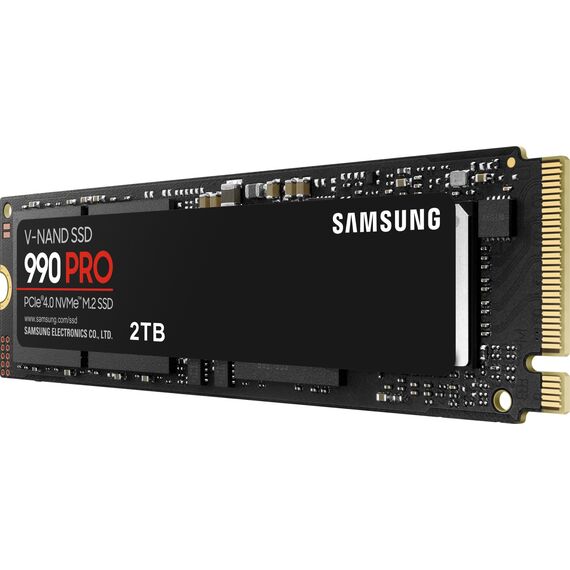

Samsung 990 PRO MZ-V9P2T0BW / SSD / encrypted / 2 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / 256-bit AES / TCG Opal Encryption 2.0 | MZ-V9P2T0BW
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | TRIM support, sleep mode, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, Samsung V-NAND 3bit MLC Technology, 2GB LPDDR4 DRAM cache, S.M.A.R.T., NVMe 2.0 |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
| Weight | 9 g |
| Performance | Performance |
| SSD Endurance | 1200 TB |
| Drive Transfer Rate | 8 GBps (external) |
| Internal Data Rate | 7450 MBps (read) / 6900 MBps (write) |
| 4KB Random Read | 1400000 IOPS |
| 4KB Random Write | 1550000 IOPS |
| Reliability | Reliability |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Compatible Bay | M.2 2280 |
| Power | Power |
| Power Consumption | 5.8 Watt (read) ¦ 5.1 Watt (write) ¦ 55 mW (idle) ¦ 5 mW (L1.2 mode) |
| Software & System Requirements | Software & System Requirements |
| Software Included | Samsung Magician Software |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, FCC, EAC, cRUus, IEEE 1667, UKCA |
| Package Details | Box |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years / 1200 TBW |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
Features - Samsung - MZ-V9P2T0BW
Form Factor
- 2.5"
- Internal
Capacity
2TB
Interface
- M.2
More Details
Product Code
04:415235
EAN Code
8806094215038
Manufacturer
Samsung
