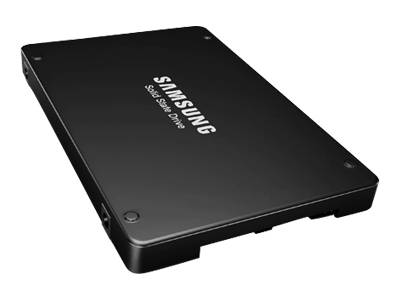

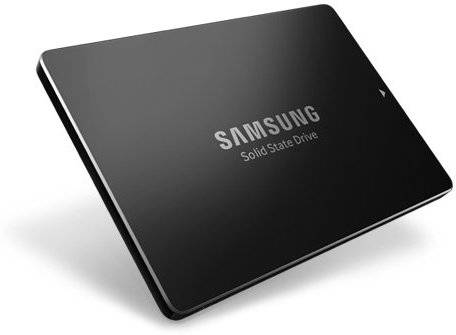

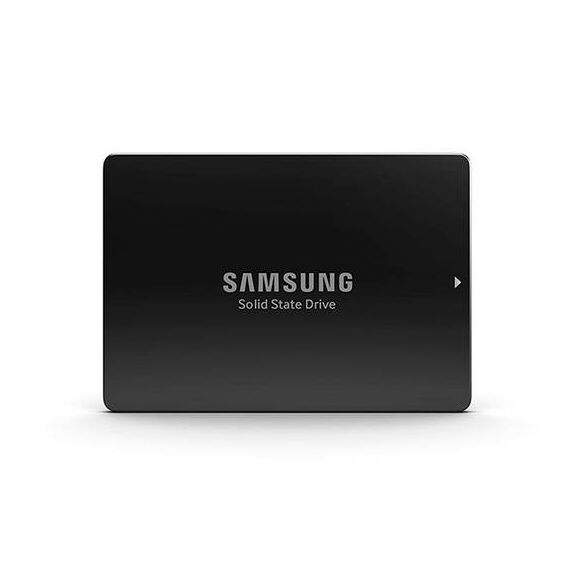

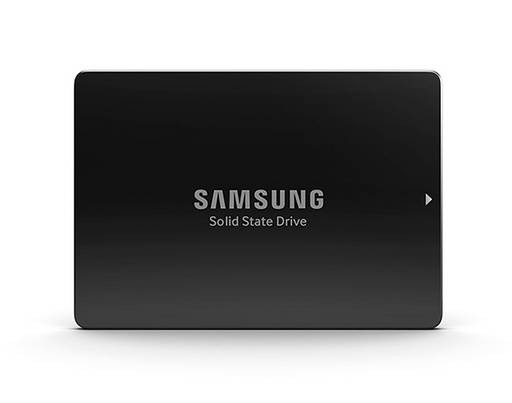

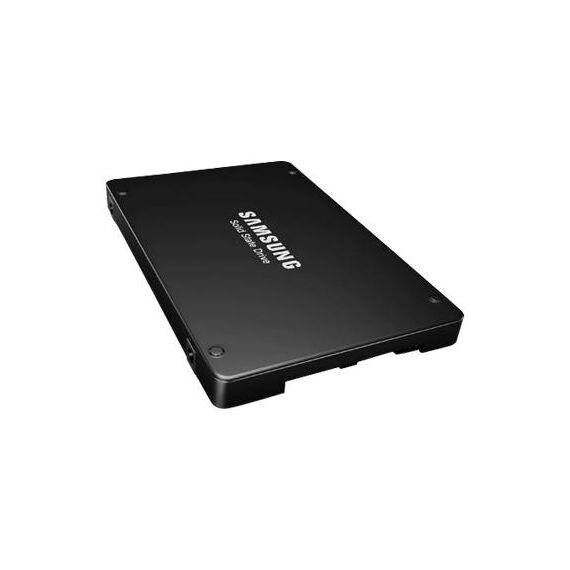

Samsung SSD 960GB 2.5" sata PM883 MZ7LH960HAJR / Solid state drive / encrypted / internal / SATA 6Gb/s / 256-bit AES / bulk | MZ7LH960HAJR-00005
Please sign in so that we can notify you about a reply
Samsung PM883 MZ7LH960HAJR / Solid state drive / encrypted / 960 GB / internal / 2.5" / SATA 6Gb/s / 256-bit AES | MZ7LH960HAJR-00005
Special Features
- SATA 3.3 compliant
- Fully complies with ATA/ATAPI-7 standard
- Hardware based AES 256-bit encryption engine
- RoHS compliant
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Bytes per Sector | 512 |
| Features | Native Command Queuing (NCQ), TRIM support, Power Disable Pin (Pin3) |
| Width | 69.85 mm |
| Depth | 100.2 mm |
| Height | 6.8 mm |
| Weight | 70 g |
| Drive Writes Per Day (DWPD) | 1.3 |
| SSD Endurance | 1366 TB |
| Data Transfer Rate Details | Serial ATA: 600 MB/s |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 98000 IOPS |
| 4KB Random Write | 25000 IOPS |
| Average Latency | 40 µs |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Interfaces | SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power Consumption | 2.3 Watt (read) ¦ 3.1 Watt (write) ¦ 1.3 Watt (idle) |
| Compliant Standards | RoHS |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
Features - Samsung - MZ7LH960HAJR-00005
Form Factor
- 2.5"
- Internal
Capacity
960GB
Interface
- SATA
More Details
Product Code
07:334053
Manufacturer
Samsung
