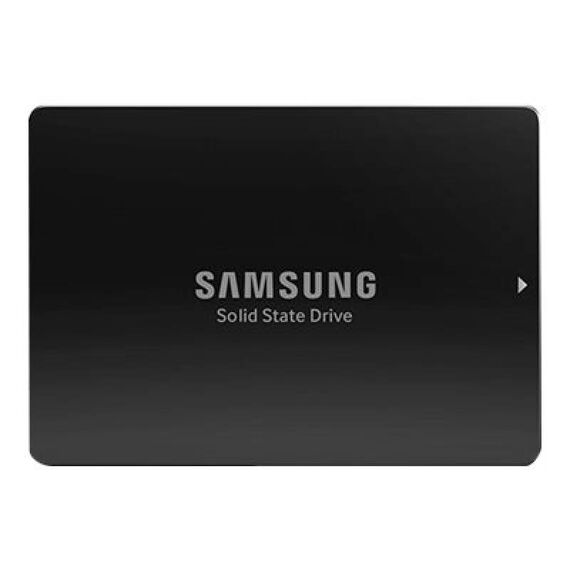

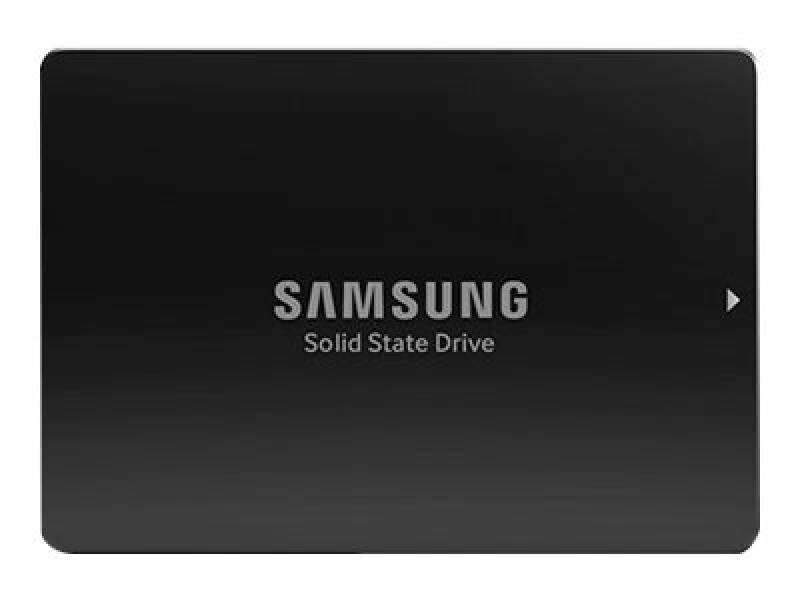

Samsung PM897 MZ7L3960HBLT / SSD / 960 GB / internal / 2.5" / SATA 6Gb/s | MZ7L3960HBLT-00A07
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 960 GB |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Bytes per Sector | 512 |
| Features | Native Command Queuing (NCQ), TRIM support, Samsung V-NAND 3bit MLC Technology |
| Width | 69.85 mm |
| Depth | 100.2 mm |
| Height | 7 mm |
| Weight | 70 g |
| Performance | Performance |
| SSD Endurance | 5256 TB |
| Data Transfer Rate Details | Serial ATA: 600 MB/s |
| Internal Data Rate | 560 MBps (read) / 530 MBps (write) |
| 4KB Random Read | 97000 IOPS |
| 4KB Random Write | 60000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Power | Power |
| Power Consumption | 2.3 Watt (read) ¦ 3 Watt (write) ¦ 1.4 Watt (idle) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS |
| Package Type | Bulk |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
Features - Samsung - MZ7L3960HBLT-00A07
Form Factor
- 2.5"
- Internal
Capacity
960GB
Interface
- SATA
More Details
Product Code
07:126118
Manufacturer
Samsung
