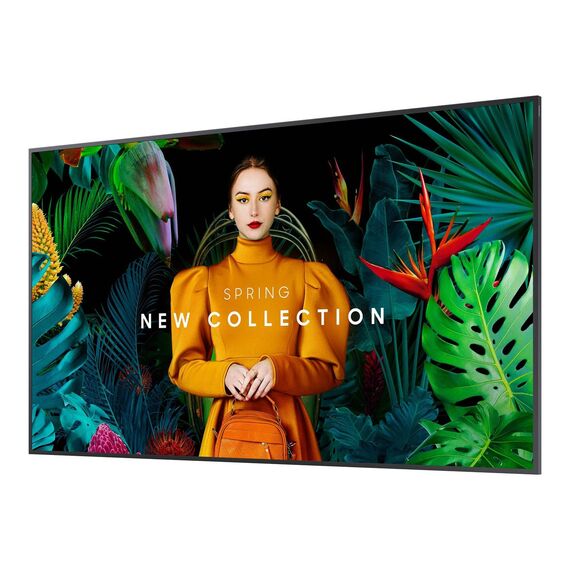

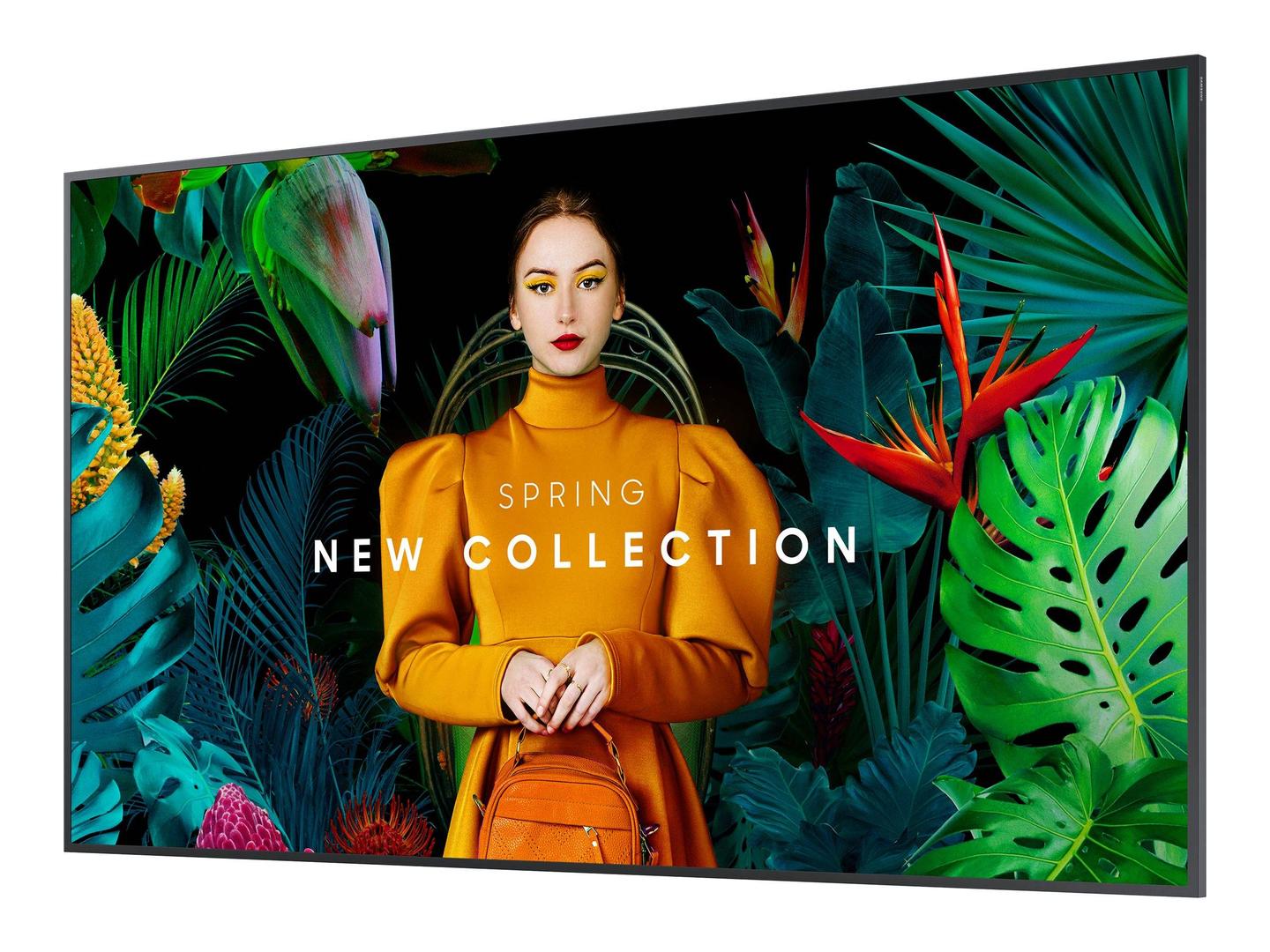

Samsung QM55C / 55" Diagonal Class (54.6" viewable) / QMC Series LED-backlit LCD display / Crystal UHD / digital signage / Tizen OS / 4K UHD (2160p) 3840 x 2160 / Edge LED / black | LH55QMCEBGCXEN
Product Features
- Maximum impact in minimum space
The QMC's unparalleled ultra-slim 28.5 mm depth makes it a thin option in Samsung's UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment. - Slim design, stunning performance
The QMC, a slim display in the Samsung UHD Signage. It brings elegance to your business display while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC's efficiency and design innovation. - Clean visuals in landscape or portrait mode
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The uniform design allows for visual consistency when the display is adjusted to portrait mode. - Secure and even mounting
The central positioning of the VESA holes on the back of the display enable the weight to be evenly distributed for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode, while avoiding unintentional tilting. - Lifelike color for a pure, immersive viewing experience
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety. - View lifelike shades of color in powerful 4K
Samsung's video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung's Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality. - Ensure critical information is always visible
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in crucial locations, such as airports and train stations. - Connect with convenience
QMC boasts greater usability with an upgraded home screen UI. For the ultimate convenience, popular categories such as Favorites, Sources, and Settings are displayed on the home screen, all available in one place. The Favorites folder grants users quick, easy access to frequently used features in a single click. - High-speed collaboration between screens, all wire-free
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can enable the screen sharing function at the start of the meeting, allowing administrators to switch which screens are shared with no wires necessary. - Simplified calibration between screens with mobile app
Guaranteed brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures accuracy for every display, with precise calibration that showcases logos and other collateral in the exact brand colors, as required.
Special Features
- QMC, slim display in Samsung's UHD Signage, ultra-slim 28.5 mm depth optimizes space
- Dynamic Crystal Color, over one billion shades, delivers an immersive viewing experience
- Powered by Quantum Processor Lite 4K, enhances content for clarity and consistency
- SmartView+ enables wireless screen sharing makes collaboration easy and functional
Product Specification
Product Type | LED-backlit LCD flat panel display - Crystal UHD |
Energy Class | Class G |
Power Consumption Operational | 102 Watt |
Power Consumption SDR (On mode) | 102 kWh/1000h |
Diagonal Class | 55" |
Diagonal Size | 54.6" |
Commercial Use | Yes - digital signage |
Series | QMC Series |
Platform | Tizen OS |
Operating System | Tizen OS 7.0 |
Video Processor | Quantum 4K Lite |
TV Tuner | No tuner |
TV Tuner Presence | No |
Sensors | Ambient light sensor (ALS), temperature sensor |
Video Interface | HDMI |
HDMI Ports Qty | 3 ports |
PC Interface | DisplayPort |
Modes | Pivot Mode, Director Mode, DICOM Simulation Mode |
Picture Enhancements | Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC |
Design | Slim Design |
Dimensions | Without stand |
Width | 123.79 cm |
Depth | 2.85 cm |
Height | 70.88 cm |
Weight | 15.7 kg |
Enclosure Colour | Black |
Display | Display |
LCD Display Technology | VA |
Pixel Pitch | 0.315 mm |
Colour Support | 16700000 colours |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | LED backlight - Edge LED |
Coating | Anti-glare, 25% Glass Haze |
Image Contrast Ratio | 4000:1 |
Brightness | 500 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Response Time | 8 ms |
Commercial Features | SMART Signage Platform, Auto Source Switching & Recovery, Tizen Zero Config, Tizen Business Manager, MagicInfo S10 Player, Custom Home, Tizen Enterprise Platform, Samsung VXT CMS, Home UI, Chromium M94 Web Engine (upgradeable), Microsoft 365, VMWare, 11th generation SoC (Pontus ML) |
Operation Hours / Days | 24 / 7 |
Features | Smart Calibration, key lock, Workspace |
Stands & Mounts | Stands & Mounts |
Stand | Optional |
Flat Panel Mount Interface | 200 x 200 mm |
VESA Compatibility | Yes |
Media Player | Media Player |
USB Port | Yes |
USB Ports Qty | 2 |
Configuration | ARM Cortex-A73 Quad-Core ( 1.6 GHz ) - 2.5 GB LPDDR4 - 16 GB (available 10 GB) |
Remote Control | Remote Control |
Type | Remote control |
Battery Included | Yes |
Audio System | Audio System |
Speaker System | 2 channel |
Output Power / Total | 20 Watt |
Network & Internet Multimedia | Network & Internet Multimedia |
Connectivity | Wi-Fi, LAN, Bluetooth |
LAN Protocol | Ethernet |
Connect & Share | Samsung Smart View+ |
Connections | Connections |
Connector Type | 3 x HDMI input ¦ DisplayPort input ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ LAN |
Miscellaneous | Miscellaneous |
Cables Included | RS-232C (IN) adapter |
Compliant Standards | Plug and Play, EMC Class B, IP5X, HDCP 2.2, IEC/EN 62368-1, Safety 60950-1, Safety 62368-1, TUV Rheinland Carbon Footprint |
Sustainability Information | Sustainability Information |
EPEAT Compliant | EPEAT Bronze |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 8.0 |
Power | Power |
Power Device | Power supply |
Input Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Width (Shipping) | 140.3 cm |
Depth (Shipping) | 14.8 cm |
Height (Shipping) | 83.5 cm |
Weight (Shipping) | 19.9 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 80% (non-condensing) |
