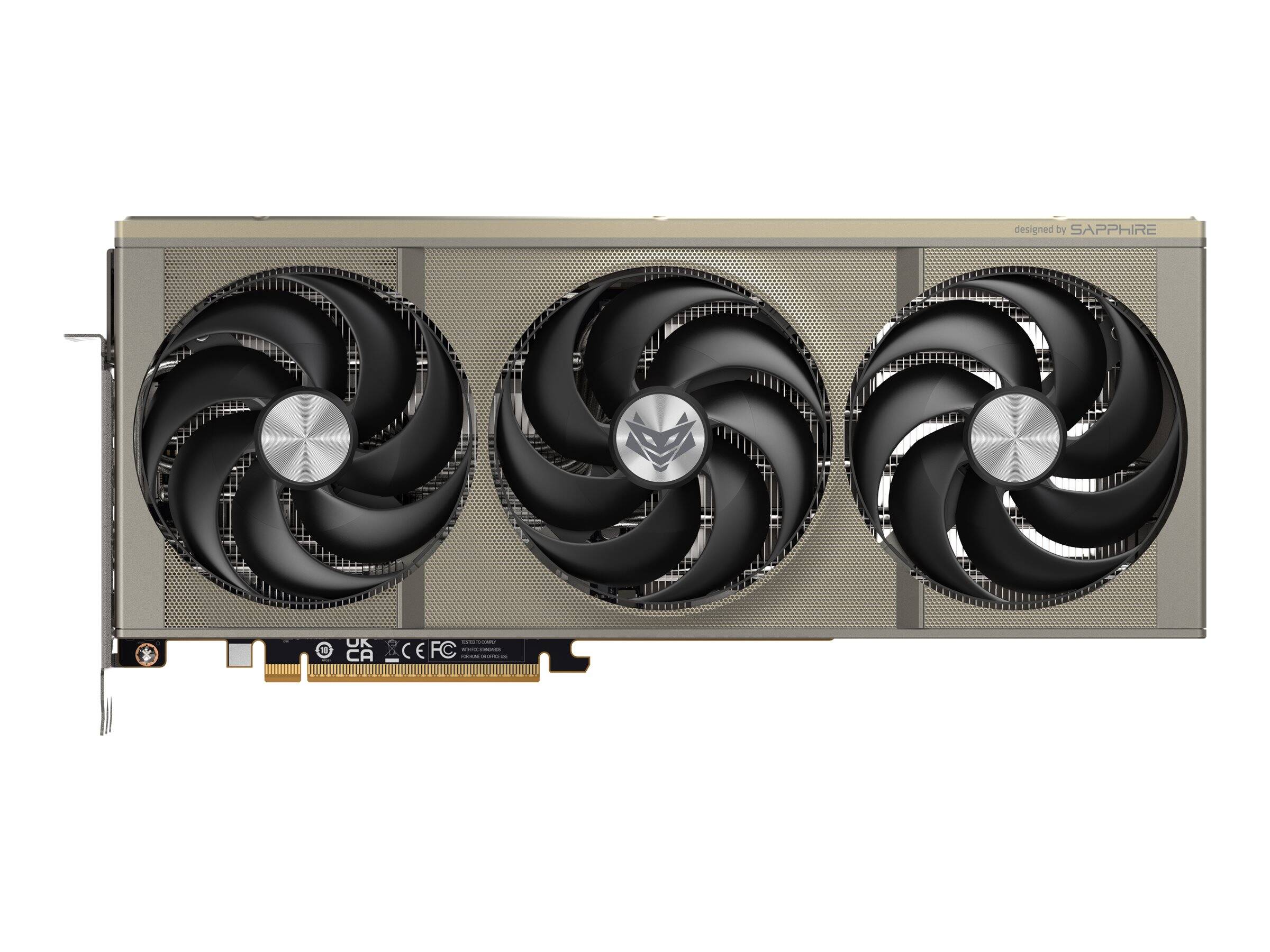

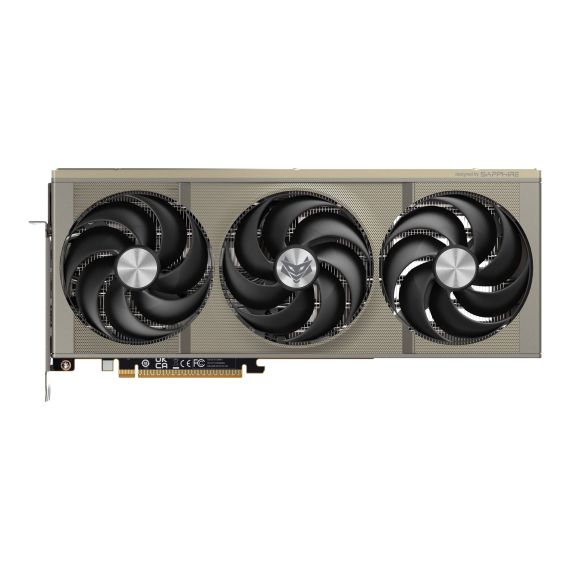

Sapphire NITRO+ RX 9070 XT - Graphics card - Radeon RX 9070 XT - 16 GB GDDR6 - PCIe 5.0 x16 - 2 x DisplayPort, 2 x HDMI | 11348-01-20G
Please sign in so that we can notify you about a reply
Product Features
- Efficient Cooling System
The triple fan design with Tri-X Cooling Technology and Intelligent Fan Control ensures optimal thermal performance while keeping noise levels low, making it suitable for extended gaming sessions. - High-Resolution Support
Capable of delivering visuals at a maximum resolution of 7680 x 4320, this graphics card is designed to support immersive gameplay across multiple displays. - Robust Memory Bandwidth
The 16 GB GDDR6 memory with a 256-bit bus width and 20 Gbps speed provides bandwidth for heavy workloads, ensuring responsive performance in gaming and graphic-intensive tasks. - Advanced Gaming Technologies
Featuring 3rd gen Ray Tracing Cores and AMD Smart Technologies, this graphics card enhances graphics fidelity and responsiveness for an engaging gaming experience. - Versatile Connectivity Options
Equipped with multiple output ports, including HDMI and DisplayPort, this card supports various monitor setups and provides flexibility for different connection needs.
Special Fetures
- Powered by AMD Radeon RX 9070 XT GPU
- 16 GB GDDR6 video memory for performance
- Supports resolutions up to 7680 x 4320
- Features cooling technology for efficient heat management
- Includes accessories for installation and setup
Product Specification
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | AMD Radeon RX 9070 XT |
| Core Clock | 2520 MHz |
| Boost Clock | 3060 MHz |
| Stream Processors | 4096 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 2 x HDMI <br /> 2 x DisplayPort |
| API Supported | DirectX 12 Ultimate |
| Features | 64 AMD RDNA 4 compute units, 3rd gen Ray Tracing Cores, 2nd gen AI Accelerators, 64 Ray Tracing Units, 128 AI Accelerators, 64 MB cache, AMD Infinity Cache, UEFI BIOS, Honeywell PTM7950 Thermal Interface Material (TIM), AeroCurve fan blades, Free Flow, FrameDefense, Integrated Cooling Module, Cold Rolled Steel Frame, Tri-X Cooling Technology, High TG Copper PCB, composite heatpipes, metal backplate, ARGB light bar, Fan Quick Connect, Dual ball Bearing Fans, 16 Phase PWM Design, fuse protection, Intelligent Fan Control (IFC), Precision Fan Control, NITRO Glow, Fan Check, TriXX Boost, Quick Connect MagniPlate, AMD HYPR-RX technologies, AMD Fluid Motion Frames 2, AMD FidelityFX Super Resolution 4 (FSR), AMD Radiance Display Engine, AMD RDNA 4 Architecture, AMD Radeon Anti Lag 2 Technology, AV1 decode support, AV1 encode support, AMD Noise Suppression, FreeSync Technology, AMD Smart Technologies, Triple Fan Design, 3.2-slot Fan Cooler |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 20 Gbps |
| Bus Width | 256-bit |
| System Requirements | |
| OS Required | Linux, Windows 10, Windows 11 |
| Min RAM Size | 8 GB |
| Required Power Supply | 750 W |
| Additional Requirements | 12V-2 x 6 pin PCI Express power connector |
| Miscellaneous | |
| Power Consumption Operational | 330 Watt |
| Included Accessories | Graphics card support bracket, ARGB sync cable, magnetic backplate, 16-pin to 3x 8-pin power adapter |
| Software Included | Sapphire TriXX, AMD Radeon Software Adrenalin Edition |
| Compliant Standards | DisplayPort 2.1a |
| Width | 6.568 cm |
| Depth | 33.08 cm |
| Height | 12.85 cm |
Features - sapphire - 11348-01-20G
More Details
Product Code
04:520225
EAN Code
4895106295872
Manufacturer
sapphire
