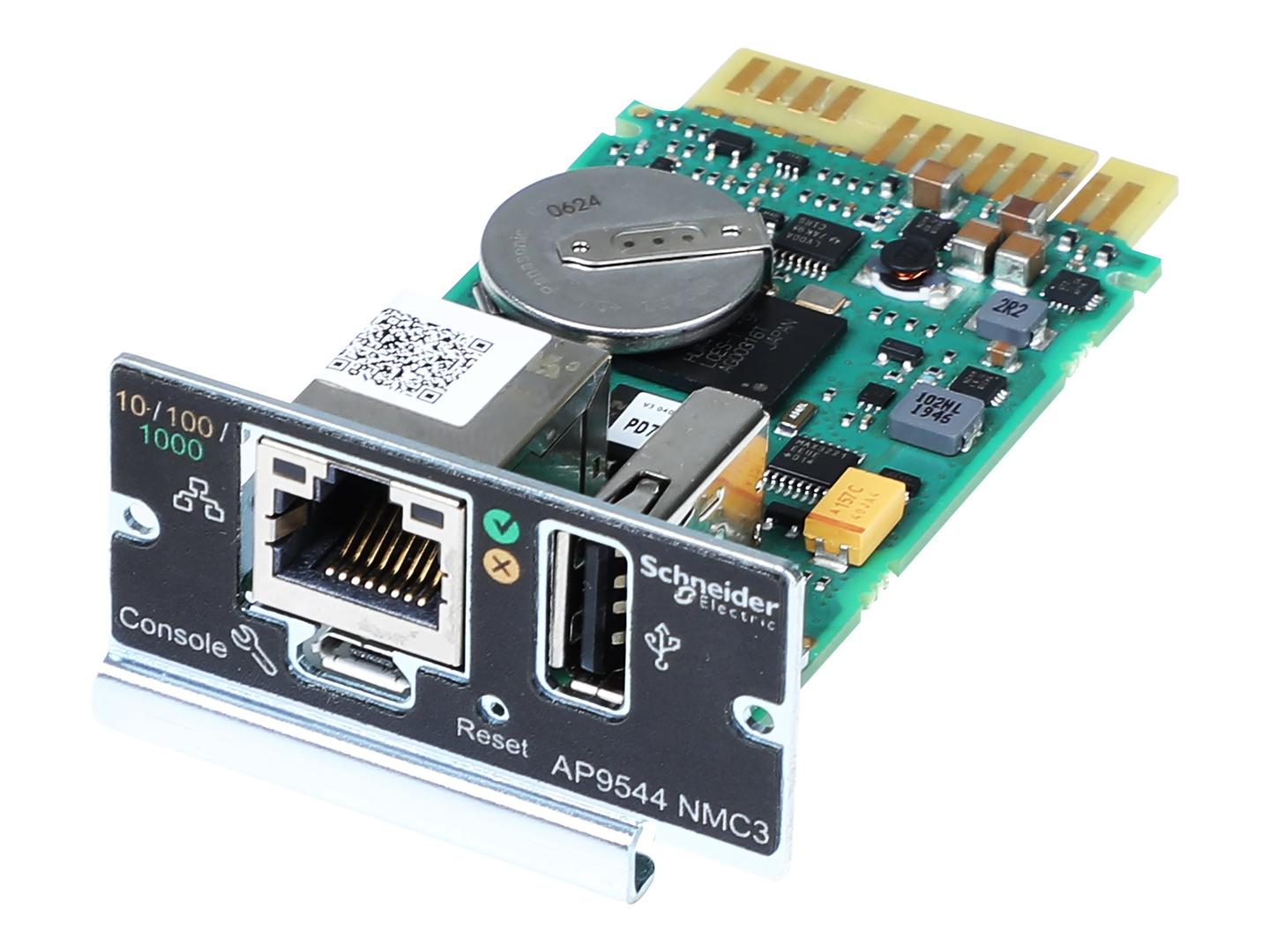

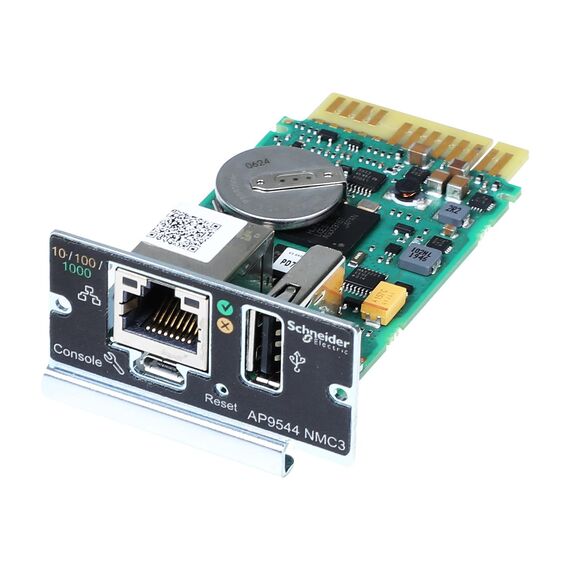

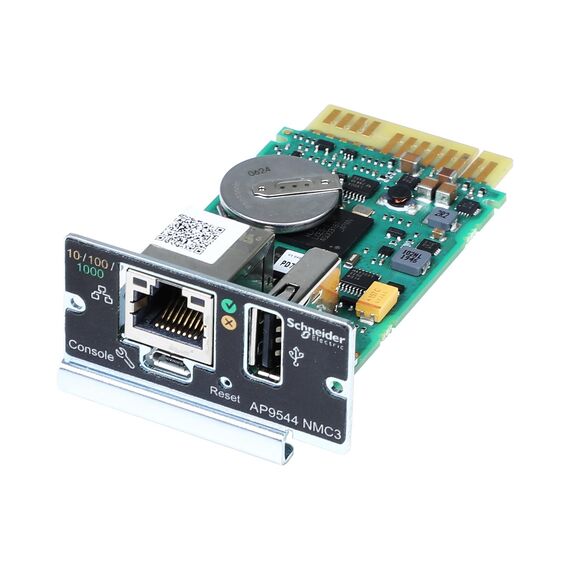

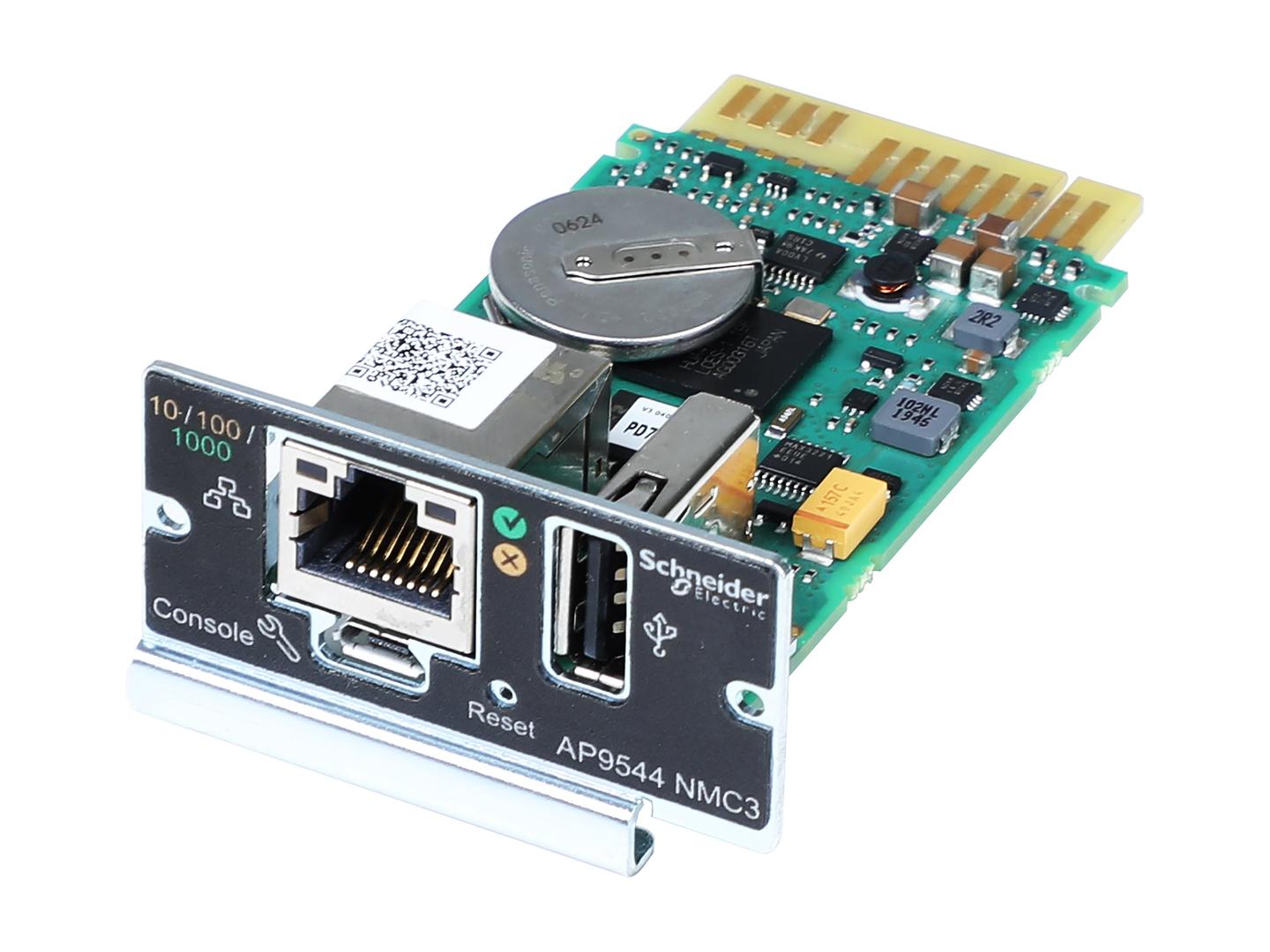

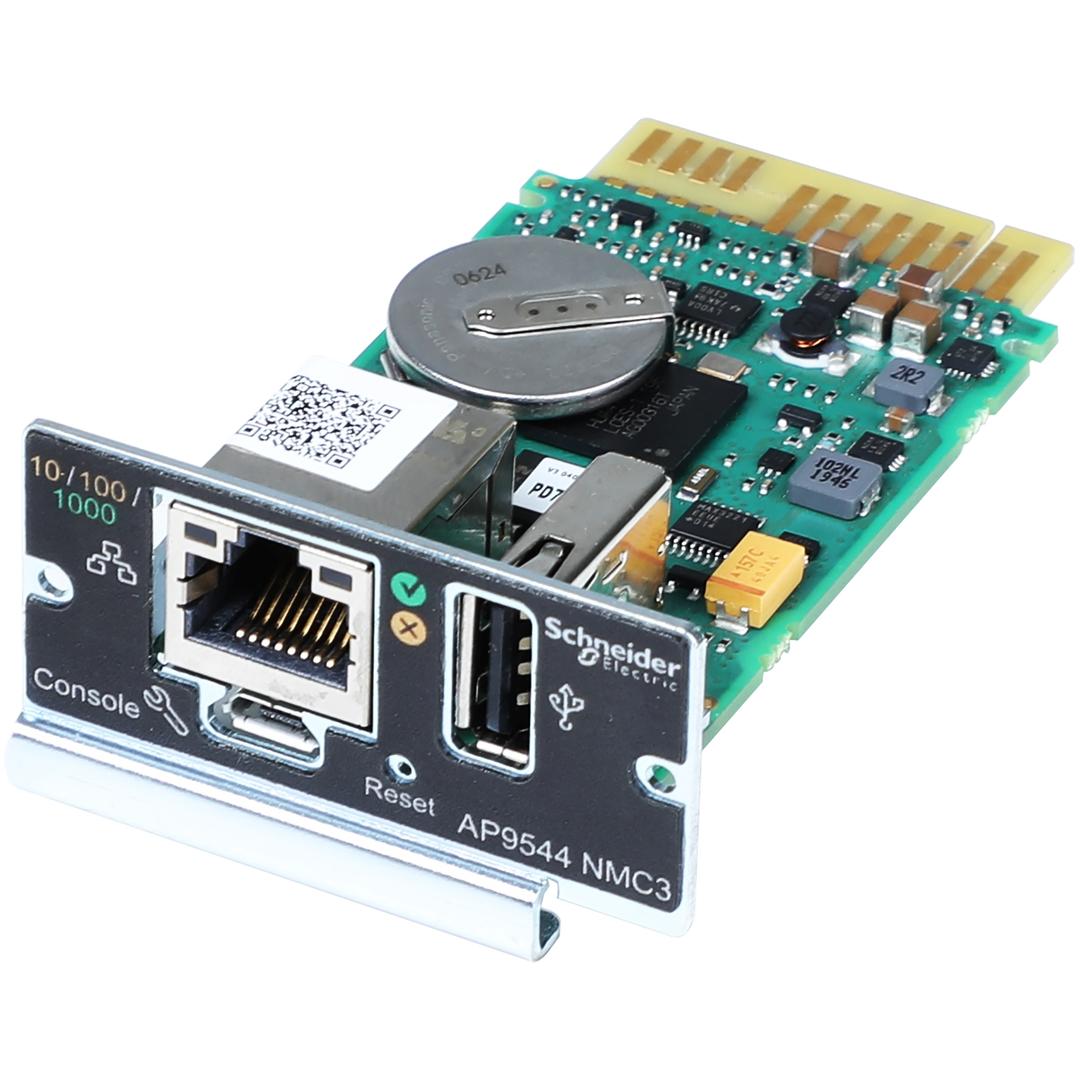

Schneider - Remote management adapter - Gigabit Ethernet | AP9544
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Remote management adapter |
| Form Factor | Plug-in module |
| Networking | |
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 - female ¦ 1 x USB - 4 pin USB Type A - female ¦ 1 x console - female |
| Miscellaneous | |
| Cables Included | 1 x USB cable (external) |
| Compliant Standards | FCC Class A certified, ICES-003, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, IEC 62040-2, EN 61000-4-8, AS/NZS, EN 62040-2, VCCI Class A, CISPR 32 |
| Dimensions & Weight | |
| Width | 5.2 cm |
| Depth | 8 cm |
| Height | 4.4 cm |
| Weight | 50 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.5 cm |
| Shipping Depth | 15.9 cm |
| Shipping Height | 5.1 cm |
| Shipping Weight | 300 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - APC - AP9544
More Details
Product Code
CG35480
EAN Code
0731304440161
Manufacturer
APC
