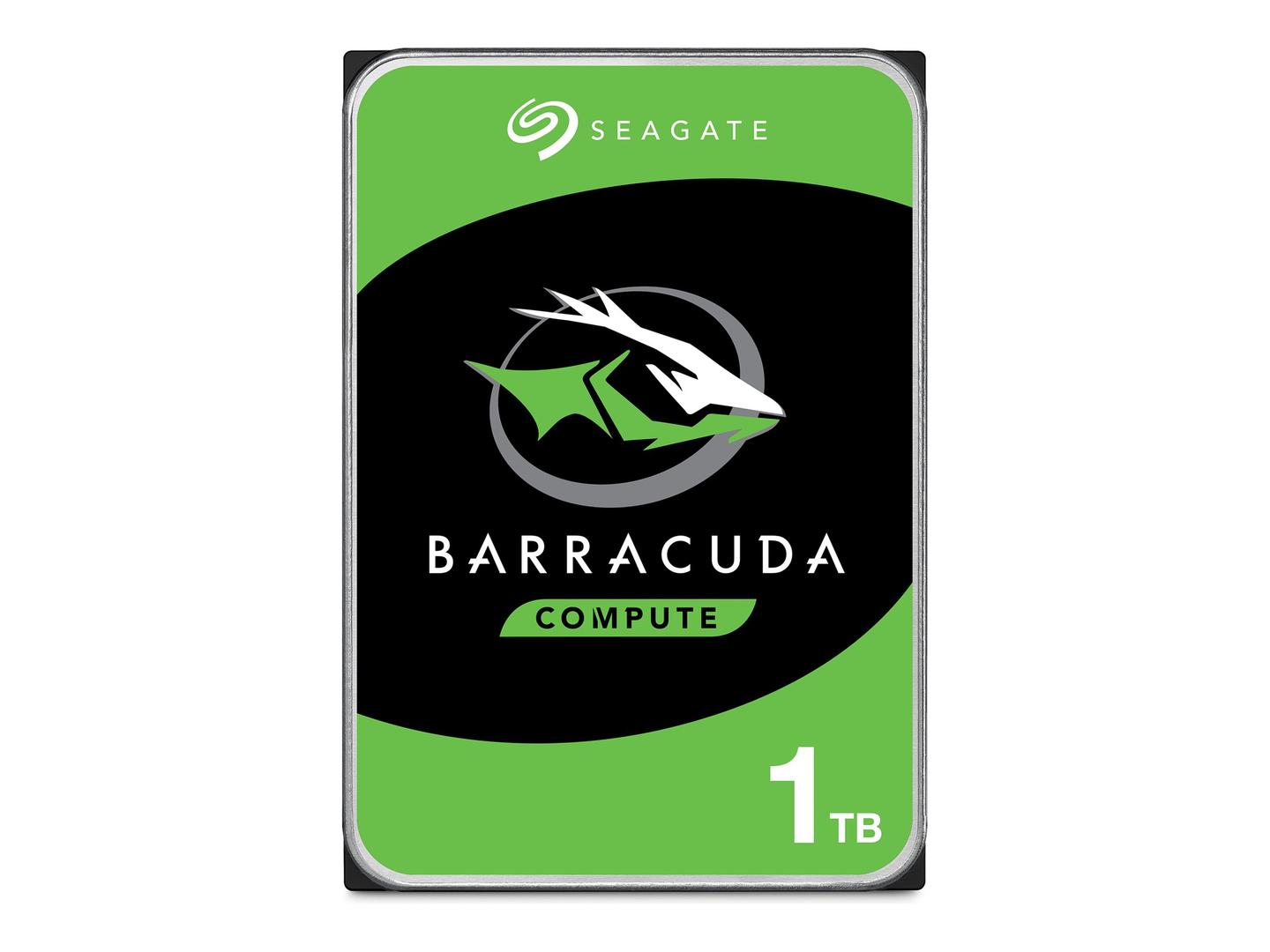

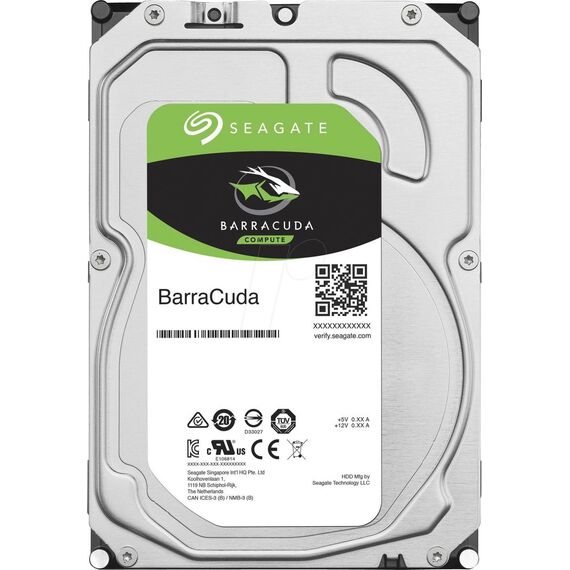

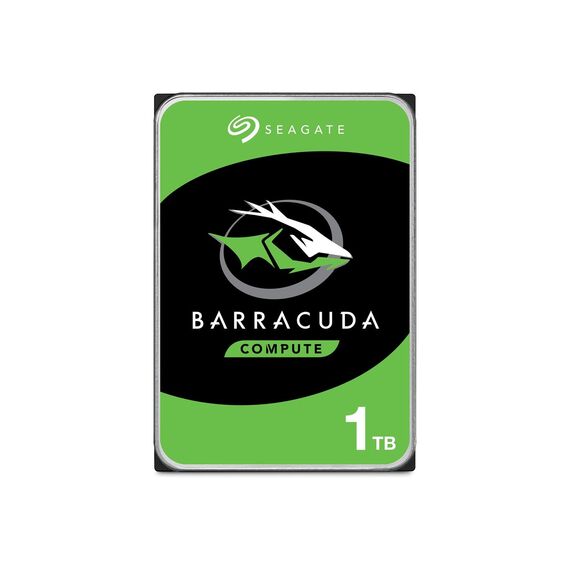

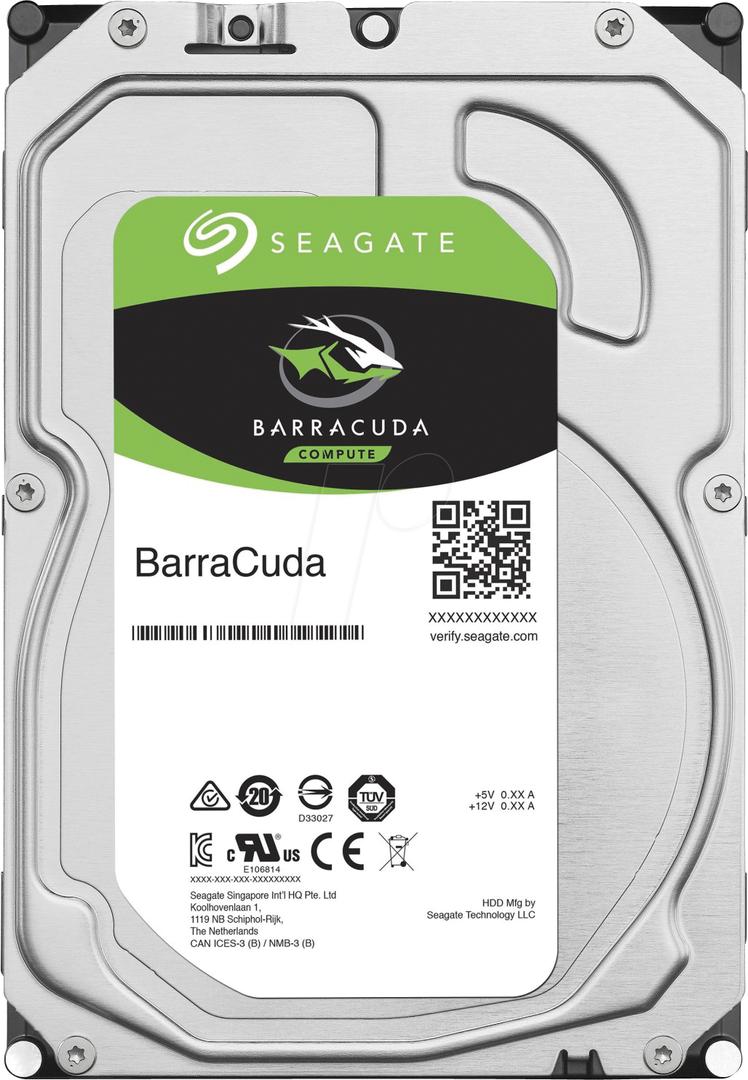

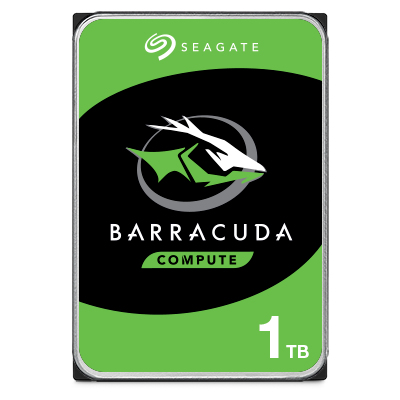

Seagate Barracuda ST1000DM014 - Hard drive - 1 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB | ST1000DM014
Please sign in so that we can notify you about a reply
Special Fetures
- Compliant with RoHS requirements in China and Europe
- High instantaneous (burst) data-transfer rates (up to 600 MB per second)
- Native Command Queuing with command ordering to increase performance in demanding applications
- Quiet operation
- State-of-the-art cache and on-the-fly error-correction algorithms
- Support for S.M.A.R.T. drive monitoring and reporting
- Supports latching SATA cables and connectors
- Worldwide Name (WWN) capability uniquely identifies the drive
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 1 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 4096 |
| Features | Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), shingled magnetic recording (SMR), S.M.A.R.T health information support |
| Width | 101.6 mm |
| Depth | 146.99 mm |
| Height | 20.2 mm |
| Weight | 490 g |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Average Latency | 6 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^14 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 3.9 Watt (idle) ¦ 5.1 Watt (read/write) ¦ 0.3 Watt (standby) ¦ 0.3 Watt (sleep) |
| Software & System Requirements | |
| Software Included | Seagate SeaTools |
| Miscellaneous | |
| Compliant Standards | China RoHS, EN 61000-4-2:95, EN 61000-4-3:96, EN 61000-4-4:95, EN 61000-4-5:95, EN 61000-4-6:97, EN 61000-4-11:94, ENV 50204:95, ASTM B845, EU RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 80 g @ 2 ms |
| Shock Tolerance (non-operating) | 350 g @ 2 ms |
| Vibration Tolerance (operating) | 0.25 g @ 350-500 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 350-500 Hz |
| Sound Emission | 28 dB |
Features - Seagate - ST1000DM014
Form Factor
- 3.5"
- Internal
Capacity
1TB
Interface
- SATA
More Details
Product Code
07:349447
EAN Code
8719706028332
Manufacturer
Seagate
