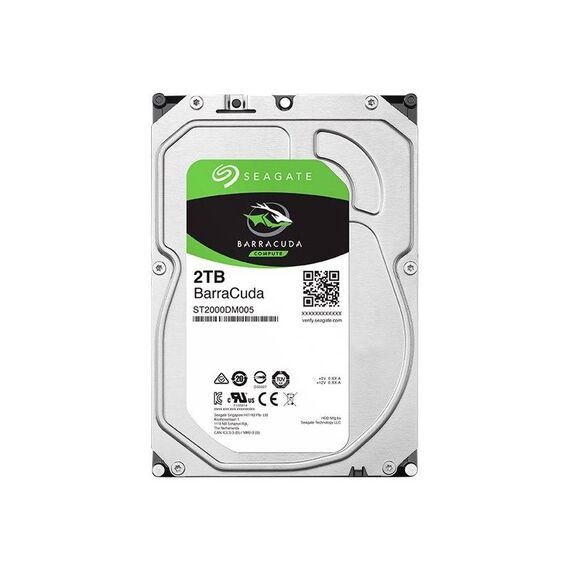

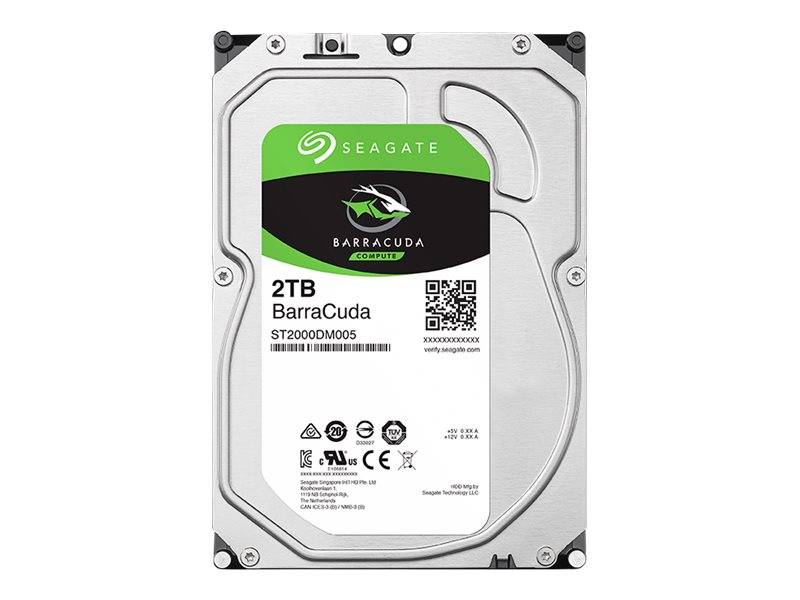

Seagate Barracuda ST2000DM005 / Hard drive / 2 TB / internal / SATA 6Gb/s / buffer: 256 MB | ST2000DM005
Please sign in so that we can notify you about a reply
Special Features
- Perpendicular recording technology
- Fast performance
- Superb reliability
- Eco-friendly power levels
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 2 TB |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 4096 |
| Features | Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), TGMR recording technology, S.M.A.R.T. |
| Width | 101.6 mm |
| Depth | 146.99 mm |
| Height | 20.2 mm |
| Weight | 415 g |
| Performance | Performance |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 190 MBps |
| Average Latency | 6 ms |
| Reliability | Reliability |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Power | Power |
| Power Consumption | 3.7 Watt (read) 2.5 Watt (idle) 3.7 Watt (write) 0.25 Watt (standby) 0.25 Watt (sleep) |
| Software & System Requirements | Software & System Requirements |
| Software Included | Seagate SeaTools |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, China RoHS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% |
| Shock Tolerance (operating) | 80 g @ 2 ms |
| Shock Tolerance (non-operating) | 350 g @ 2 ms |
| Vibration Tolerance (operating) | 0.5 g @ 22-350 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 22-350 Hz |
Features - Seagate - ST2000DM005
Form Factor
- 3.5"
- Internal
Capacity
2TB
Interface
- SATA
More Details
Product Code
03:106409
EAN Code
0763649094396
Manufacturer
Seagate
