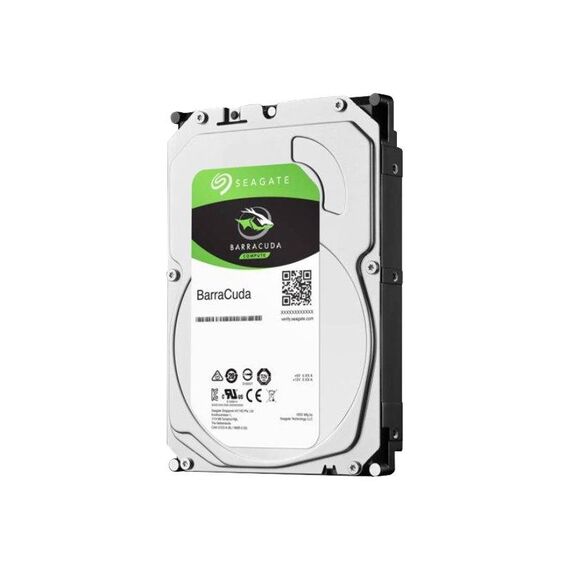

Seagate Barracuda ST8000DM004 / Hard drive / 8 TB / internal / 3.5" / SATA 6Gb/s / buffer: 256 MB | ST8000DM004
Please sign in so that we can notify you about a reply
Special Features
- High instantaneous (burst) data-transfer rates (up to 600MB per second)
- Native Command Queuing with command ordering to increase performance in demanding applications
- Quiet operation
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns
- State-of-the-art cache and on-the-fly error-correction algorithms
- Support for S.M.A.R.T. drive monitoring and reporting
- Supports latching SATA cables and connectors
- TGMR recording technology provides the drives with increased areal density
- Worldwide Name (WWN) capability uniquely identifies the drive
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 8 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 4096 |
| Features | Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), TGMR recording technology, S.M.A.R.T. |
| Width | 101.6 mm |
| Depth | 146.99 mm |
| Height | 26.1 mm |
| Weight | 630 g |
| Performance | Performance |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 190 MBps |
| Average Latency | 6 ms |
| Reliability | Reliability |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | Power |
| Power Consumption | 5.3 Watt (read) 3.4 Watt (idle) 5.3 Watt (write) 0.25 Watt (standby) 0.25 Watt (sleep) |
| Software & System Requirements | Software & System Requirements |
| Software Included | Seagate SeaTools |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, China RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% |
| Shock Tolerance (operating) | 80 g @ 2 ms |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Vibration Tolerance (operating) | 0.5 g @ 22-350 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 22-350 Hz |
Features - Seagate - ST8000DM004
Form Factor
- 3.5"
- Internal
Capacity
8TB
Interface
- SATA
More Details
Product Code
03:270959
EAN Code
0763649094419
Manufacturer
Seagate
