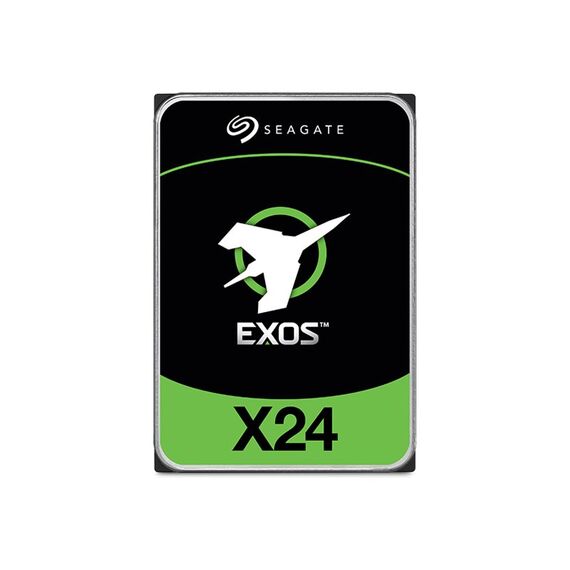

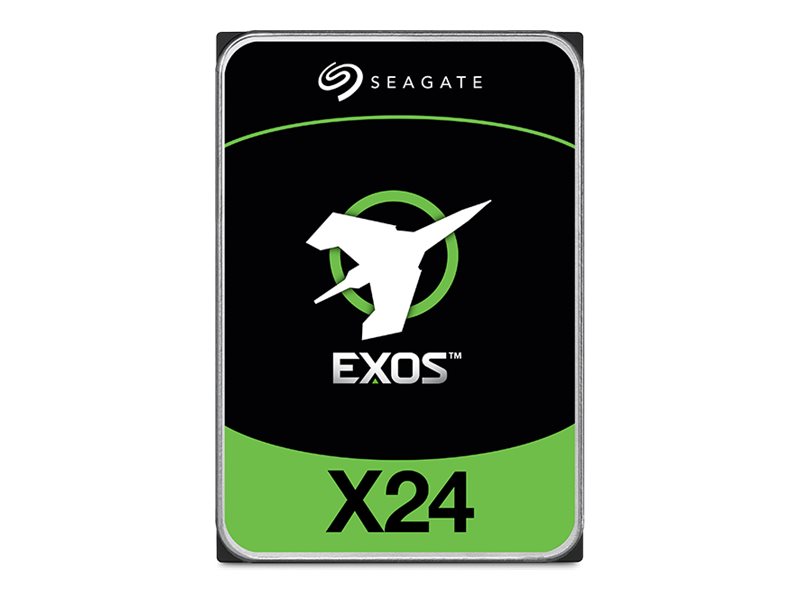

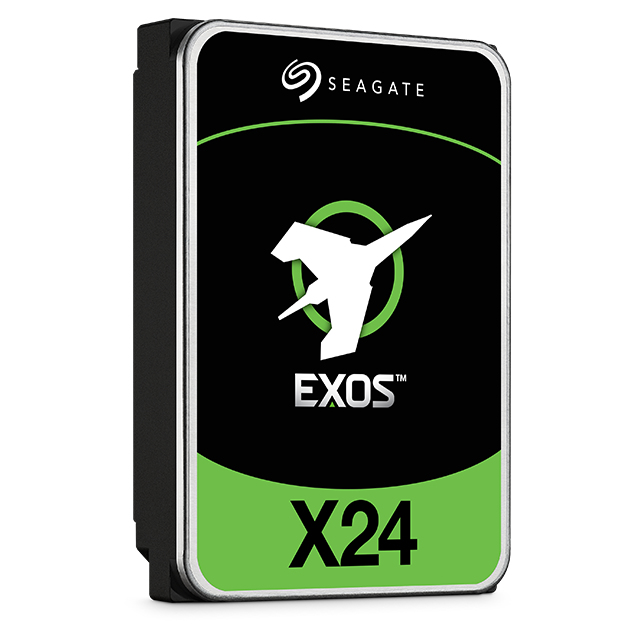

Seagate Exos X24 ST20000NM007H - Hard drive - Enterprise - 20 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB | ST20000NM007H
Please sign in so that we can notify you about a reply
Product Features
- Enhanced reliability
With a mean time between failures (MTBF) of 2.5 million hours, the Seagate Exos X24 is built for durability and reliability, ensuring your data is always accessible when you need it. - Optimized power efficiency
Featuring Power Choice Idle Power technology and PowerBalance power/performance technology, the Seagate Exos X24 optimizes power consumption without compromising performance, making it an eco-friendly choice for data centers. - High capacity storage
Offering a massive 20 TB capacity, this hard drive accommodates extensive data storage needs, making it ideal for enterprise-level storage solutions. - Superior data security
Equipped with RSA 3072 Firmware and T10 Protection Information (T10 PI), the Seagate Exos X24 provides advanced security features to protect your data from unauthorized access. - Efficient data transfer
With a data transfer rate of 1.2 GBps and an internal data rate of 285 MBps, this hard drive ensures swift and efficient data access and transfer, enhancing overall system performance.
Special Fetures
- Highly reliable performance with enhanced caching - making it the logical choice for cloud data center and massive scale-out data center applications
- PowerBalance feature optimizes Watts per TB
- Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
- Helium side-sealing weld technology for added handling, robustness, and leak protection
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
- Data protection and security
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 20 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Buffer Size | 512 MB |
| Features | Helium Sealed-Drive Design, Conventional magnetic recording (CMR), Super Parity, Low Halogen, Power Choice Idle Power technology, PowerBalance power/performance technology, Hot-Plug Support, Organic Solderability Preservative, Dual Port, PowerBalance, T10 Protection Information (T10 PI) |
| Width | 10.185 cm |
| Depth | 14.7 cm |
| Height | 2.61 cm |
| Weight | 685 g |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 285 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2500000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Voltage Required | 5 - 12 V |
| Power Consumption | 6.5 Watt (average idle) <br /> 9.8 Watt (max read) <br /> 8.2 Watt (max write) |
| Miscellaneous | |
| Compliant Standards | RSA 3072 Firmware |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 60 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (non-operating) | 2.27 g @ 2-500 Hz |
Features - Seagate - ST20000NM007H
Form Factor
- 3.5"
- Internal
Capacity
20TB
Interface
- SAS
More Details
Product Code
CJ40491
EAN Code
0763649175149
Manufacturer
Seagate
