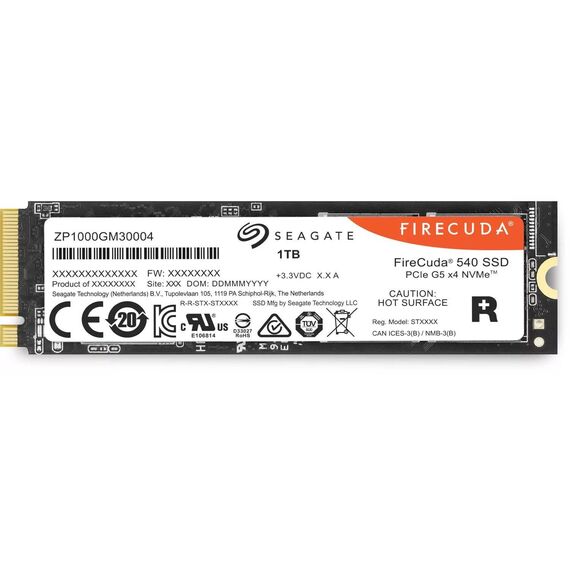

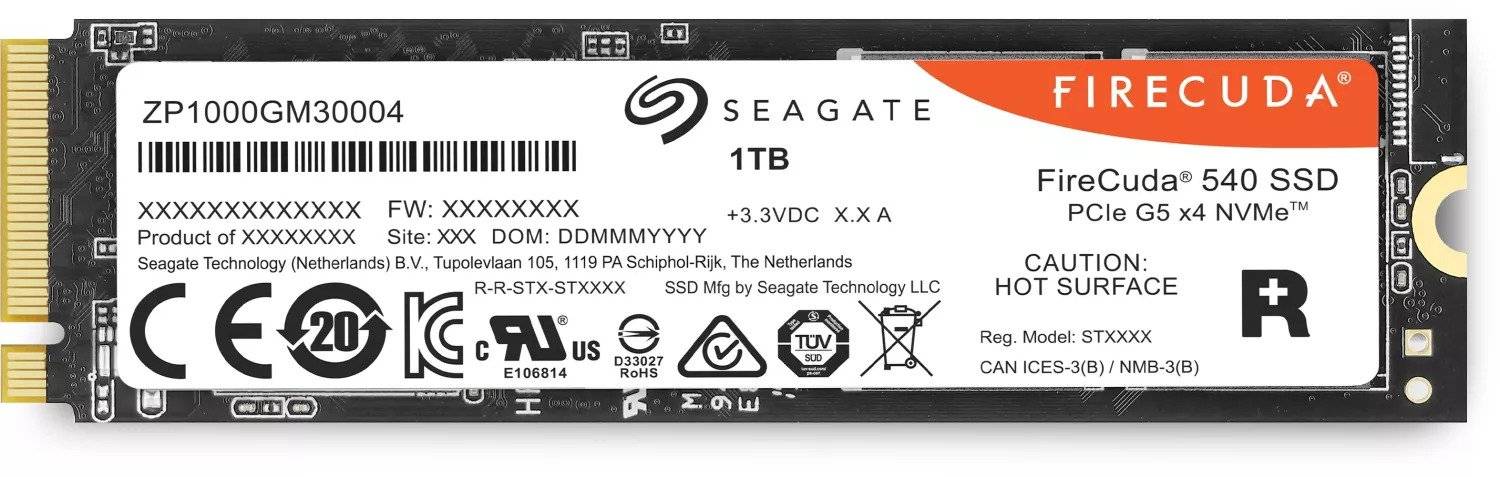

Seagate FireCuda 540 ZP1000GM3A004 / SSD / encrypted / 1 TB / internal / M.2 2280 (double-sided) / PCI Express 5.0 x4 (NVMe) / Self-Encrypting Drive (SED), TCG Opal Encryption 2.01 | ZP1000GM3A004
Please sign in so that we can notify you about a reply
Product Features
- Full tilt speeds
PCIe Gen5 interface brings performance of 9,500 MB/s and 1.5M IOPS optimized for DirectStorage PC games. - Faster speed
Transfer speeds 50% faster than PCIe Gen4 NVMe SSDs and 17x faster than SATA SSDs. - Ready to roll
Plug-and-play compatibility with many PCIe Gen5 motherboards and backwards compatible with PCIe Gen4. - Game and create like a pro
DirectStorage support brings faster load times to compatible PC games and applications.
Special Features
- Full tilt speeds
- Faster speed
- Ready to roll
- Game and create like a pro
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 (double-sided) |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | TRIM support, Microsoft DirectStorage API support, NVM Express (NVMe) 2.0, S.M.A.R.T. |
| Width | 22.15 mm |
| Depth | 80.15 mm |
| Height | 3.58 mm |
| Weight | 7.4 g |
| Bundled with | 3 years Seagate Rescue Data Recovery |
| Performance | Performance |
| SSD Endurance | 1000 TB |
| Internal Data Rate | 9500 MBps (read) / 8500 MBps (write) |
| Maximum 4KB Random Write | 1500000 IOPS |
| Maximum 4KB Random Read | 1300000 IOPS |
| Reliability | Reliability |
| MTBF | 1,800,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 2280 (double-sided) |
| Power | Power |
| Power Consumption | 10 Watt (active) ¦ 144 mW (average idle) |
| Software & System Requirements | Software & System Requirements |
| OS Required | Linux, Windows 10, Windows 11 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, RoHS |
| Localisation | Worldwide |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 10.9 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 2.4 cm |
| Shipping Weight | 70 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
Features - Seagate - ZP1000GM3A004
Form Factor
- 2.5"
- Internal
Capacity
1TB
Interface
- M.2
More Details
Product Code
CH57059
EAN Code
8719706430876
Manufacturer
Seagate
