Product Features
- Seasonic CONNECT

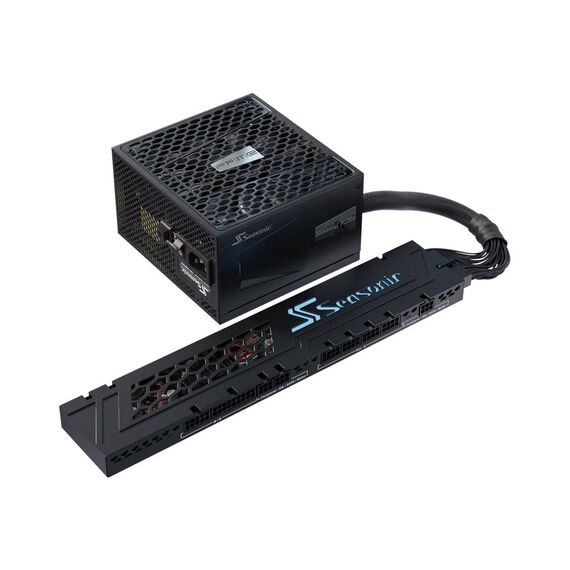

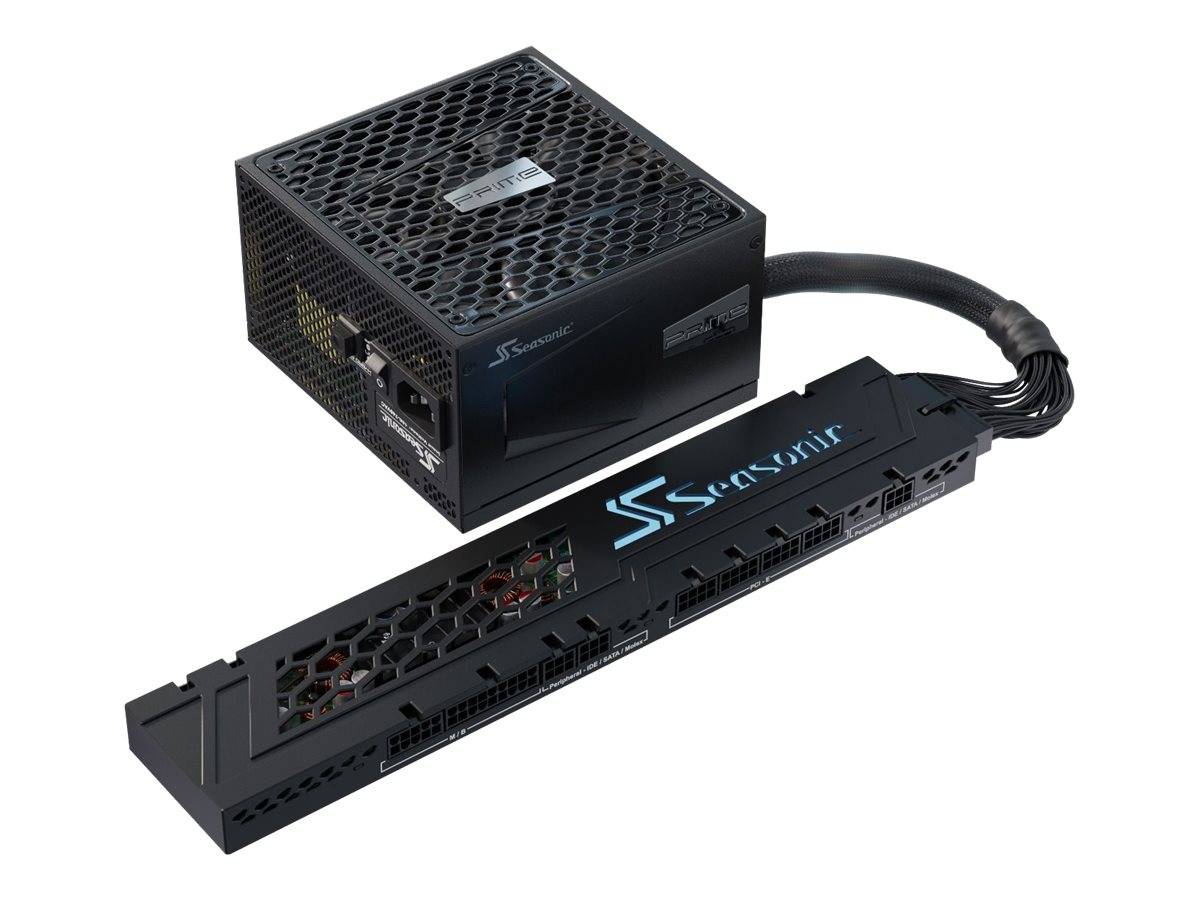

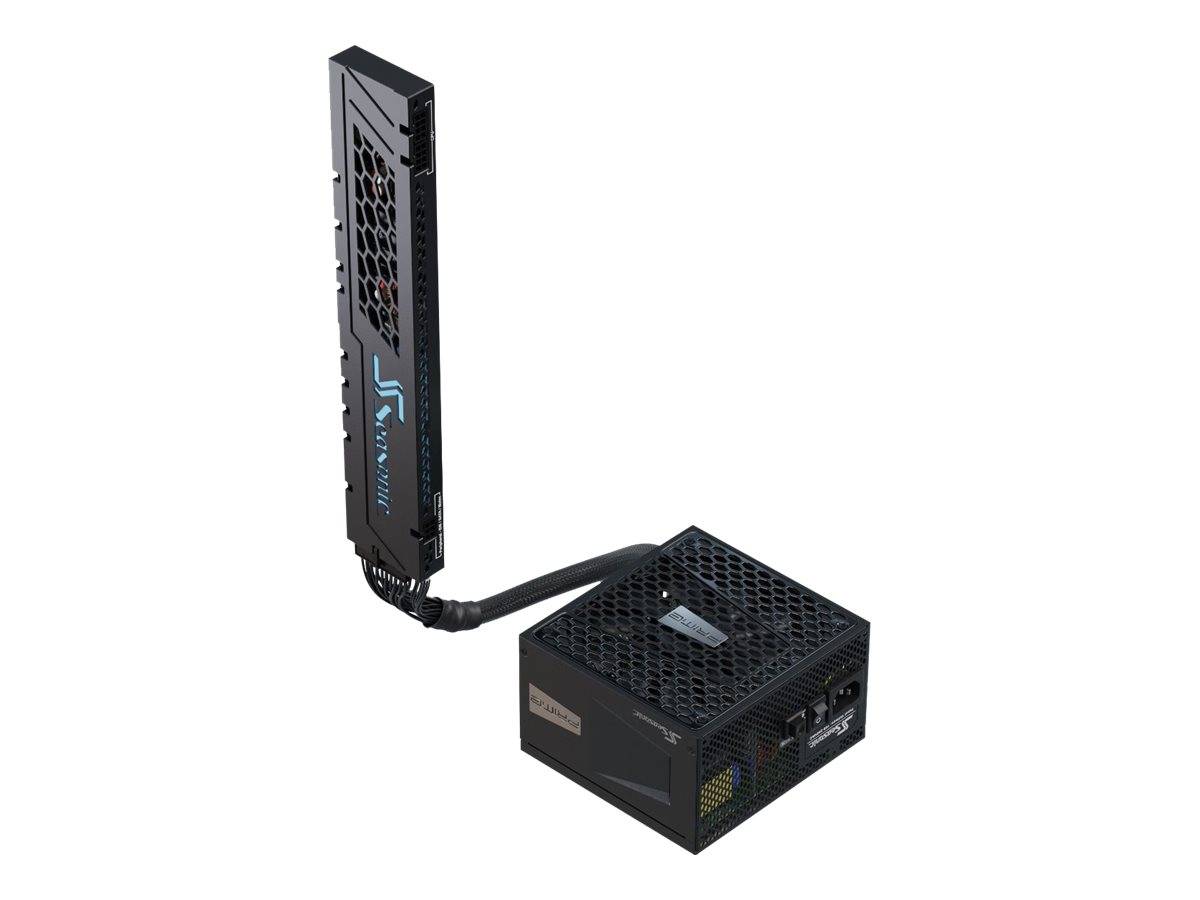

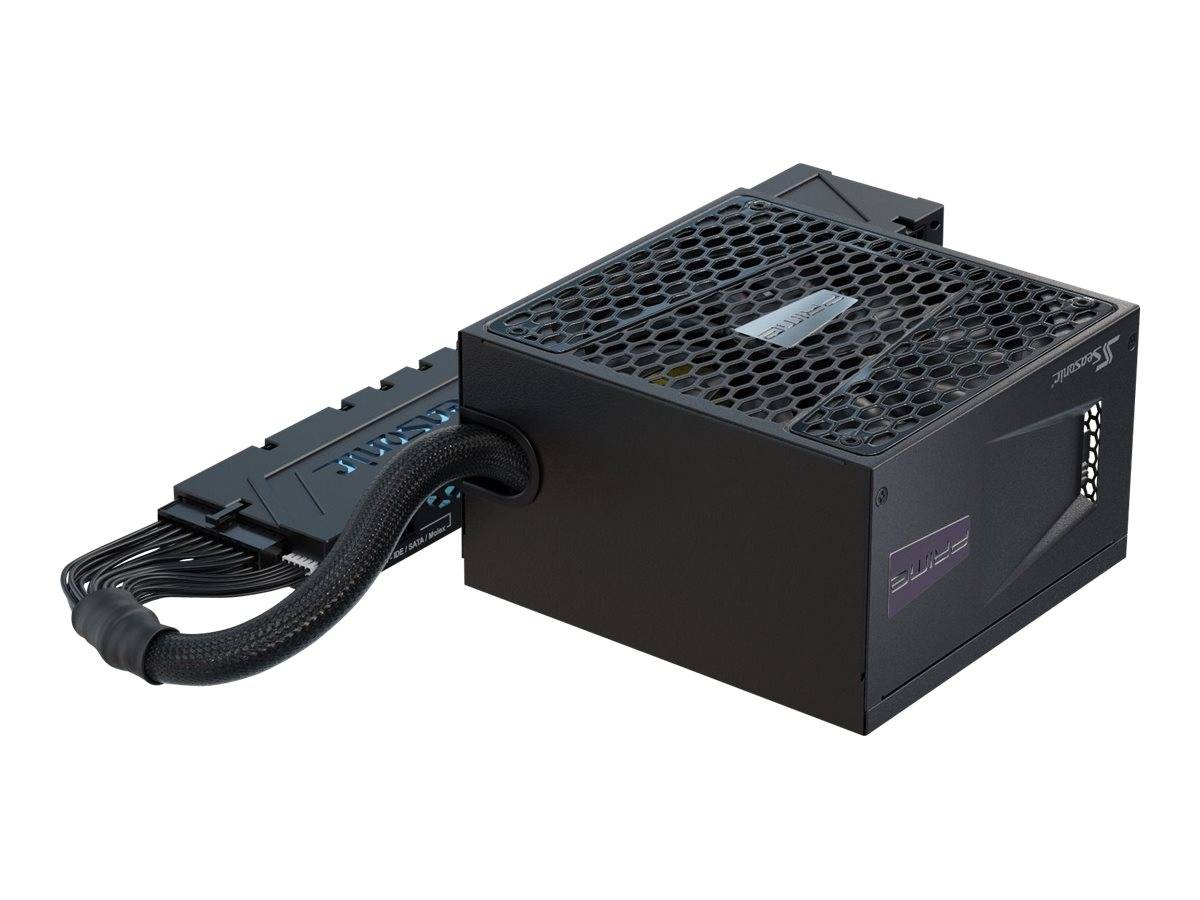

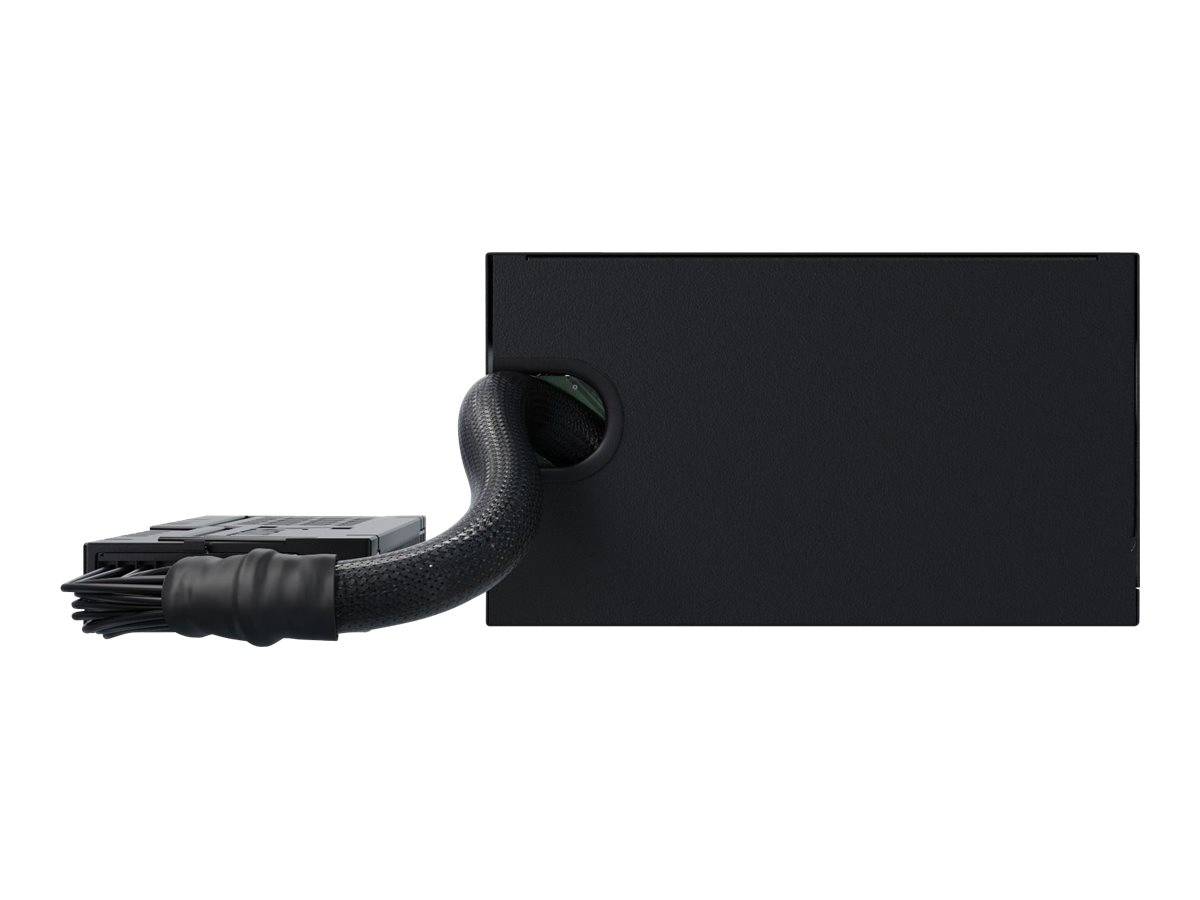

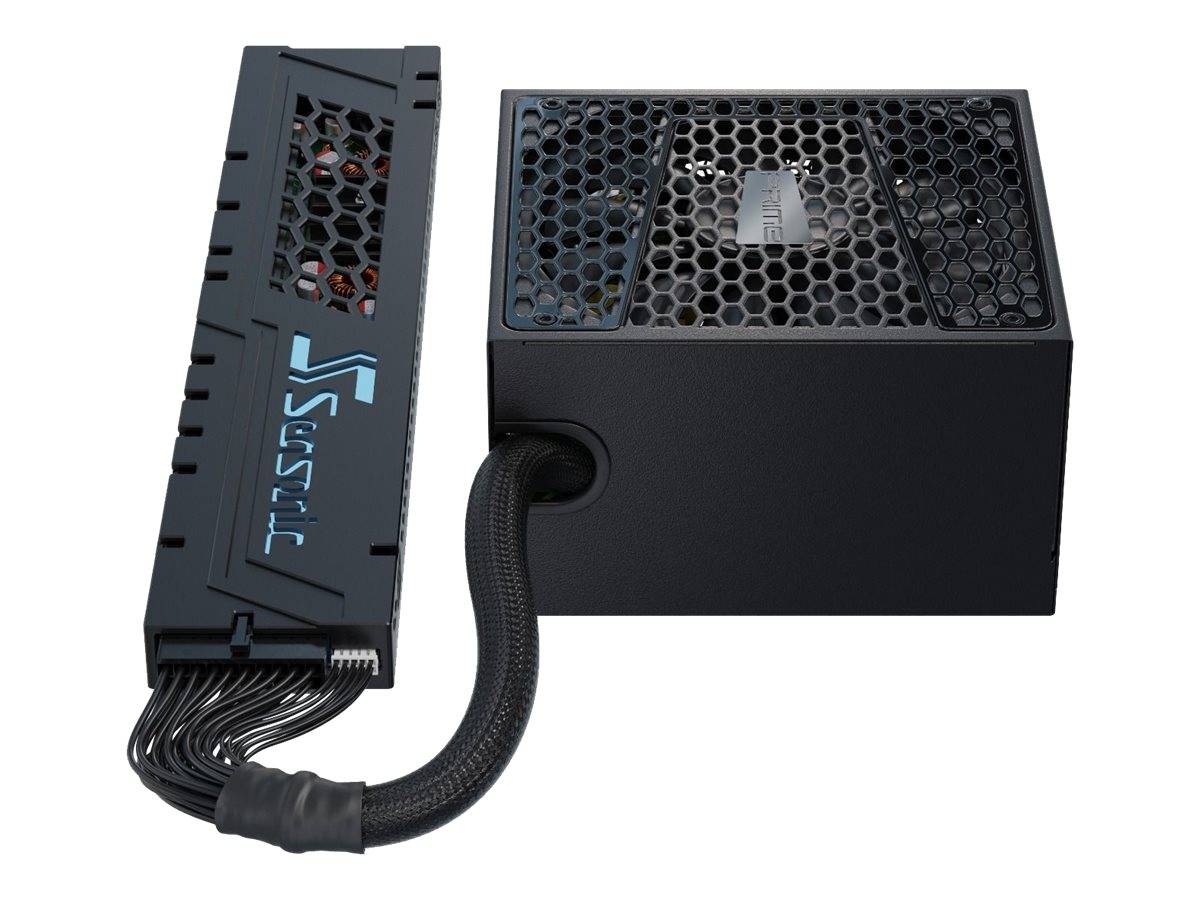

The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS Gold certified power supply, with the S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. - One Clean Solution
The Seasonic CONNECT is an aesthetic upgrade to everyone's system and it will also feature a Seasonic LED display.
Special Features
- Micro tolerance load regulation
- Cable-free connection design
- Premium hybrid fan control
- Multi-GPU setup
- Gold plated connectors
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Bundled with | Seasonic One Clean Solution |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A ¦ 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% at 50% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 150,000 hours |
| Features | On/off switch, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, fully modular |
| Compliant Standards | TUV, BSMI, CB, CCC, EMC, RoHS, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Sea Sonic - SSR-750FA
More Details
Product Code
07:117402
EAN Code
4711173875611
Manufacturer
Sea Sonic
