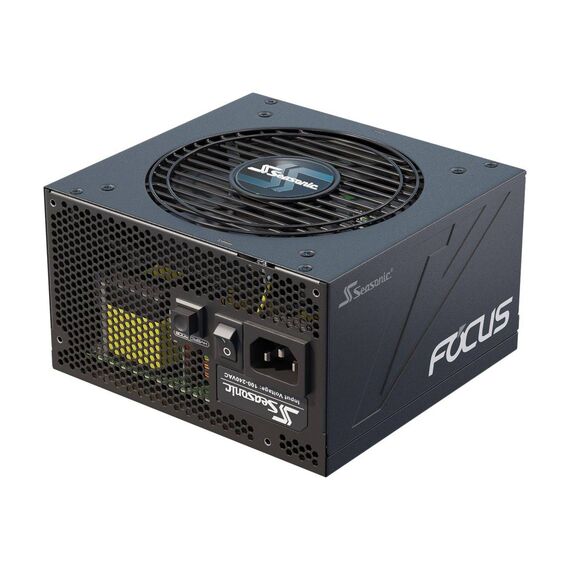

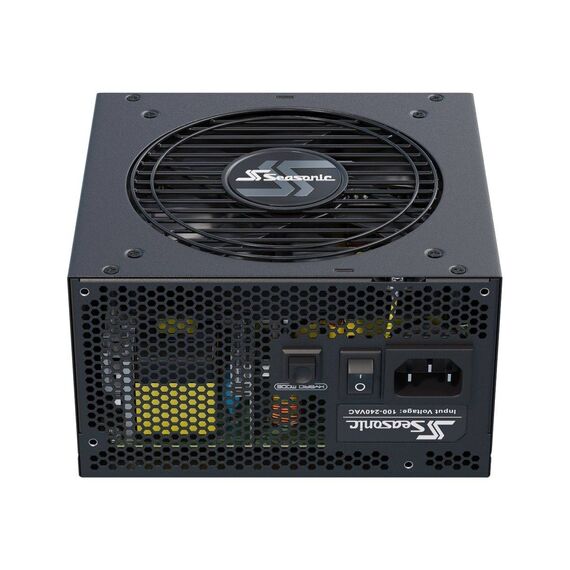

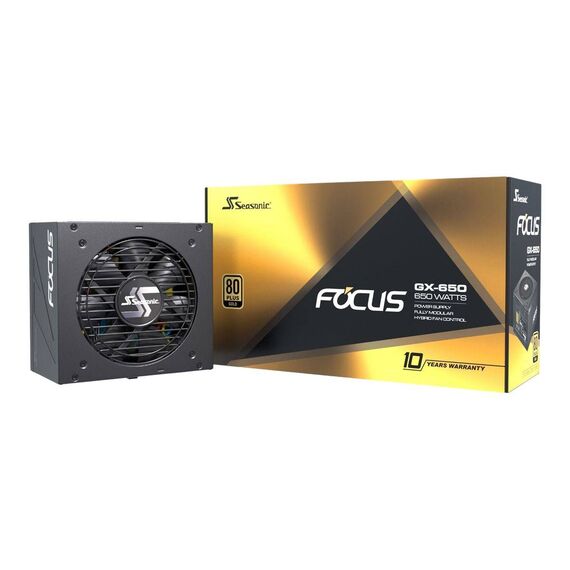

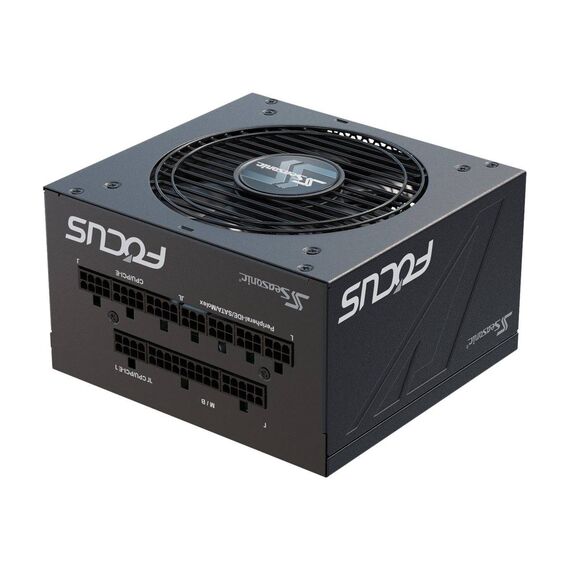

Seasonic FOCUS GX 650 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 650 Watt | FOCUS-GX-650
Please sign in so that we can notify you about a reply
Product Features
- Cable-free connection design
This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality. - Fluid Dynamic Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Special Features
- Reduced noise without increase in temperature
- Extended fan life due to the reduced number of fan rotations
- Optimized heat dissipation at all times
- Unsurpassed silent performance in Fanless Mode
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

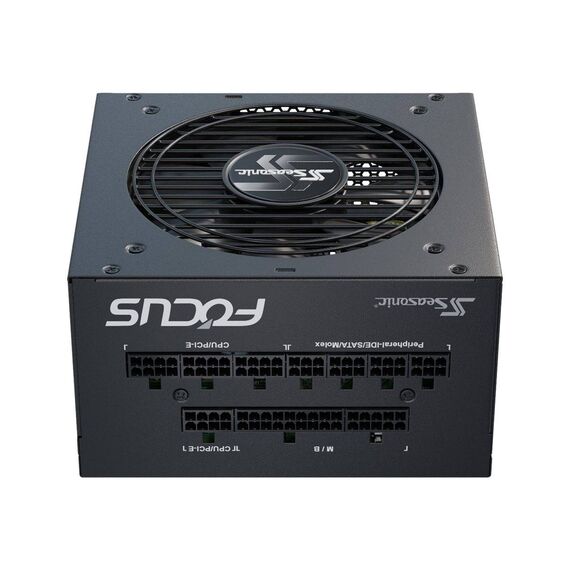

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, gold-plated terminals, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, fan speed control, fluid dynamic bearing cooling fan, Premium Hybrid Fan Control, fully modular, Seasonic S3FC fan Control |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, REACH, EAC, Energy-Related Products (ErP) Lot 7 |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Sea Sonic - FOCUS-GX-650
More Details
Product Code
07:117404
EAN Code
4711173874706
Manufacturer
Sea Sonic
