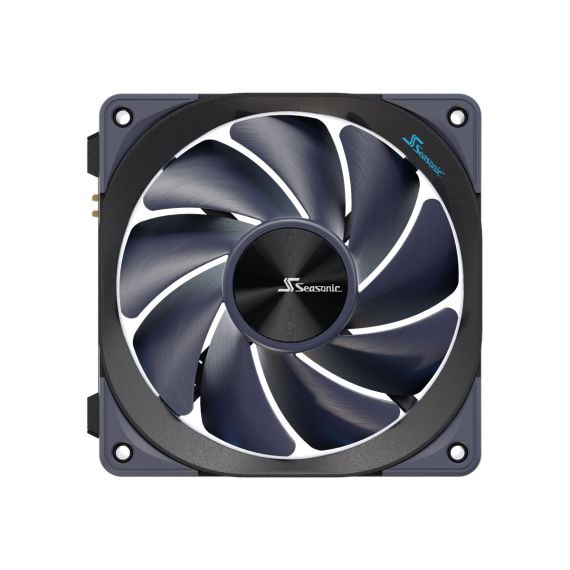

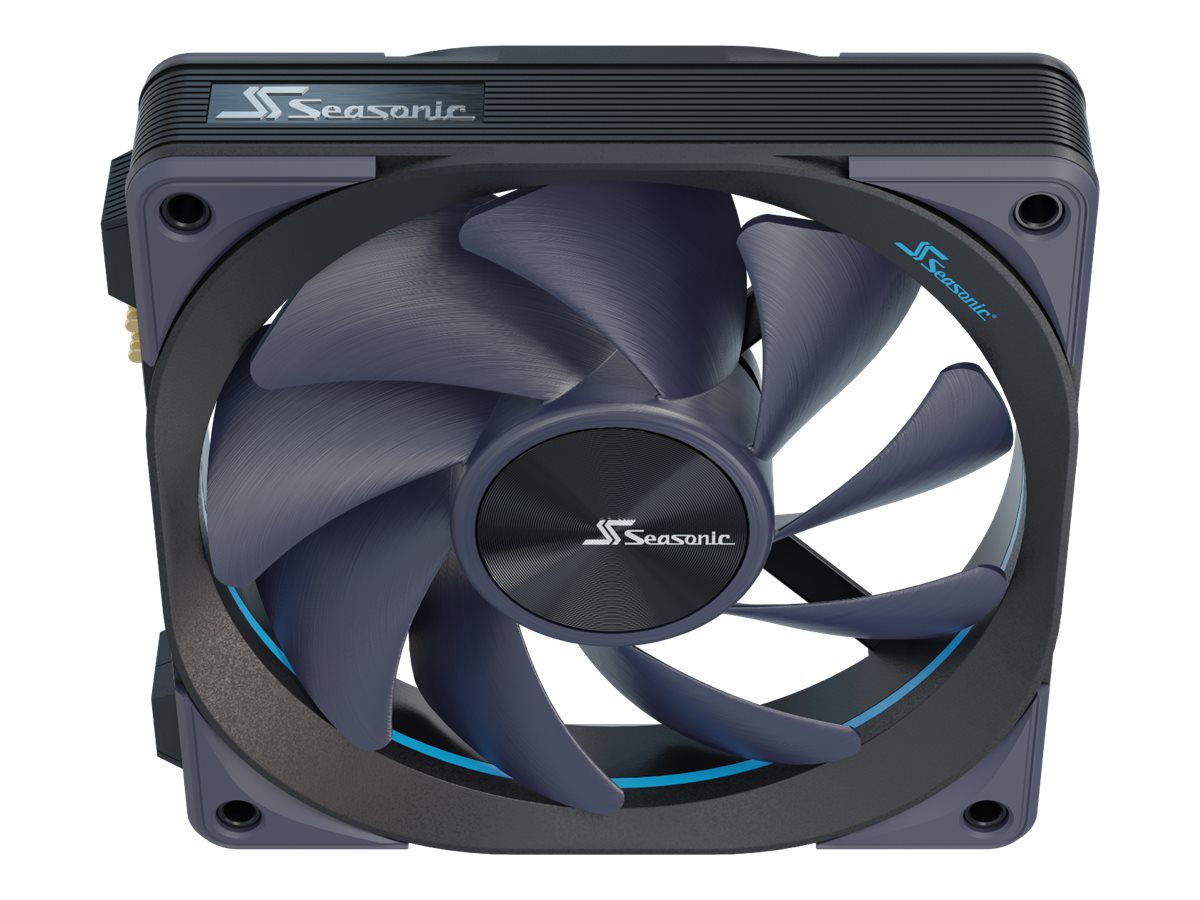

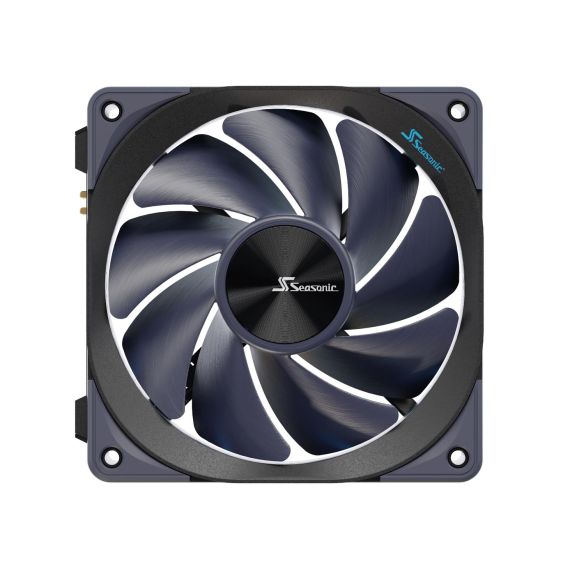

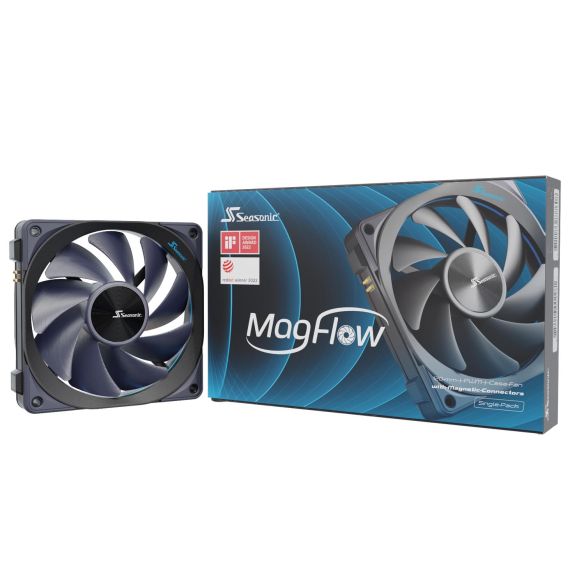

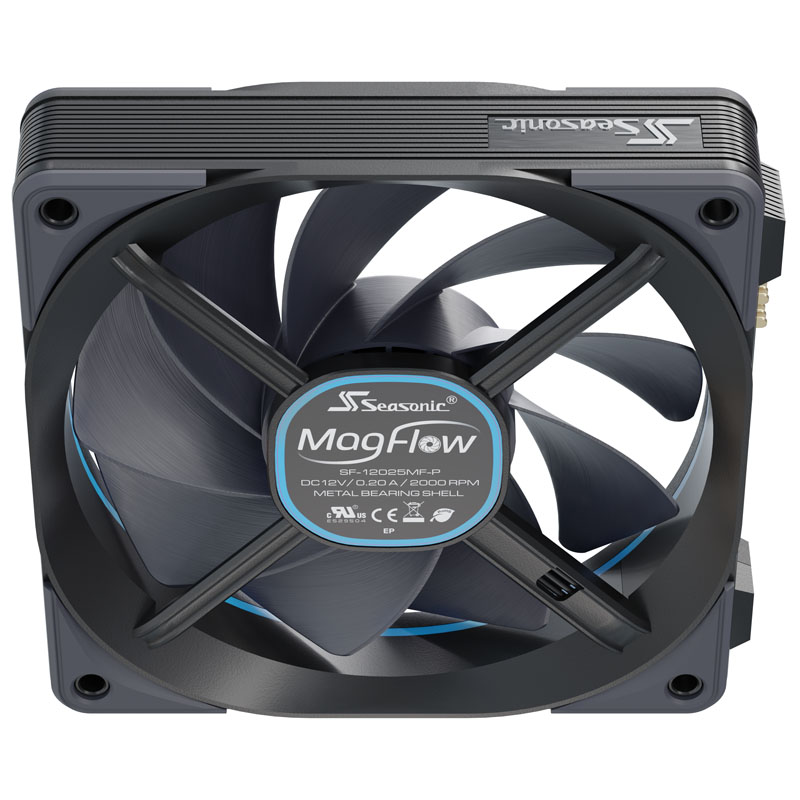

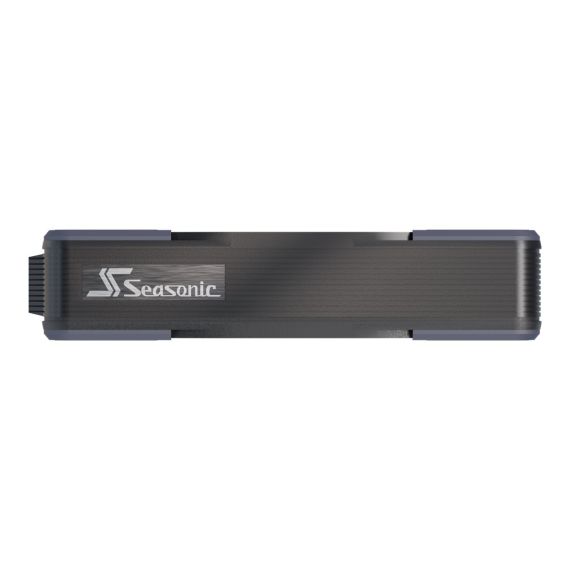

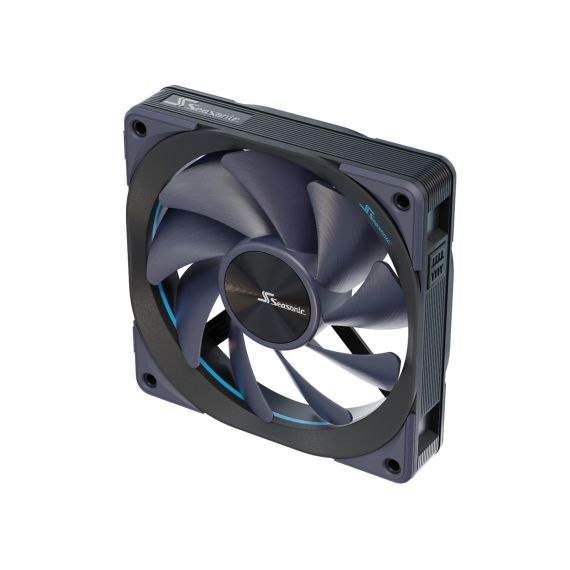

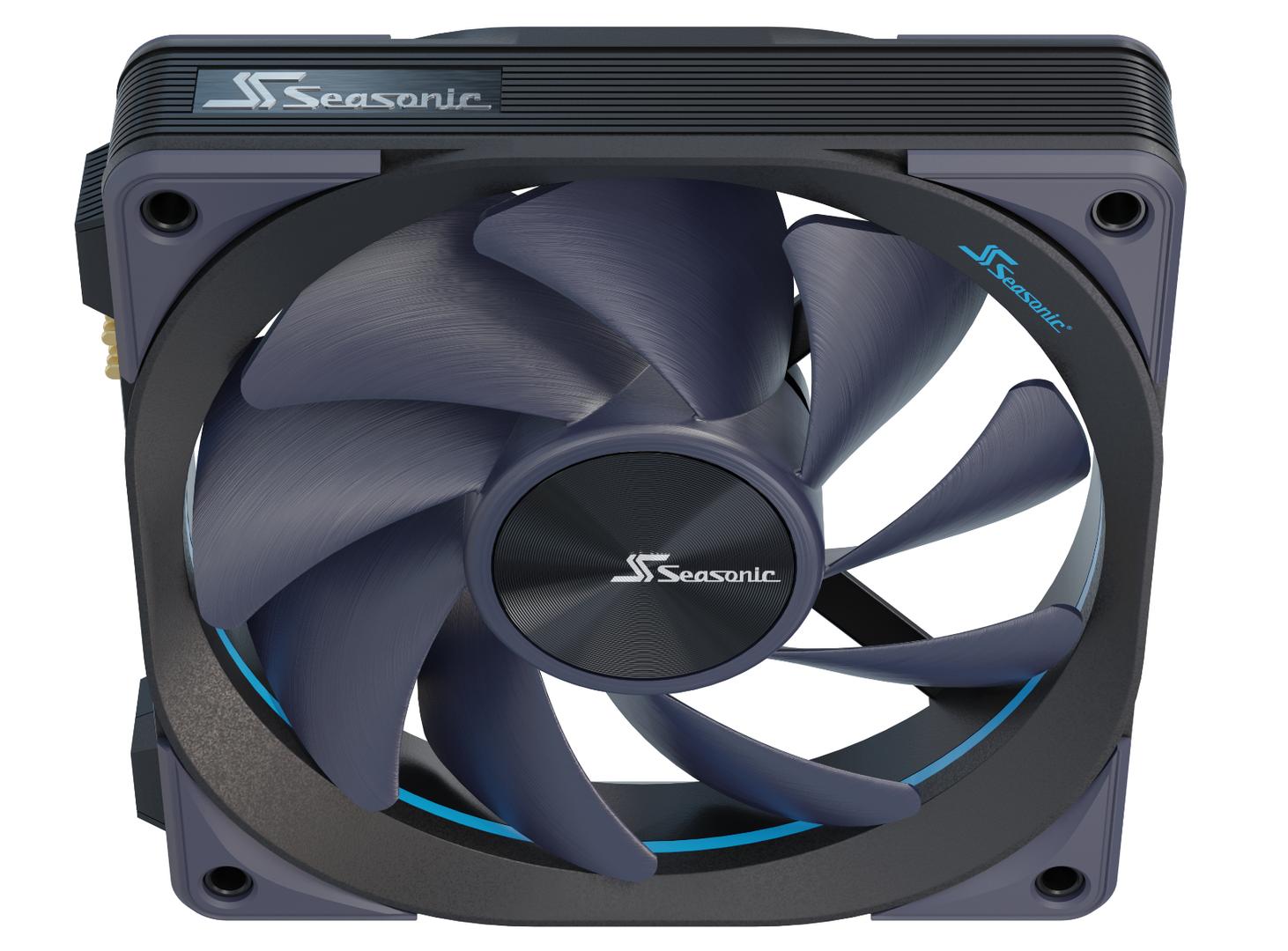

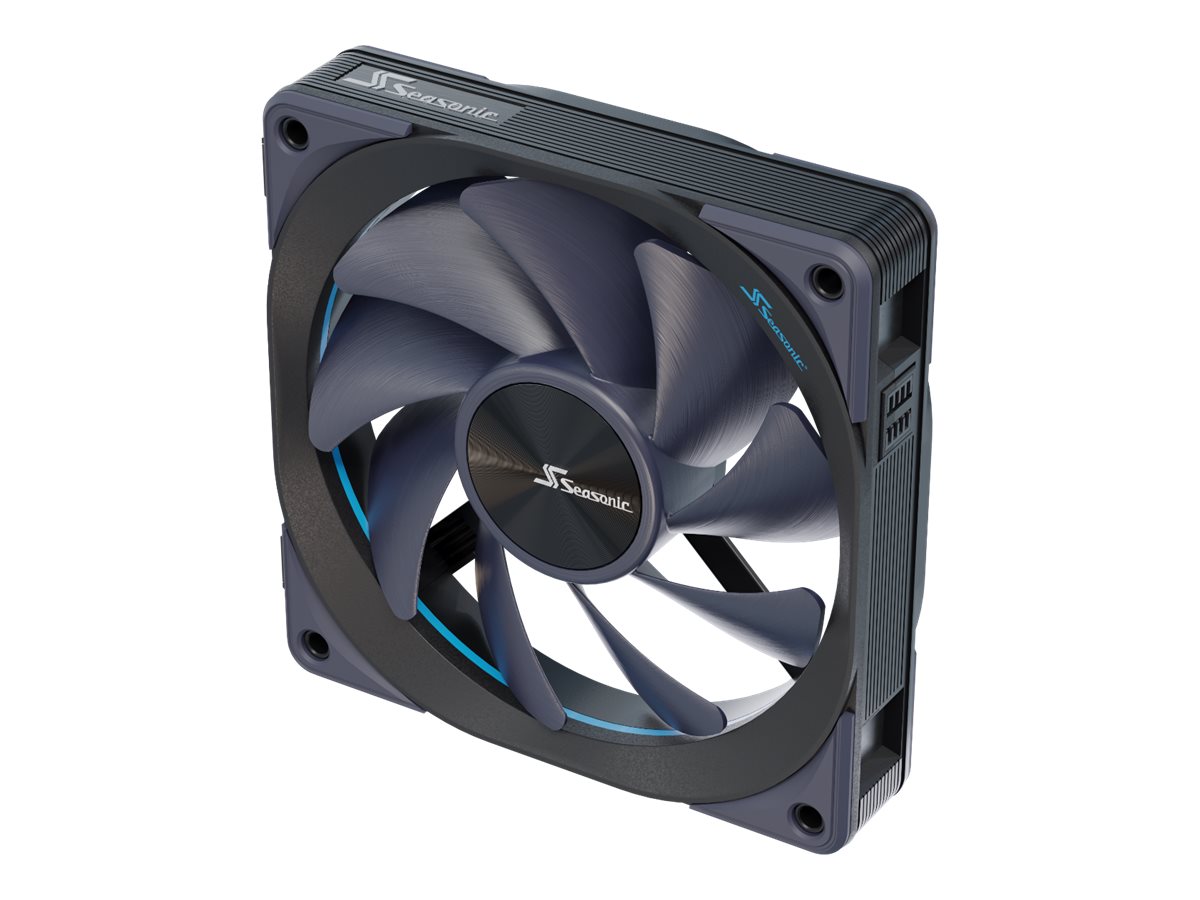

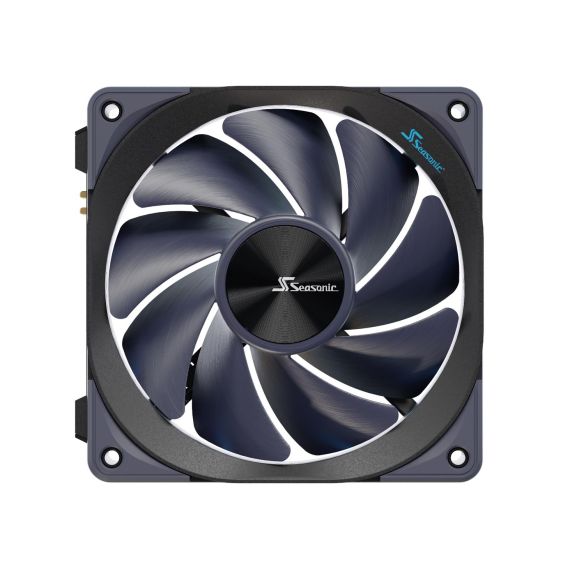

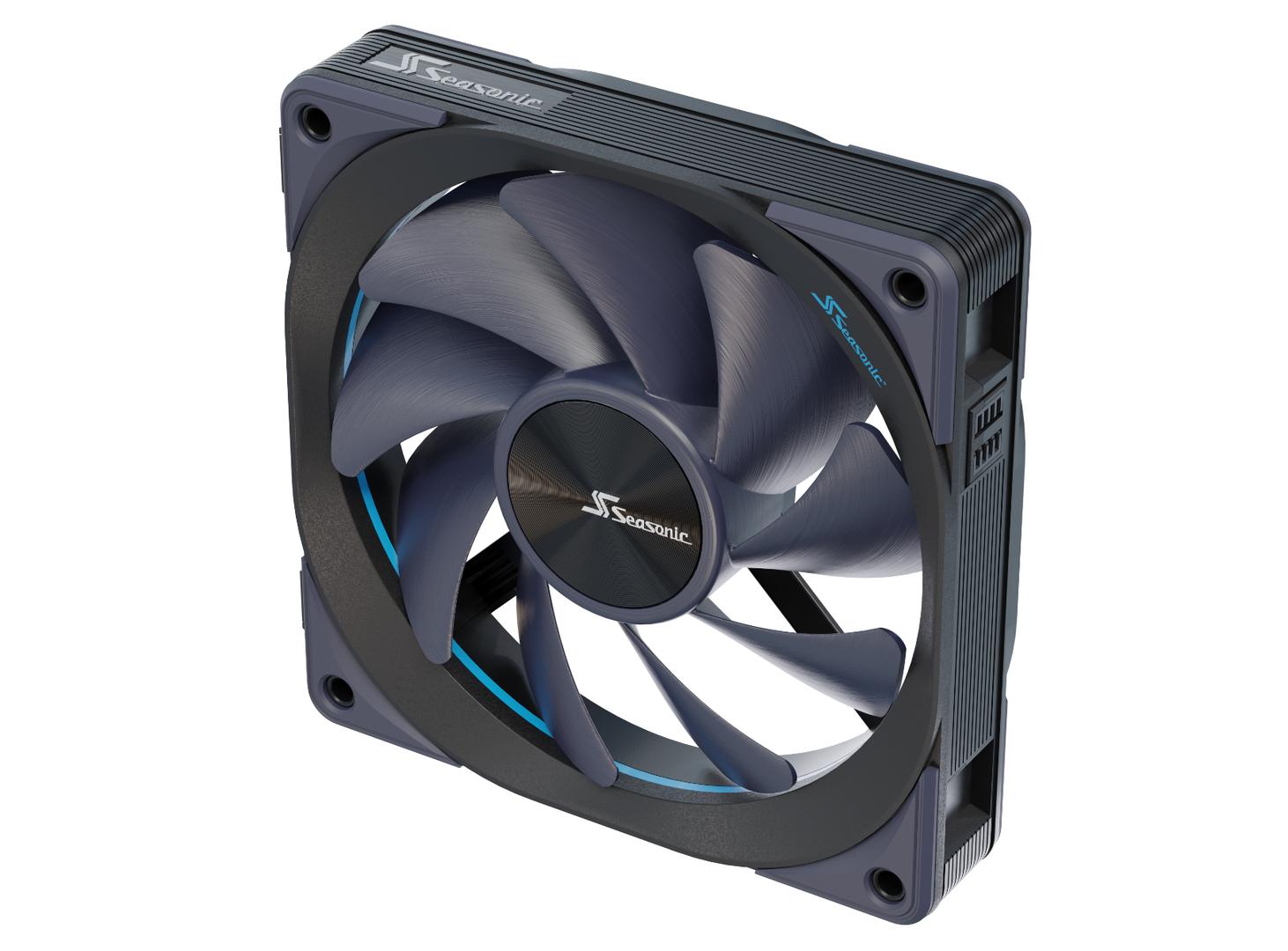

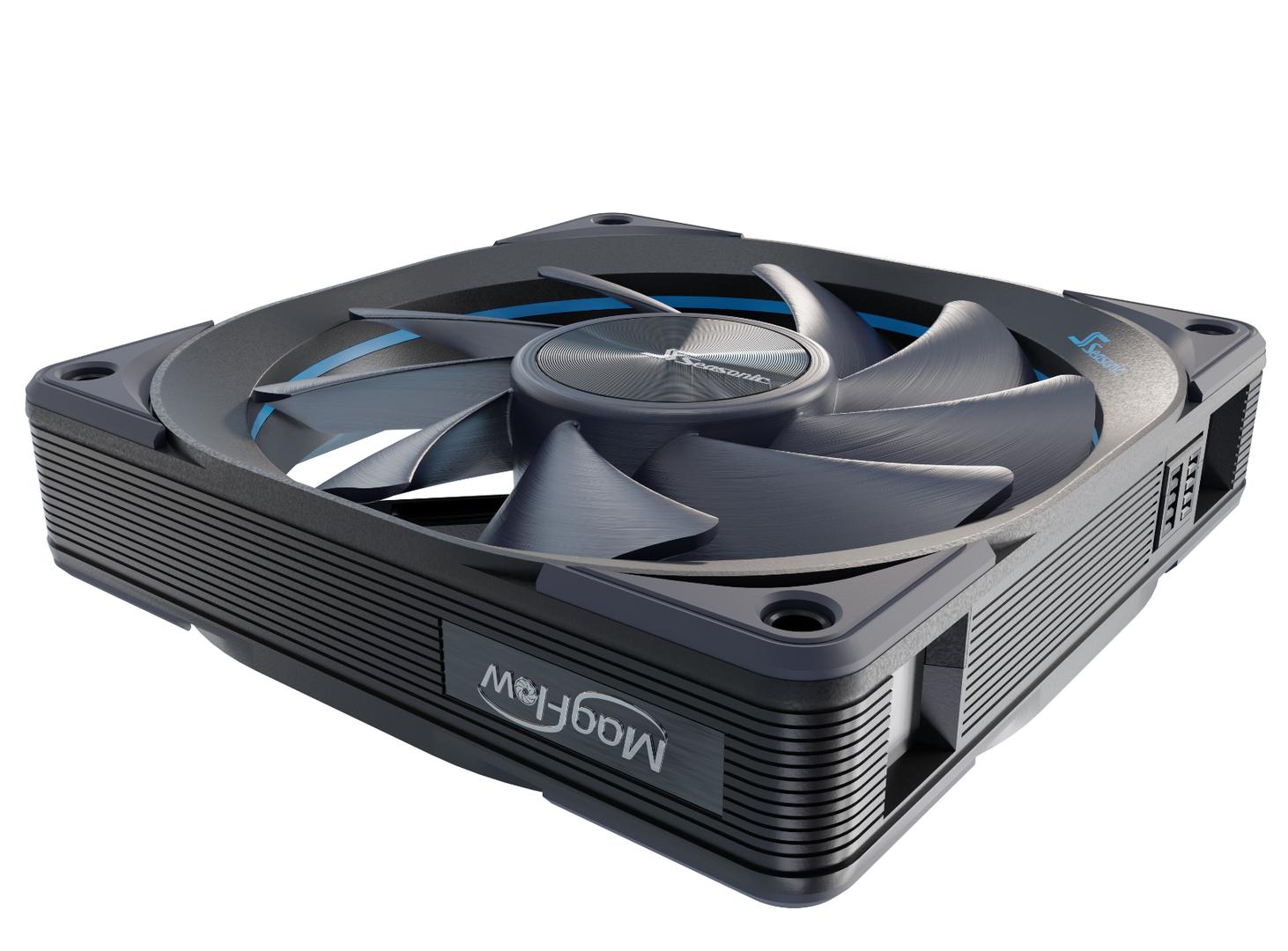

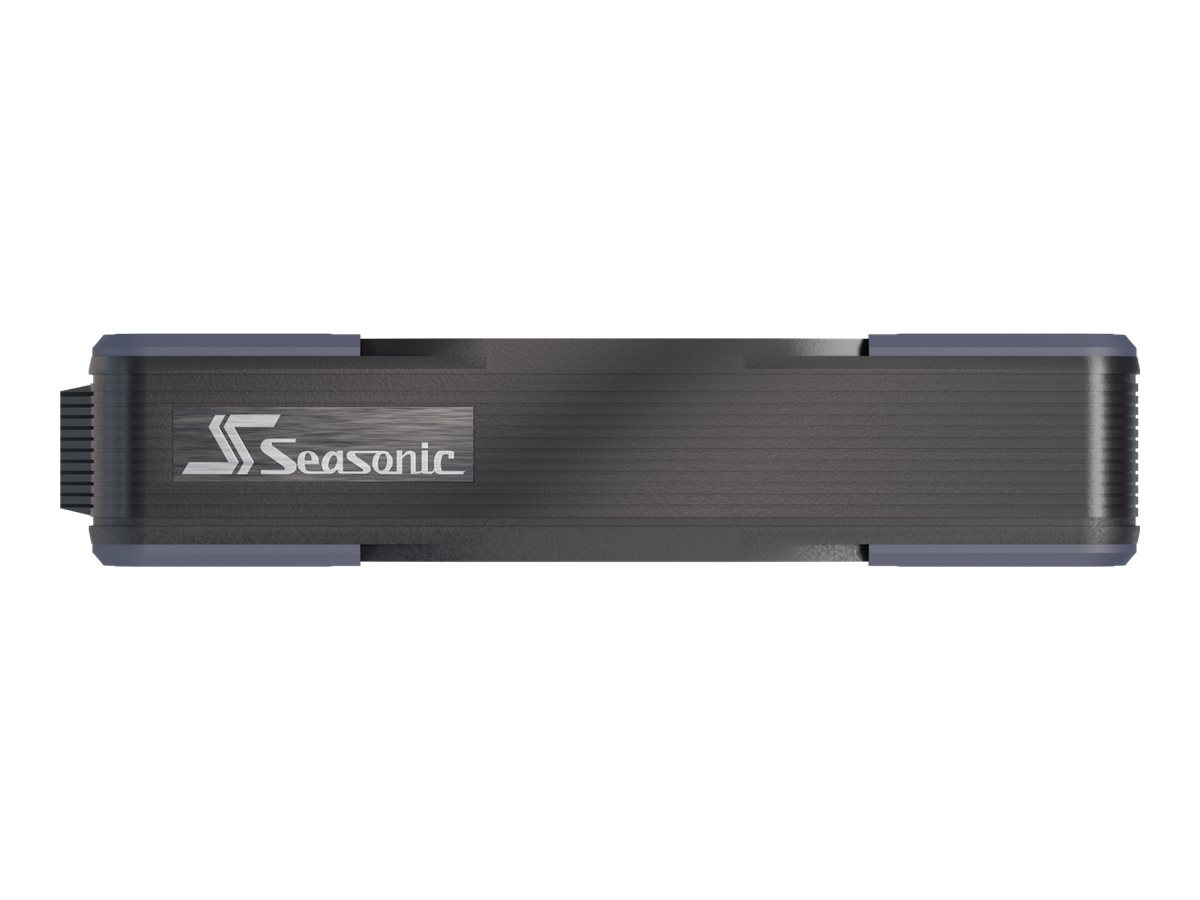

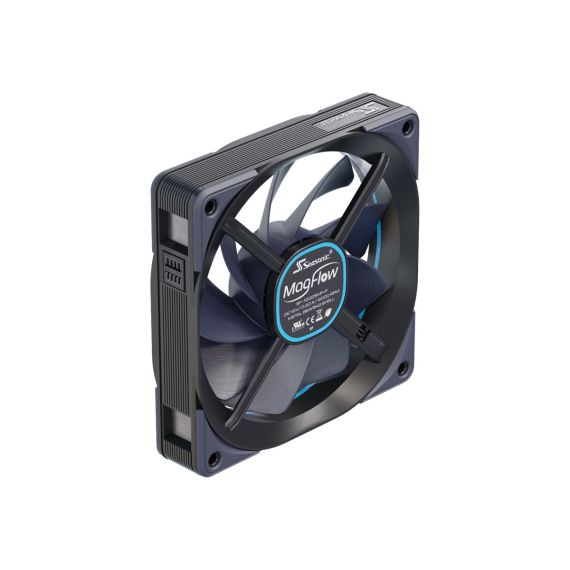

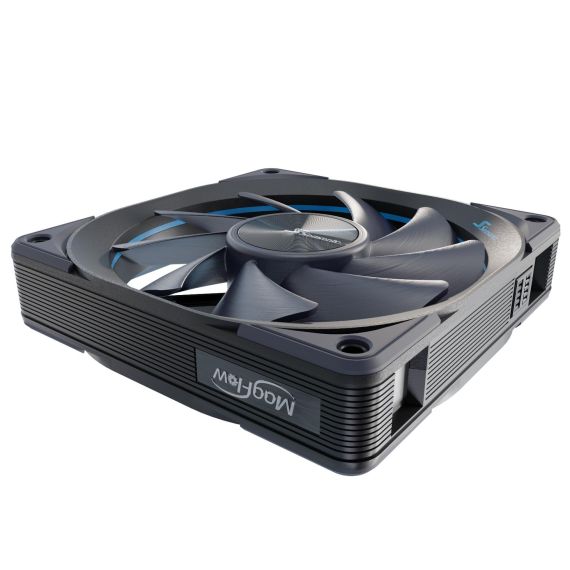

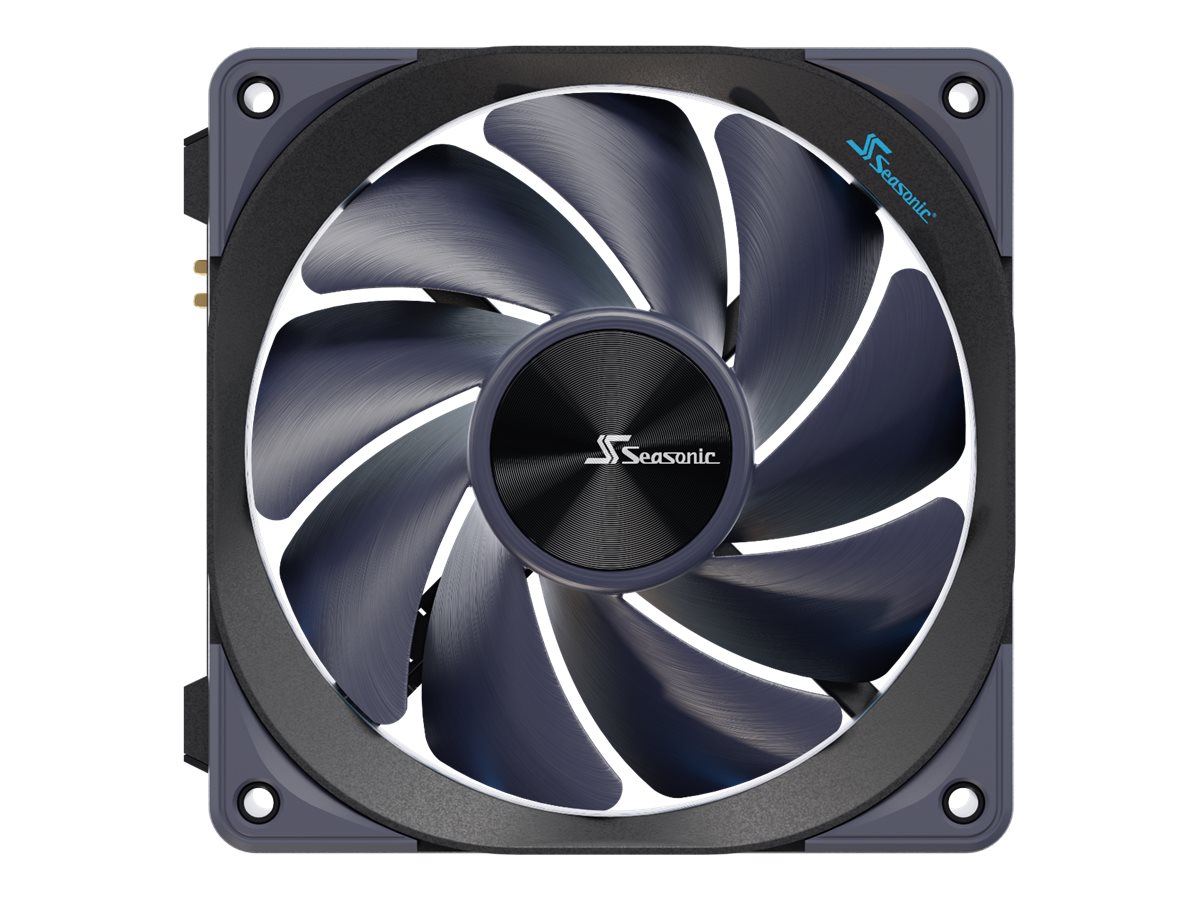

Seasonic MagFlow 1225 PWM / Case fan / 120 mm | MAGFLOW-1
Please sign in so that we can notify you about a reply
Product Features
- Daisy chain design
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner. - Modularity
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process. - Construction
The solid construction of the fan with Fluid Dynamic Bearing (FDB) is the result of a high precision manufacturing process.
Special Fetures
- Simple and neat cable management
- Daisy chain design
- Fluid Dynamic Bearing (FDB)
Product Specification
| Product Type | Case fan |

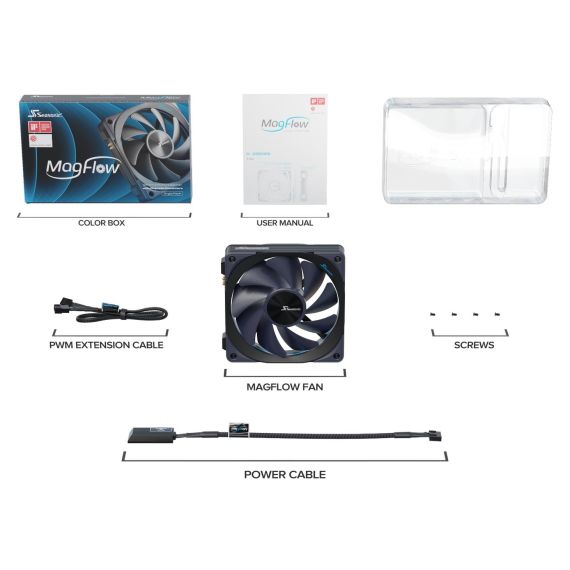

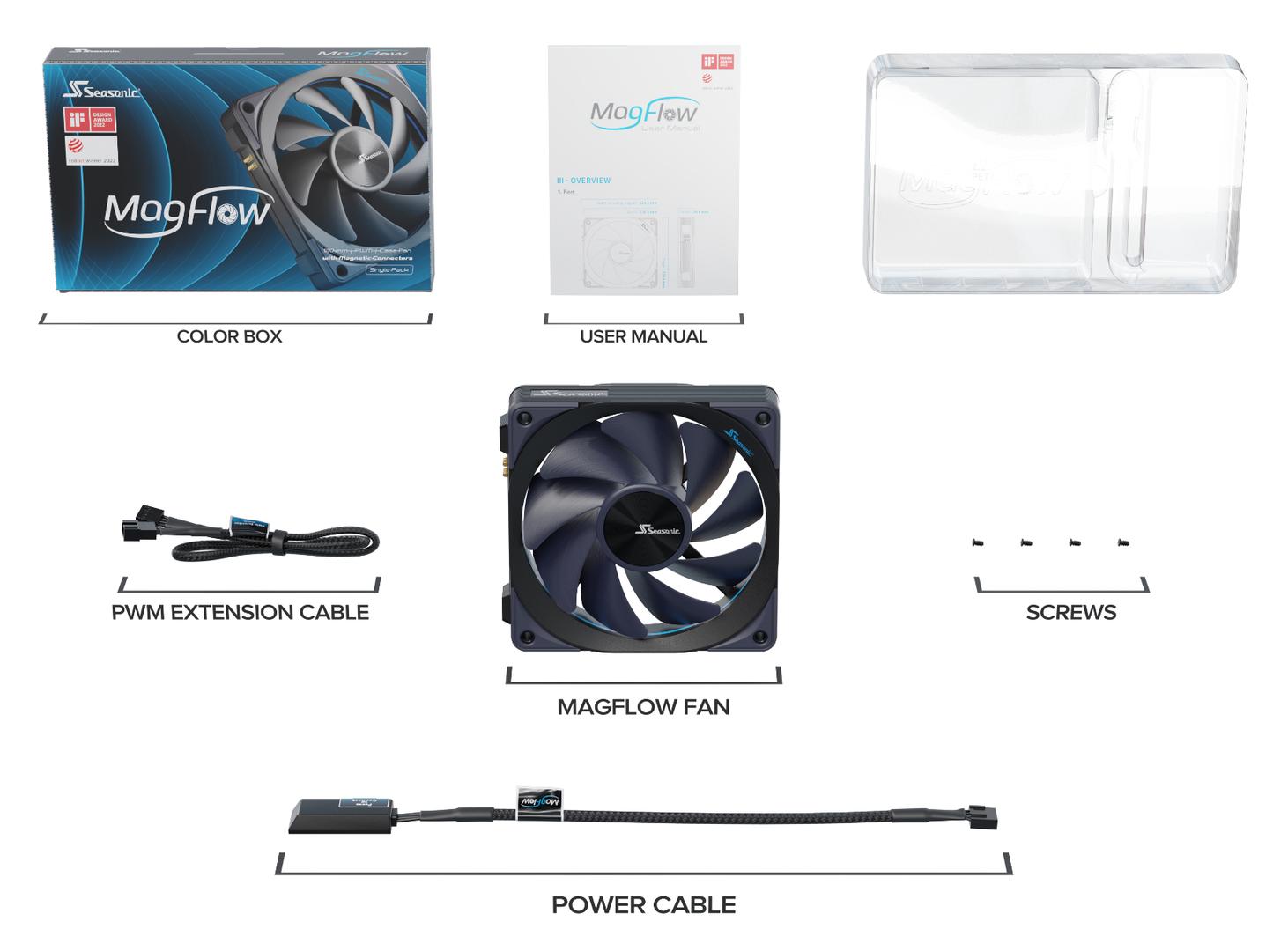

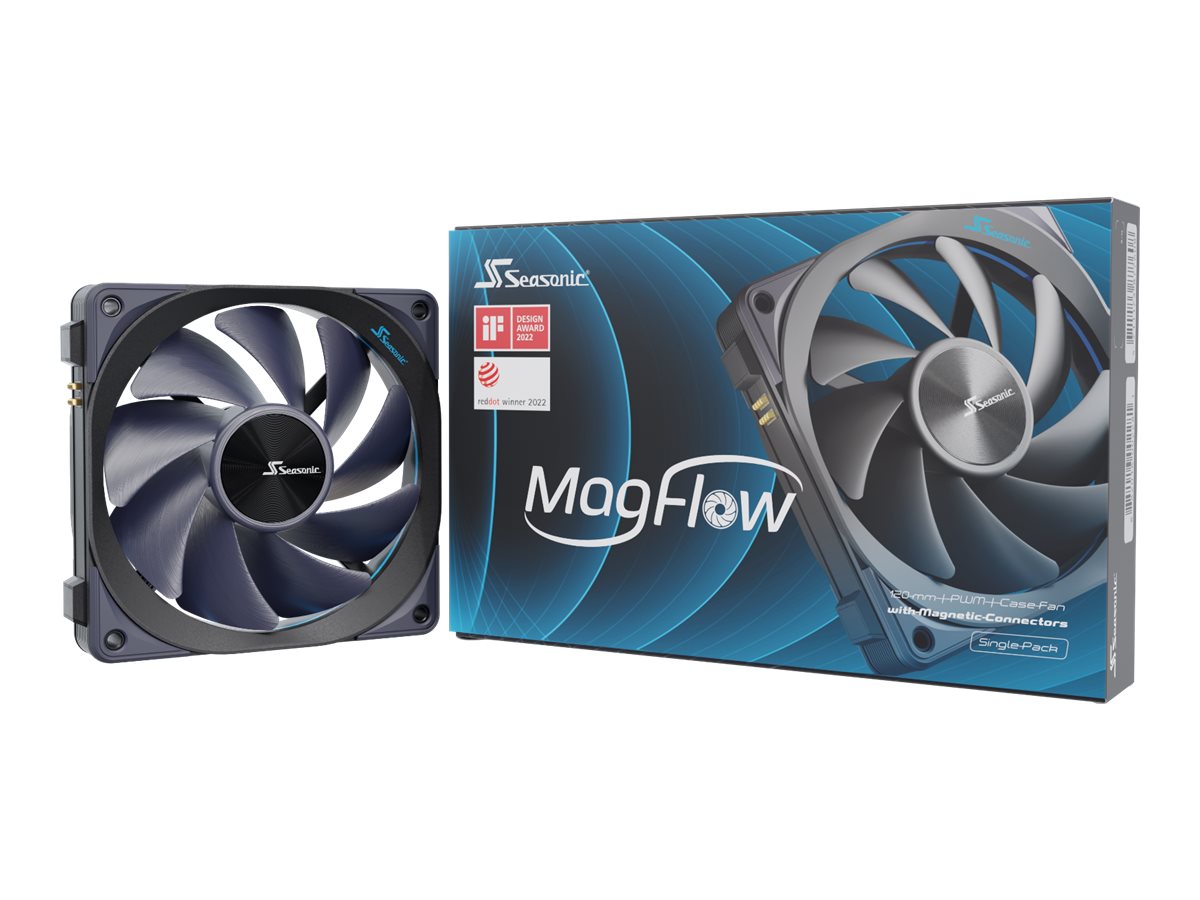

| Package Content | Power cable, screws, PWM extension cable |
| Width | 36.58 cm |
| Depth | 2.66 cm |
| Height | 12.04 cm |
| Heatsink & Fan | |
| Fan Diameter | 120 mm |
| Fan Height | 26.6 mm |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 600-2000 rpm |
| Air Flow | 63.33 cfm |
| Air Pressure | 2.61 mm |
| Noise Level | 9.9 - 33.78 dBA |
| Rated Voltage | 12 V |
| Rated Current | 0.1 A |
| Features | PWM control, daisy-chain design, magnetic connection system |
| Miscellaneous | |
| MTBF | 100,000 hour(s) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 3 years |
Features - Sitecom - MAGFLOW-1
More Details
Product Code
07:139329
EAN Code
4711173877608
Manufacturer
Sitecom
