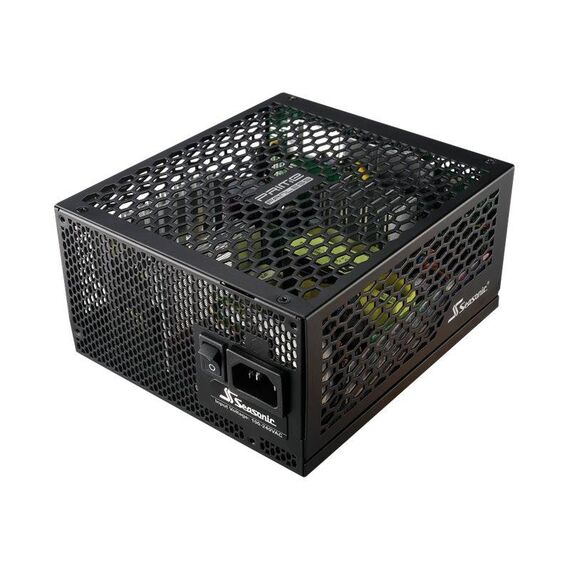

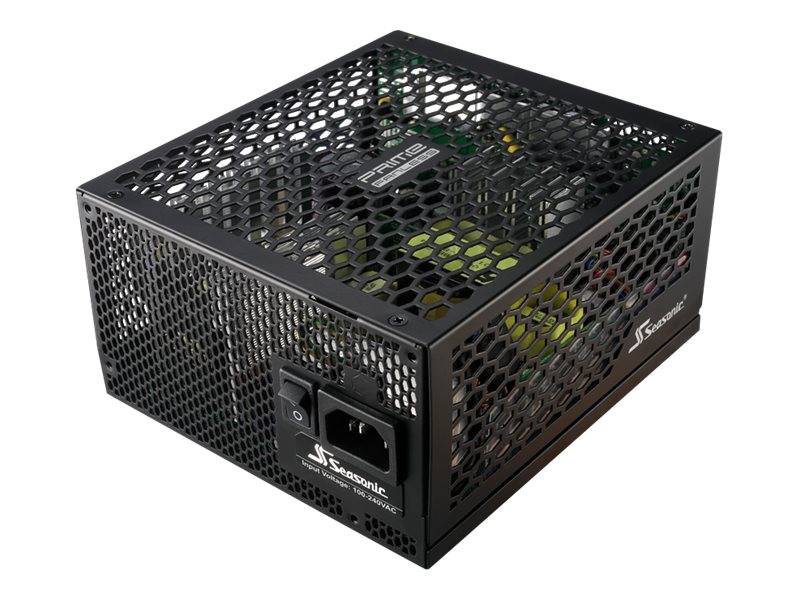

Seasonic Prime Titanium Fanless SSR-600TL Active PFC F3 / Power supply (internal) / ATX12V / 80 PLUS Titanium / AC 100-240 V / 600 Watt / active PFC | SSR-600TL
Please sign in so that we can notify you about a reply
Product Features
- Micro tolerance load regulation
Seasonic's advanced design keeps the output voltage within a very tight range. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems. - Seasonic fanless design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
Special Features
- Micro tolerance load regulation
- Seasonic fanless design
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Titanium |
| Miscellaneous | Miscellaneous |
| MTBF | 150,000 hours |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, fanless, short-circuit protection |
| Compliant Standards | RoHS, WEEE, Energy-Related Products (ErP) Lot 6, REACH |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 12 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 17 cm |
| Height | 8.6 cm |
Features - Sea Sonic - SSR-600TL
More Details
Product Code
07:124546
EAN Code
4711173873310
Manufacturer
Sea Sonic
