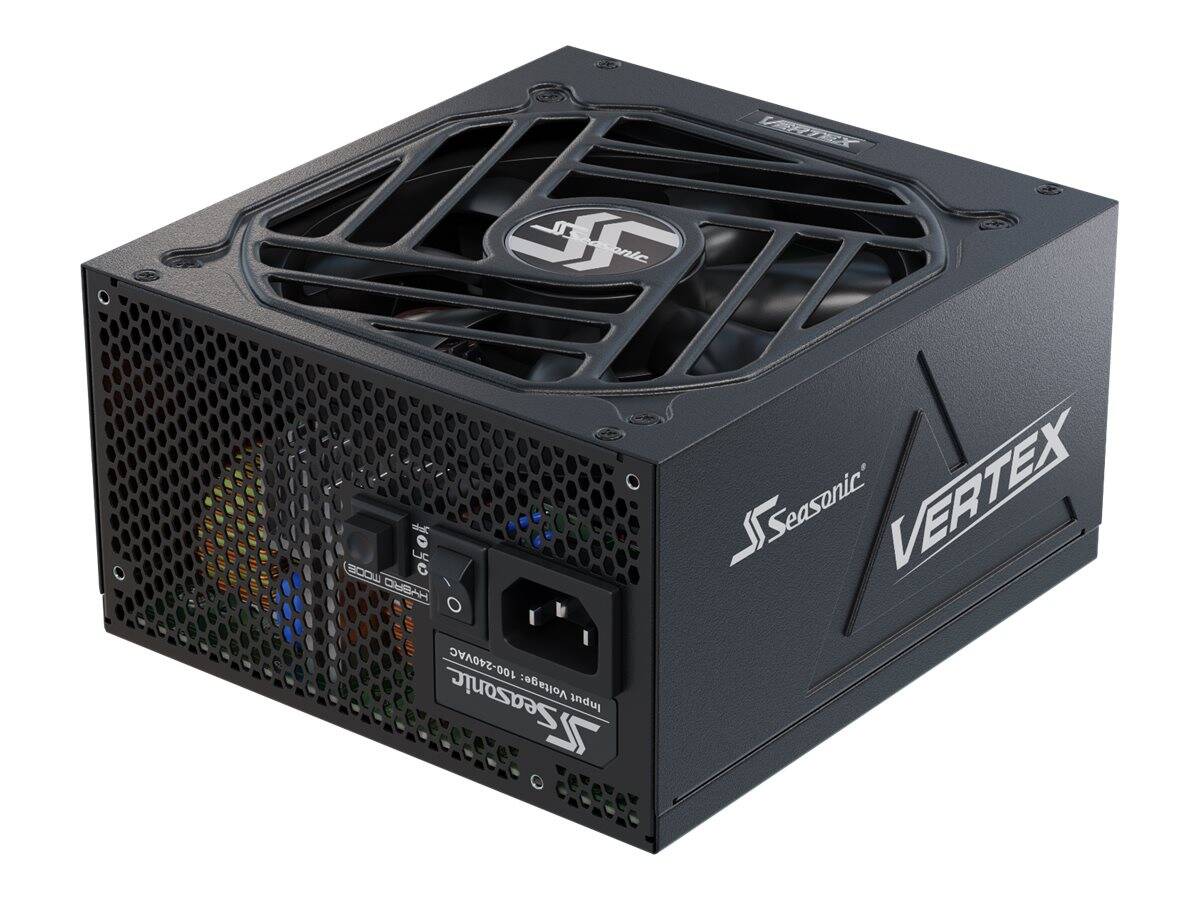

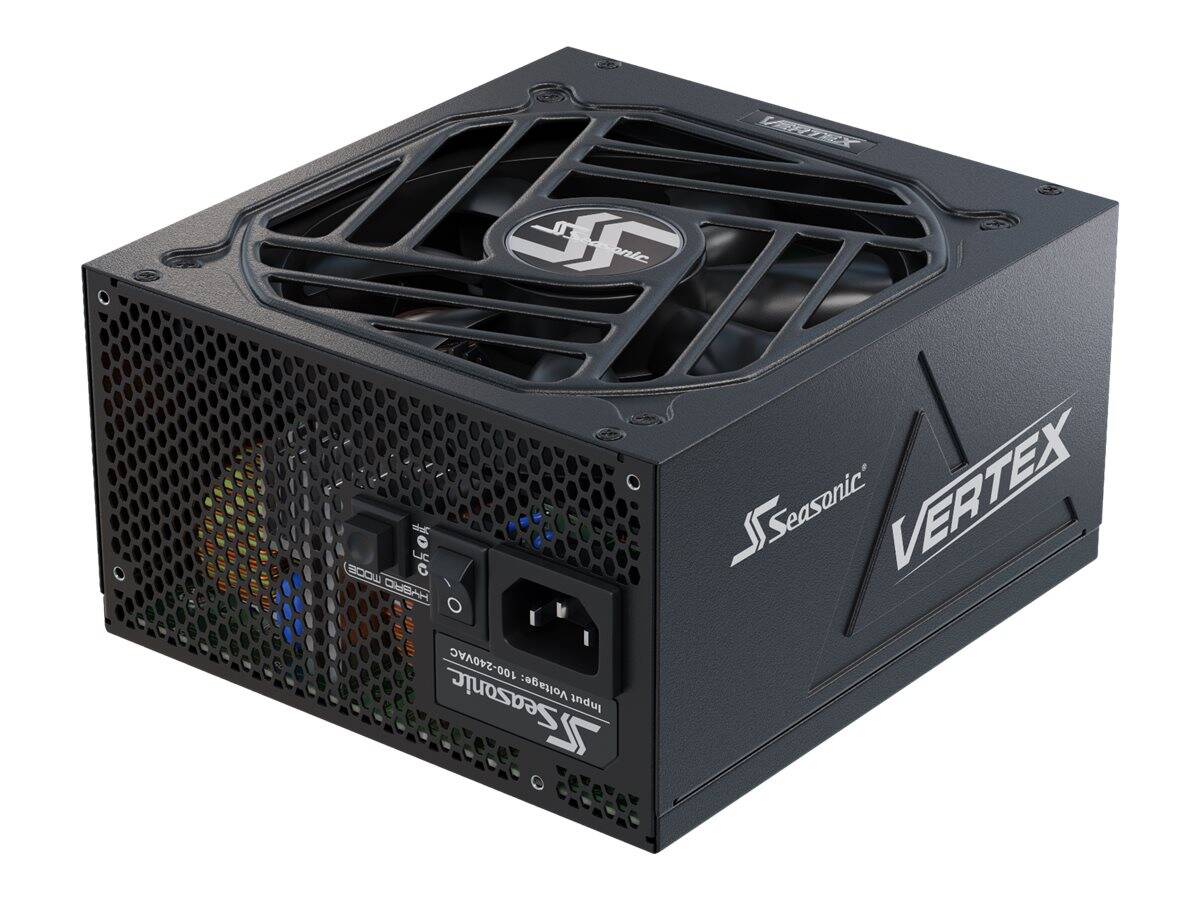

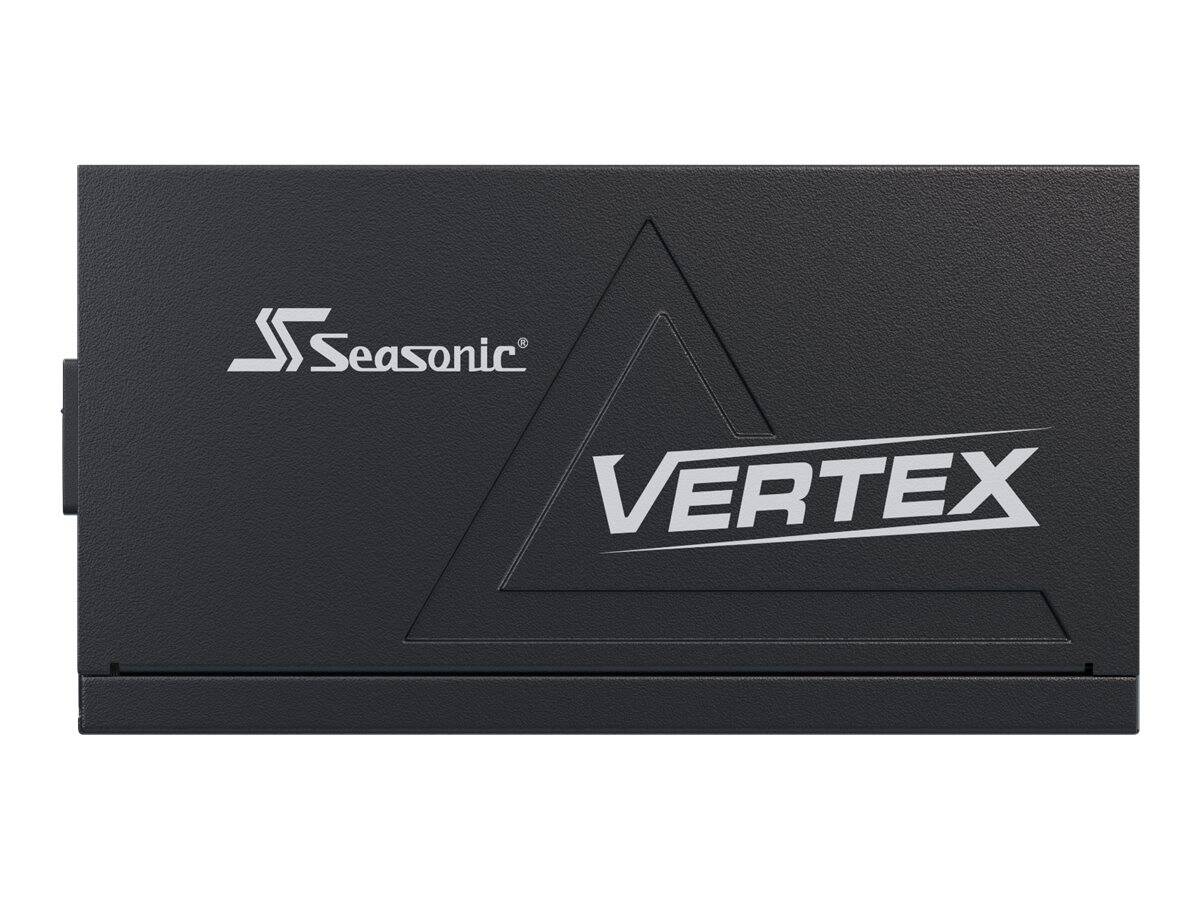

Seasonic VERTEX GX-750 - Power supply (internal) - ATX12V - 80 PLUS Gold - 750 Watt | VERTEX GX-750
Please sign in so that we can notify you about a reply
Product Features
- 80 PLUS Gold
The Vertex GX series achieves 80 PLUS Gold certification with its 90% efficiency at 50% system load. - Premium hybrid fan control
Seasonic's vast experience in designing silent and efficient power supplies was translated into the development of Hybrid mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level. - Fluid dynamic fan bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Special Fetures
- Fully compatible with ATX 3.0 and PCIe 5.0 standards

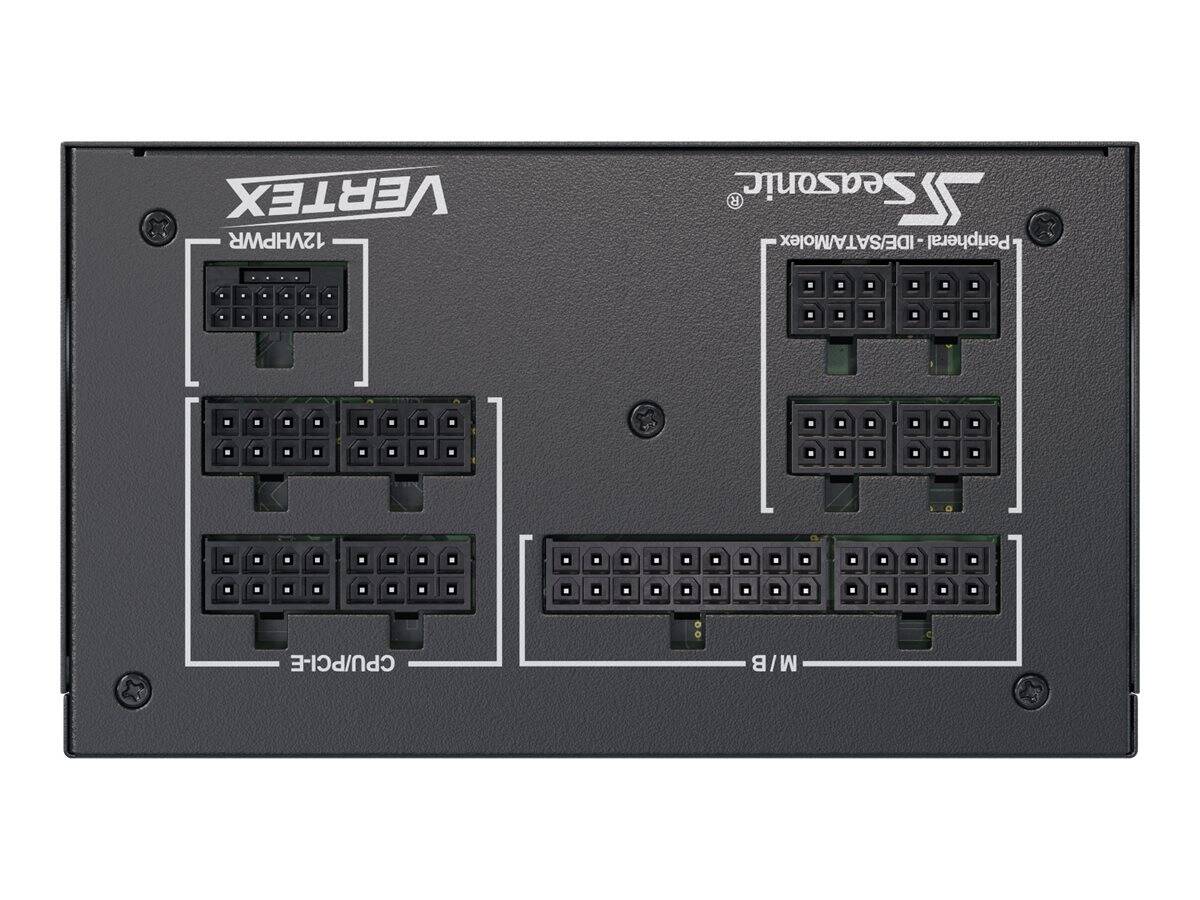

- Full modularity
- Added 12VHPWR cable to comply with the new graphic cards

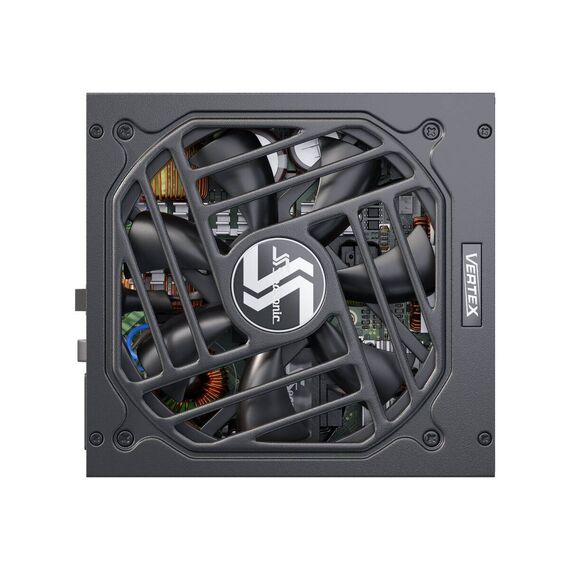

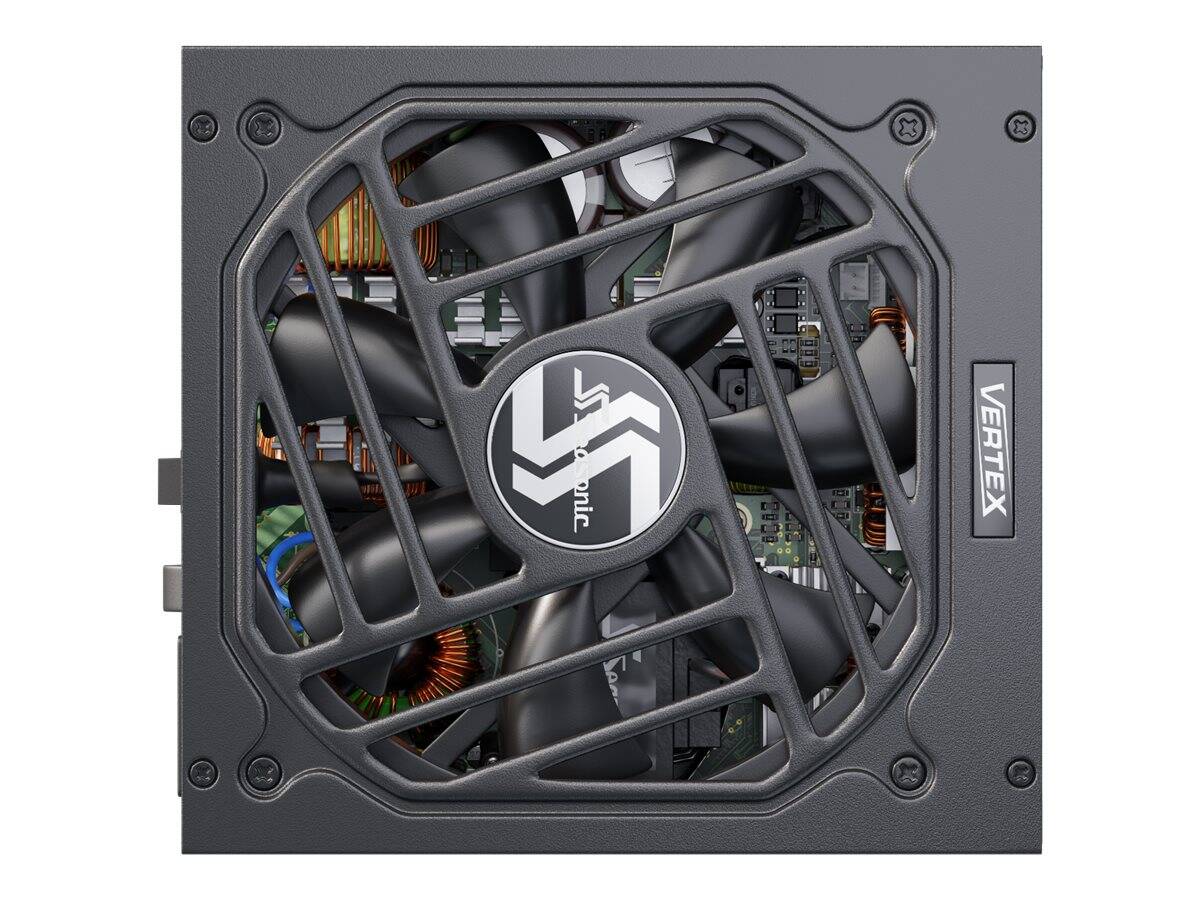

- 135 mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50 - 60 Hz |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 100 A |
| Power Capacity | 750 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| MTBF | 150,000 hours |
| Cooling System | 135 mm fan |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, REACH, EAC, Energy Star |
| Manufacturer Warranty | |
| Service & Support | - 10 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
Features - Sea Sonic - VERTEX GX-750
More Details
Product Code
07:135915
EAN Code
4711173877691
Manufacturer
Sea Sonic
