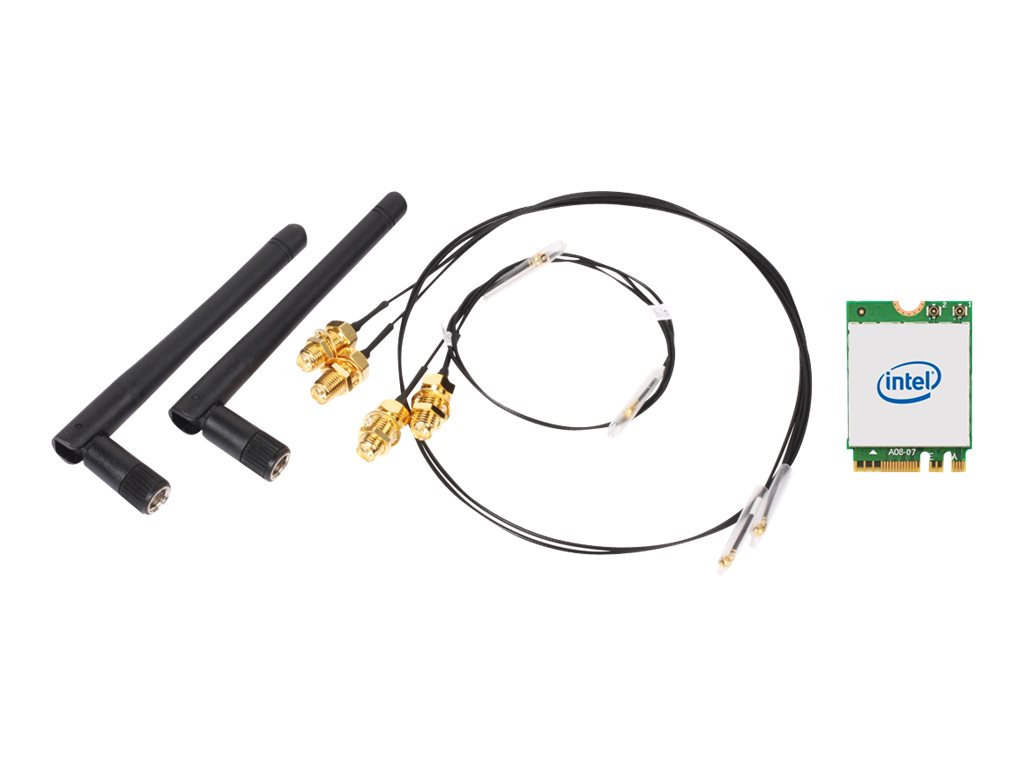

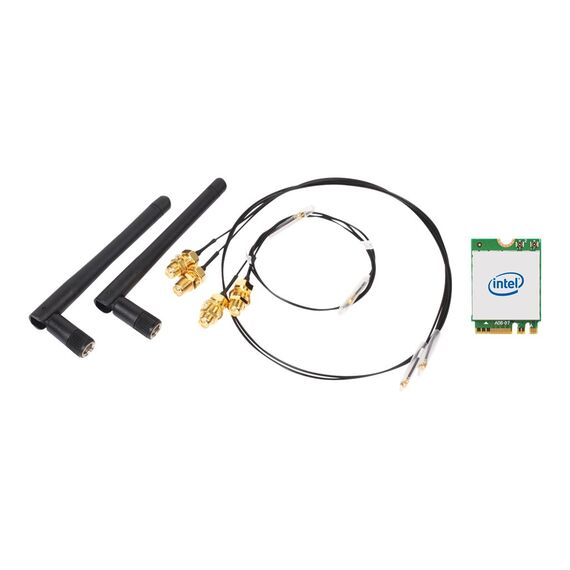

Shuttle WLN-M1 / Network adapter / M.2 2230 (CNVi) / 802.11ax, Bluetooth 5.2 / for XPC P52, POS P520; XPC slim DH470, DL20, DL3000, DS20, DS20U3 V2, DS50, XH610 | WLN-M1
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | M.2 2230 (CNVi) |
| Networking | Networking |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Data Transfer Rate | 2400 Mbps |
| Line Coding Format | 1024 QAM |
| Frequency Band | 2.4 GHz, 5 GHz |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.2 |
| Aerial | Aerial |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Intel AX200NGWG |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x dipole aerials |
| Cables Included | 1 x antenna cable (internal) - 21 cm 1 x antenna cable (internal) - 29 cm 2 x antenna cable (internal) - 53 cm |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, PEAP, TKIP, WPA, WPA2, AES-CCMP, 128-bit AES, 256-bit AES, EAP-SIM, EAP-AKA, WPS, WPA3, AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2 |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux (64-bit), Microsoft Windows 10 / 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2.2 cm |
| Depth | 3 cm |
| Height | 2.4 mm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 80 °C |
| Compatibility Information | Compatibility Information |
| Designed For | Shuttle XPC P52U, P52U3, POS P520 Shuttle XPC cube SH570R6 Shuttle XPC slim DH470C, DL20N6V2, DL20NV2, DL3000EP, DL3000XA, DS20U3 V2, DS20U5V2, DS20U7v2, DS50U3, DS50U5, XH610, XH610V |
Features - Shuttle - WLN-M1
More Details
Product Code
CD99778
EAN Code
4046047103690
Manufacturer
Shuttle
