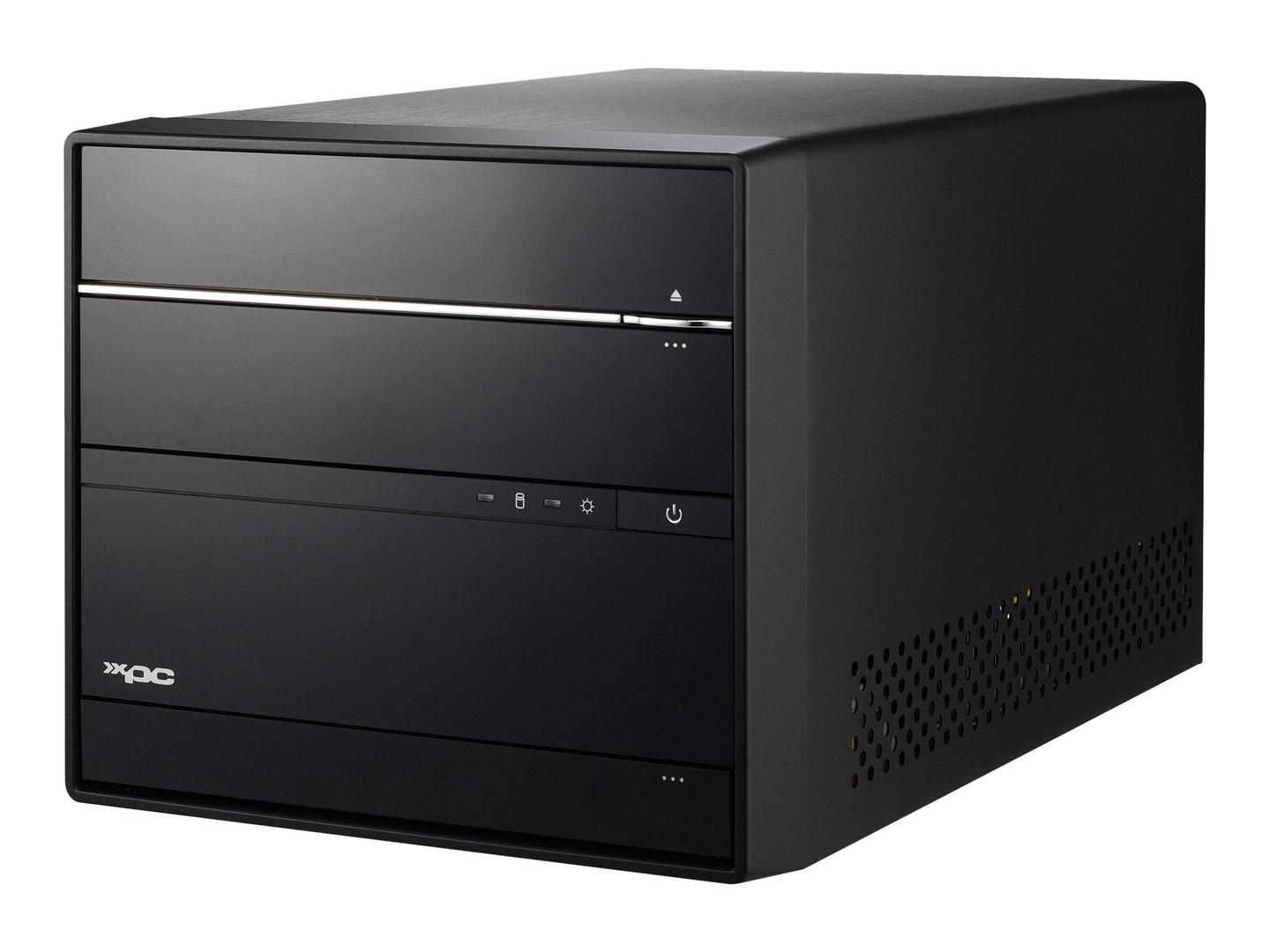

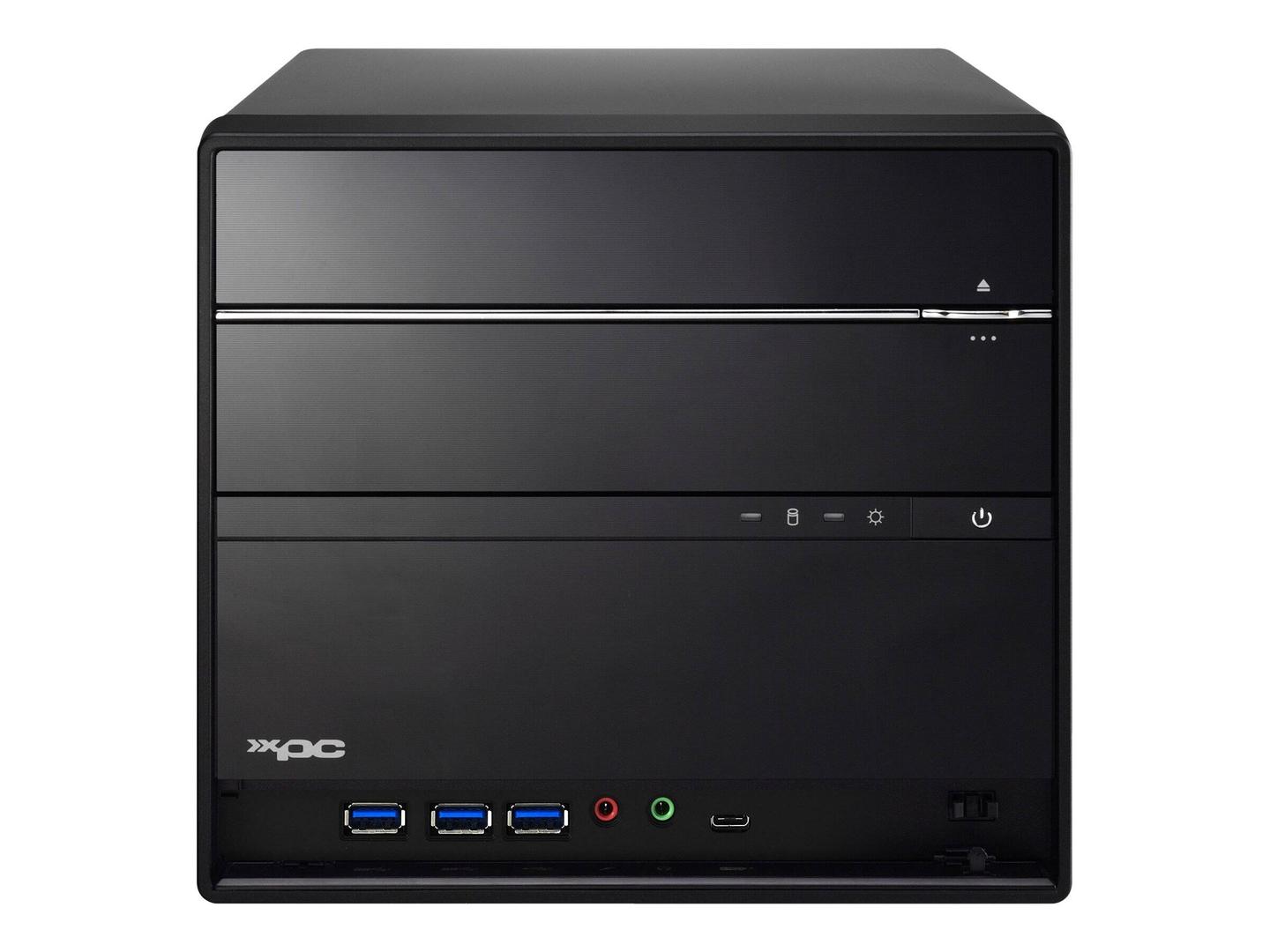

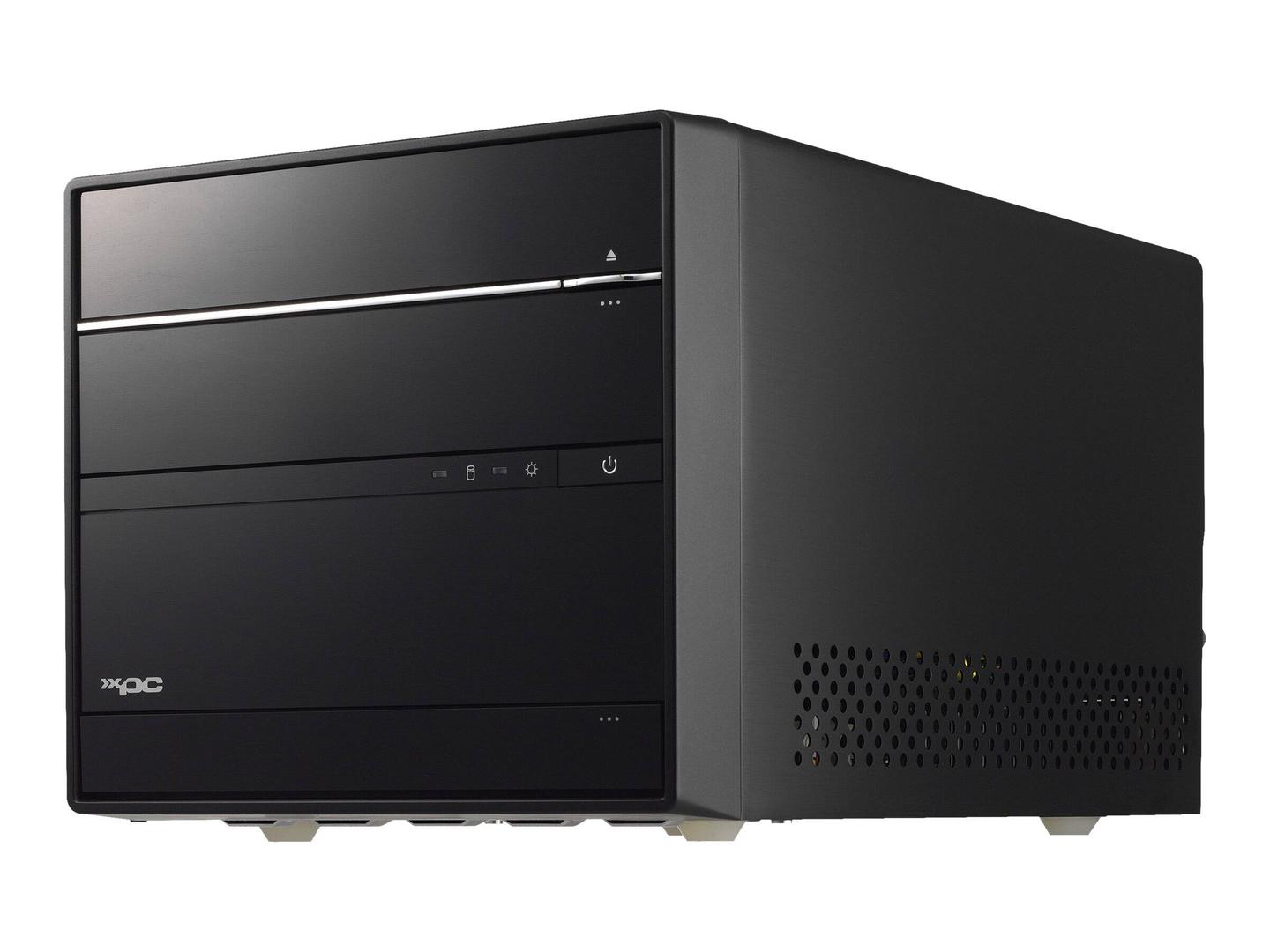

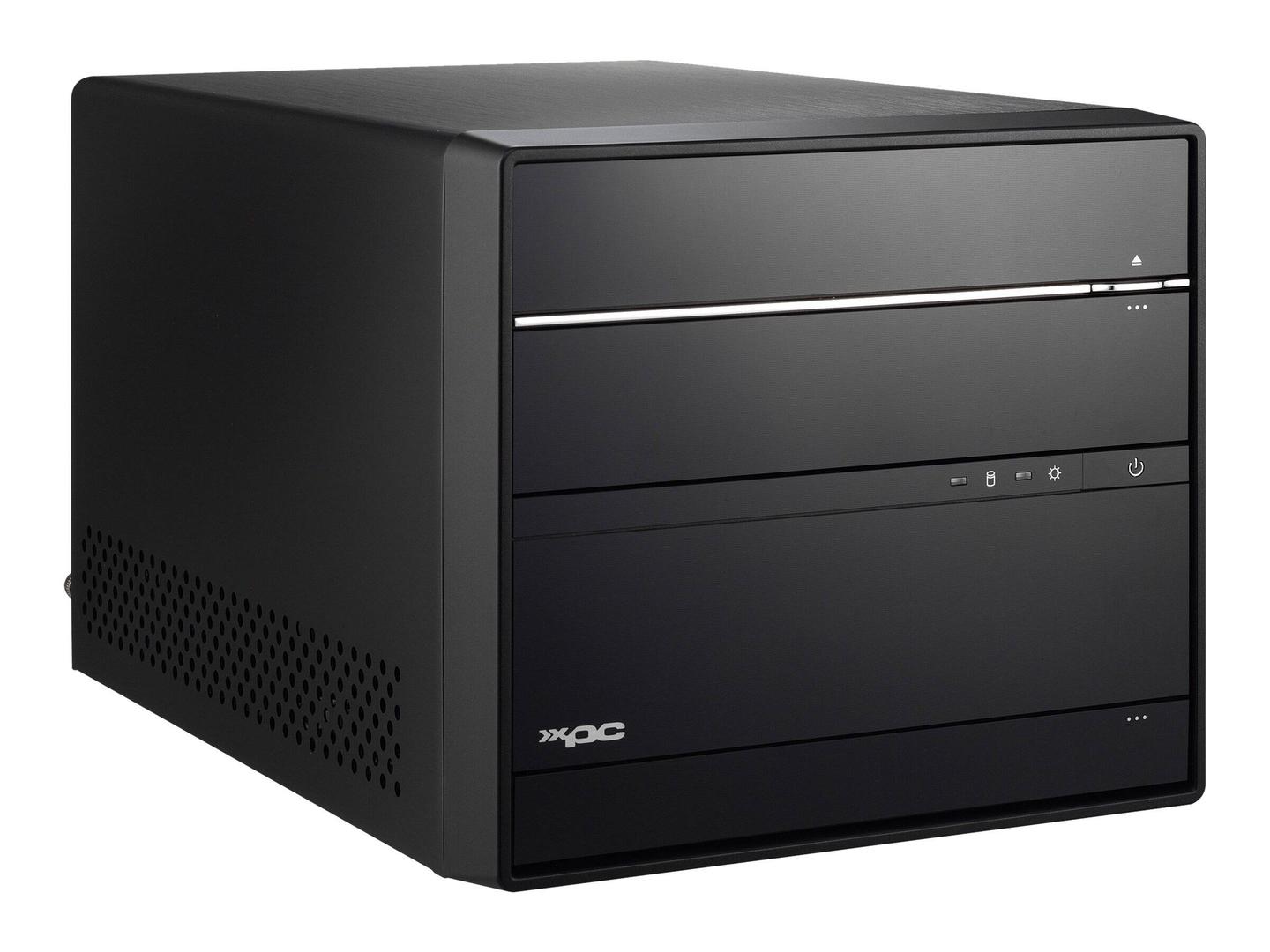

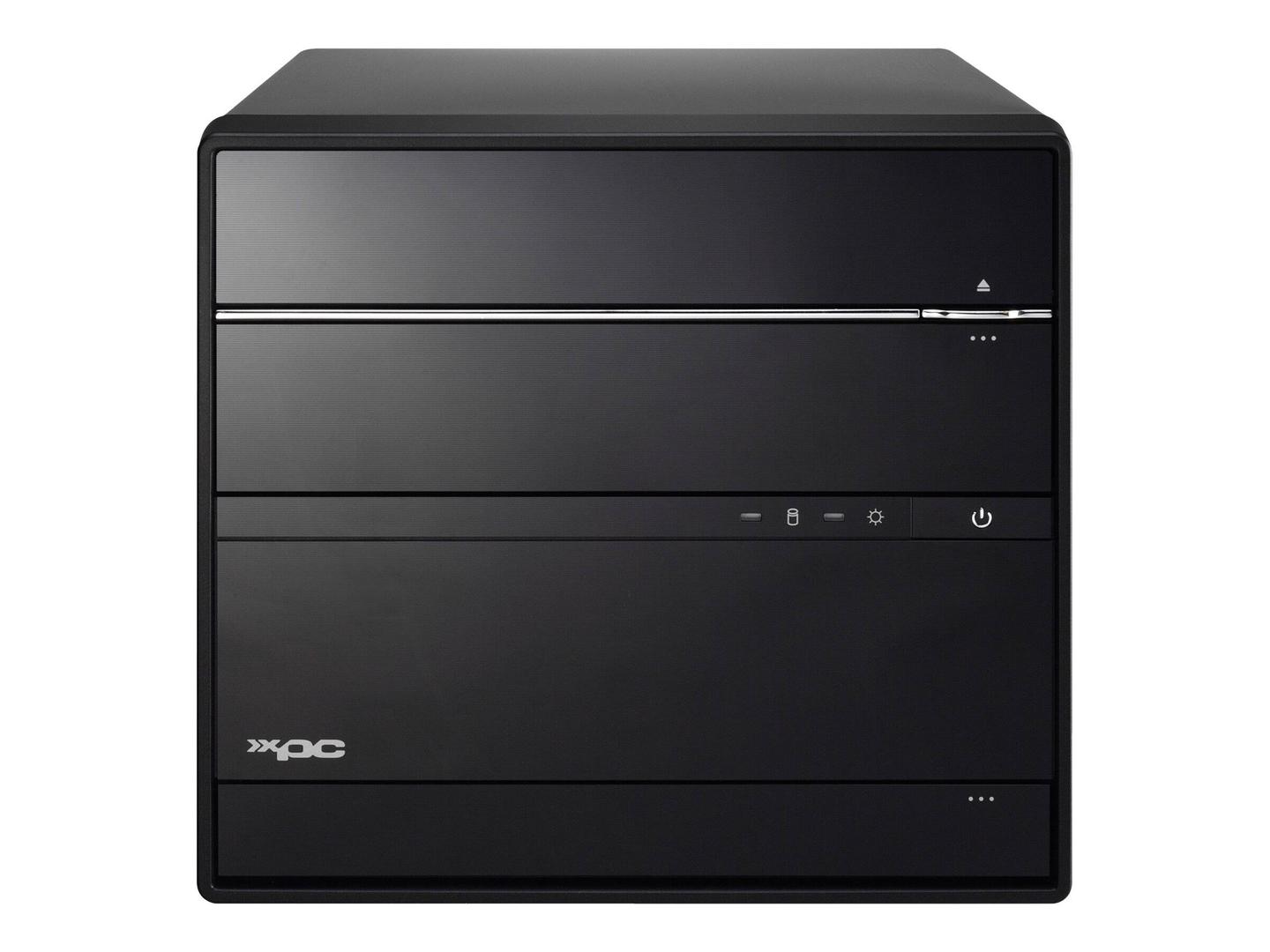

Shuttle XPC cube SH570R6 Plus / Barebone / mini PC / LGA1200 Socket / Intel H570 / no CPU / RAM 0 GB / black | SH570R6
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel H570 |
| RAM | RAM |
| Installed Size | 0 GB / 128 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 4 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | No graphics |
| Audio Output | Audio Output |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM, I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, Teaming support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 1 (total) / 1 (free) x external 3.5" ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x microphone (1 front, 1 rear) ¦ 1 x headphones (1 in front) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) ¦ 3 x USB 3.2 Gen 1 (3 in front) ¦ 4 x USB 3.2 Gen 2 ¦ 1 x audio line-out ¦ 1 x HDMI ¦ 2 x DisplayPort ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in ¦ 4 x USB 2.0 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw bag |
| Cables Included | Serial ATA cable (2 pcs.) |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | C-Tick, BSMI, CB, FCC, RoHS, ETL, ErP Ready, EMI, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU |
| Power | Power |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Power Factor Correction | Yes (active) |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 5.0 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 21.5 cm |
| Depth | 33.2 cm |
| Height | 19 cm |
| Weight | 3.5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 4.5 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
Features - Shuttle - SH570R6 OLUS
More Details
Product Code
04:390275
Manufacturer
Shuttle
