Shuttle XPC slim DH610 - Barebone - Slim-PC - LGA1700 Socket - Intel H610 - no CPU - RAM 0 GB - Gigabit Ethernet, 2.5 Gigabit Ethernet - black | DH610
Please sign in so that we can notify you about a reply
Product Features
- Space for a 2.5" drive
As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5" format. Hard disks and SSDs in this format offer many terabytes of storage space. - Add-ons via M.2 module
Two M.2 slots make it possible to add data mediums and additional modules, for example for WLAN or wireless. Thanks to the PCI Express connection, large quantities of data can be transported in a short time via the M.2 slot. - Heat-pipe cooling system

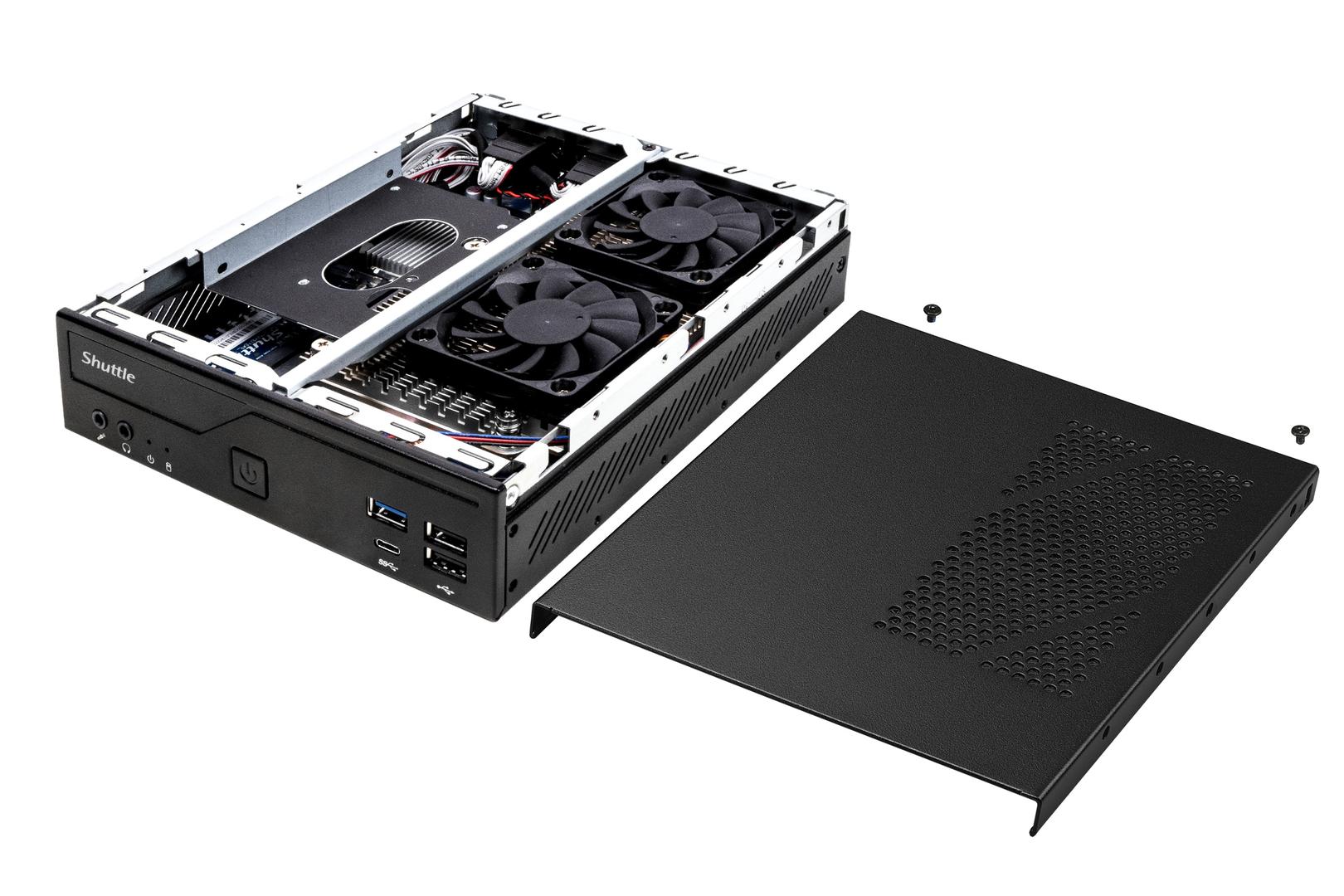

The processor emits its waste heat to the copper element of the heat-pipe cooling element, which causes the tubes to heat up and the heat to be transported towards the cooling fins. Two housing fans are pushing air through the fins, thus cooling them down. - Two network connections
This feature is particularly interesting for vital network applications - this is because two Ethernet connectors (1x 2.5 Gbit, 1x 1 Gbit) allow physically separate networks, offer failover and load balancing. - Wired remote starting
This model features a remote power-on connection. Any two-pin cable can be used to connect dedicated buttons via pins on the back and they then allow the machine to be started remotely. - Three 4K-capable monitor connections
Two DisplayPort connectors and one HDMI port enable high-resolution multi-monitor workstations and therefore make it possible to display large amounts of information that can be viewed at a glance. - Serial port
The classic among the interfaces. COM ports are still needed for professional applications, for example in cash register systems and in products from the fields of science and industry. - Anti-theft protection
The Kensington security slot on the side of the case serves as an anti-theft device. Suitable security solutions in various designs are available from specialist dealers.
Special Fetures
- Space for a 2.5" drive
- Add-ons via M.2 module
- Heat-pipe cooling system
- Two network connections
- Wired remote starting
- Three 4K-capable monitor connections
- Serial port
- Anti-theft protection
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Built-in Devices | Led panel |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |

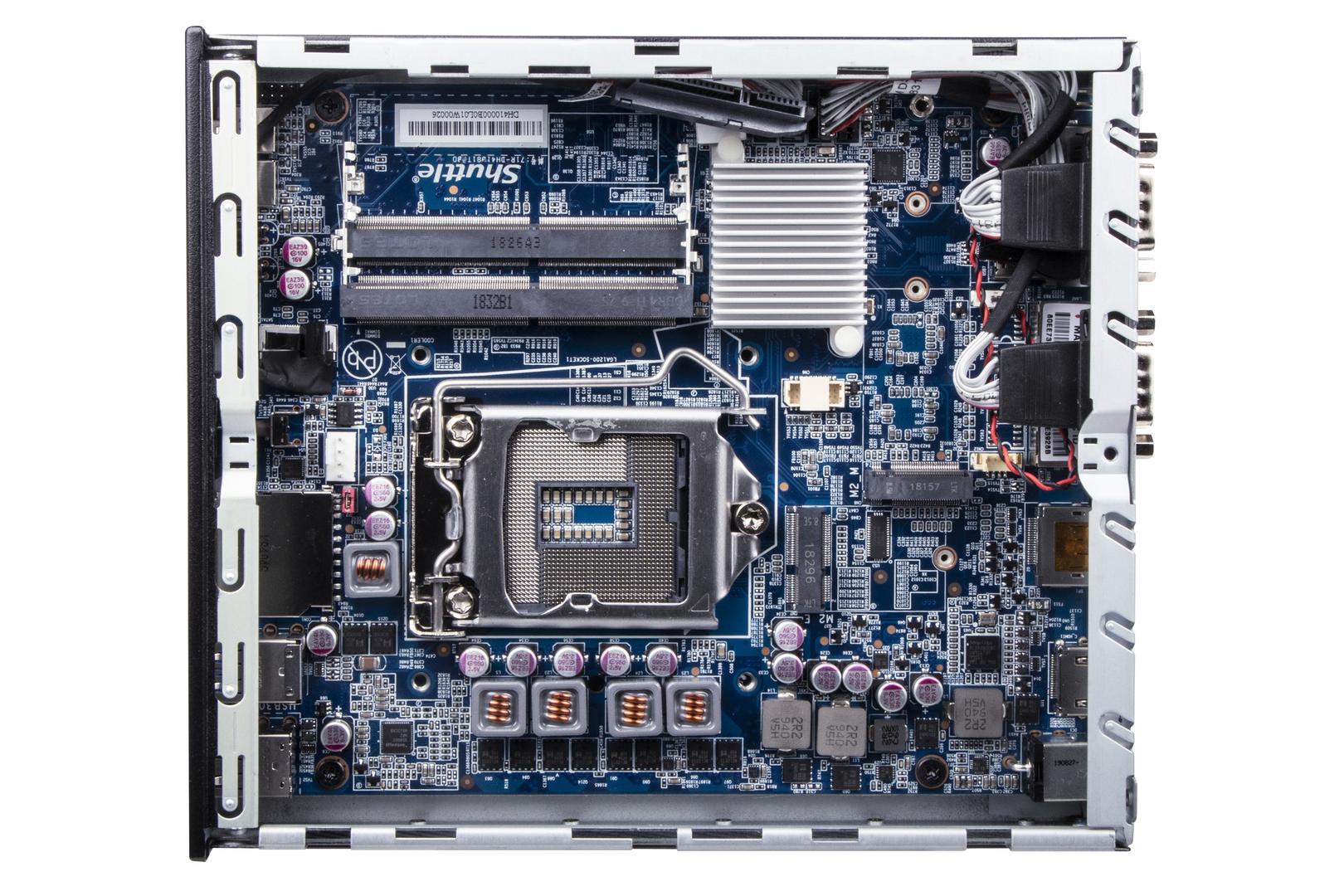

| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel H610 |
| RAM | |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), Teaming support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) |

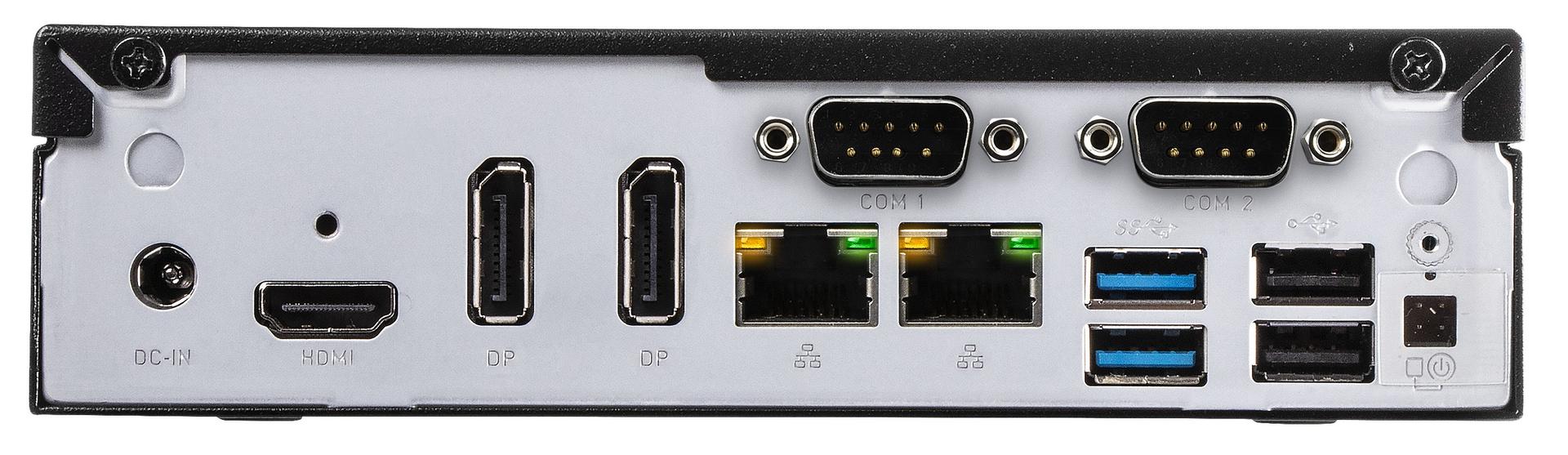

| Interfaces | 1 x microphone (1 in front) ¦ 1 x audio line-out/headphones (1 in front) ¦ 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x serial (RS-232) (1 rear) ¦ 1 x serial (RS-232/422/485) (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, mount screw, CPU thermal grease |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ERP, EMI, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 120 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Width | 19 cm |
| Depth | 16.5 cm |
| Height | 4.3 cm |
| Weight | 1.3 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.1 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
