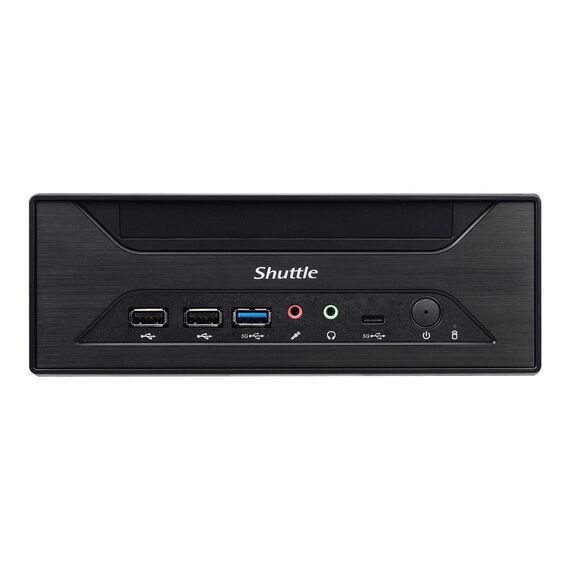

Shuttle XPC slim XH610 / Barebone / Slim-PC / LGA1700 Socket / Intel H610 / no CPU / RAM 0 GB / Gigabit Ethernet, 2.5 Gigabit Ethernet / black | PIB-XH61001
Please sign in so that we can notify you about a reply
Product Features
- A clean and modern look

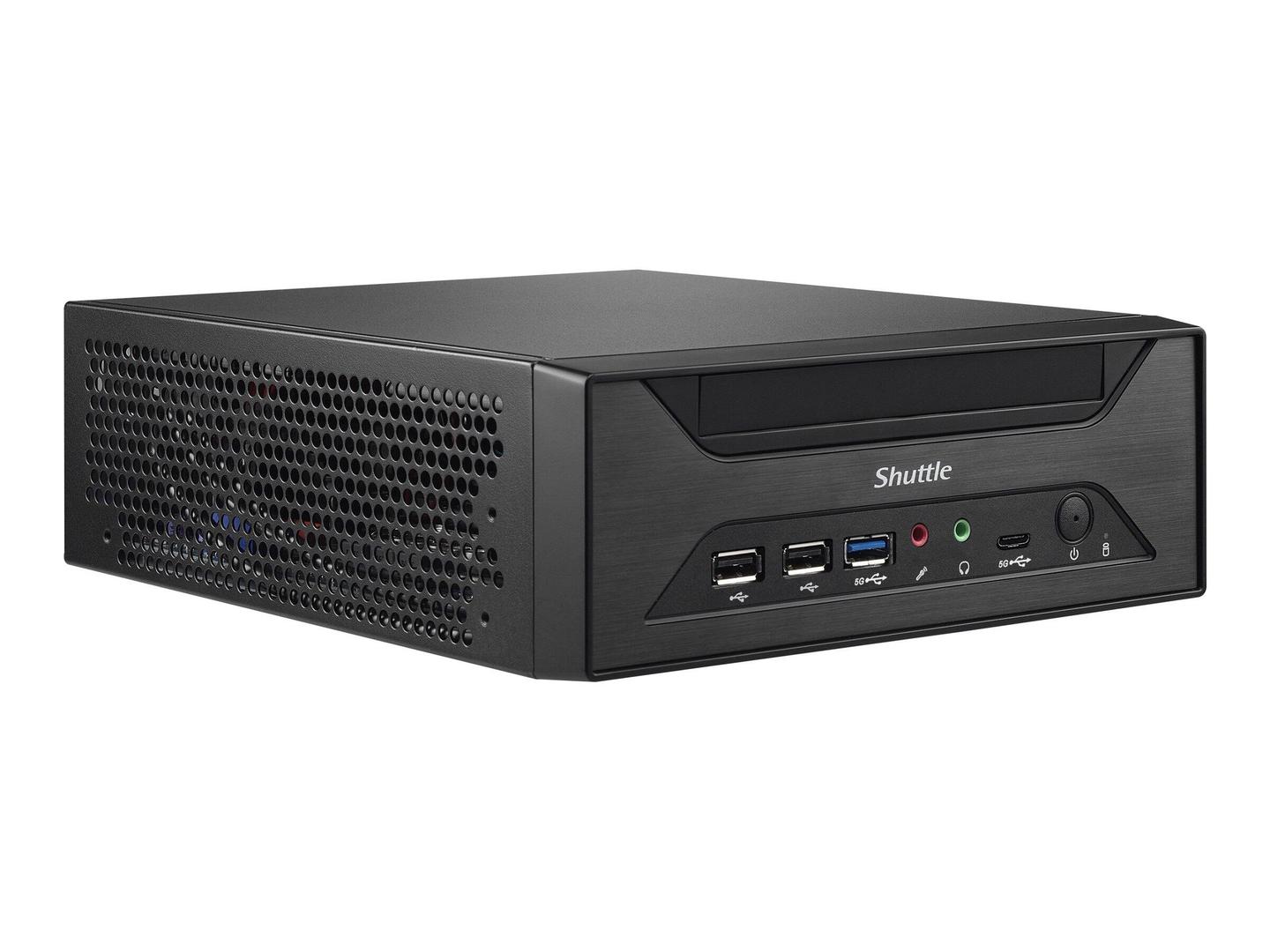

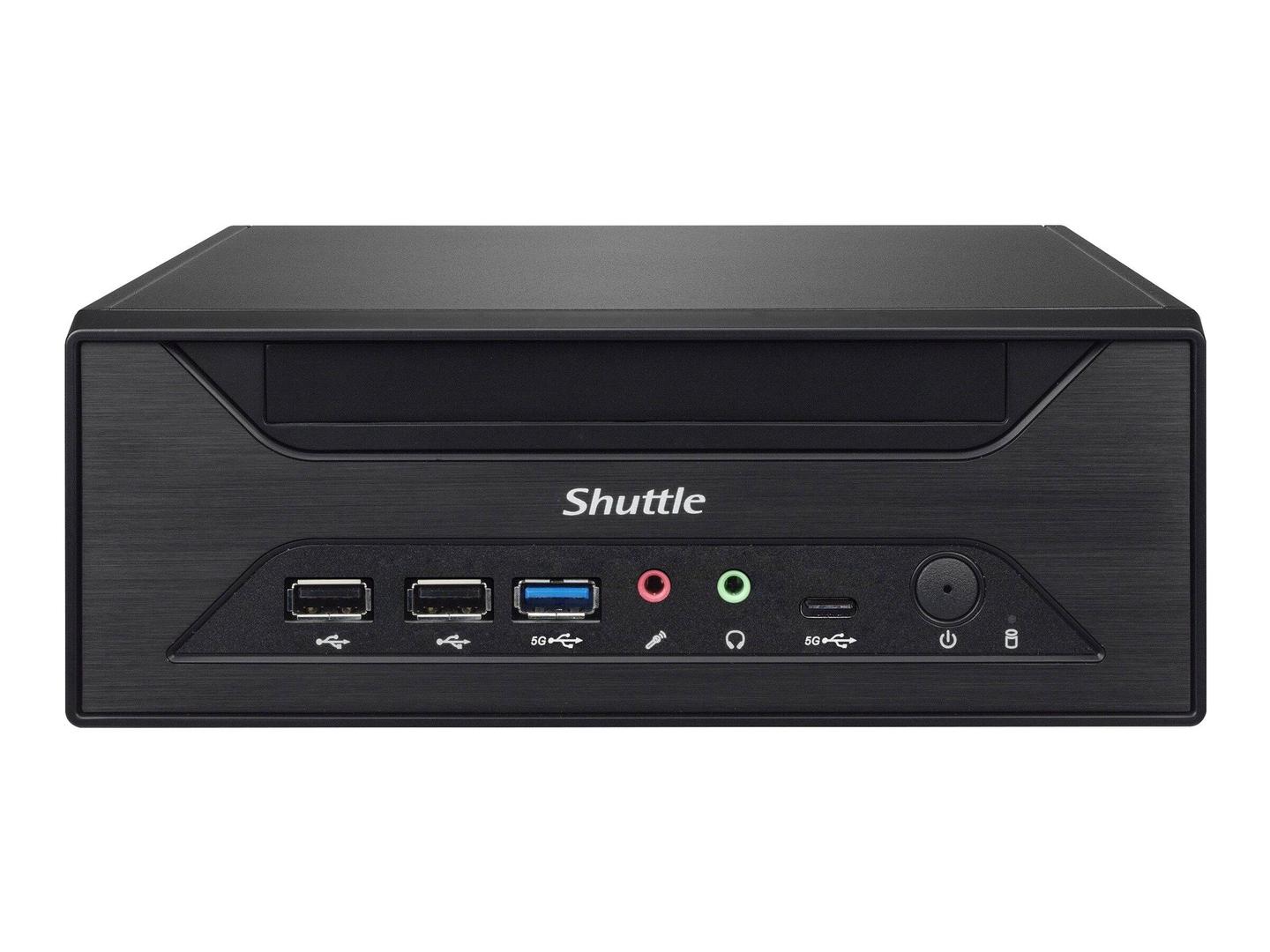

Shuttle has always placed great emphasis on the interior and exterior aesthetics of their mini-PCs with the belief that a good blend of style and form factor allow the Mini-PC to be attractive, versatile and work well in almost any environment. And the Shuttle XPC slim Barebone XH610 was designed just like that and shines in a clean and modern appearance. - One M.2-Slot for SSD cards
The M.2-2280 slot supports one M.2 SSD storage card with NVMe/PCIe or SATA interface. Type 2280 means, it supports the usual M.2 cards with a width of 22 mm and a length of 80 mm, but also 2242 and 2260 standard cards are supported. - Low noise thanks to heatpipe cooling system

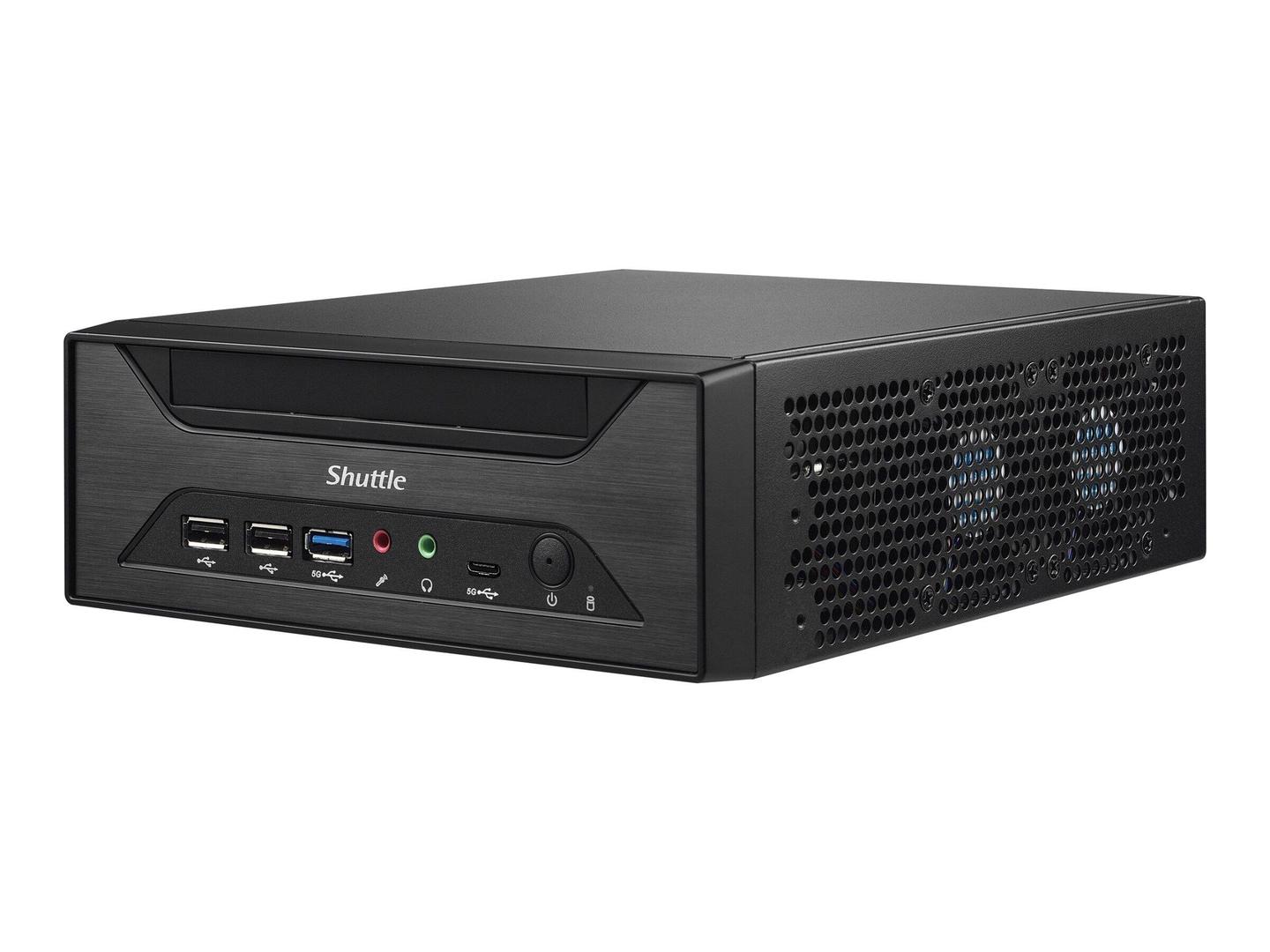

An active dual-fan heatpipe cooling system ensures whisper-quiet operation and system stability - Supports extended temperature range and 24/7 operation
The Shuttle XPC slim Barebone XH610 is officially approved for 24/7 permanent operation. Thanks to its efficient cooling, this PC runs highly reliably making it perfectly suitable for digital signage and POI/POS applications - even at ambient temperatures of up to 50°C (non-condensing). - Dual network
The Shuttle XPC slim Barebone XH610 supports Dual LAN with Intel network adapters, which are popular for their excellent performance and driver compatibility and are the preferred choice for professional environments. One LAN port even supports up to 2.5 Gbps over your existing Cat5e or better cabling. With XH610 you can expand your network's bandwidth and reduce digital bottlenecks. - Dual 4K display support + VGA
The XH610 features two digital video outputs: HDMI and DisplayPorts (DP 1.4) which both can run at 4K (3840 x 2160/2160p) high resolution at 60 Hz frames per second. Furthermore, the XH610 has an D-Sub/VGA port. The PC supports a maximum of three displays. - External power button by separate remote line
If, because of space constraints (e.g. in case of fixed installation), the machine cannot be switched on by pressing the front power button, it can be powered on by a separate remote line. You will find an appropriate four-pin connector at the back panel of the XH610 (pitch 2.54 mm). Furthermore, this connector provides a Clear CMOS function and +5 V DC voltage supply for external devices.
Special Features
- Two RJ45 network ports
- External 120 watt power supply unit
- Always-on function, remote power-on connection
- Heat-pipe cooling system with dual fan
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel H610 |
| RAM | RAM |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 3 |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | No graphics |
| Audio Output | Audio Output |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel i219-LM, i225 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 2.5" ¦ 2 (total) / 2 (free) x internal M.2 2280 ¦ 1 (total) / 1 (free) x internal M.2 2230 |

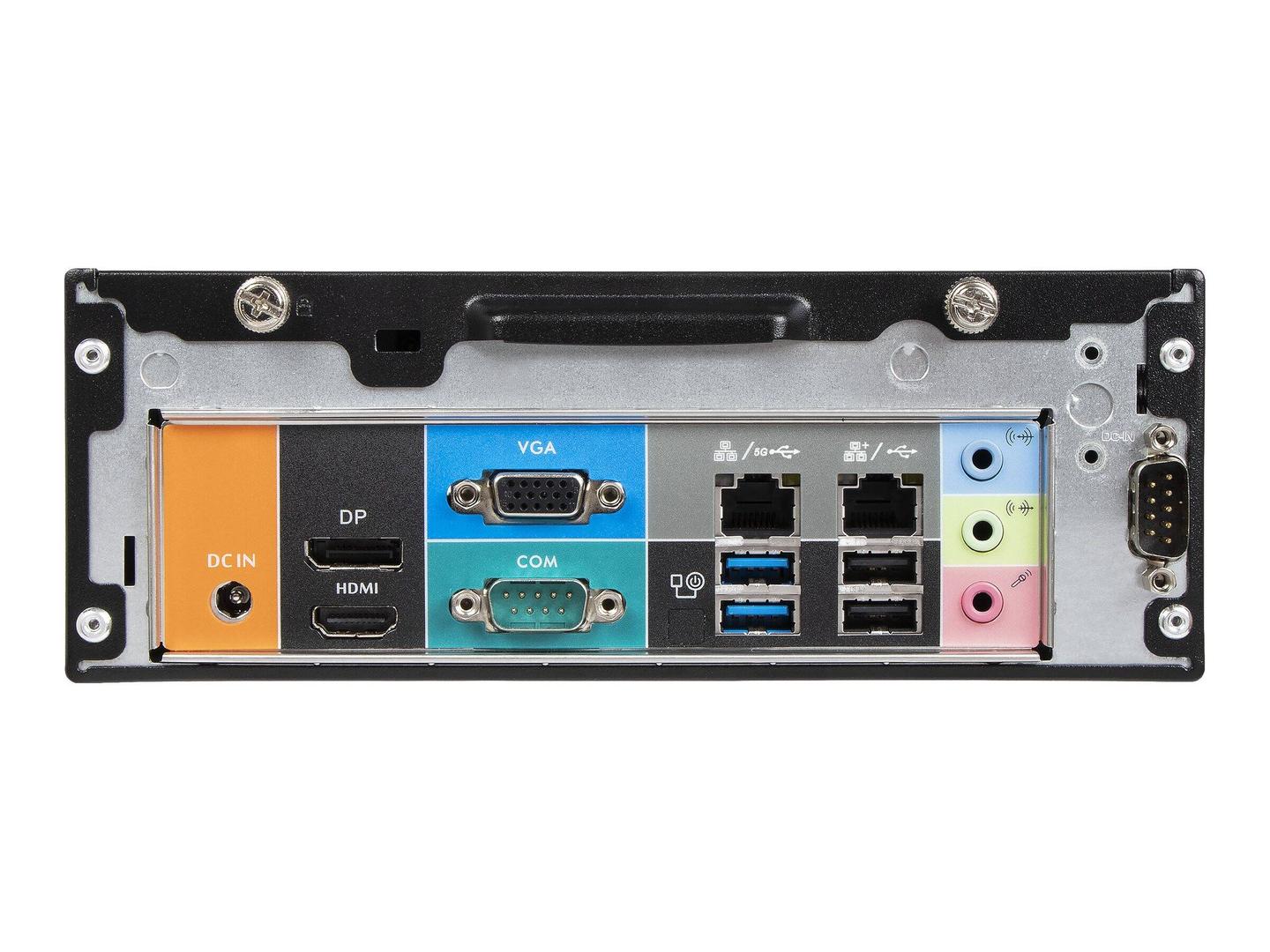

| Interfaces | 1 x microphone - mini-jack (1 in front) ¦ 1 x audio line-out/headphones - mini-jack (1 in front) ¦ 1 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A (1 front, 2 rear) ¦ 1 x USB 3.2 Gen 1 - Type C (1 front) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 2 x serial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer)/line-in - mini-jack ¦ 1 x audio line-out (rear)/microphone - mini-jack |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | VCCI, BSMI, FCC, RoHS, cTUVus, ERP, EMI, RCM, EMC 2014/30/EU, LVD 2014/35/EU, CE/EMC, CB 60950, CB 62368, ErP 2009/125/EU, UKCA |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 120 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20 cm |
| Depth | 23.8 cm |
| Height | 7.25 cm |
| Weight | 2.2 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 3.5 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
