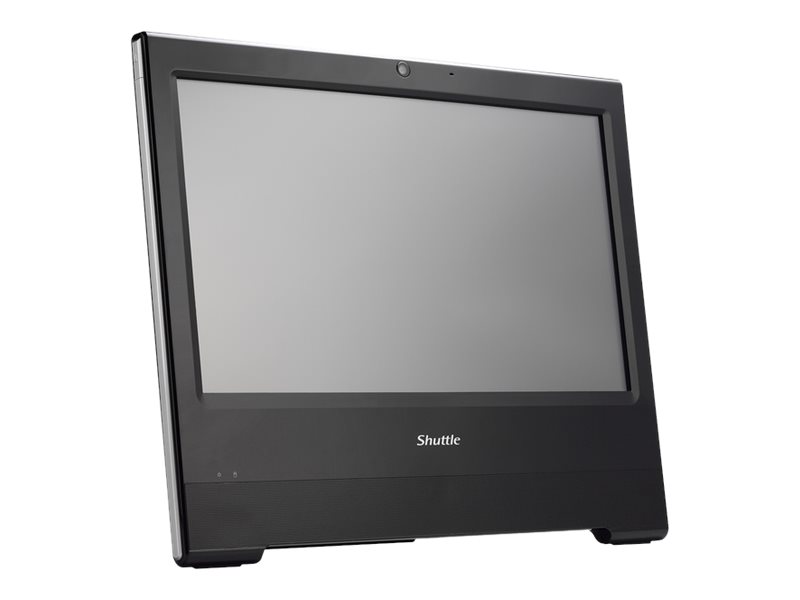

Shuttle XPC X50V9 - Barebone - all-in-one - 1 x Celeron 7305 up to - RAM 0 GB - UHD Graphics - Gigabit Ethernet - 802.11a/b/g/n/ac, Bluetooth 4.2 - monitor: LED 15.6" 1366 x 768 (HD) touchscreen - black | X50V9 BLACK
Please sign in so that we can notify you about a reply
Product Features
- Compact and versatile design
The Shuttle XPC X50V9 features an all-in-one form factor, offering a sleek and space-saving design that integrates seamlessly into any workspace or home environment. Its raised bezel and 15.6-inch touchscreen display combine functionality with style, making it a suitable choice for users seeking a compact yet powerful computing solution. - Enhanced connectivity
Equipped with a wide range of interfaces, the Shuttle XPC X50V9 ensures versatile connectivity options. From HDMI and VGA ports for external displays to multiple USB 3.2 Gen 1 and Gen 2 ports for high-speed data transfer, along with Gigabit Ethernet, this PC barebone system is designed to meet the connectivity needs of modern users. The inclusion of serial ports further enhances its utility in specialized environments. - Wireless capabilities
With integrated Bluetooth 4.2 and Wi-Fi support, the Shuttle XPC X50V9 offers flexible wireless connectivity options. Whether it's connecting peripherals without the clutter of cables or accessing the Internet and network resources, this system ensures a seamless and efficient wireless experience. - Immersive audiovisual experience
The Shuttle XPC X50V9 delivers a vivid audiovisual experience with its 15.6-inch HD LED display and stereo speakers powered by the Realtek ALC888S audio codec chip. Whether for work or entertainment, users can enjoy clear, crisp visuals and sound. - Ready for expansion
Designed with future upgrades in mind, the Shuttle XPC X50V9 features M.2 card slots and a 2.5" internal expansion bay, allowing for easy storage expansion and system upgrades. This flexibility ensures that the system can grow with the user's needs, making it a smart investment for those looking for a scalable computing solution.
Special Fetures
- 15.6-inch HD touchscreen display for interactive use
- Intel Celeron 5-core processor for efficient performance
- Multiple USB 3.2 ports for rapid data transfer
- Wireless connectivity with Bluetooth 4.2 and Wi-Fi
- Supports up to 0 GB DDR5 SDRAM for powerful multitasking
Product Specification
| Type | PC barebone - AI Ready |
| Product Form Factor | All-in-one |
| Colour | Black |
| Processor / Chipset | |
| CPU | Intel Celeron 7305 |
| Clock Speed | 1.1 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | |
| Installed Size | 0 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 220 cd/m² |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | VGA, HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Camera | |
| Camera | Yes |
| Resolution | 1920 x 1080 |
| Audio Input | |
| Type | Microphone |
| Networking | |
| Ethernet Controller | Intel I219 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8821CE |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2242/2260/2280 ¦ 1 (total) / 0 (free) x M.2 Card - 2230 |
| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/headphones ¦ 1 x microphone ¦ 4 x USB 3.2 Gen 1 ¦ 2 x serial |
| Miscellaneous | |
| Included Accessories | Screw set, 4 x thermal pads |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | BSMI, CB, FCC, RoHS |
| Power | |
| Device Type | Power adapter |
| Voltage Required | (50/60 Hz) |
| Power Provided | 90 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Width | 39.1 cm |
| Depth | 4.2 cm |
| Height | 32.7 cm |
| Weight | 3.5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
