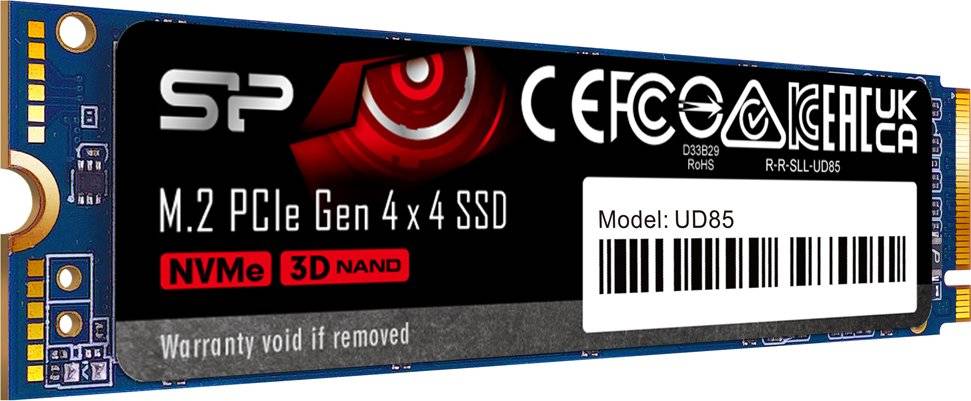

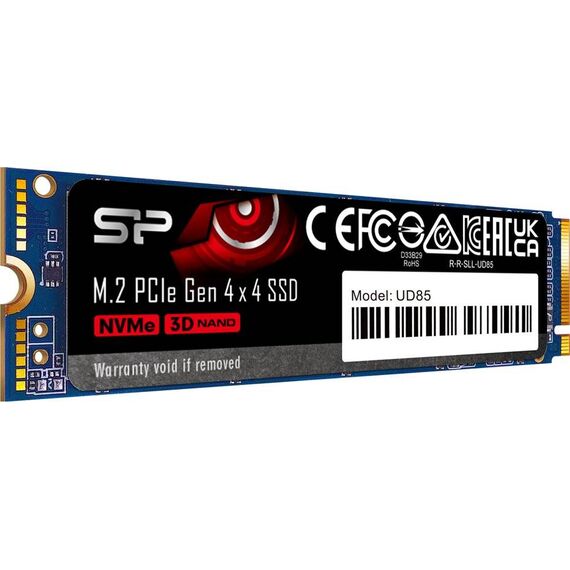

SILICON POWER UD85 / SSD / 1 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) | SP01KGBP44UD8505
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| NAND Flash Memory Type | 3D multi-level cell (MLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | Error Correction Code (ECC), End-to-end data protection, 3D NAND Technology, Low-Density Parity Check, SLC cache, Host Memory Buffer (HMB), NVM Express (NVMe) 1.4, RAID Protection |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 8 g |
| Performance | Performance |
| Internal Data Rate | 3600 MBps (read) / 2800 MBps (write) |
| Reliability | Reliability |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
| Software & System Requirements | Software & System Requirements |
| Software Included | SP Toolbox (free download) |
| OS Required | Windows 8.1 / 10 / 11 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, RoHS, KCC, WEEE, Green Dot, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
Features - Silicon Power - SP01KGBP44UD8505
Form Factor
- 2.5"
- Internal
Capacity
960GB
Interface
- M.2
More Details
Product Code
04:425894
EAN Code
4713436150435
Manufacturer
Silicon Power
