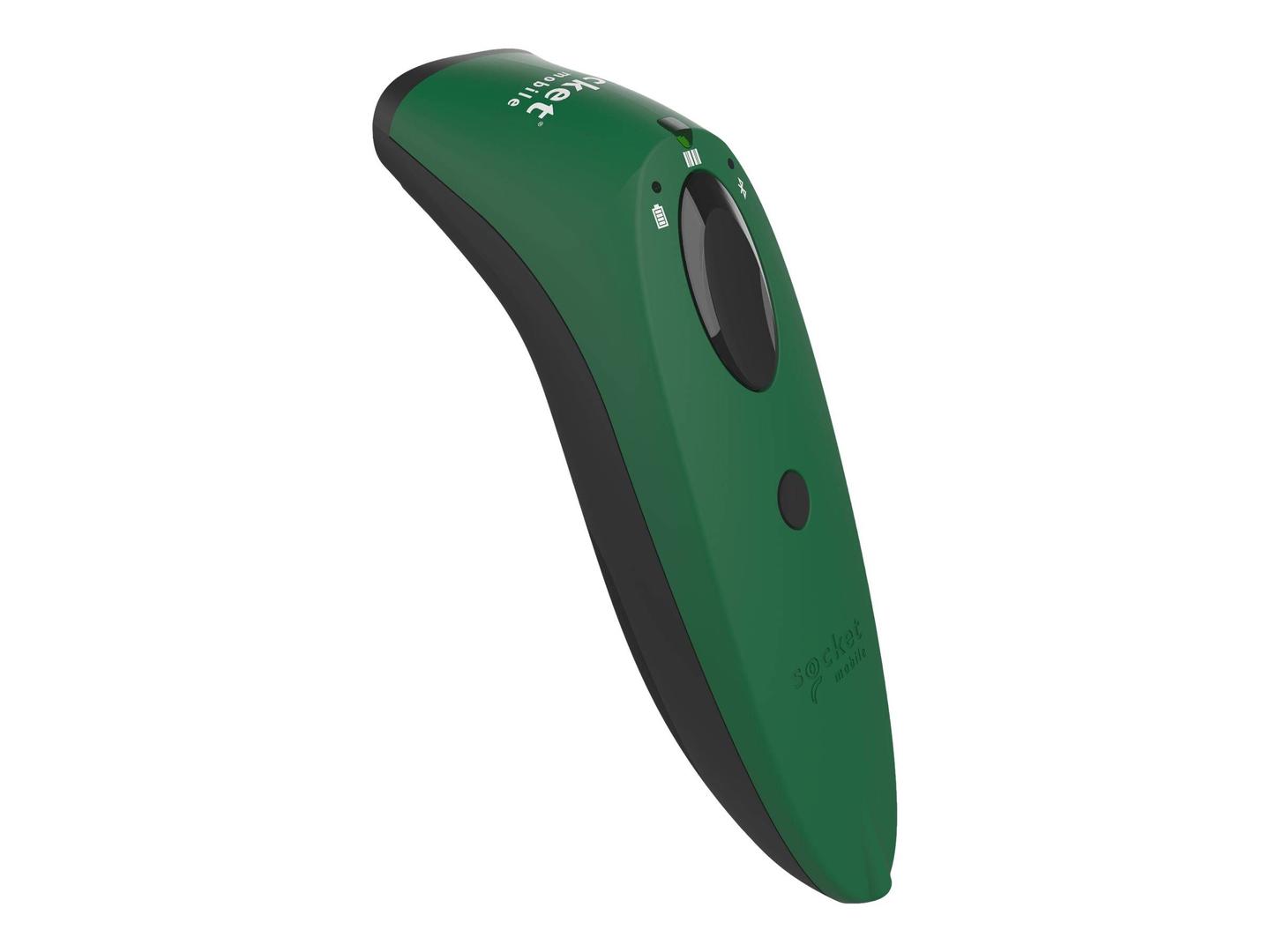

SocketScan S720 / Barcode scanner / portable / 2D imager / decoded / Bluetooth 2.1 EDR | CX3980-3037
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - portable |
| Colour | Green |
| Barcode | Barcode |
| Interface Type | Bluetooth 2.1 EDR |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 960 |
| Max Working Distance | 38 cm |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, ISBT 128, QR code, Aztec code, UPC-A, Code 128, Code 11, Code 16K, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, UPC-E1, UK-Plessey, Micro QR code, GS1 DataBar Expanded, GS1 DataBar Limited, EAN-8, EAN-13, Chinese 2 of 5, Han Xin |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Human Interface Device Profile (HID), Serial Port Profile (SPP) |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 2.1 EDR |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wrist strap |
| Cables Included | Charging cable |
| Compliant Standards | C-Tick, ISO 9001, EN55022, ICES-003, EN55024, CISPR 22, RoHS, UL 60950-1, IEC 60950-1, TELEC, EN 50581, CAN/CSA C22.2, IEC/EN 62471, FCC-ID, FCC Part 15 Class C, UKCA |
| Power | Power |
| Battery | 2 x Nickel Metal Hydride - AA type |
| System Requirements | System Requirements |
| OS Required | Microsoft Windows, Android, Apple iOS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.71 cm |
| Depth | 13.22 cm |
| Height | 4.01 cm |
| Weight | 117 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - battery - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.22 m |
Features - SOCKET MOBILE - CX3980-3037
More Details
Product Code
CF55026
EAN Code
0758497121691
Manufacturer
SOCKET MOBILE
