StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction (2P6FFC-USB-SERIAL) - USB / serial cable -
Please sign in so that we can notify you about a reply
Product Features
- Serial port expansion

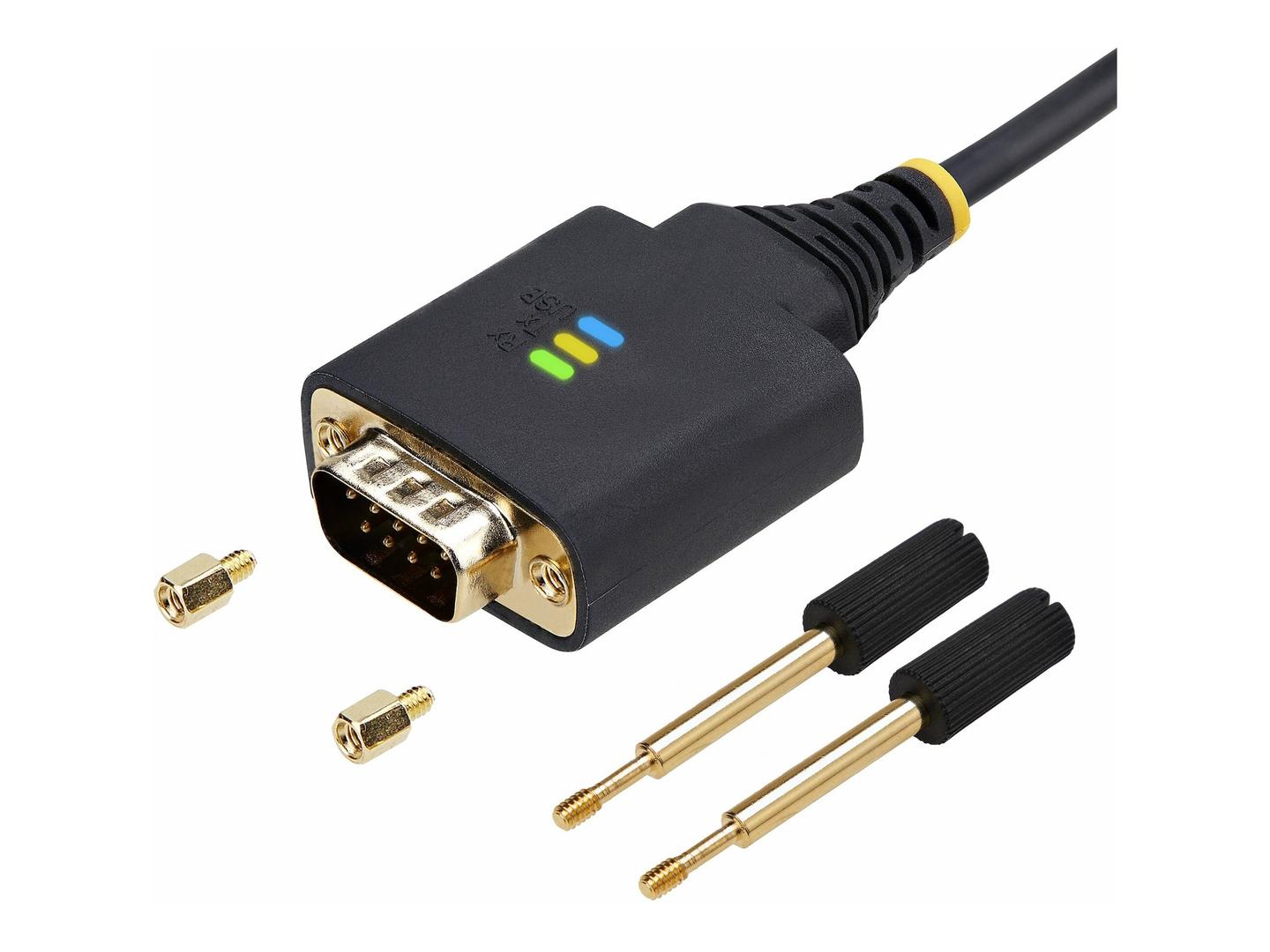

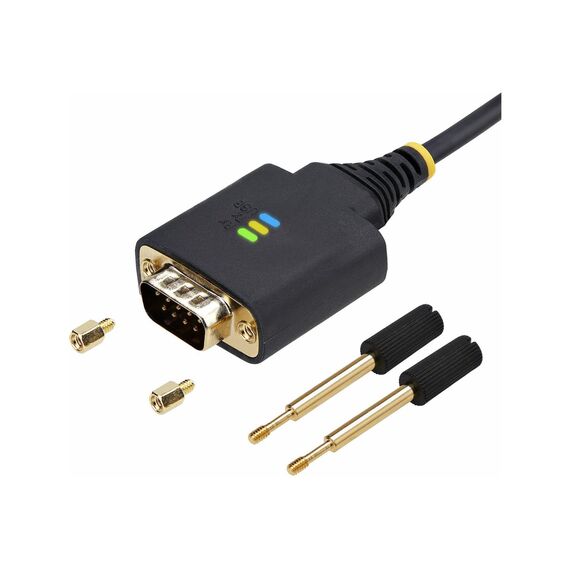

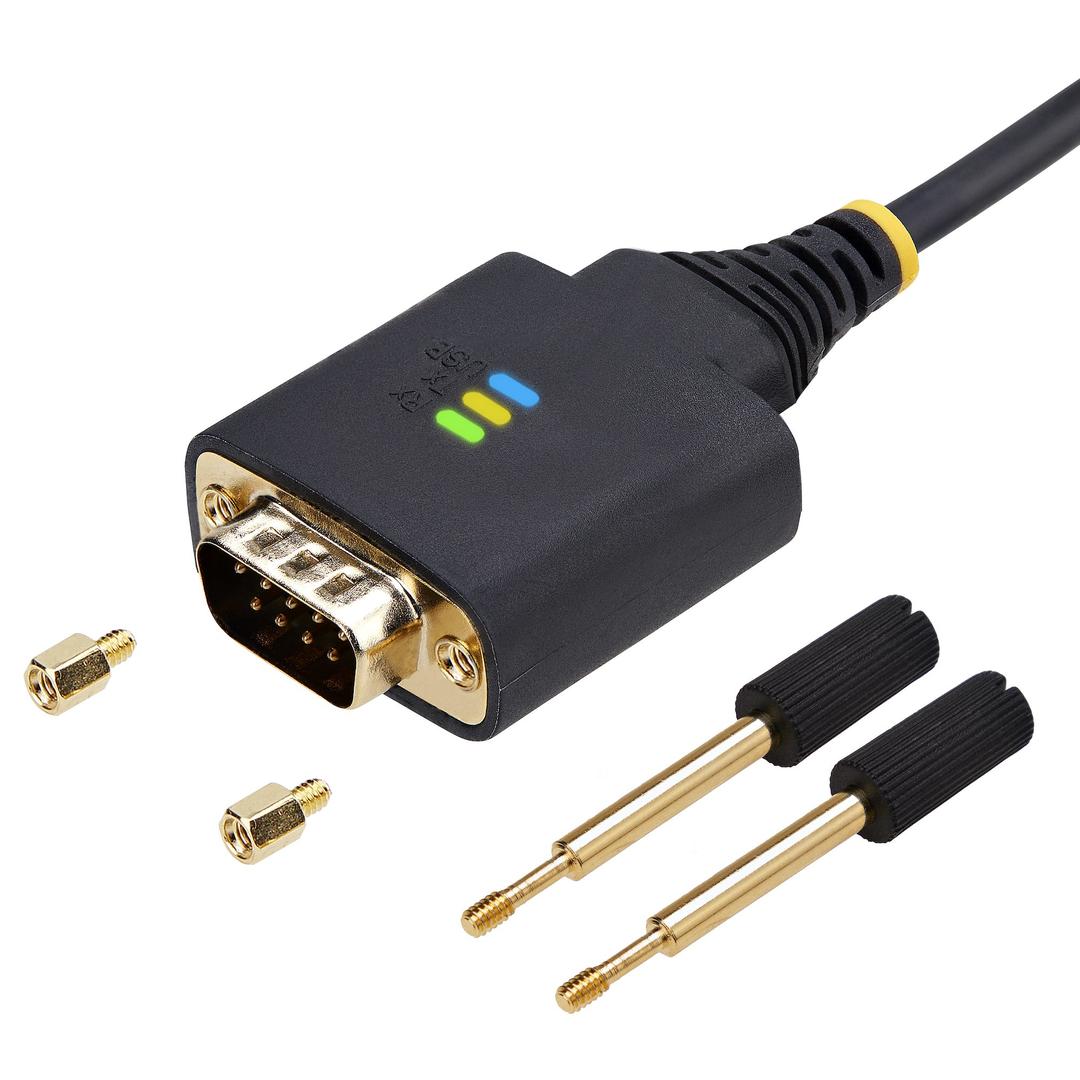

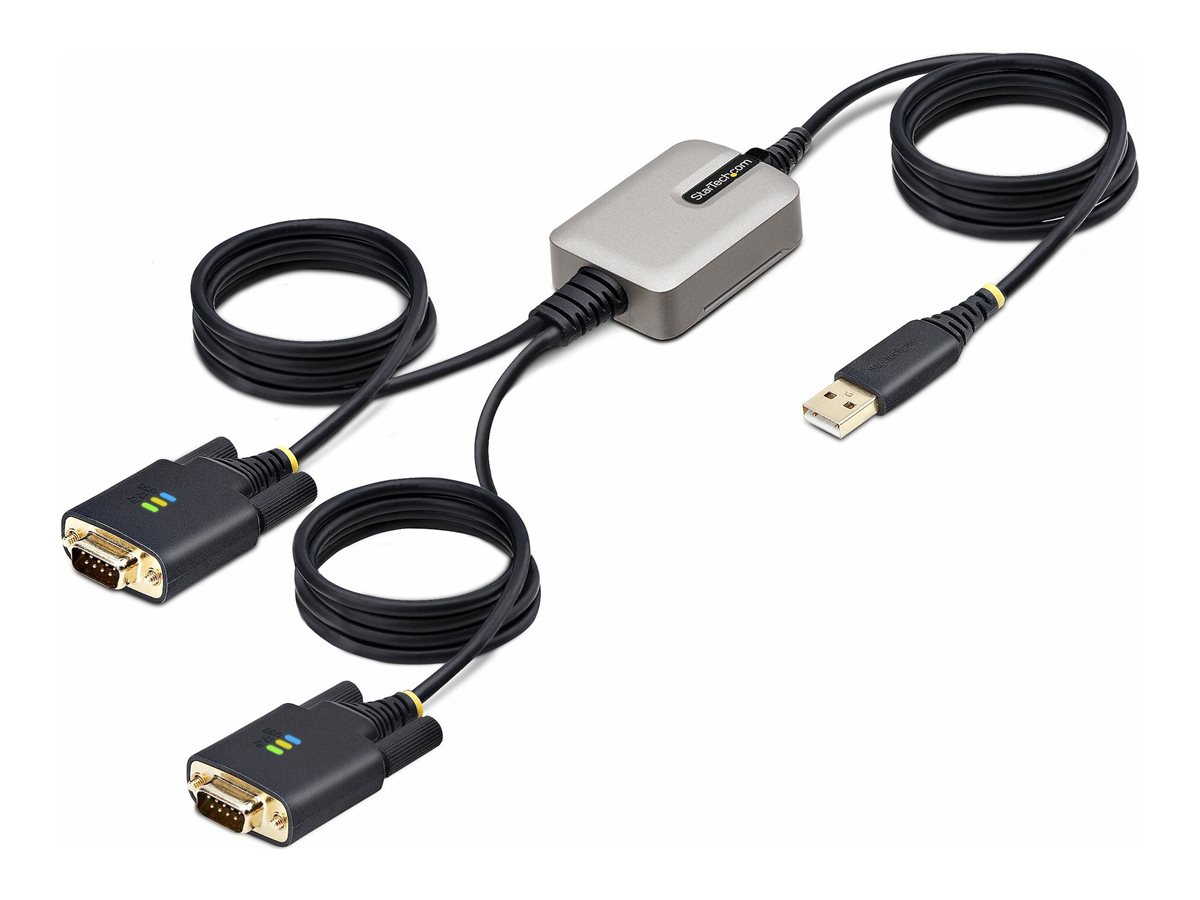

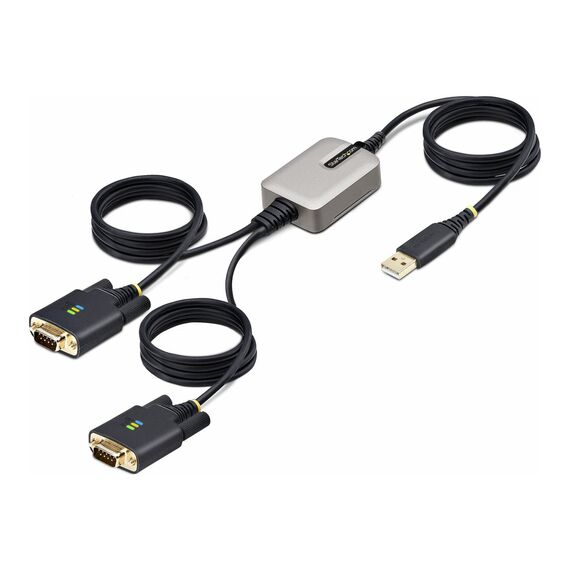

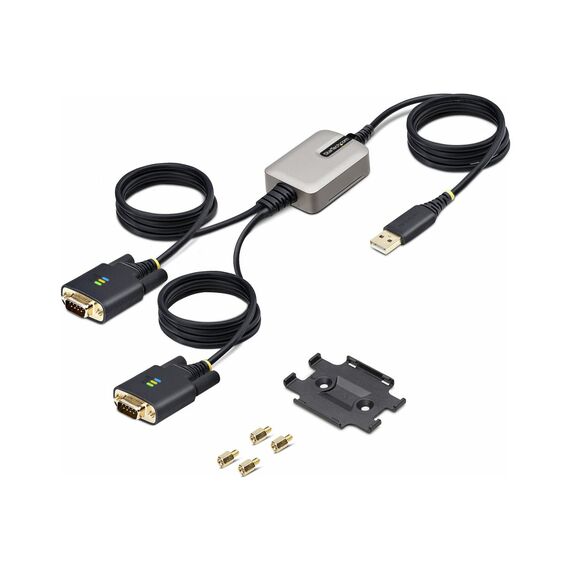

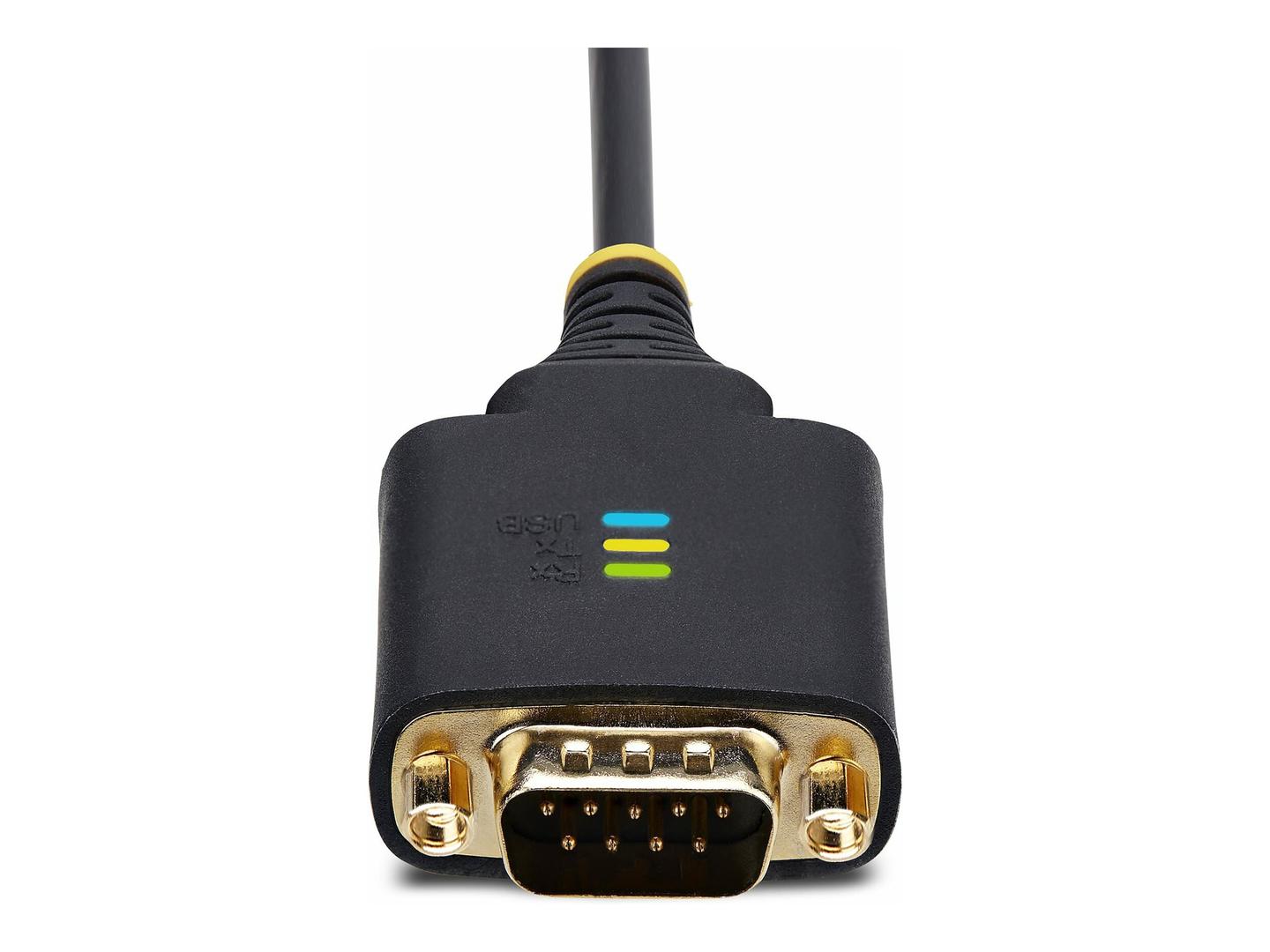

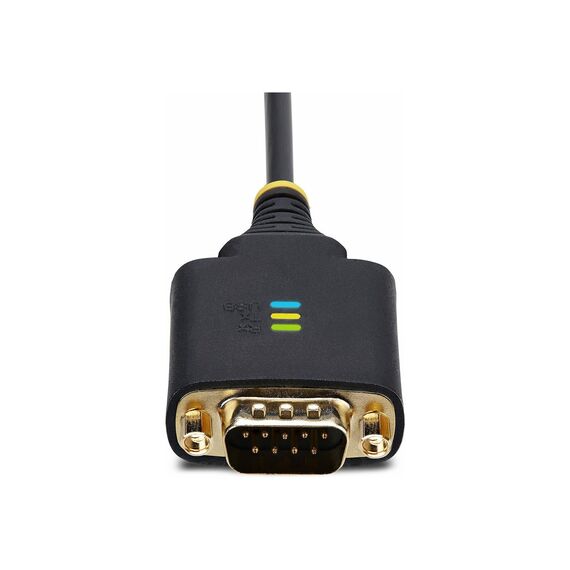

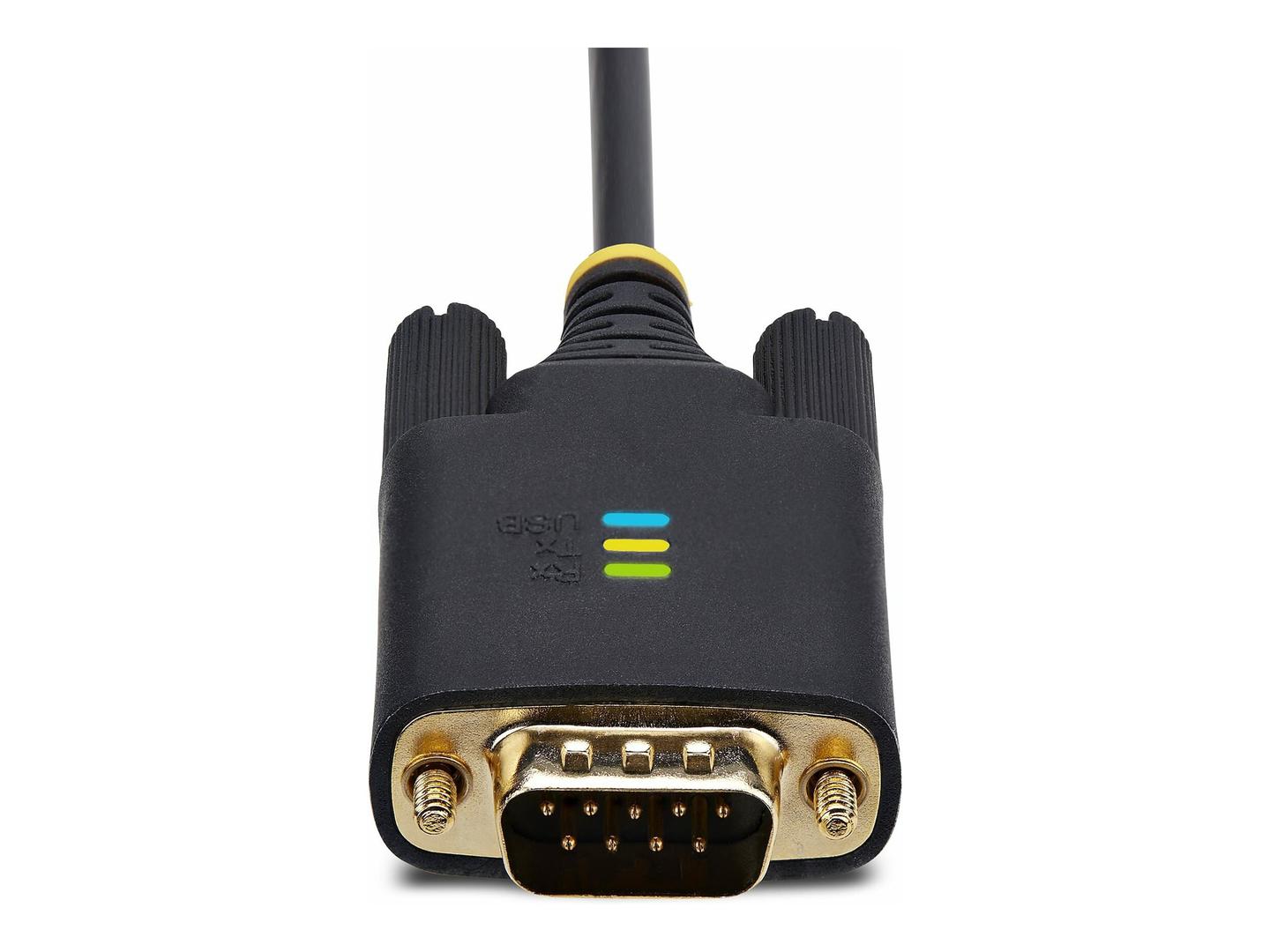

The Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables. - LED indicators

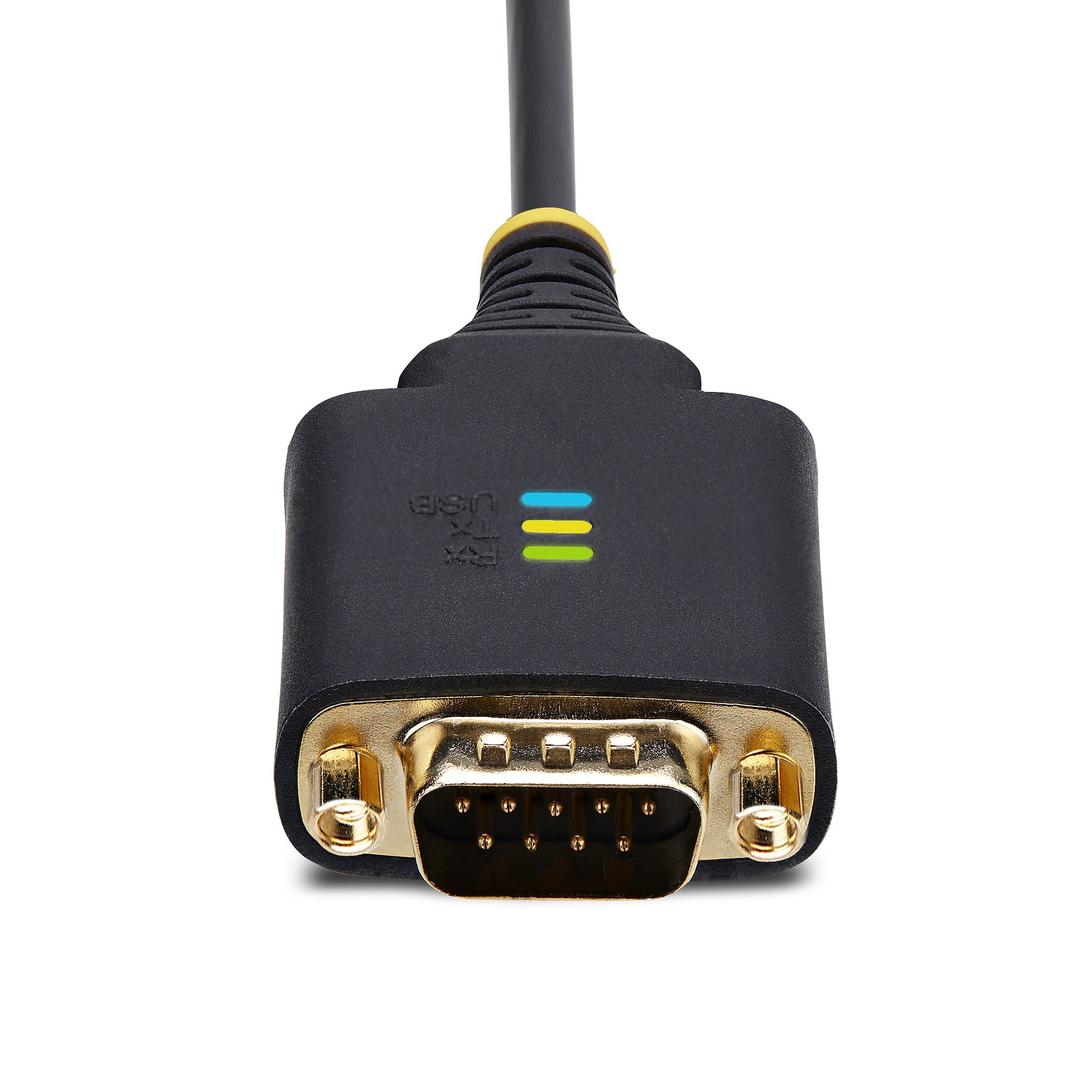

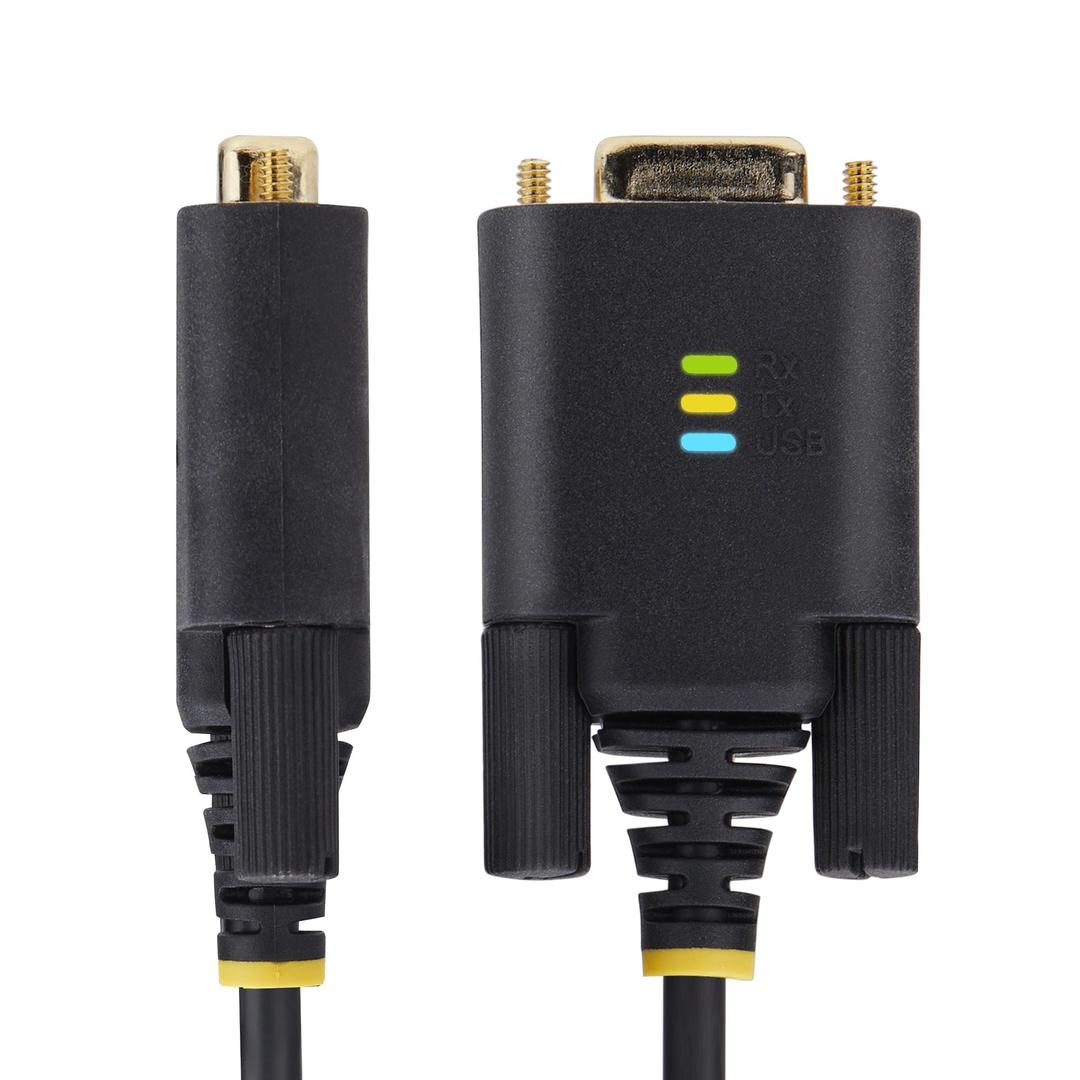

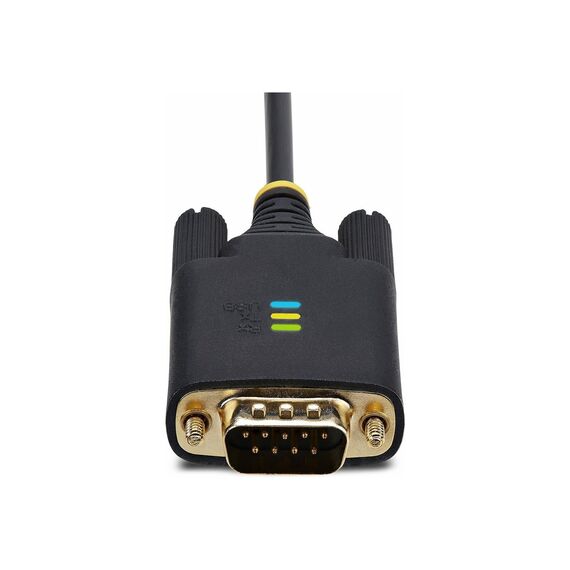

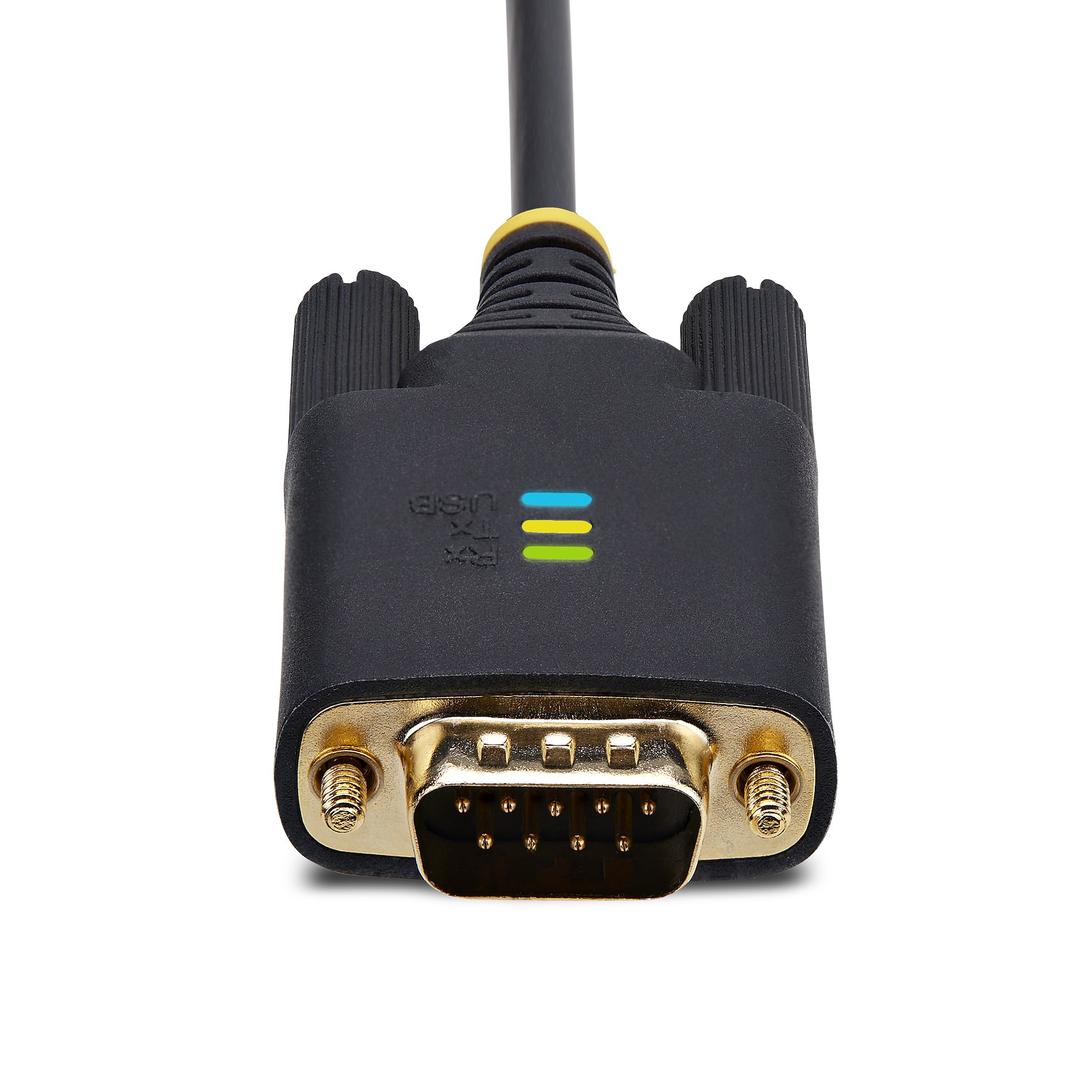

Data transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting. - Seamless connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted. - Built to last

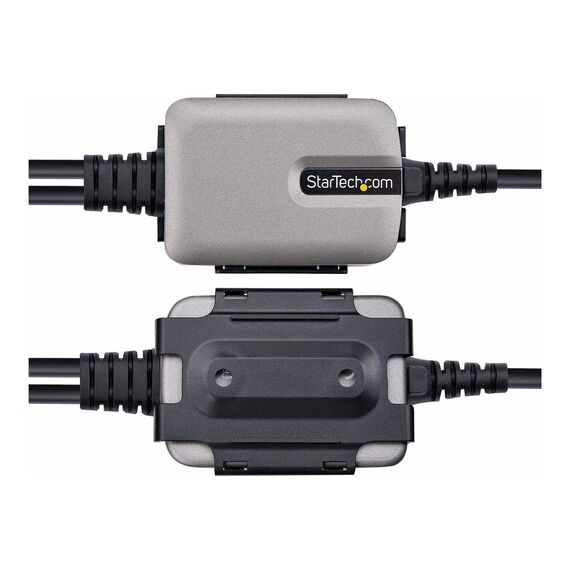

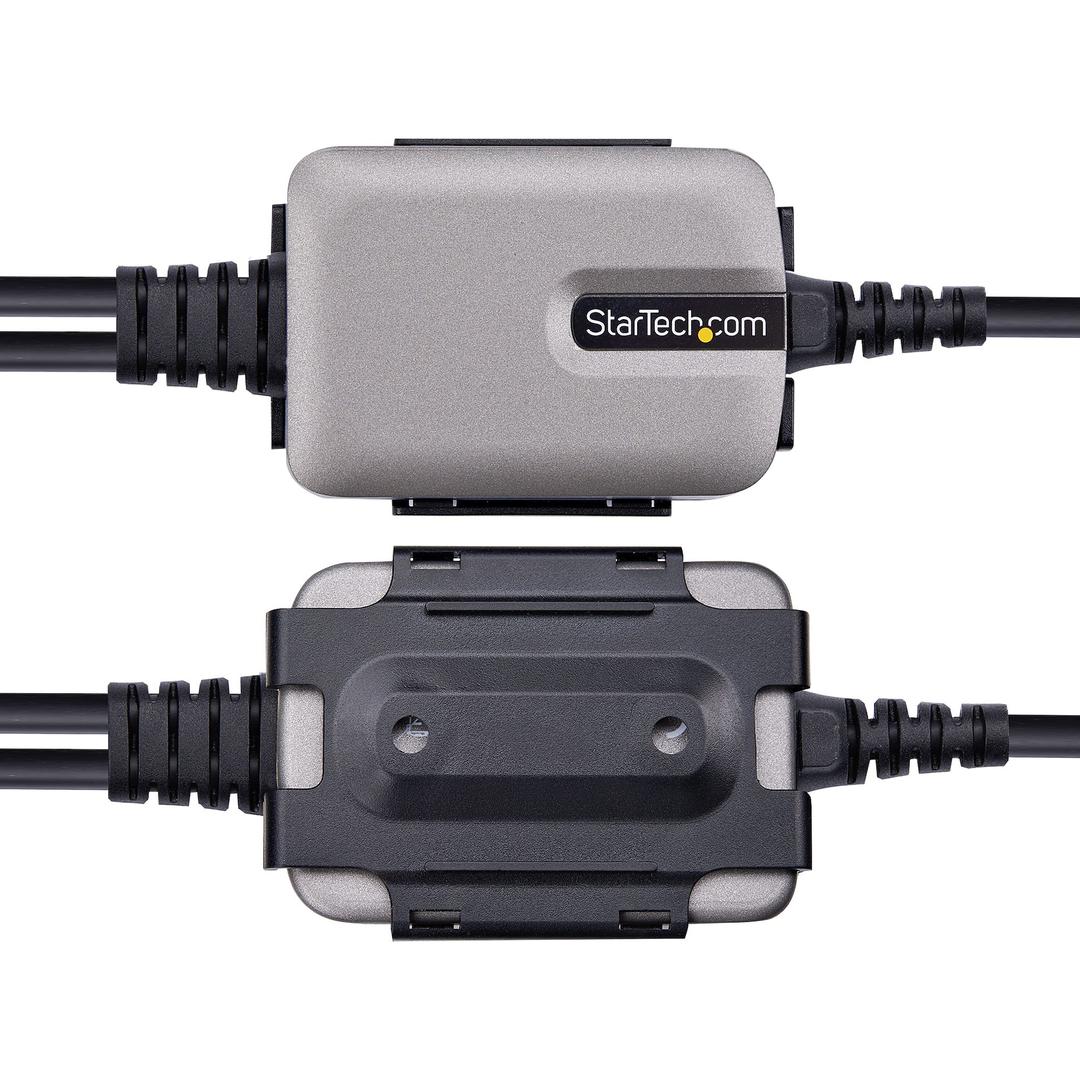

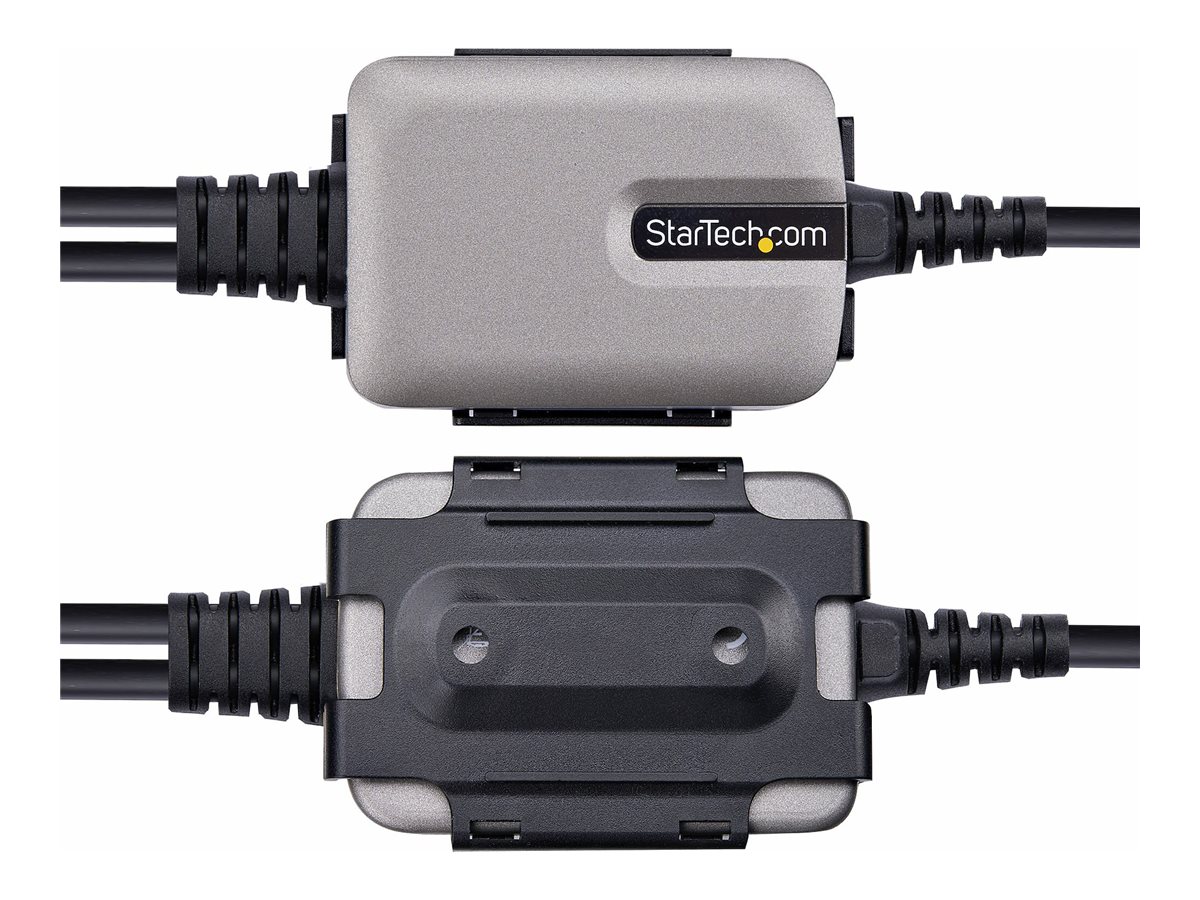

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.
Special Fetures
- Add RS-232 capabilities to USB-enabled Data Terminal Equipment (DTE) to connect Data Communication Equipment (DCE) peripherals
- Connect, monitor, and control industrial sensors and equipment
- Connect bar code scanners, receipt printers, and other point of sale devices
- Program LED and digital signage boards with serial communication ports
Product Specification
| Type | USB / serial cable |
| Shielding Material | Copper |
| Plated Connector | Gold |
| Features | EMI/RFI protection, electrostatic discharge (ESD) protection, FTDI controller, LED status indicator, TPE connector housing, bus powered |
| Length | 4 m |
| Colour | Black |
| Weight | 280 g |
| Connectivity | |

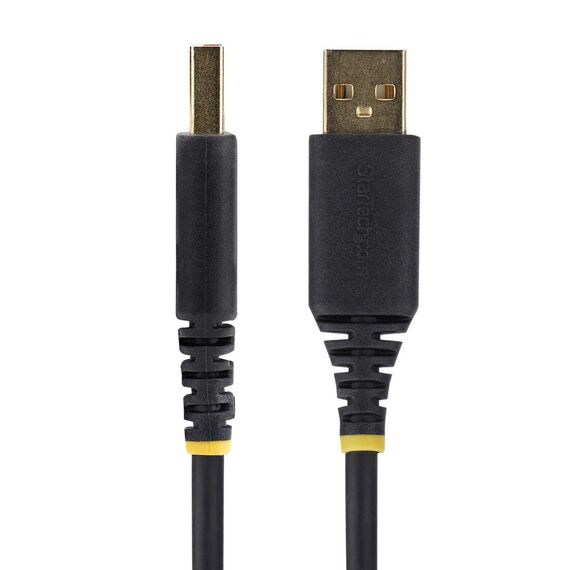

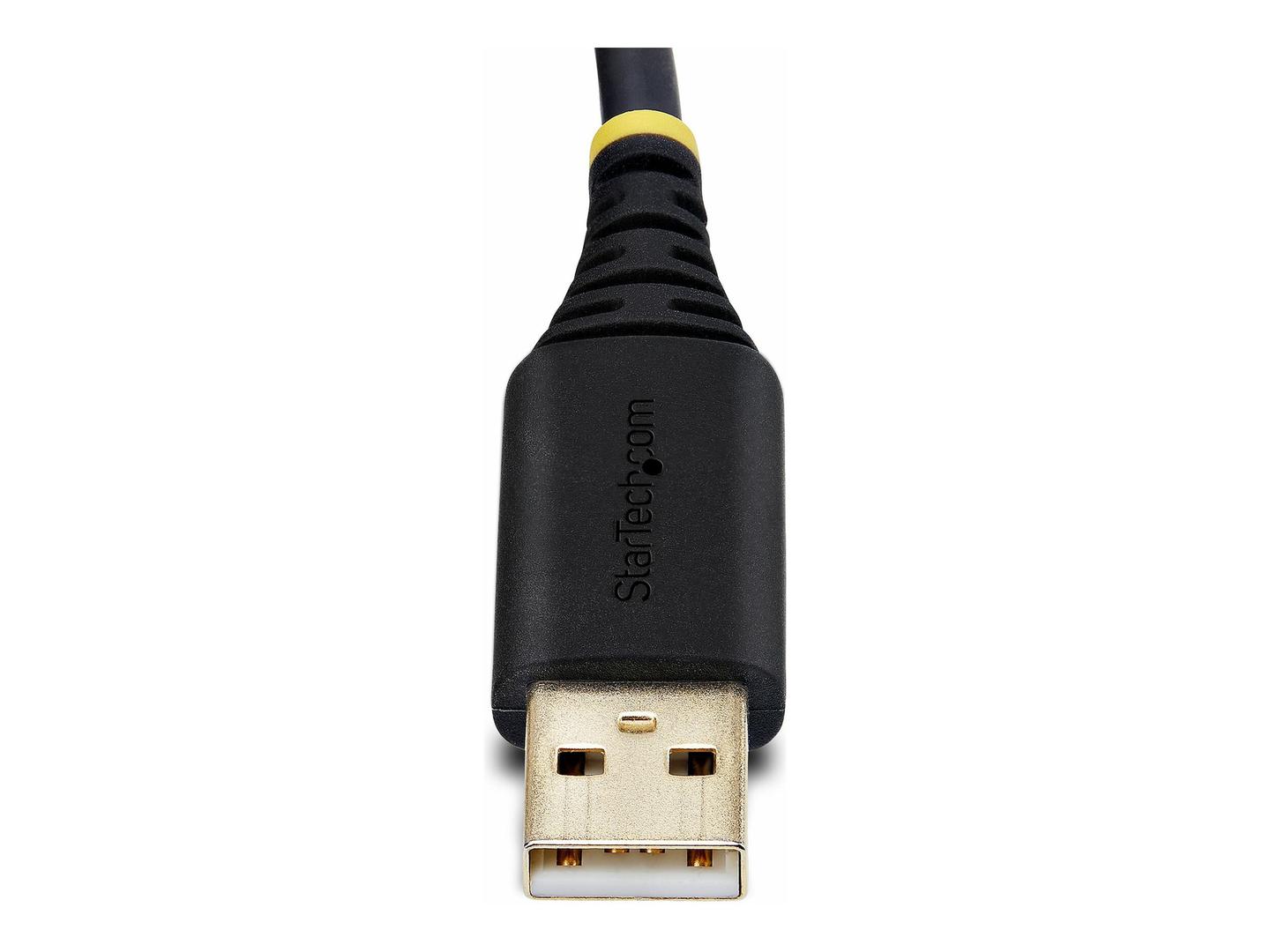

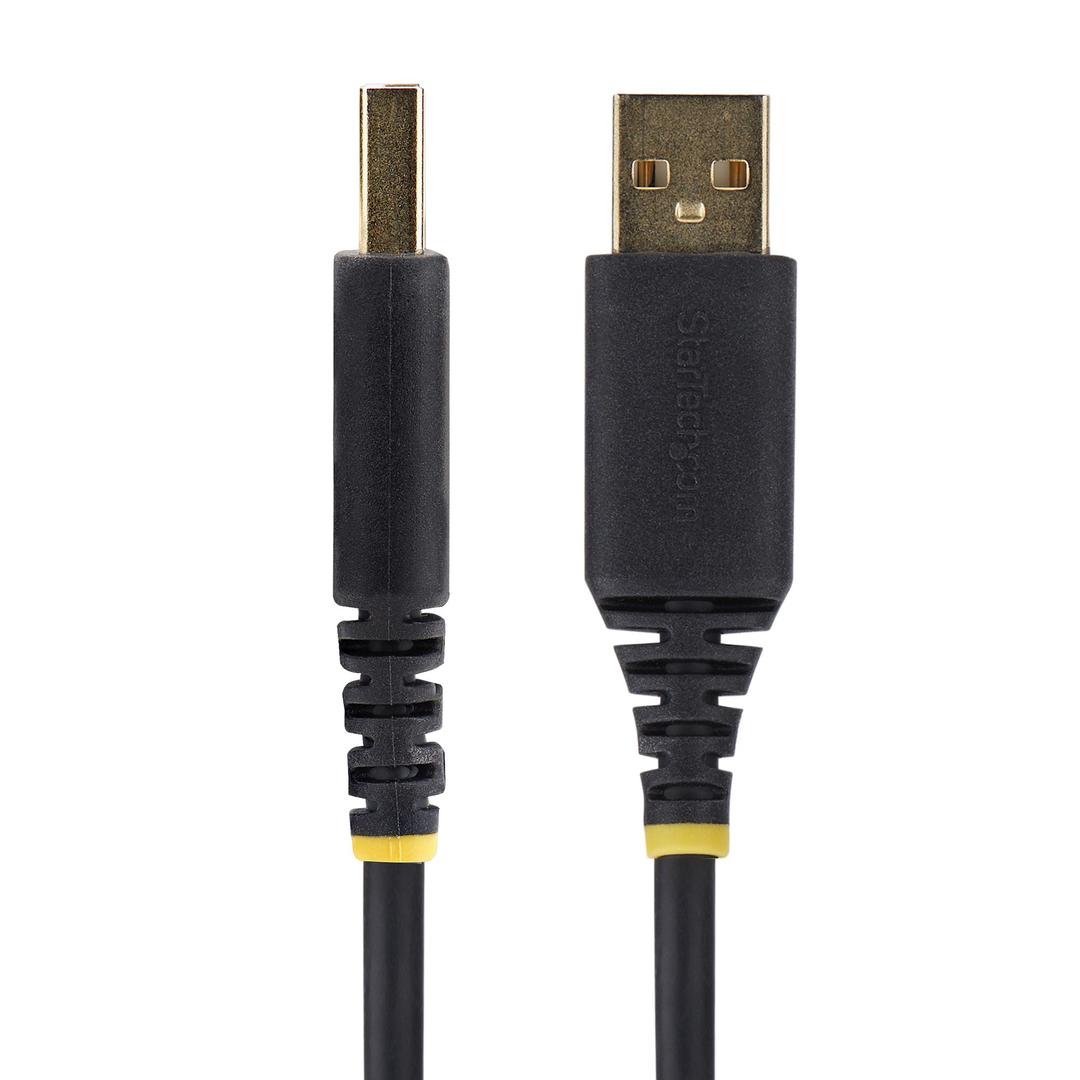

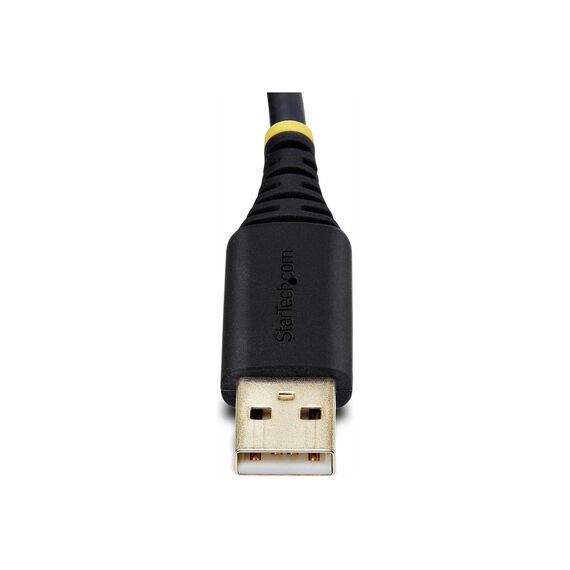

| Connector | 4 pin USB Type A - male |
| Connector (Second End) | 2 x 9 pin D-Sub (DB-9) - male - screwable |
| Miscellaneous | |

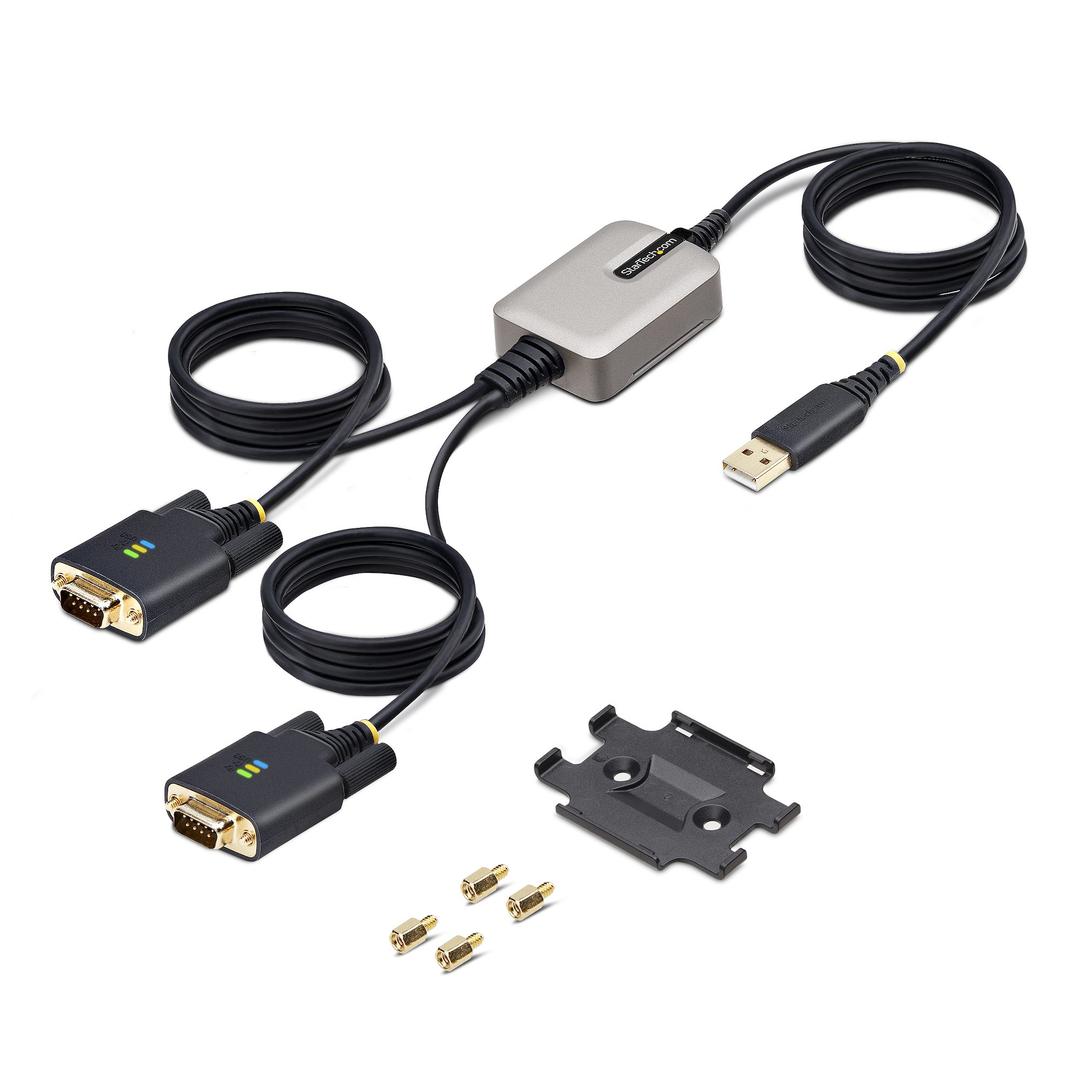

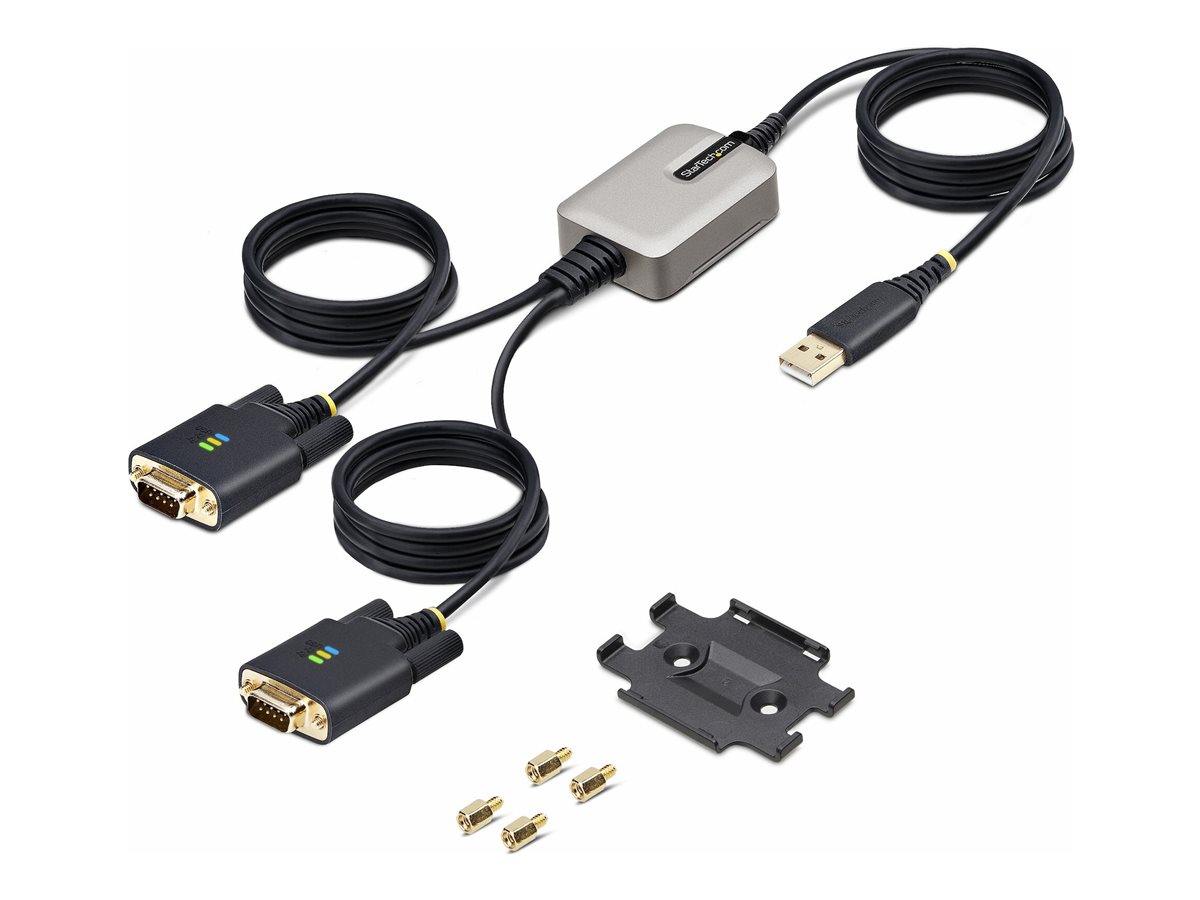

| Included Accessories | Mounting bracket |
| Compliant Standards | USB / USB 2.0, RS-232 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 5.5 cm |
| Shipping Weight | 290 g |
| Service & Support | 2-year warranty |
Features - StarTech.com - 2P6FFC-USB-SERIAL
Colour
black
Length
4m
More Details
Product Code
CJ80228
EAN Code
0065030898379
Manufacturer
StarTech.com
