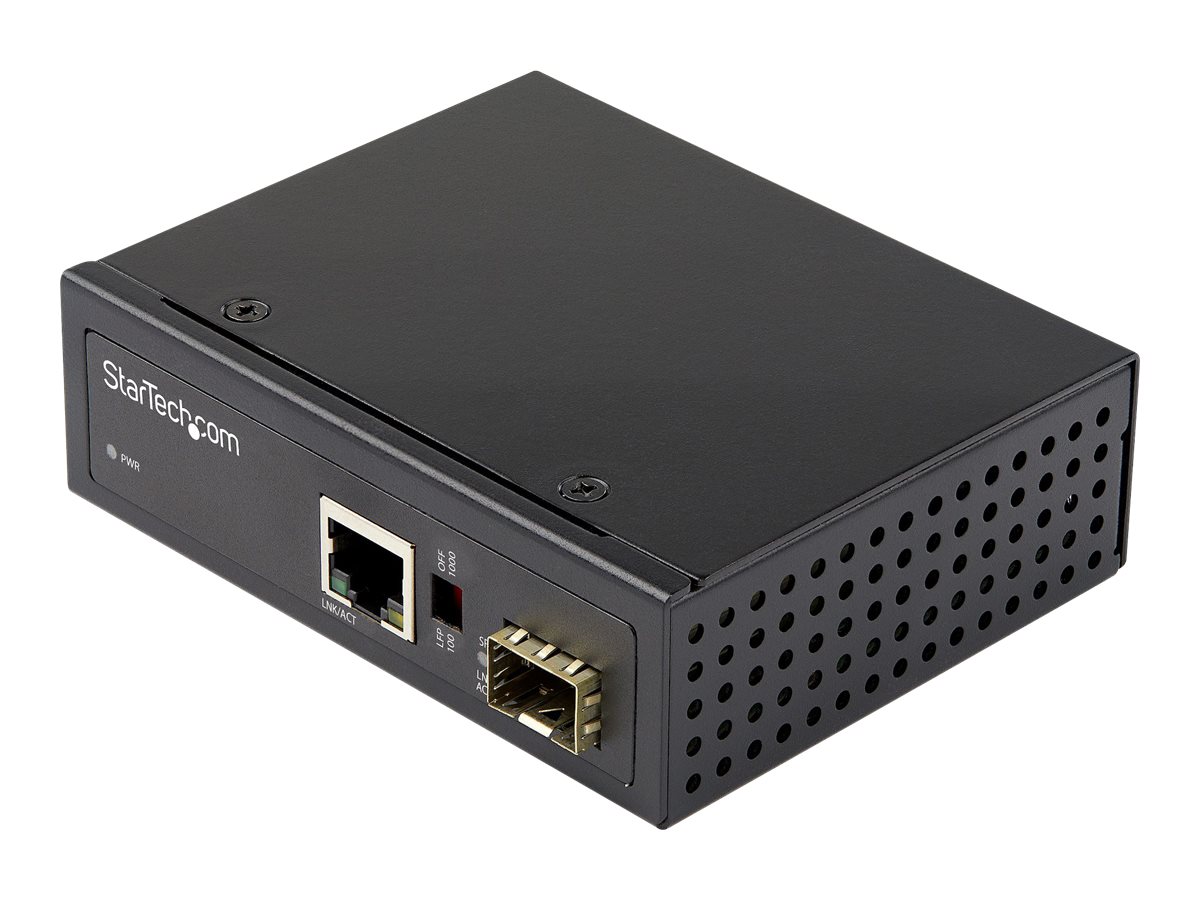

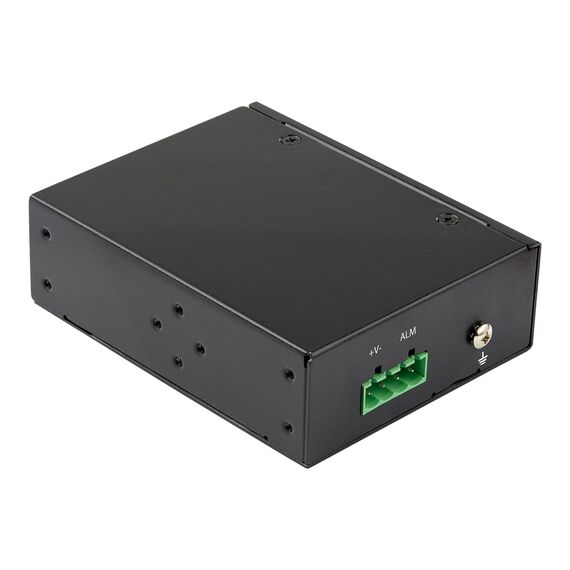

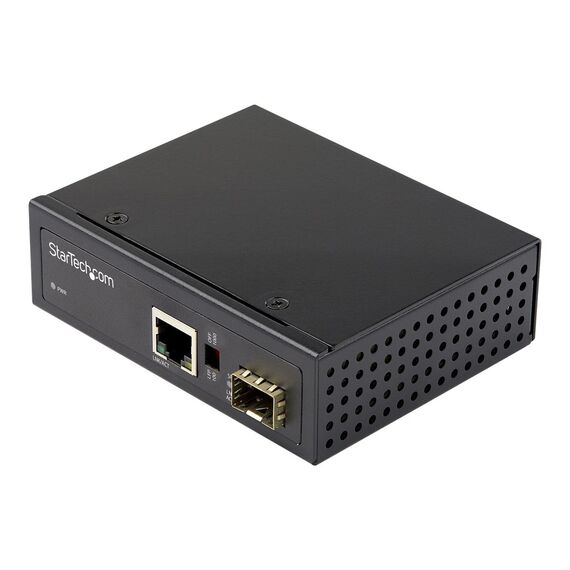

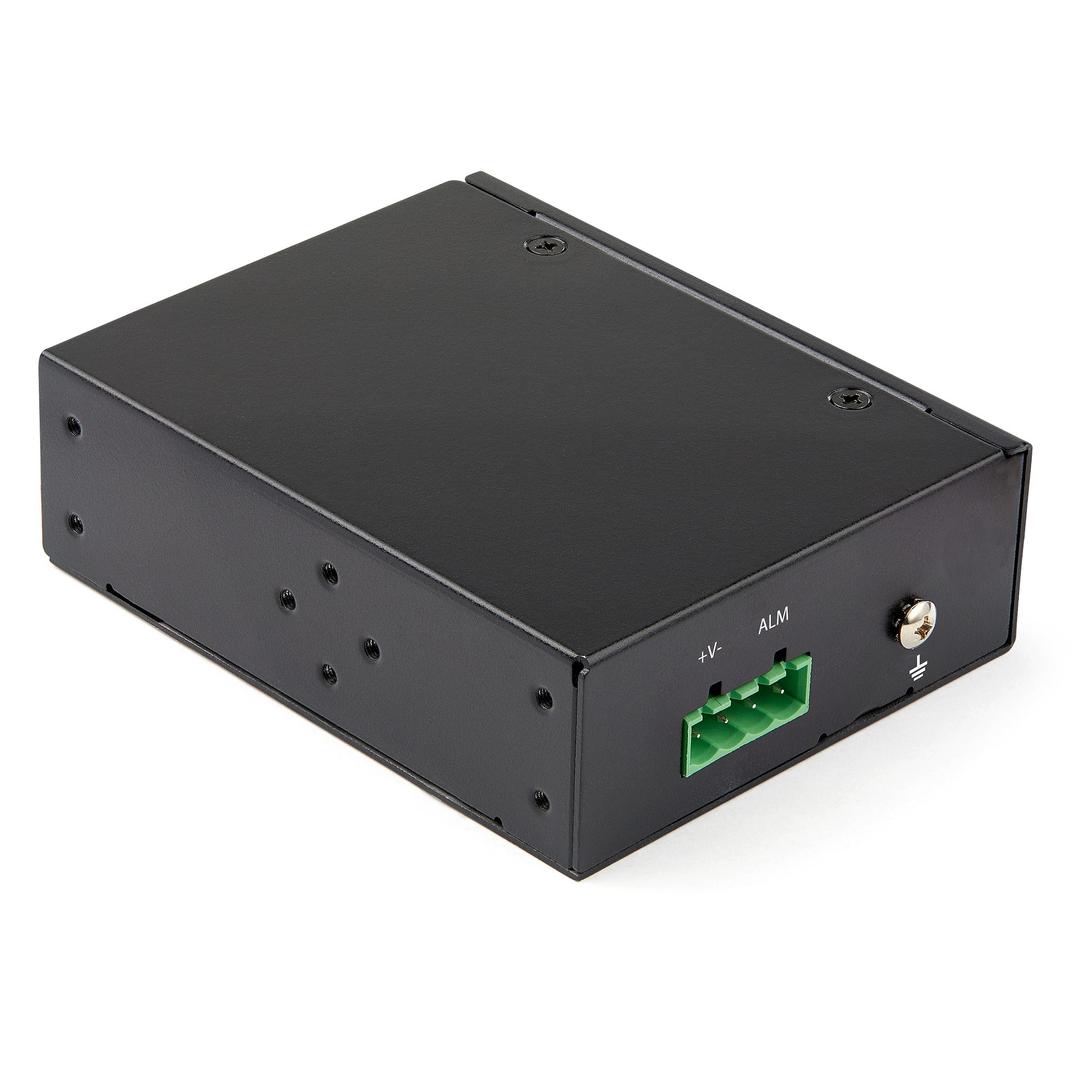

StarTech.com Industrial Fiber to Ethernet Media Converter, 1Gbps SFP to RJ45/ Cat6, Singlemode/Multimode Optical Fiber to Copper Gigabit Eternet Network, 12-56V DC, IP-30/ -40 to +75C | IMC1GSFP
Please sign in so that we can notify you about a reply
Product Features
- A flexible solution covering different requirements

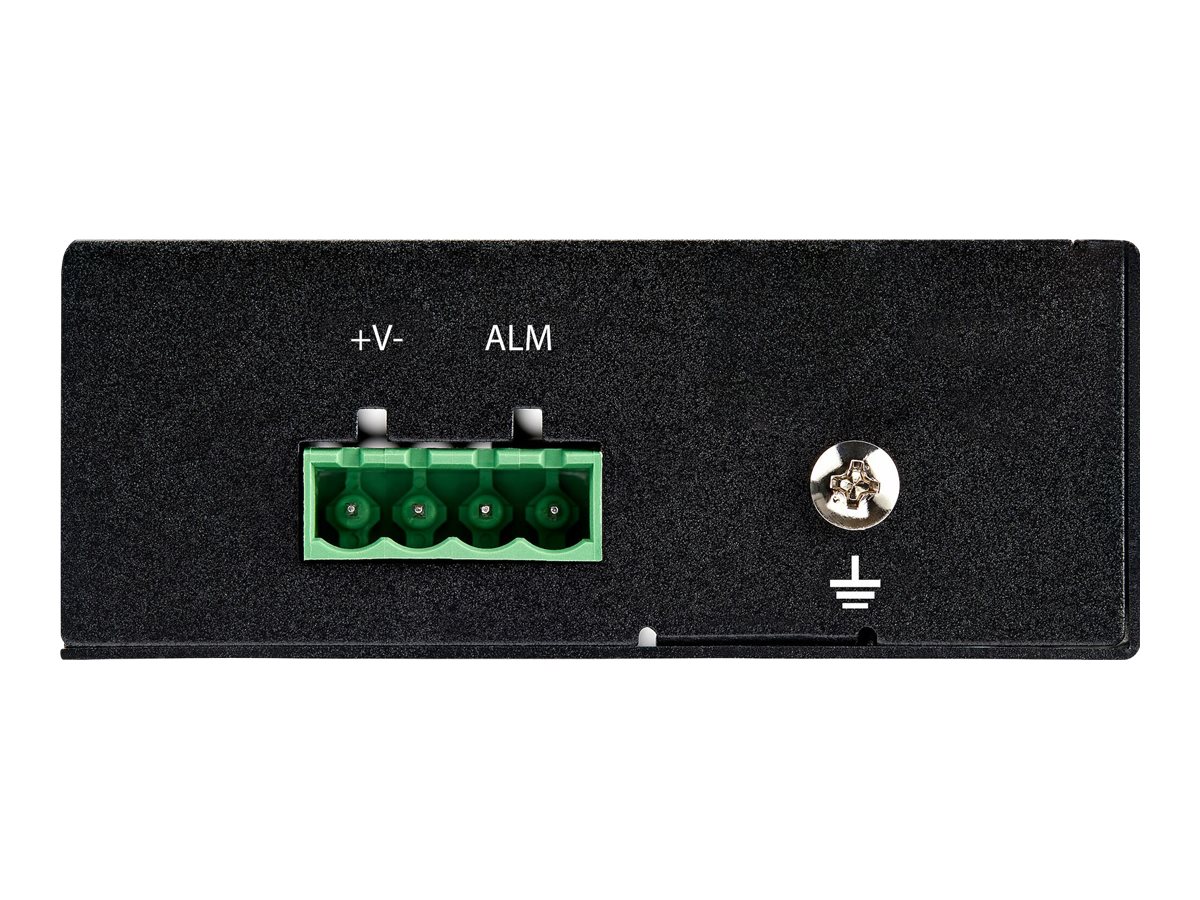

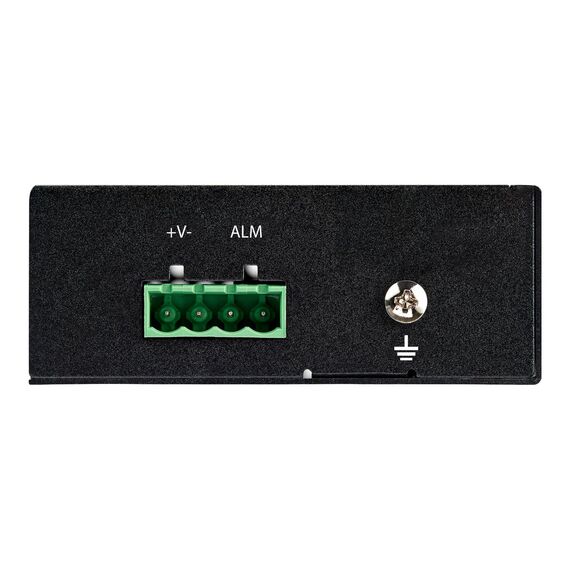

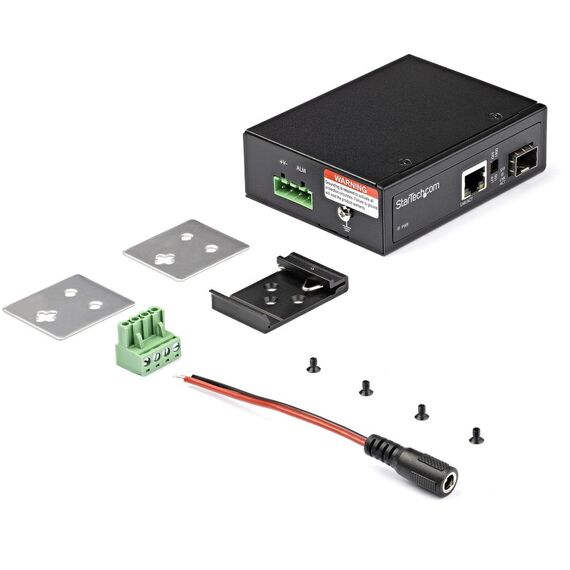

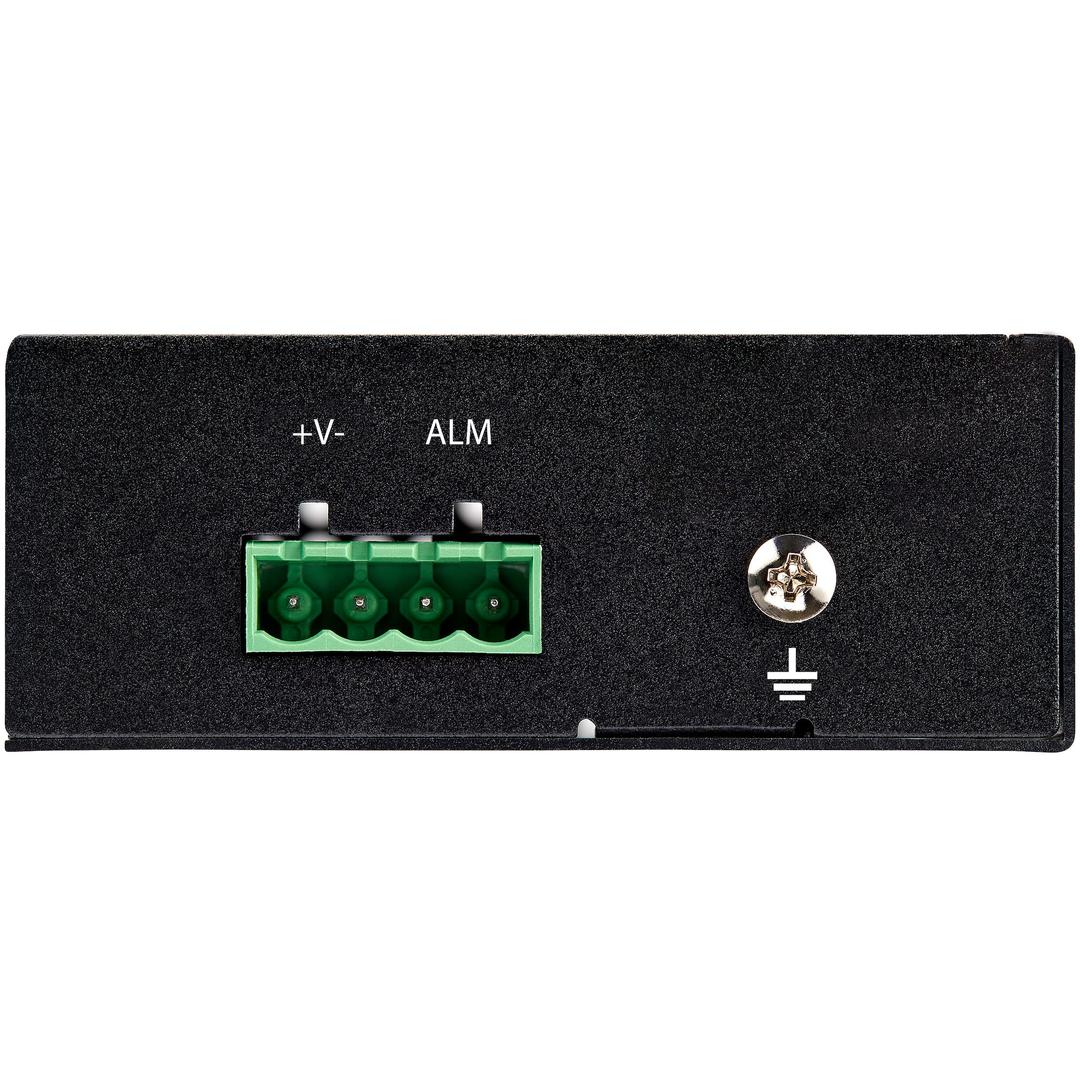

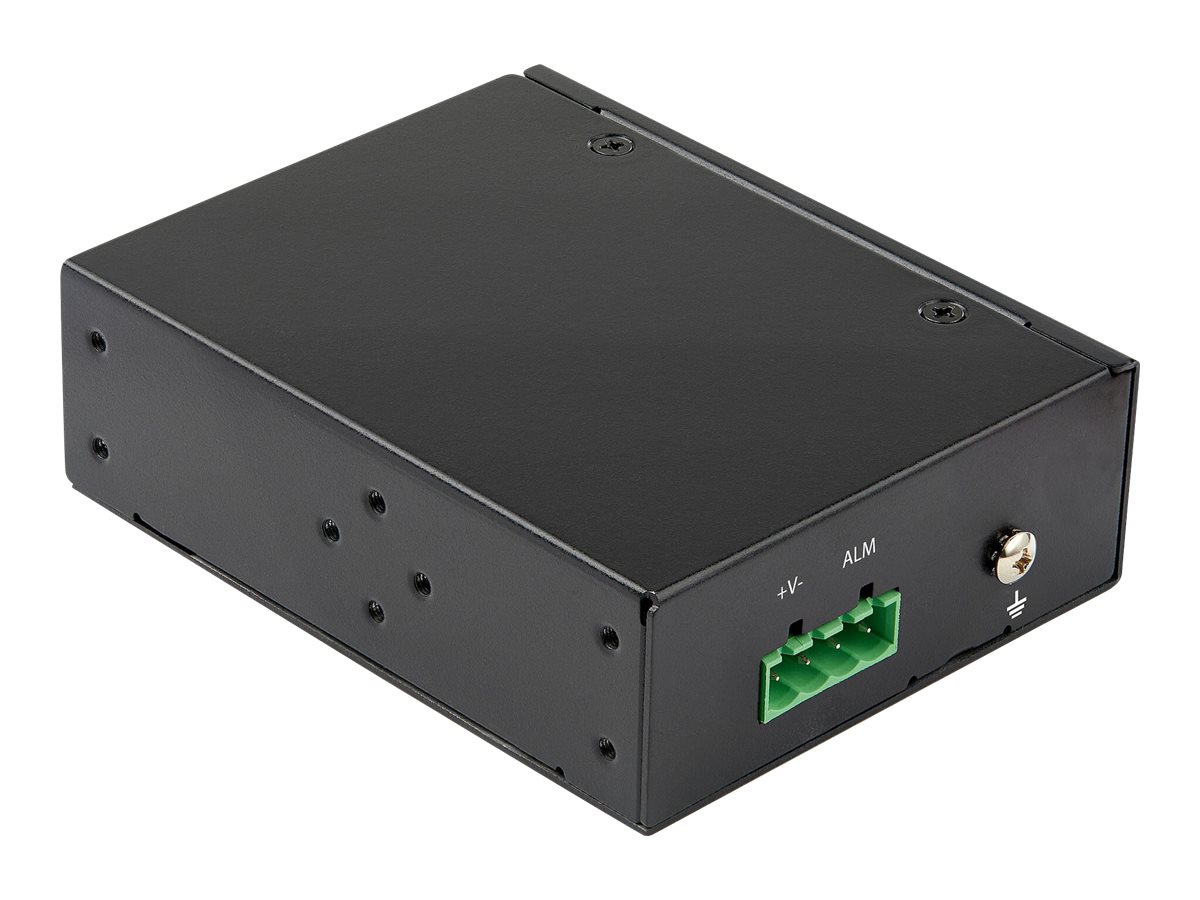

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. - For mission-critical applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards.
Special Fetures
- A flexible solution covering different requirements
- For mission-critical applications
Product Specification
| Device Type | Fibre media converter |
| Form Factor | DIN rail mountable |
| Colour | Black |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Port status, active, link |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, 2KV Surge protection, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x |
| Expansion / Connectivity | |

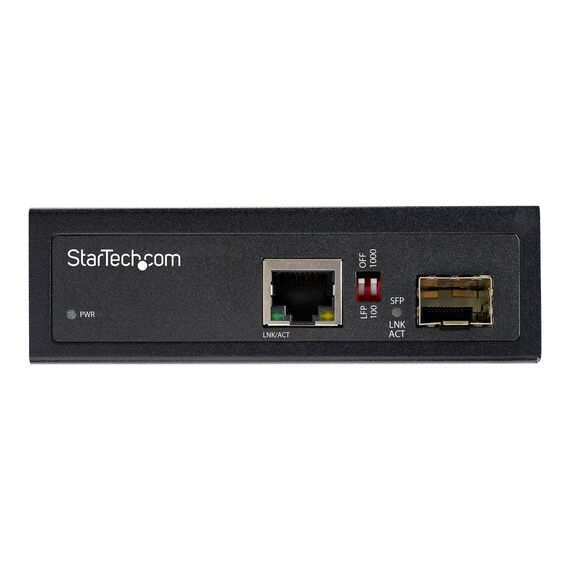

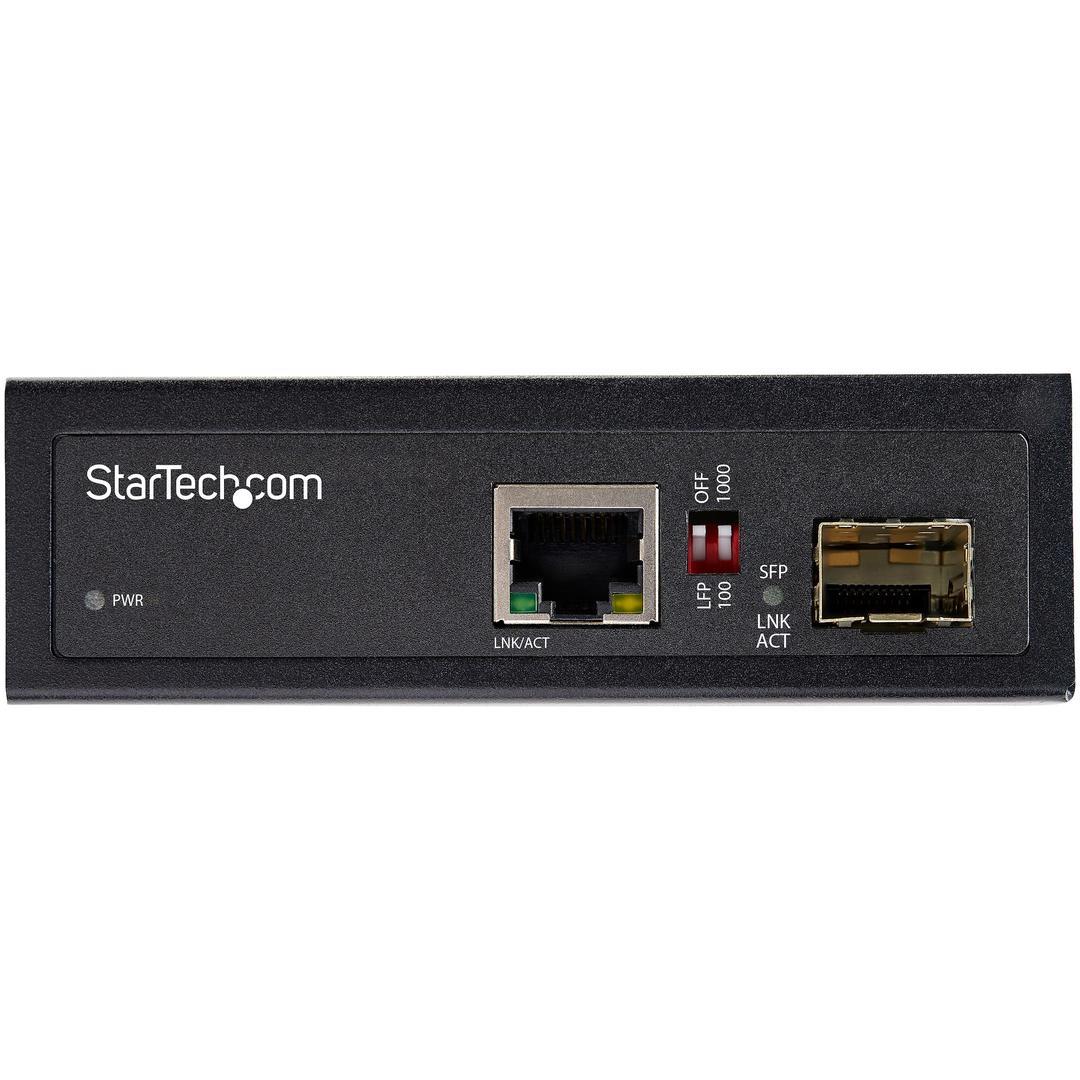

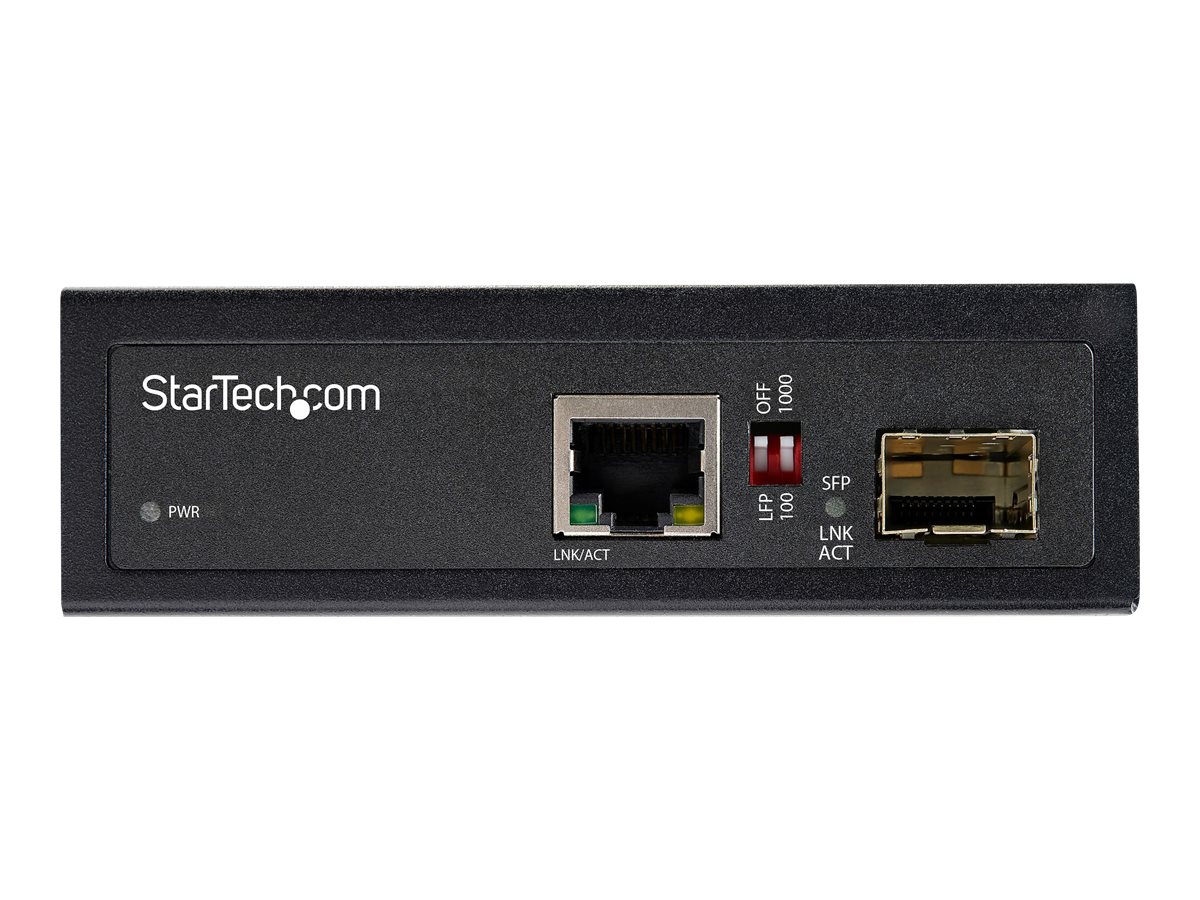

| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female <br /> 1 x Ethernet 1000Base-SX - SFP female |
| Miscellaneous | |
| Included Accessories | Power terminal block |
| Mounting Kit | Included |
| MTBF | 569,265 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Width | 8.15 cm |
| Depth | 10.4 cm |
| Height | 3.2 cm |
| Weight | 144 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.1 cm |
| Shipping Depth | 16.2 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 400 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - StarTech.com - IMC1GSFP
More Details
Product Code
03:194221
EAN Code
0065030889612
Manufacturer
StarTech.com
