StarTech.com 1Port RS232 Serial Adapter Card with 16950 UART / PCIe Card / Serial adapter / PCIe low profile / RS-232 x 1 | PEX1S953LP
StarTech.com 1 Port RS232 Serial Adapter Card with 16950 UART / PCIe Card / Serial adapter / PCIe low profile / RS-232 x 1 | PEX1S953LP
Description

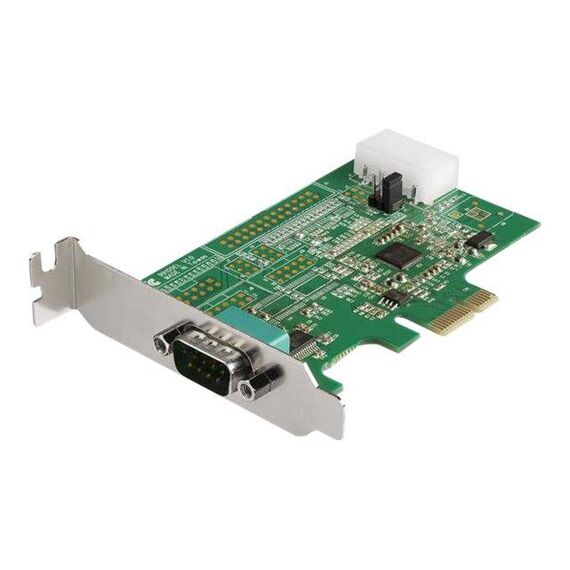

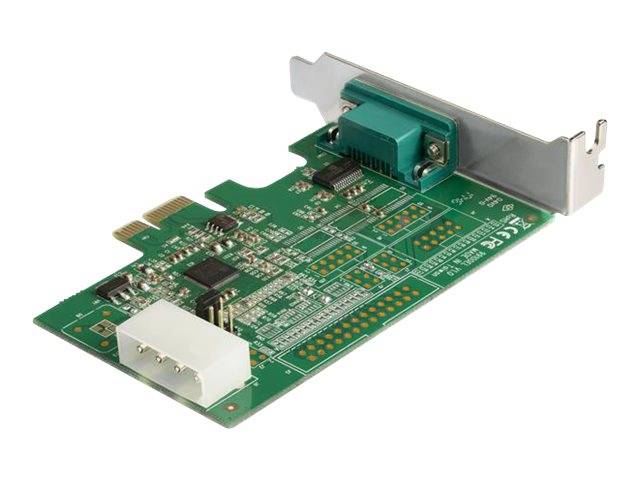

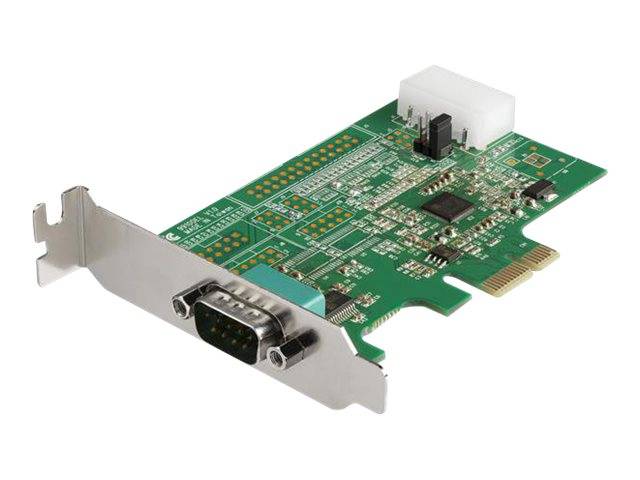

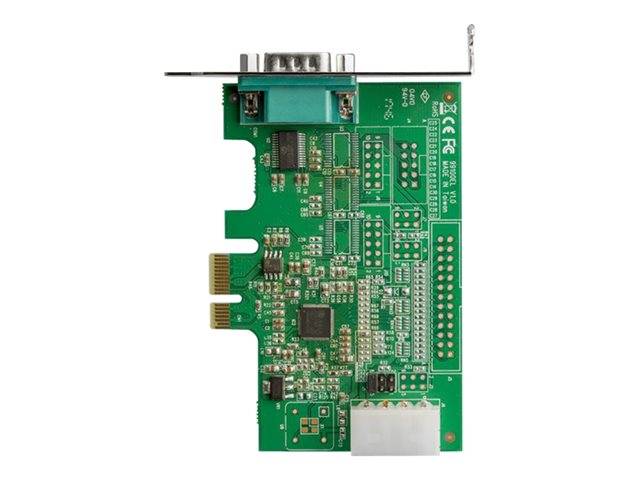

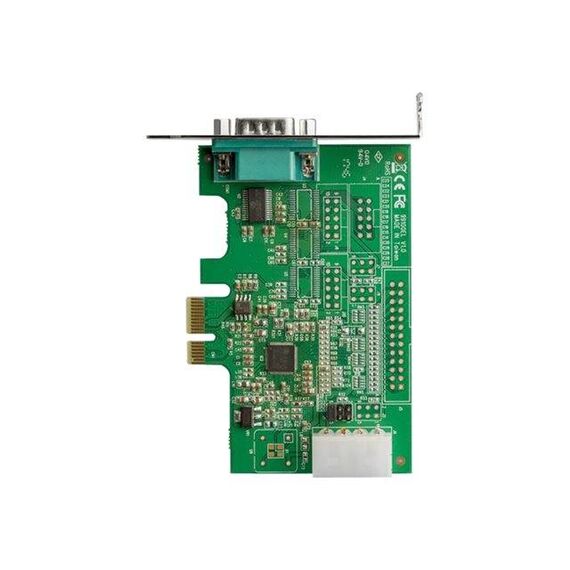

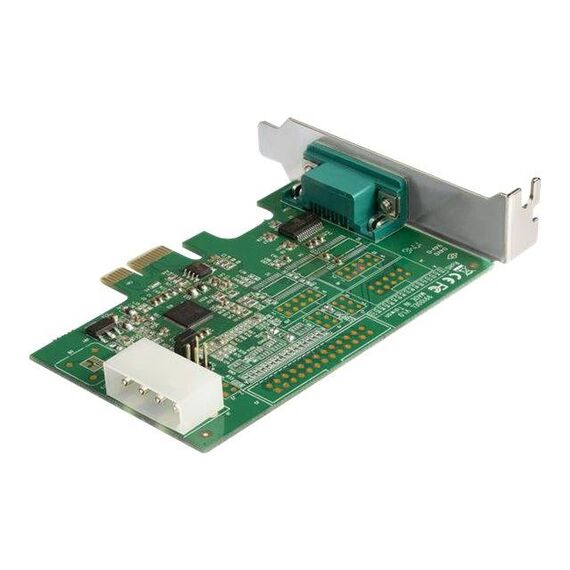

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | RS-232 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Features | Full duplex mode, 256-byte FIFO |
| Processor | AX99100 - ASIX |

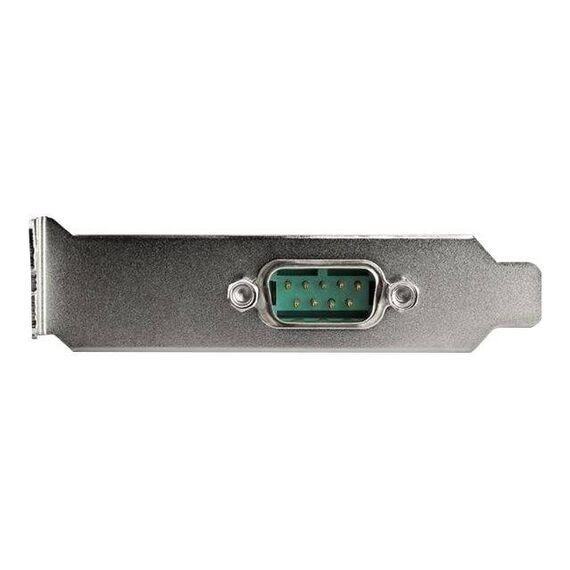

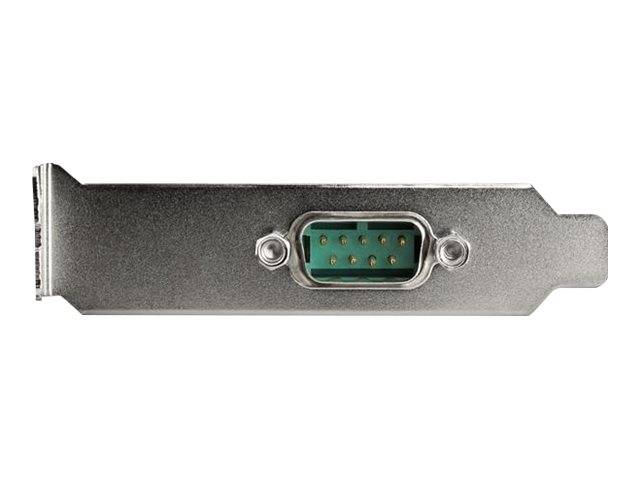

| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Included Accessories | Full-height bracket |
| Compliant Standards | WHQL, FCC, RoHS, WEEE |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x |
| Width | 4.62 cm |
| Depth | 9.8 cm |
| Height | 1.8 cm |
| Weight | 46.2 g |
| Shipping Weight | 124.6 g |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 20 - 80% |
