StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant - ESD Level 3 Protection (P2DD46A2-KVM-SWITCH) - KVM / audio / USB switch - 2 x KVM / audio / U
Please sign in so that we can notify you about a reply
Product Features
- Fast switching with USB Emulation
USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys. - Dual-4K 60 Hz displays and USB 5 Gbps hub ports
This TAA-compliant KVM switch supports dual-4K 60 Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5 Gbps) hub ports for fast data transfer, and two USB 2.0 HID ports for the keyboard and mouse. - Customizable switching
This universal KVM switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/video and audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host. - Durable design
A durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM. Sturdy construction makes it ideal for installation in a variety of environments; 8 kV / 6 kV ESD protector (air-gap discharge).
Special Fetures
- Fast switching with USB emulation
- Dual-4K 60 Hz displays and USB 5 Gbps hub ports
- Customizable switching
- Durable design
Product Specification
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), steel housing, 2.1 channel audio support, hotkeys |
| Compliant Standards | USB 2.0, USB 3.2 Gen 1 |
| Status Indicators | PC, hub |
| Expansion / Connectivity | |

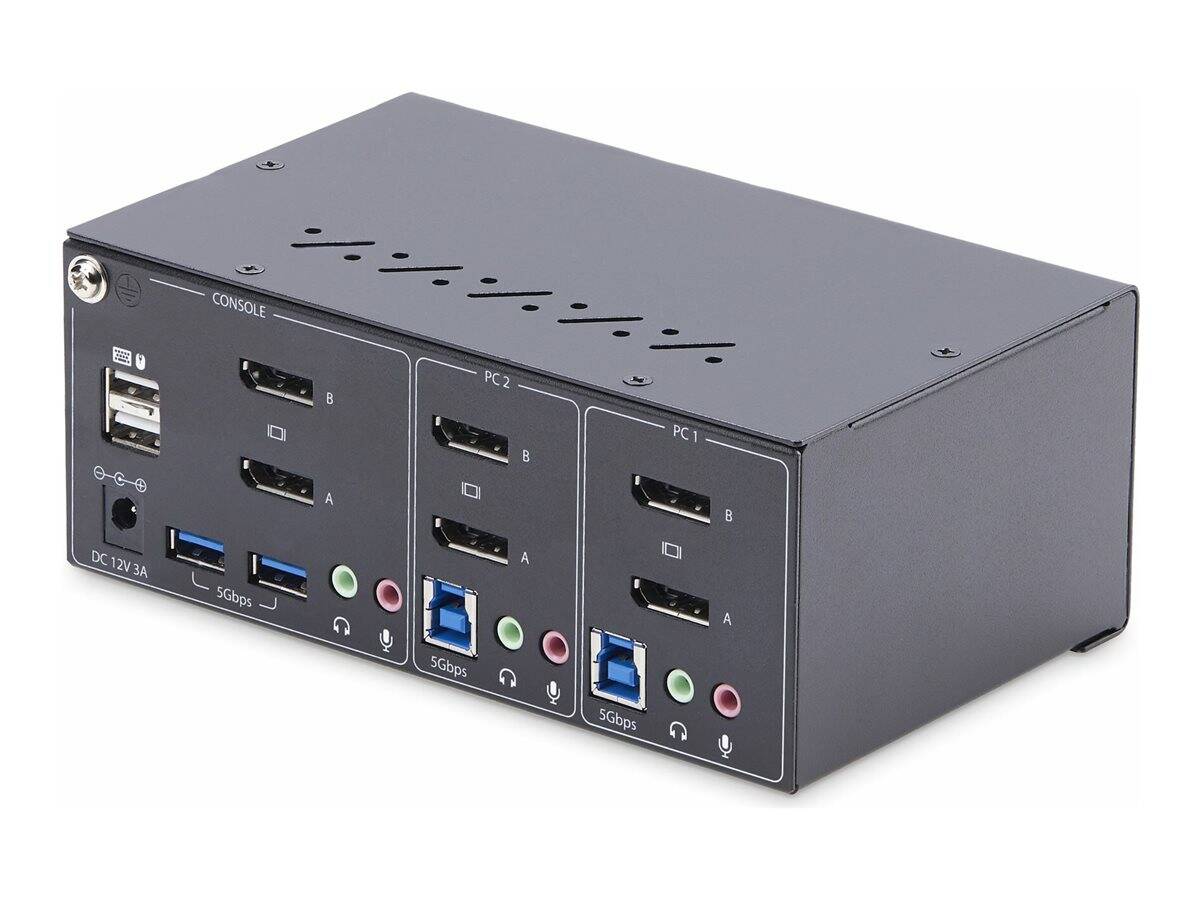

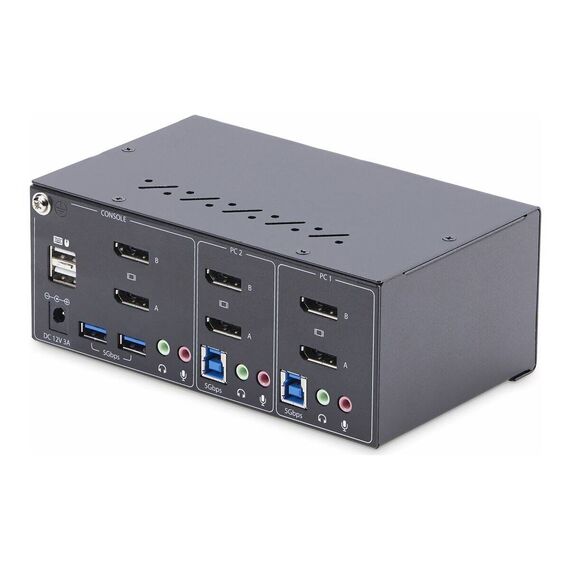

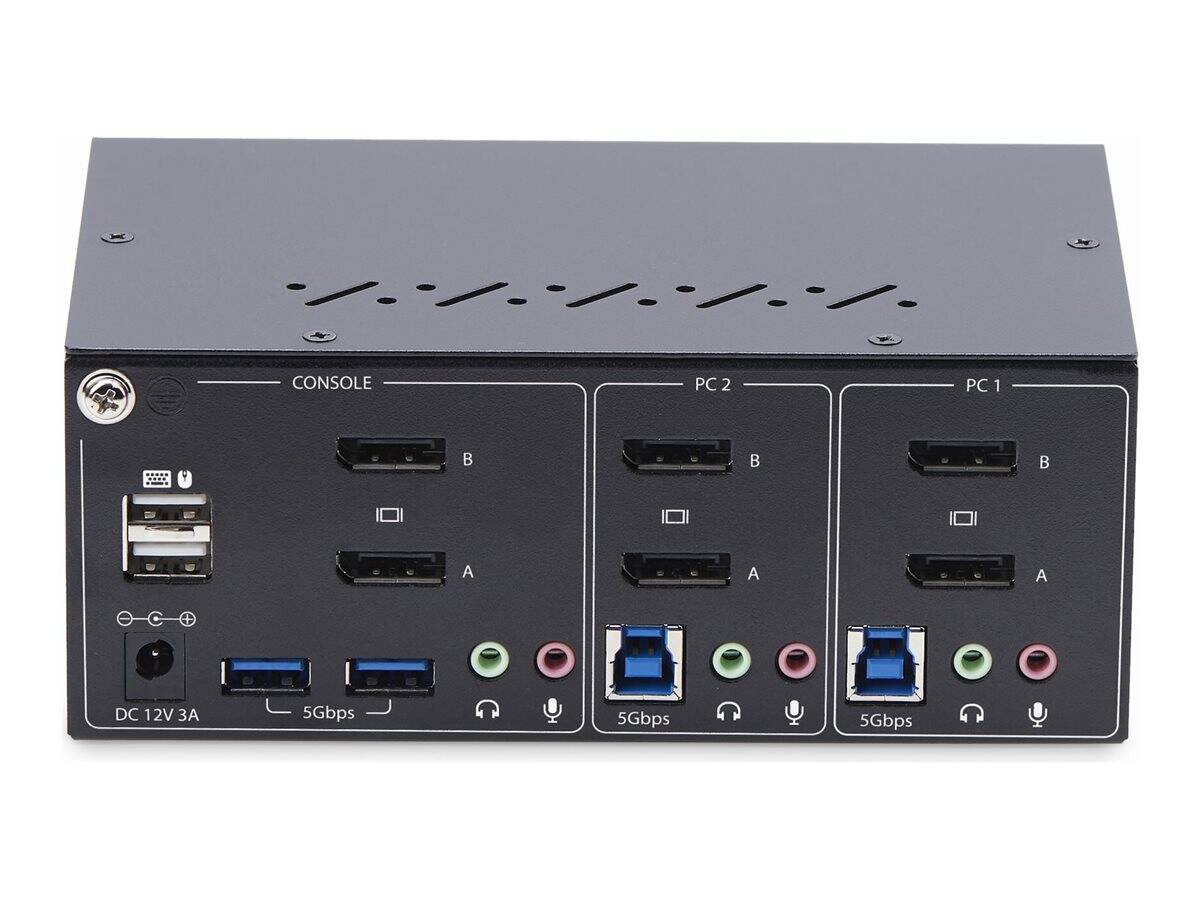

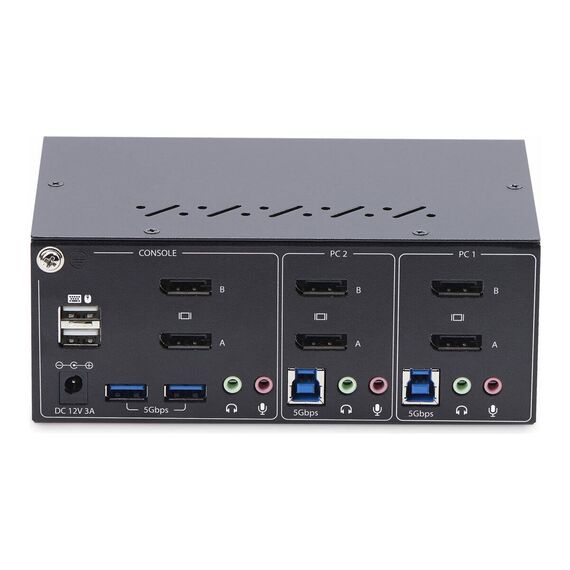

| Interfaces | 2 x DisplayPort output console ¦ 2 x USB 2.0 Type A ¦ 2 x USB 3.2 Gen 1 Type A ¦ 1 x headphones mini-jack console ¦ 1 x microphone mini-jack console ¦ 4 x DisplayPort input ¦ 2 x USB 3.2 Gen 1 Type B ¦ 2 x headphones mini-jack ¦ 2 x microphone mini-jack |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 3 A |
| Voltage Required | AC 100-240 V |
| Electric Current Required | 1 A |
| Miscellaneous | |
| Colour | Black |
| MTBF | 173,052 hours |
| Compliant Standards | FCC Part 15, RoHS, WEEE, DisplayPort 1.2 |
| TAA Compliant | Yes |
| Localisation | Japan, New Zealand, North America, United Kingdom, Europe |
| Dimensions & Weight | |
| Width | 16.3 cm |
| Depth | 10 cm |
| Height | 6.6 cm |
| Weight | 800 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 27 cm |
| Shipping Depth | 16 cm |
| Shipping Height | 19.2 cm |
| Shipping Weight | 1.3 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - StarTech.com - P2DD46A2-KVM-SWITCH
More Details
Product Code
03:243465
EAN Code
0065030899505
Manufacturer
StarTech.com
