StarTech.com 2P Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter / Device server / 2 ports / 100Mb LAN, RS-232 / wall / DIN rail mountable / TAA Compliant | I23-SERIAL-ETHERNET
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity

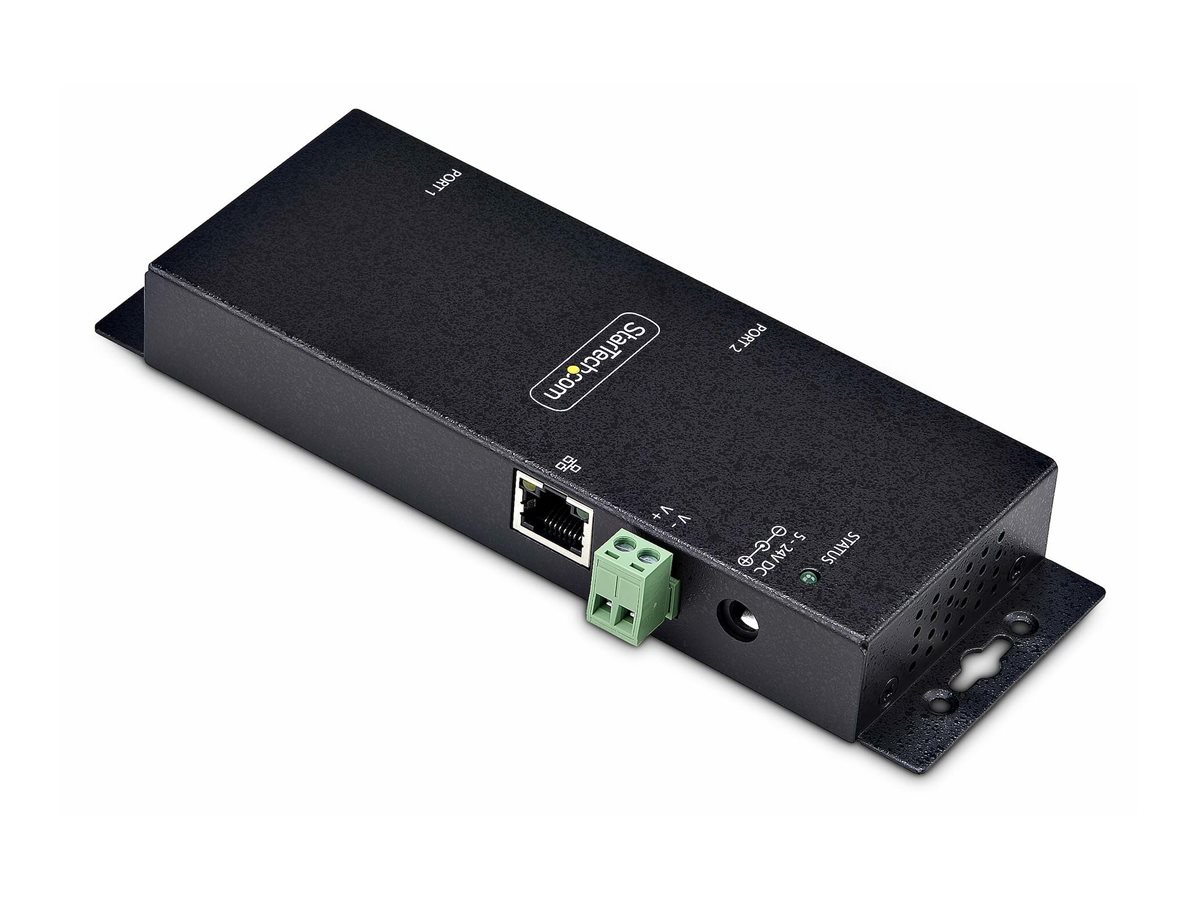

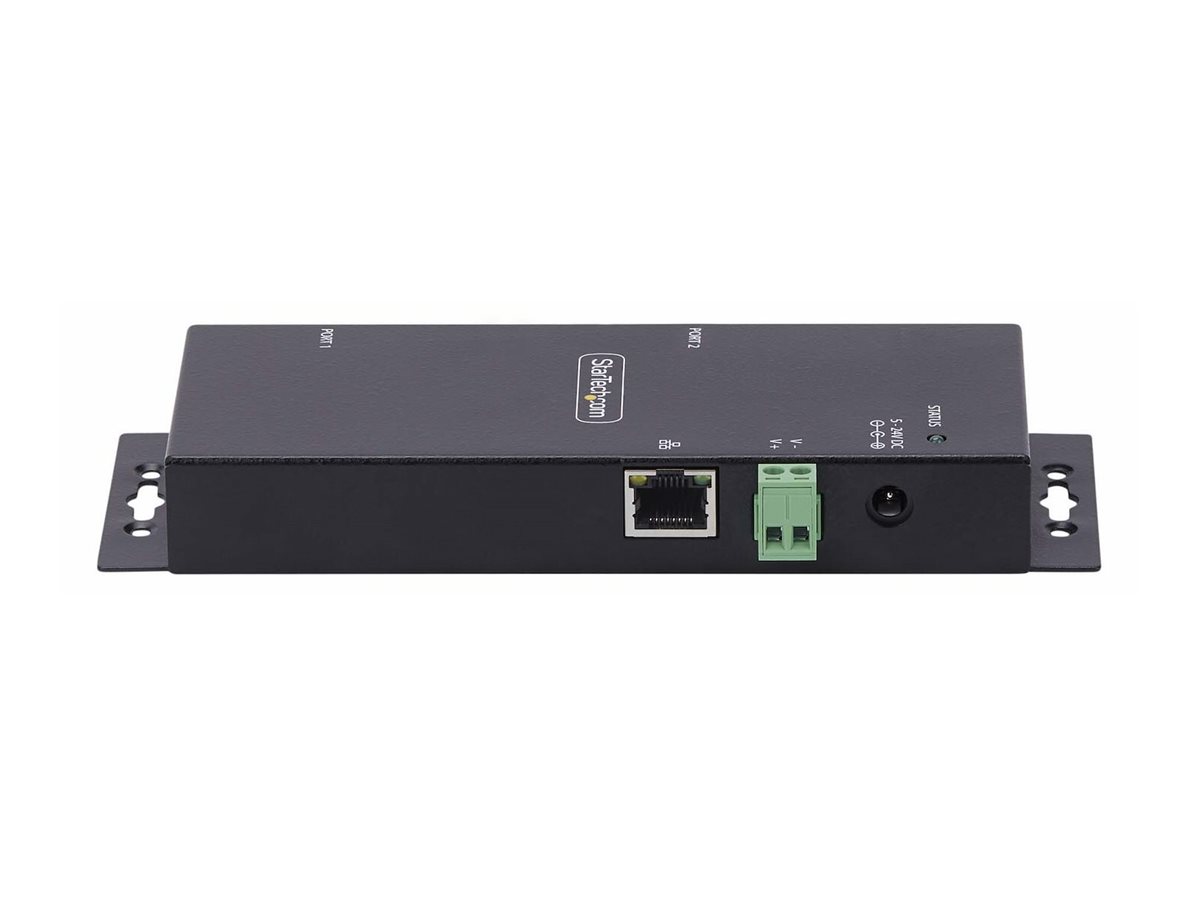

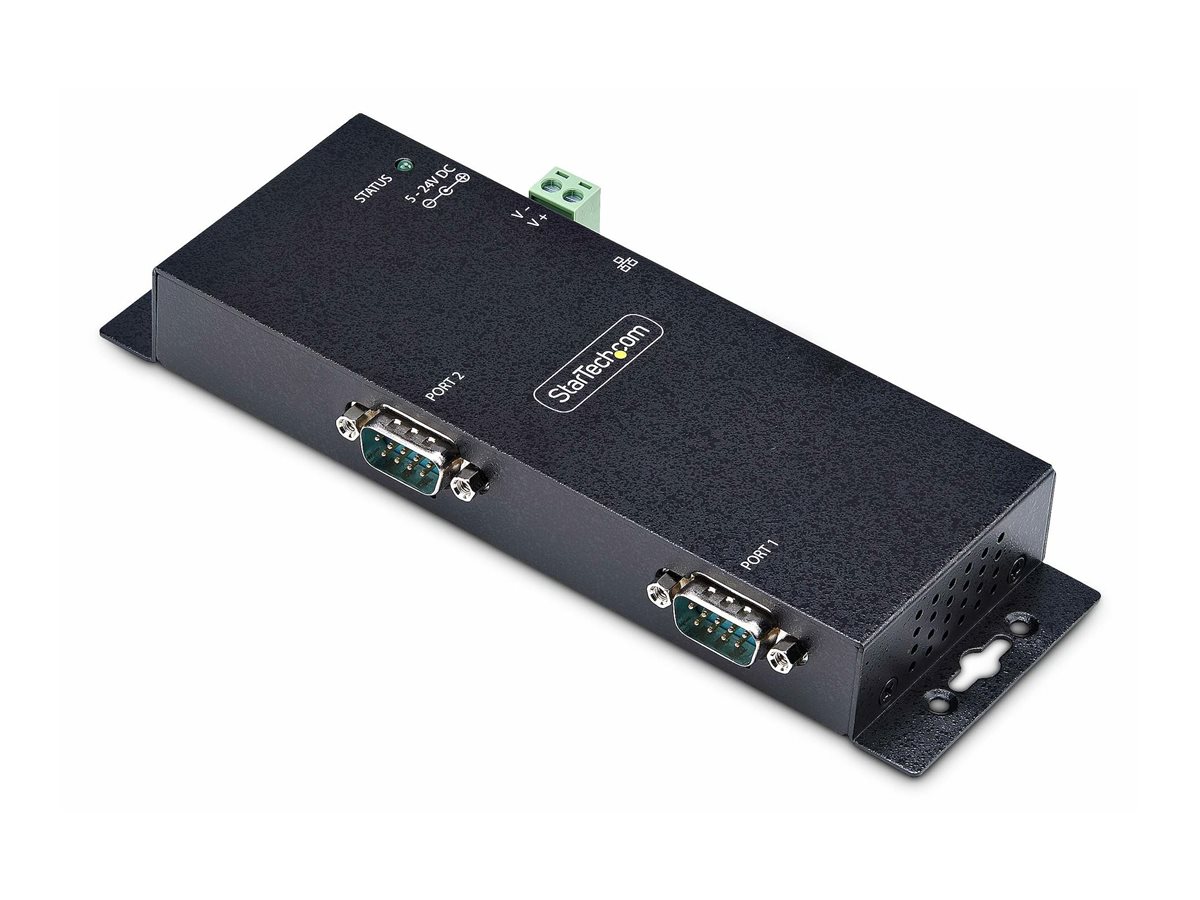

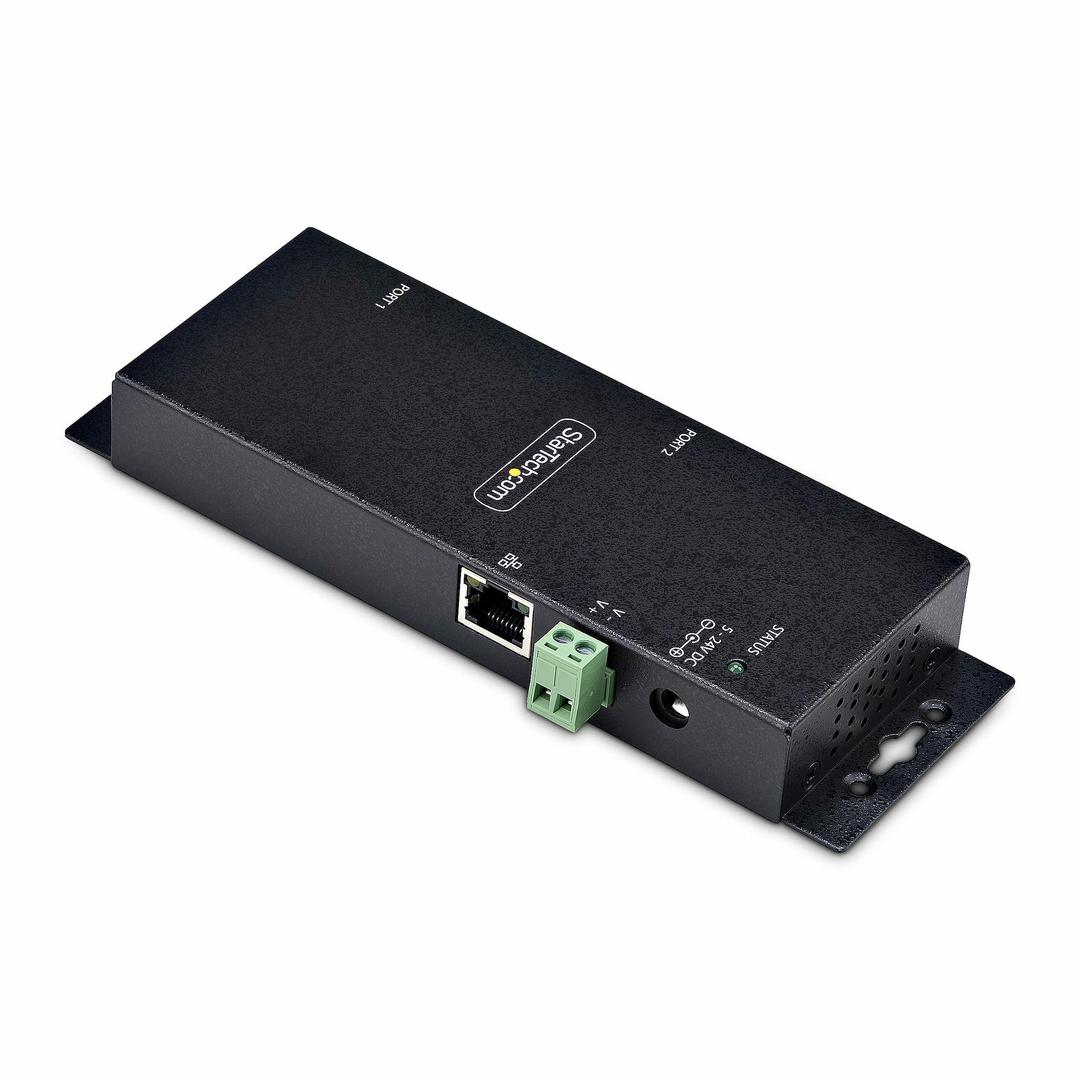

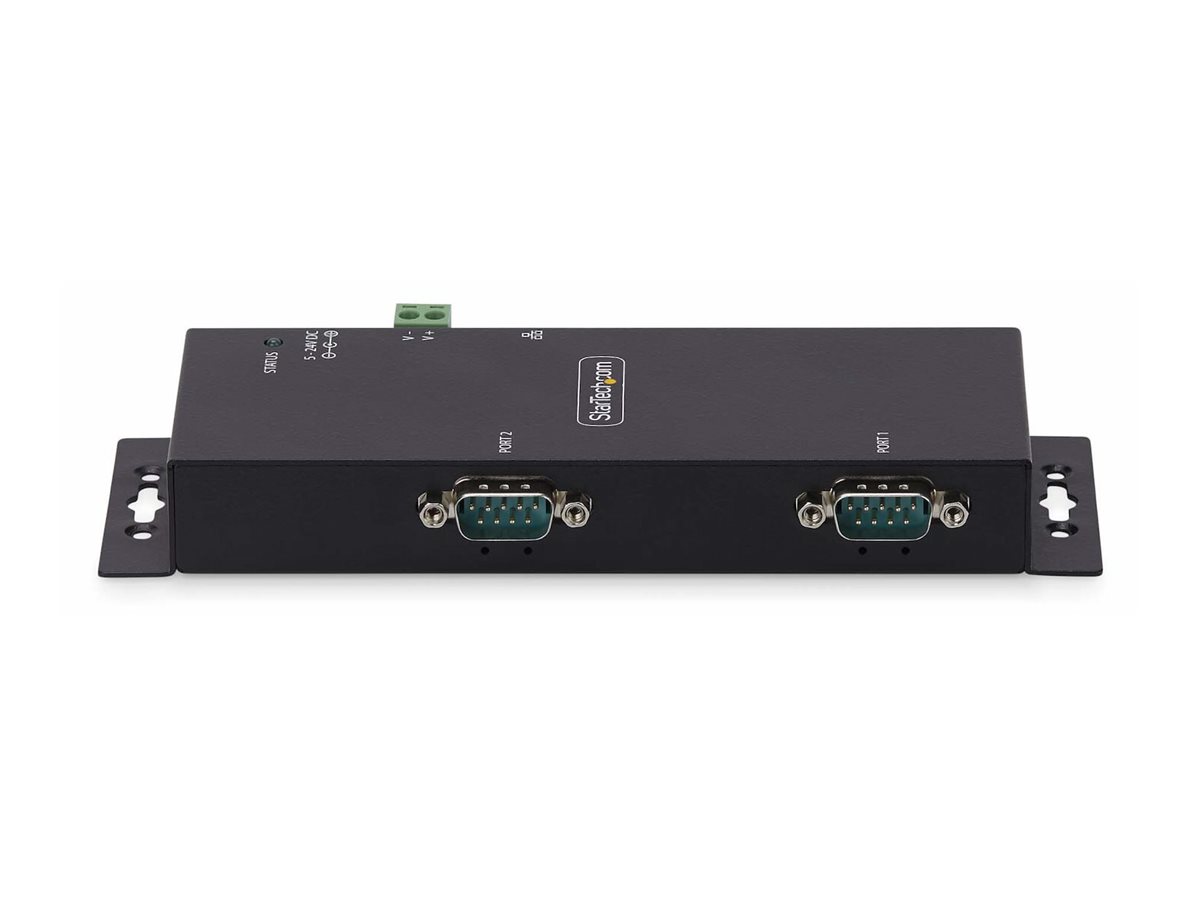

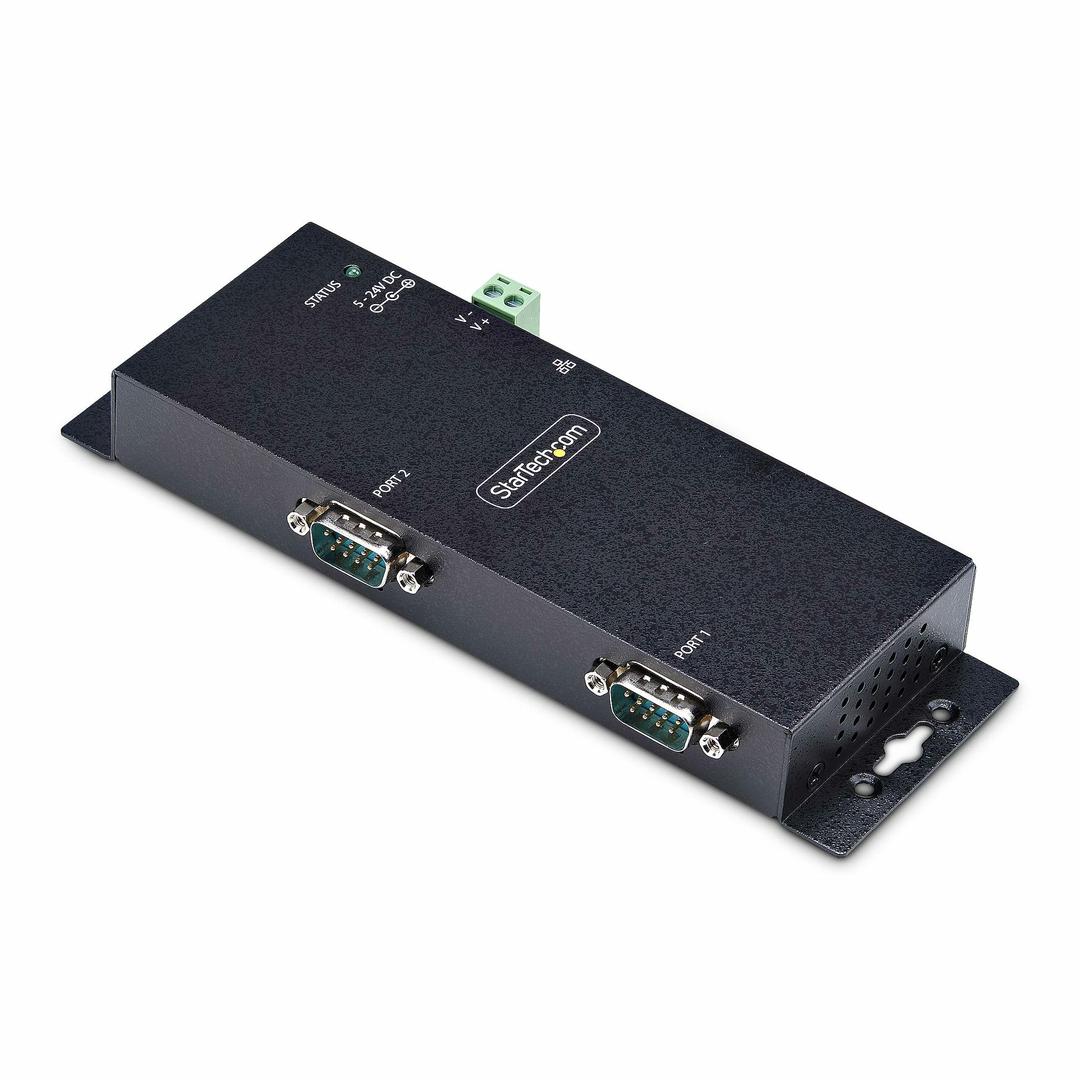

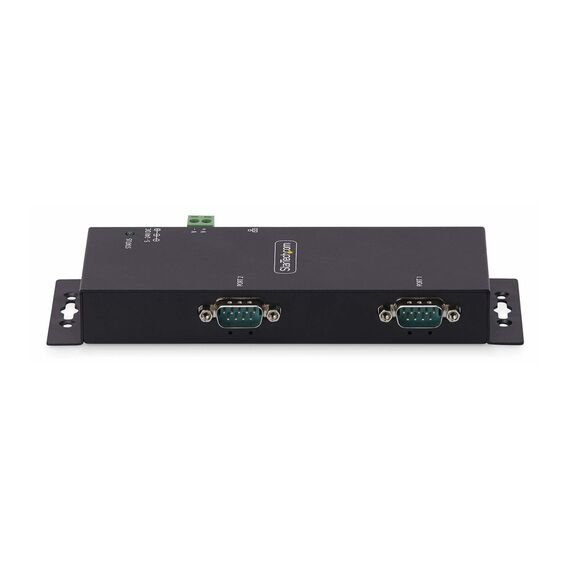

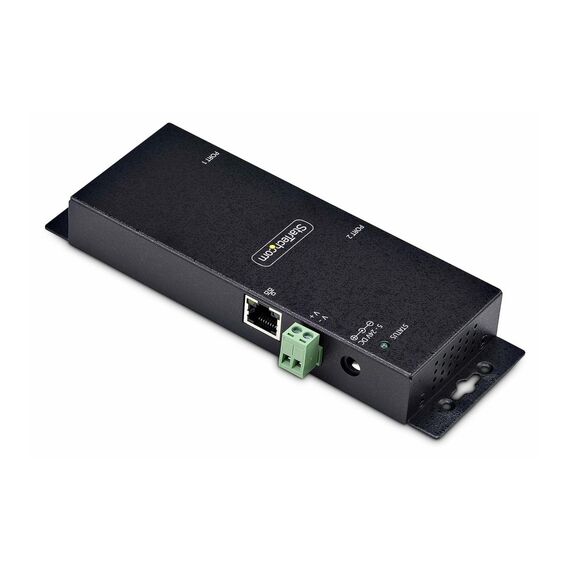

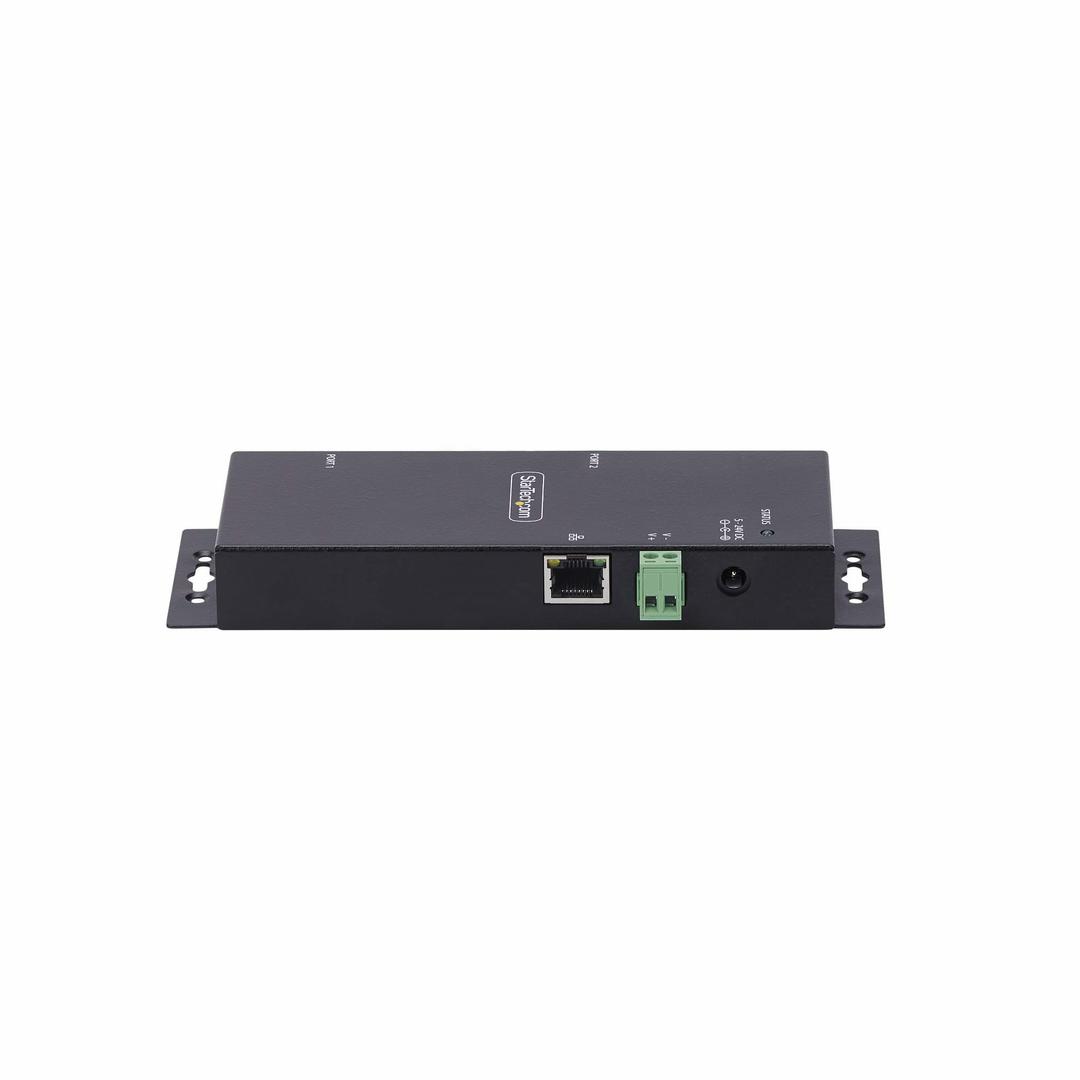

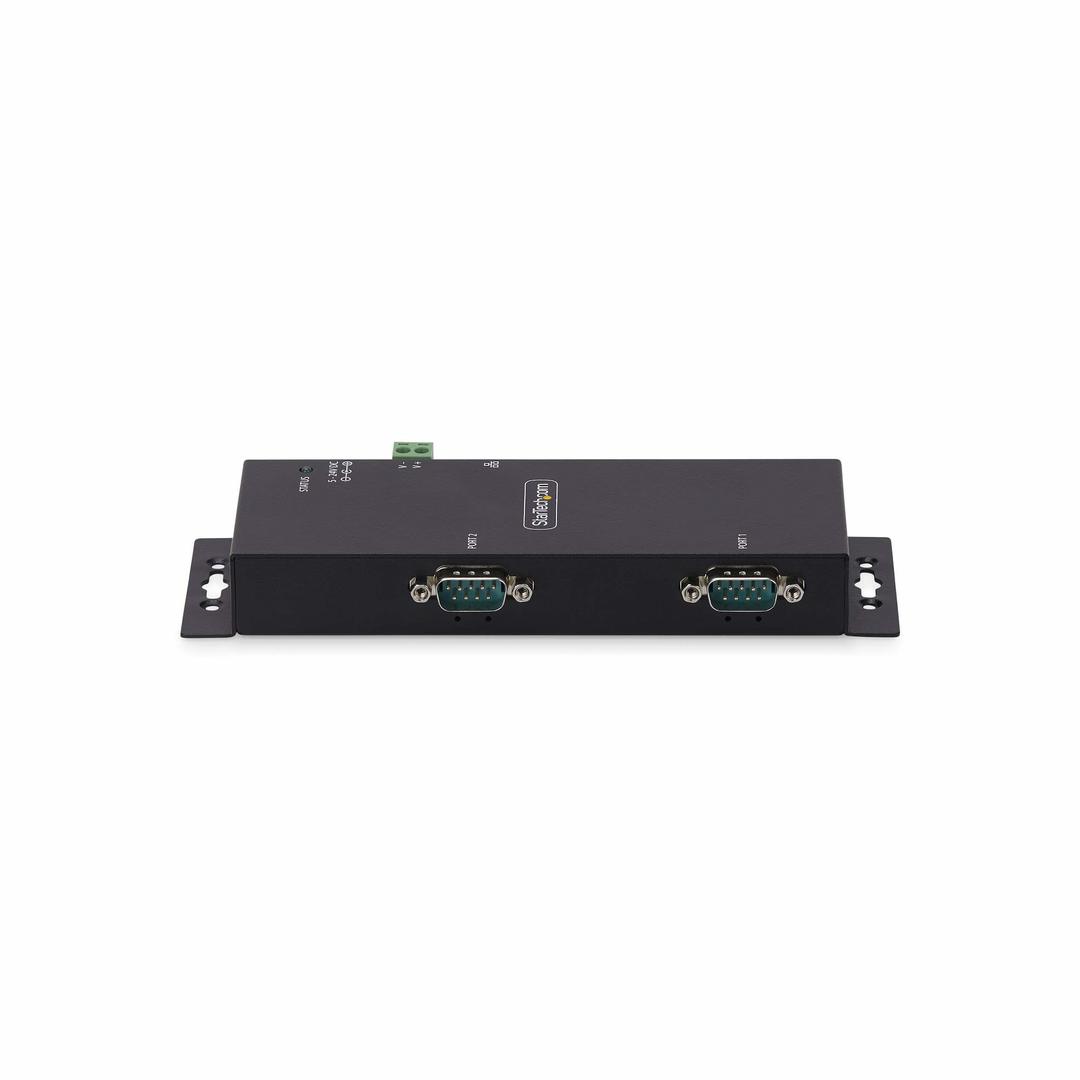

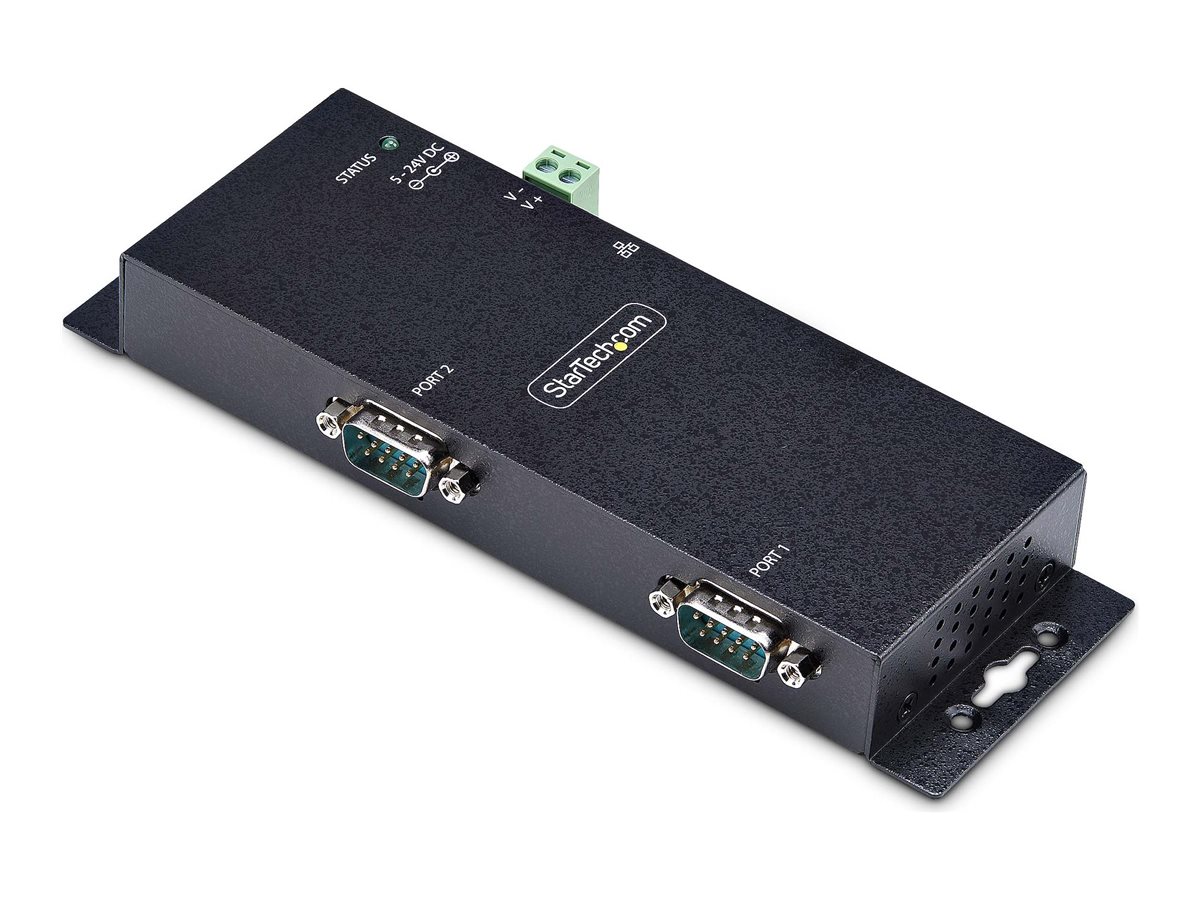

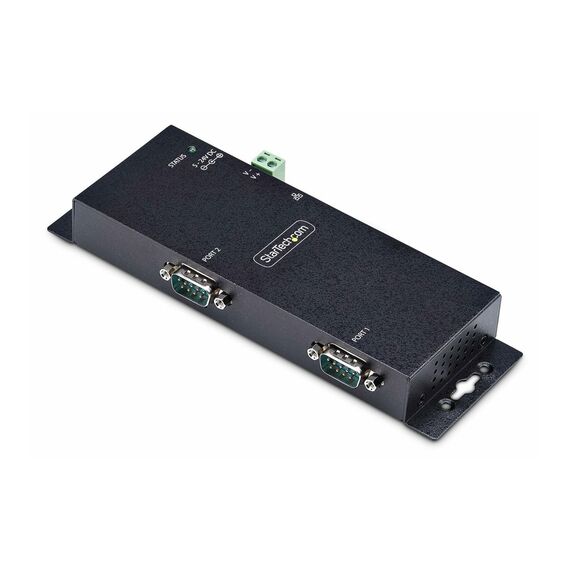

Equipped with dual RS-232 DB-9 connectors and a single RJ-45, this adapter ensures versatile connectivity options for a wide range of devices. - Enhanced durability
The metal housing and electrostatic discharge protection up to 15 kV provide a durable solution for industrial environments. - Efficient management
Features such as auto-negotiation, flow control, and full duplex capability ensure smooth and manageable network communication. - Flexible installation

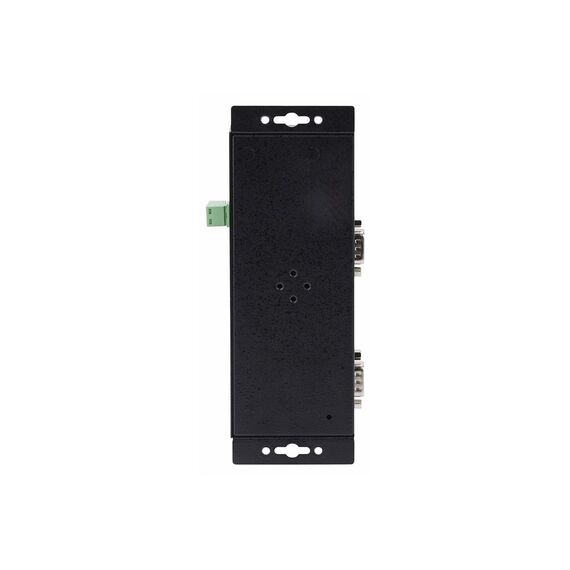

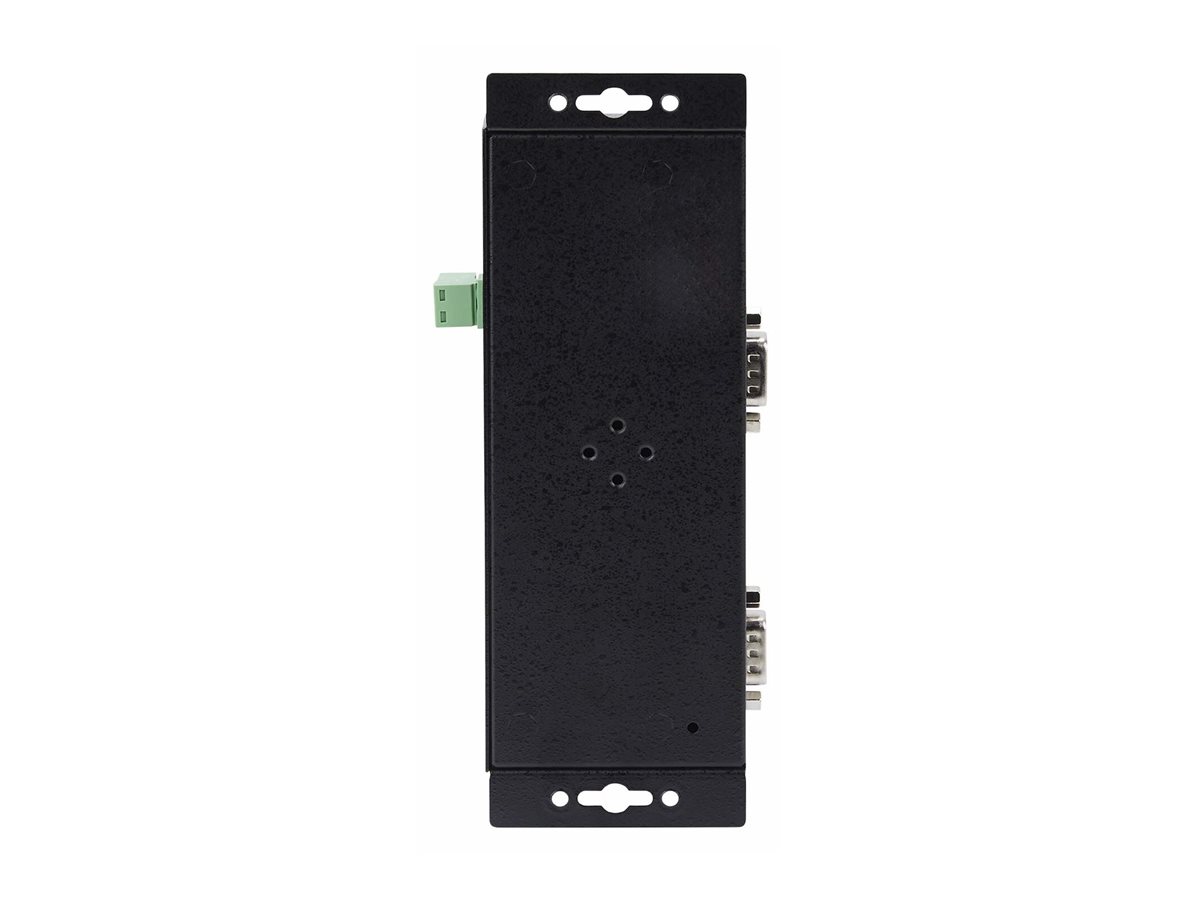

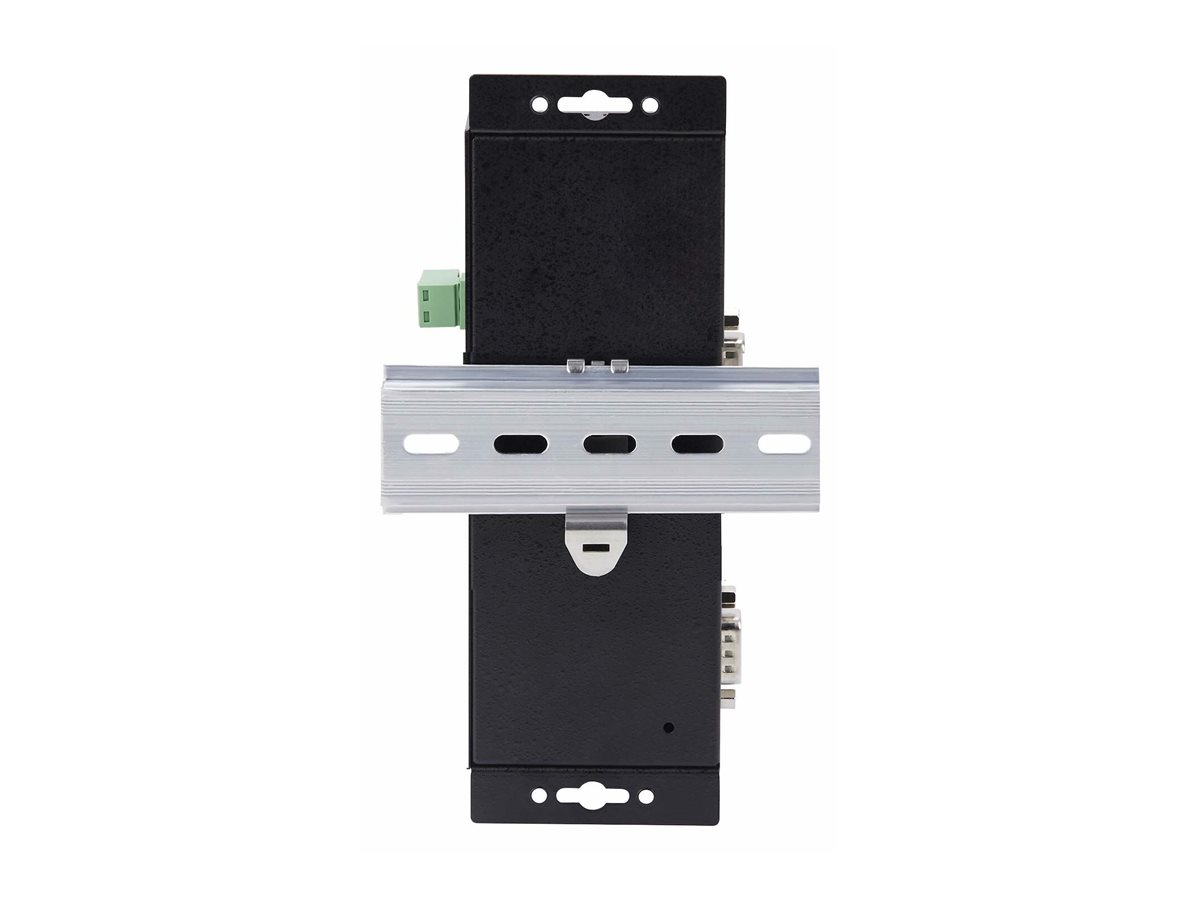

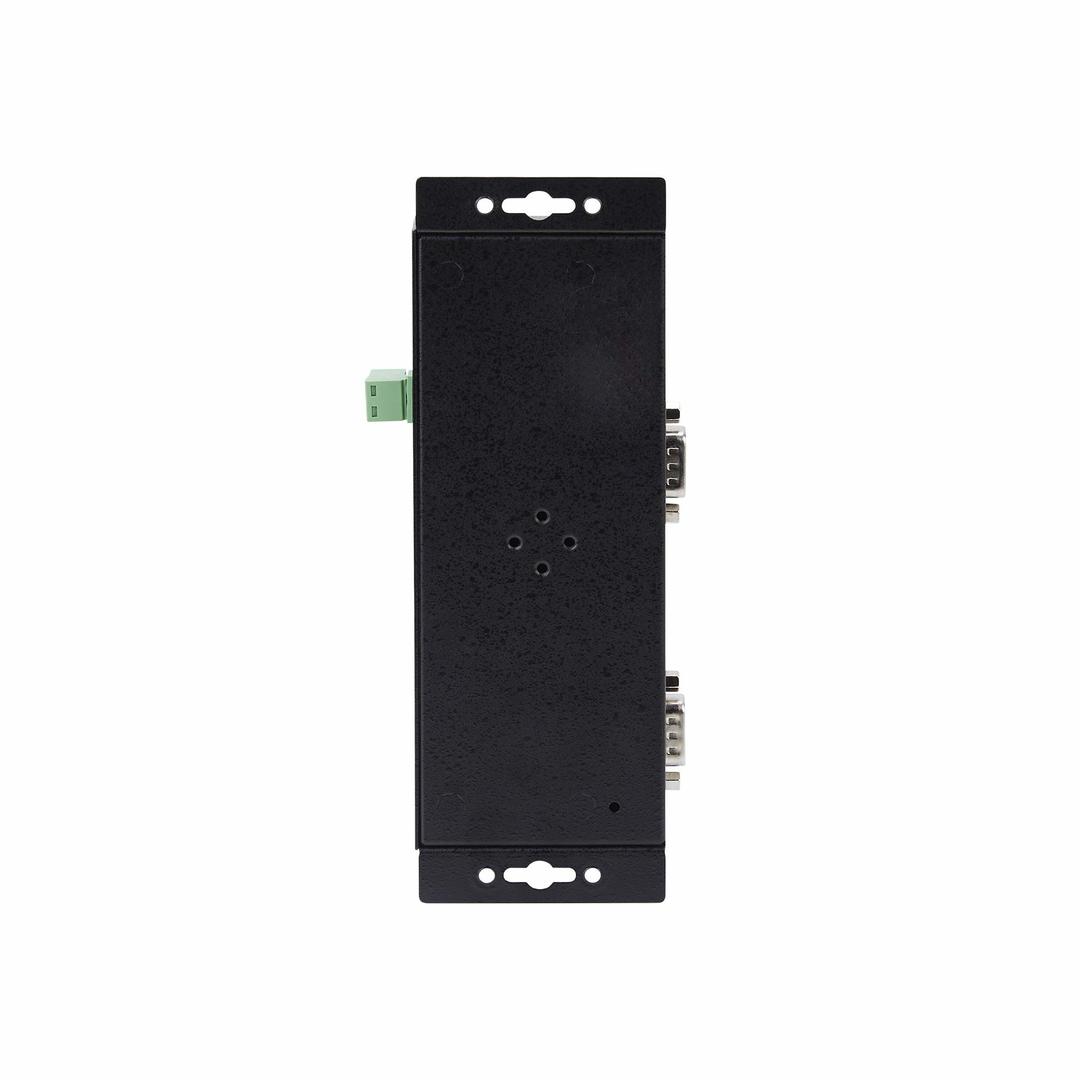

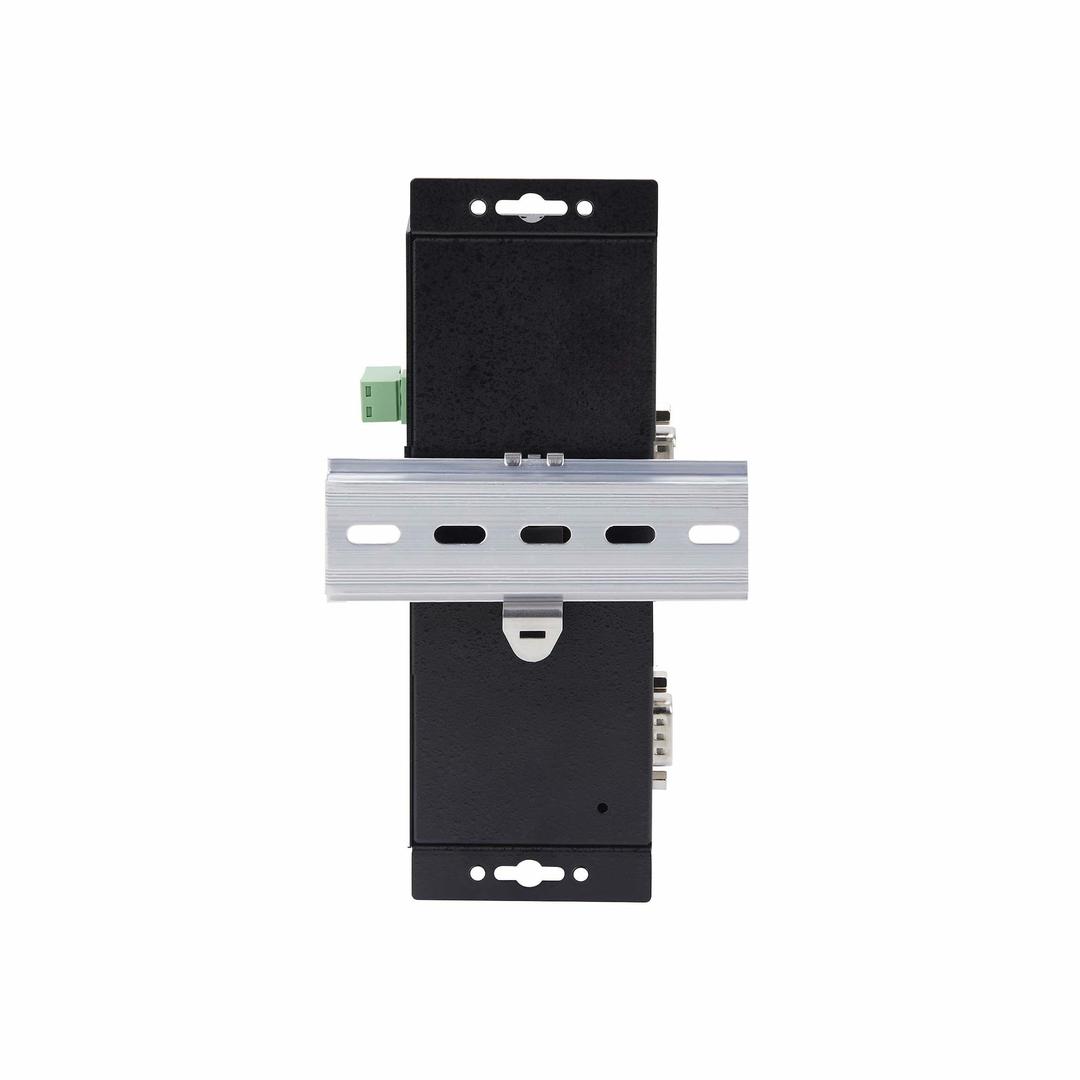

Designed for wall or DIN rail mounting, this device server can be installed in various settings, making it a versatile choice for network infrastructure.
Special Features
- Supports humidity range of 5 - 95% RH for reliable operation in diverse environments
- Operates efficiently within a temperature range of 0°C to 60°C
- Compliant with EIA/TIA-232 standards, ensuring broad compatibility
- Supports data transfer rates up to 921.6 Kbps for high-speed communication
- Includes features like adjustable parity and static IP routing for enhanced network control
Product Specification
| Device Type | Device server |
| Width | 6 cm |
| Depth | 17.9 cm |
| Height | 2.3 cm |
| Weight | 315 g |
| Enclosure Colour | Black |
| Networking | Networking |
| Form Factor | Wall / DIN rail mountable |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | Telnet, UDP, TCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | Telnet, UDP |
| Status Indicators | Power, transmit, receive, link/activity |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), manageable, 15 KV Electrostatic Discharge Protection, metal housing, 8 KV Contact Electrostatic Discharge Protection, adjustable parity |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-232 - DB-9 1 x 100Base-TX - RJ-45 1 x - terminal block |
| Miscellaneous | Miscellaneous |

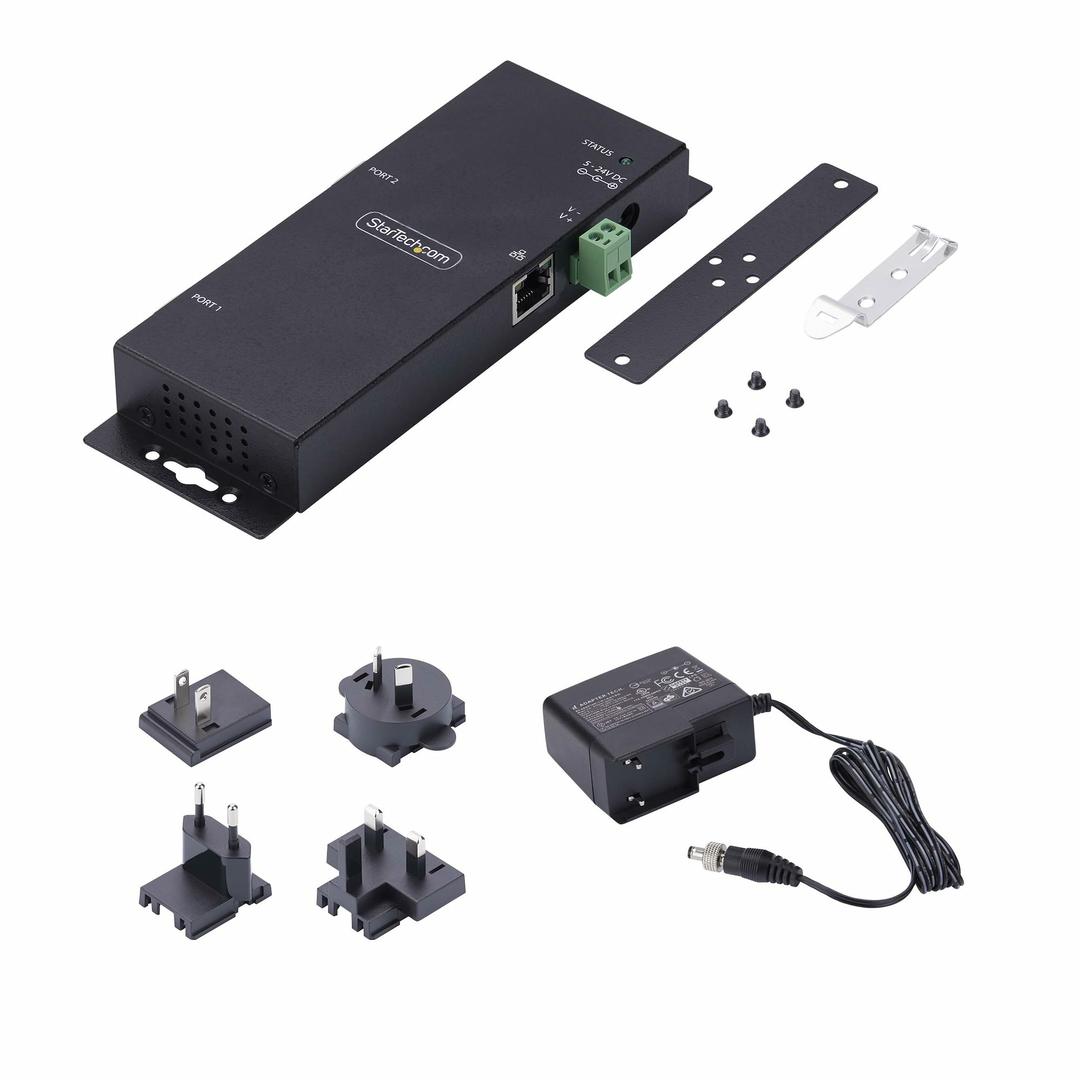

| Included Accessories | DIN-rail mounting kit, wall mounting kit |
| Compliant Standards | EIA/TIA-232 |
| TAA Compliant | Yes |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 15 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 16.6 cm |
| Shipping Depth | 24.2 cm |
| Shipping Height | 5.5 cm |
| Shipping Weight | 600 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - StarTech.com - I23-SERIAL-ETHERNET
More Details
Product Code
CL10237
EAN Code
0065030905992
Manufacturer
StarTech.com
