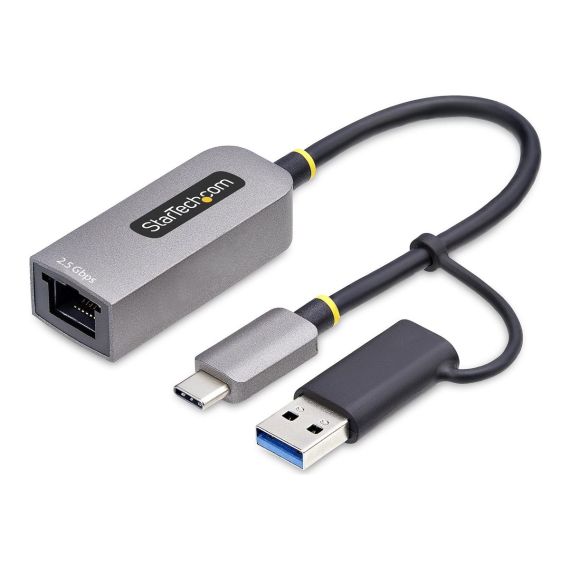

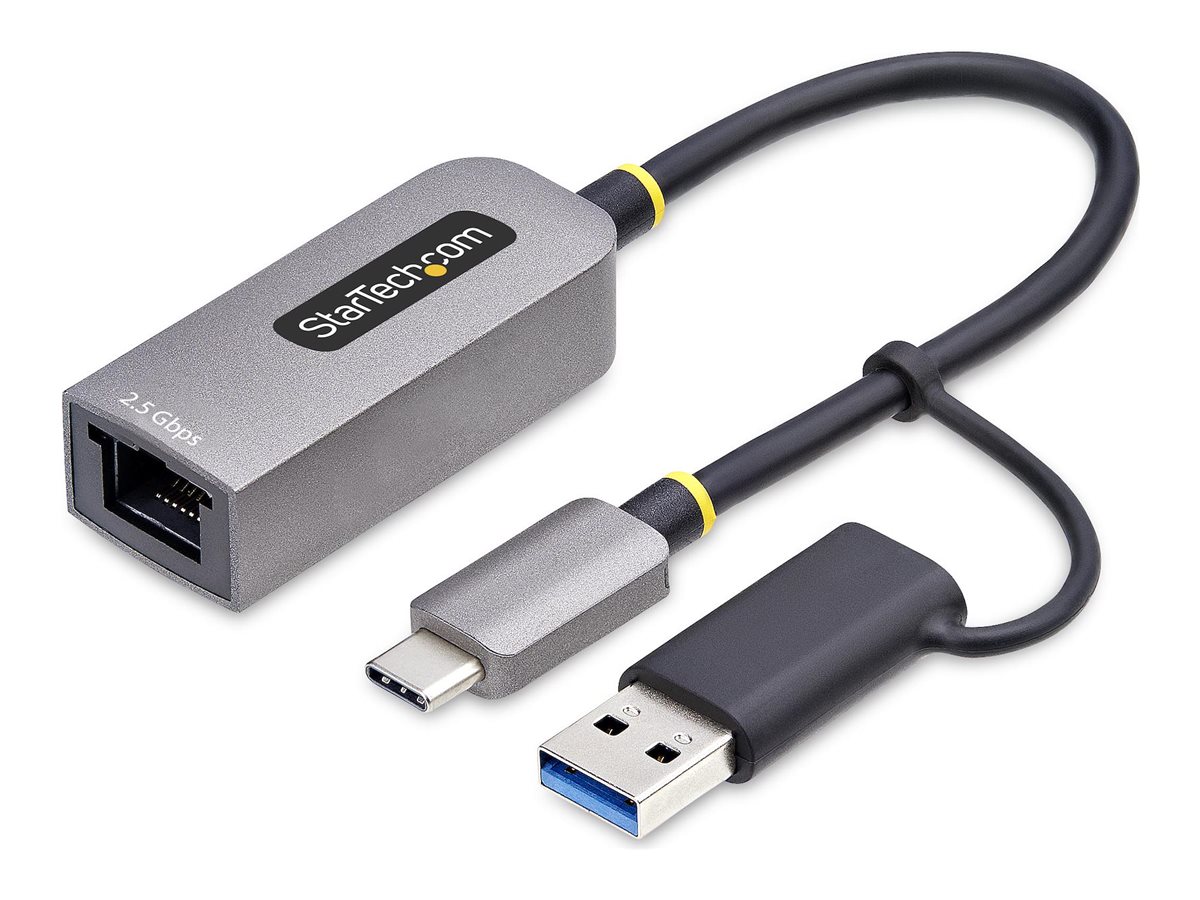

StarTech.com 2.5GbE USB-C to Ethernet Adapter with USB-A Converter - Network adapter - USB-C 3.2 Gen 1 / Thunderbolt 3 - 10M/100M/1G/2.5 Gigabit Ethernet - space grey | U2GA-USB-C-ETHERNET
U2GA-USB-C-ETHERNET
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient Connectivity
Equipped with USB-C 3.2 Gen 1 technology and a female RJ-45 connector, this adapter ensures reliable wired network connections, accommodating various Ethernet types including 10M/100M/1G/2.5 Gigabit Ethernet. - Robust Performance
With an MTBF of 1,612,526 hours, users can expect durable performance, perfect for high-demand networking scenarios. - Versatile Compatibility
This adapter is compliant with multiple standards such as FCC, RoHS, and RCM, making it a suitable choice for diverse environments and regulatory requirements. - Enhanced Features
Features like Wake On LAN, VLAN tagging, and auto-negotiation provide flexibility and improve overall network management capabilities. - User-Friendly Design
The external form factor ensures easy installation and portability, while the status indicators allow for quick monitoring of connection and speed.
Special Fetures
- Supports data transfer rates up to 2.5 Gbps
- Compatible with Thunderbolt 3 devices
- Integrated design with a length of 15.2 cm
- Offers Jumbo frame size support up to 16,000
- Plug-and-Play functionality for easy setup
Product Specification
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB-C 3.2 Gen 1 / Thunderbolt 3 |
| Networking | |
| Ports | 10M/100M/1G/2.5 Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Capacity | Jumbo frame size: 16000 |
| Status Indicators | Link/activity, speed |
| Features | Auto-uplink (auto MDI/MDI-X), VLAN Tagging, WOL, PXE support, full duplex mode, promiscuous mode, USB powered, Thunderbolt compatible, auto-negotiation |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3bz |
| Processor / Memory | |
| Processor | Realtek Semiconductor RTL8156BG |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 - female |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable (integrated) - 15.2 cm <br /> 1 x USB-C to USB-A adapter (external) |
| MTBF | 1,612,526 hours |
| Compliant Standards | RoHS, WEEE, FCC, RCM |
| Colour | Space grey |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2 / 2012 R2 / 2016 / 2022, Windows 10 (on ARM), Windows 11 (on ARM), Linux Kernel 2.4.20 or later (LTS versions only), Apple MacOS X 10.11 - 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0, Apple macOS Sonoma 14.0, Google Chrome OS, Apple iOS |
| Dimensions & Weight | |
| Depth | 2.2 cm |
| Height | 1.5 cm |
| Weight | 26 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 cm |
| Shipping Depth | 12.8 cm |
| Shipping Height | 1.4 cm |
| Shipping Weight | 28 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
