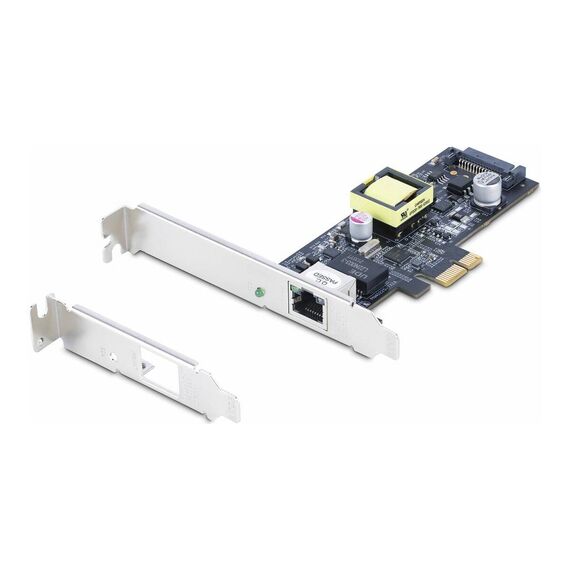

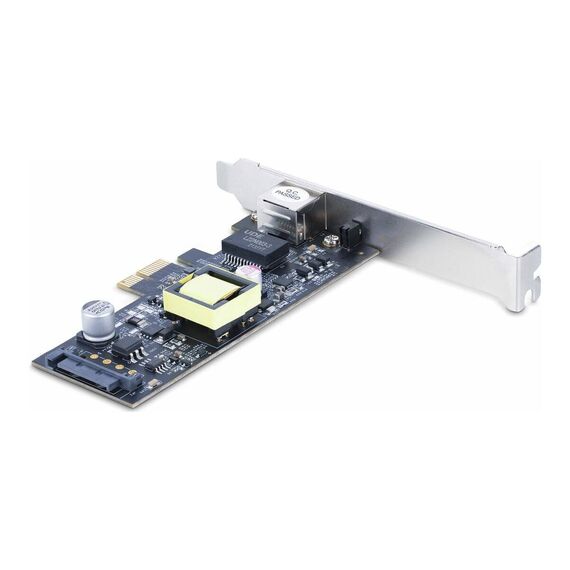

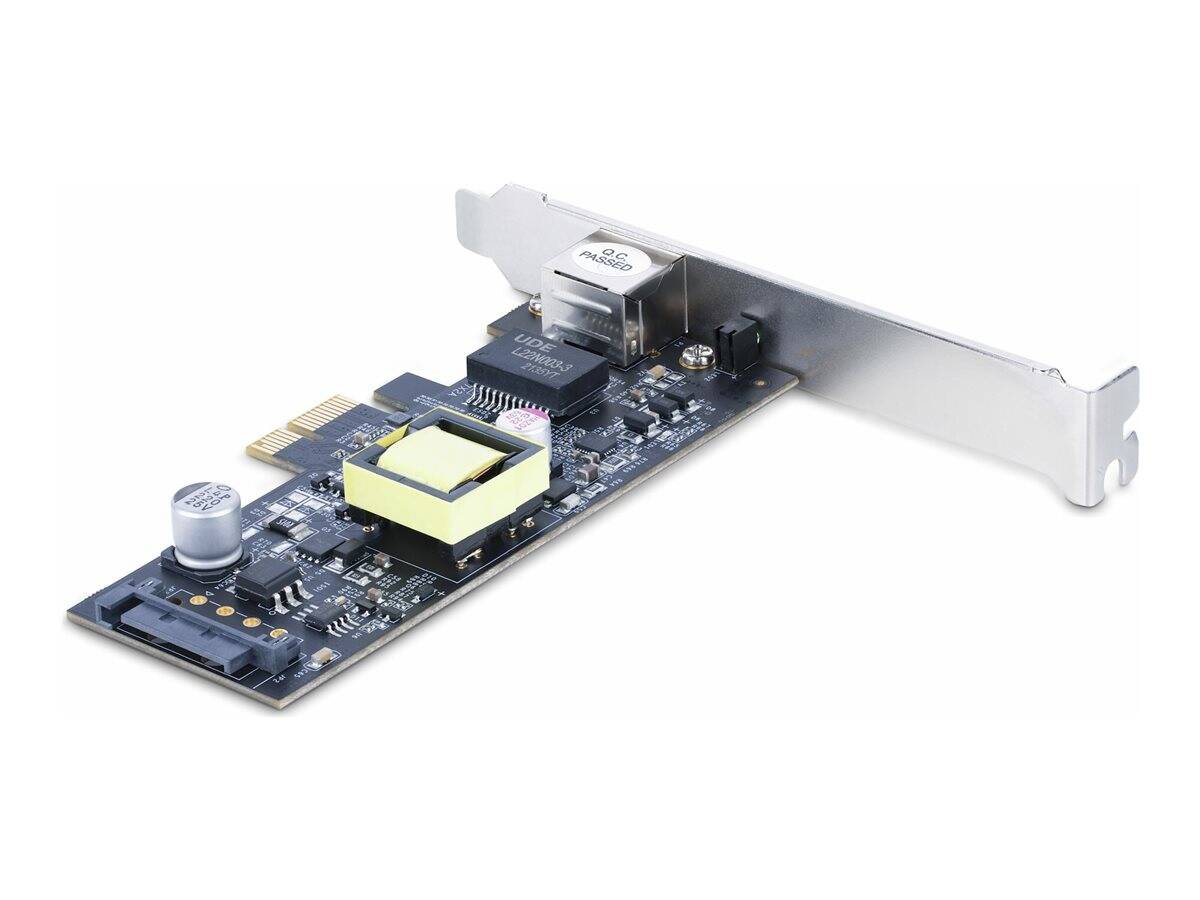

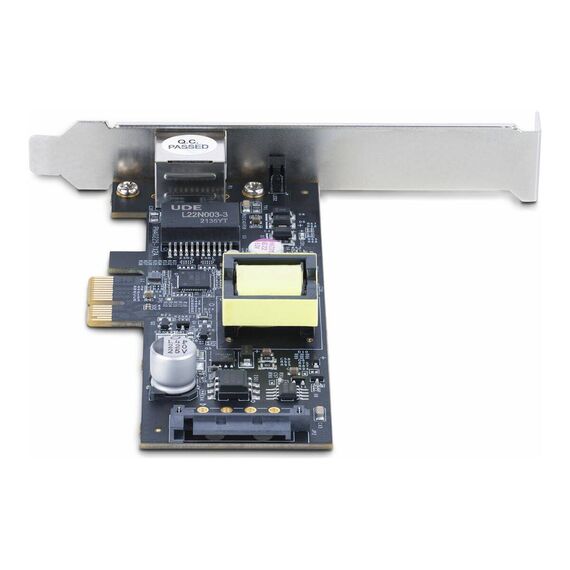

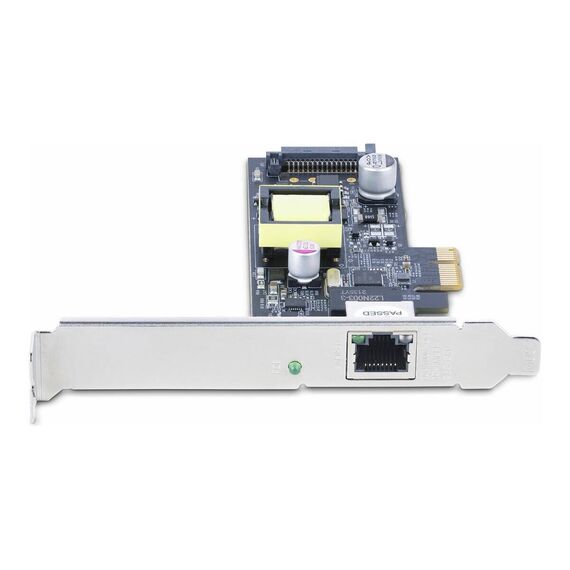

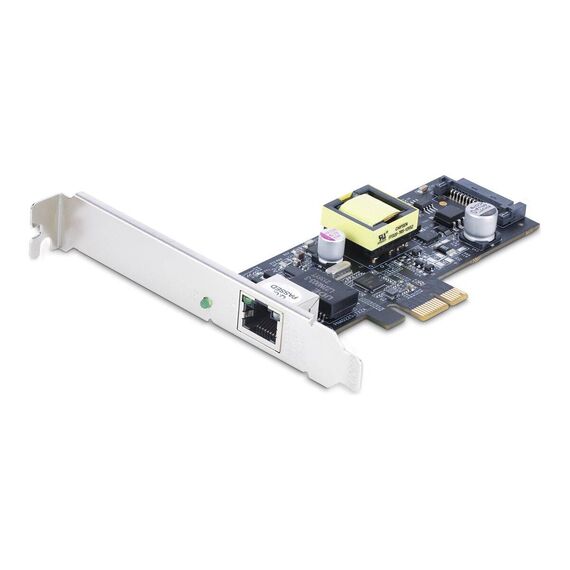

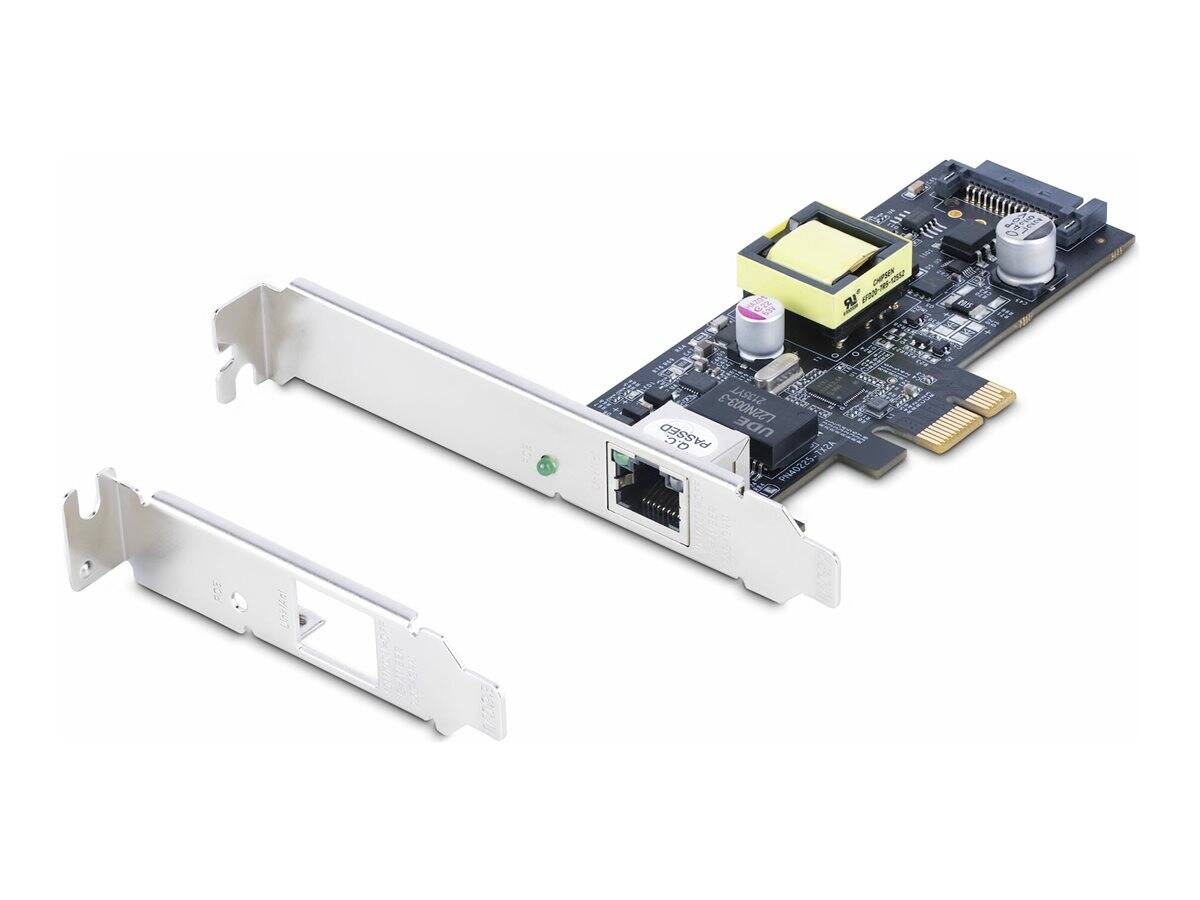

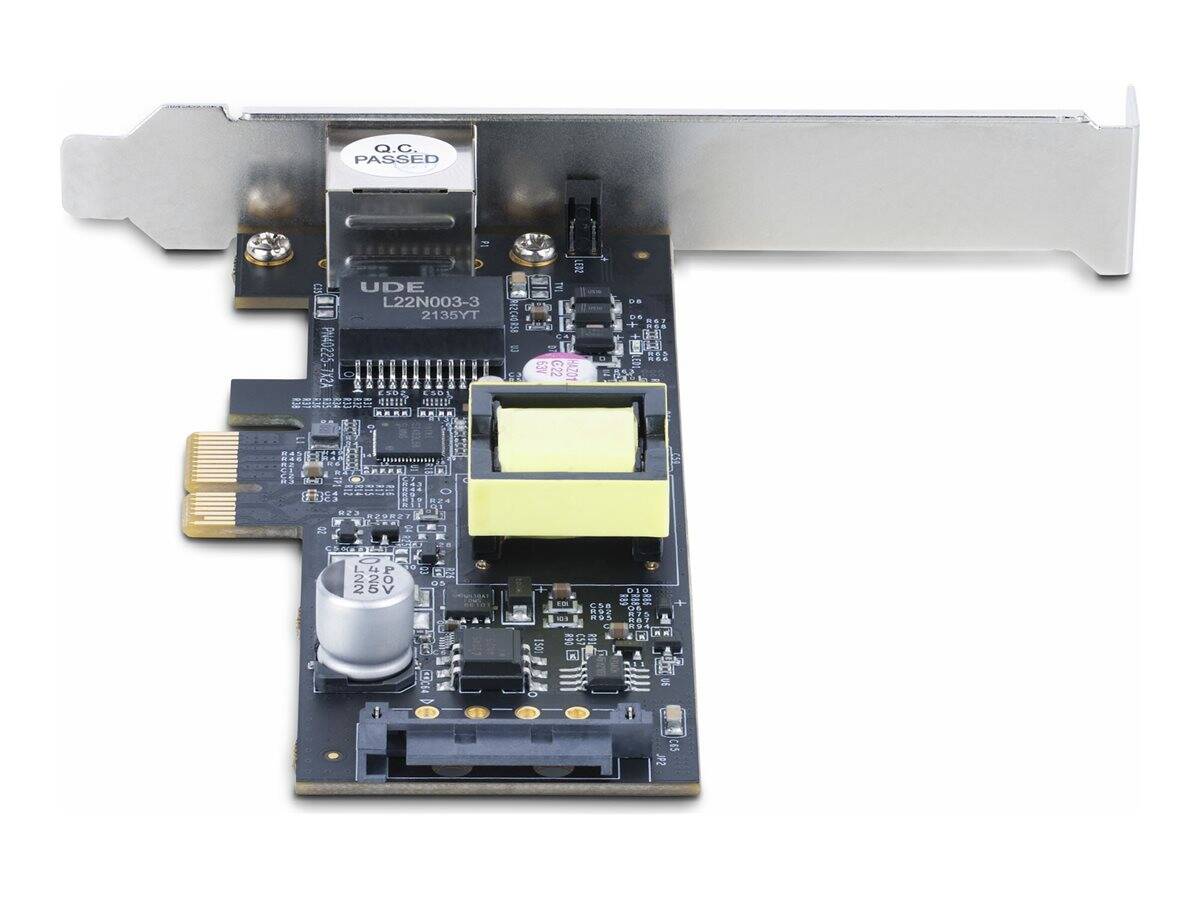

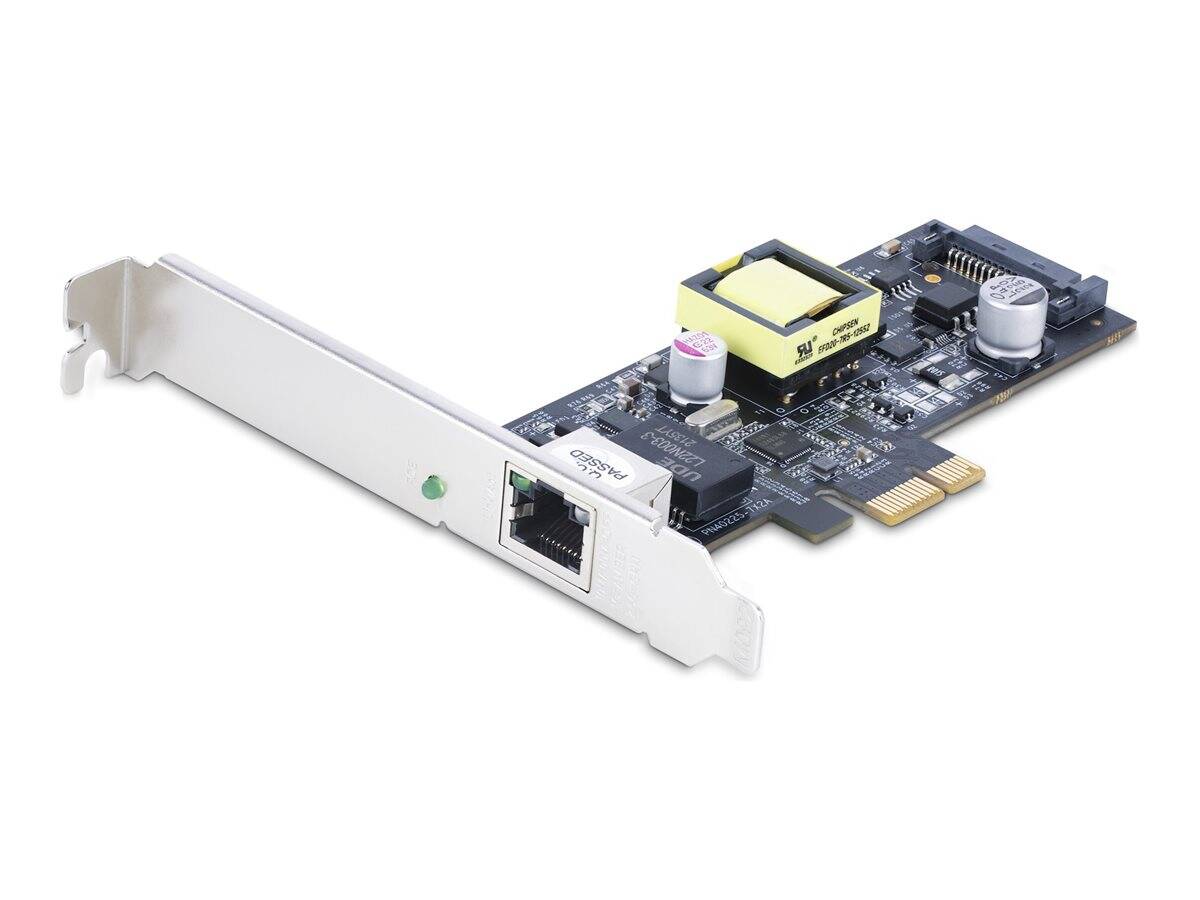

StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux, VMware ESXI (PR12GIP-NETWORK-CARD) - Network adapter - P
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Power over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for power sourcing equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant powered devices (PD). This flexibility eliminates the need for a separate power supply or Power over Ethernet injector for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points. - Increased network speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBase-T speeds using Cat 5e (or better) cabling, to maximize existing networks and equipment. - Enhance existing hardware
The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. This Ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
Special Fetures
- Power over Ethernet
- Increased network speed
- Enhance existing hardware
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Ports | 2.5GBase-T (PoE+) x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Status Indicators | Link/activity/speed |
| Features | Full duplex capability, auto-negotiation, VLAN support, WOL, QoS, PSE, PTP, EEE, Intel vPro Technology support, Auto MDIX, PXE boot, bus powered |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1as, IEEE 802.3at, IEEE 802.3bz, IEEE P802.3az, IEEE 1588v1 |
| Processor / Memory | |
| Processor | Intel I225-V |
| Expansion / Connectivity | |
| Interfaces | 2 x 2.5 GBase-T (PoE+) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | RoHS, WEEE |
| Colour | Black |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2019, VMware ESXi 7.0, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 5.8.x or later (LTS versions only) |
| Dimensions & Weight | |
| Width | 1.6 cm |
| Depth | 11.9 cm |
| Height | 5.4 cm |
| Weight | 62 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3 cm |
| Shipping Depth | 17 cm |
| Shipping Height | 14 cm |
| Shipping Weight | 70 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% RH |
