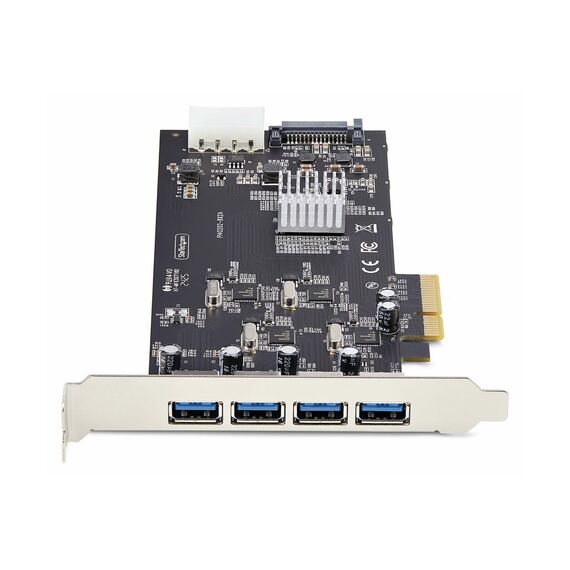

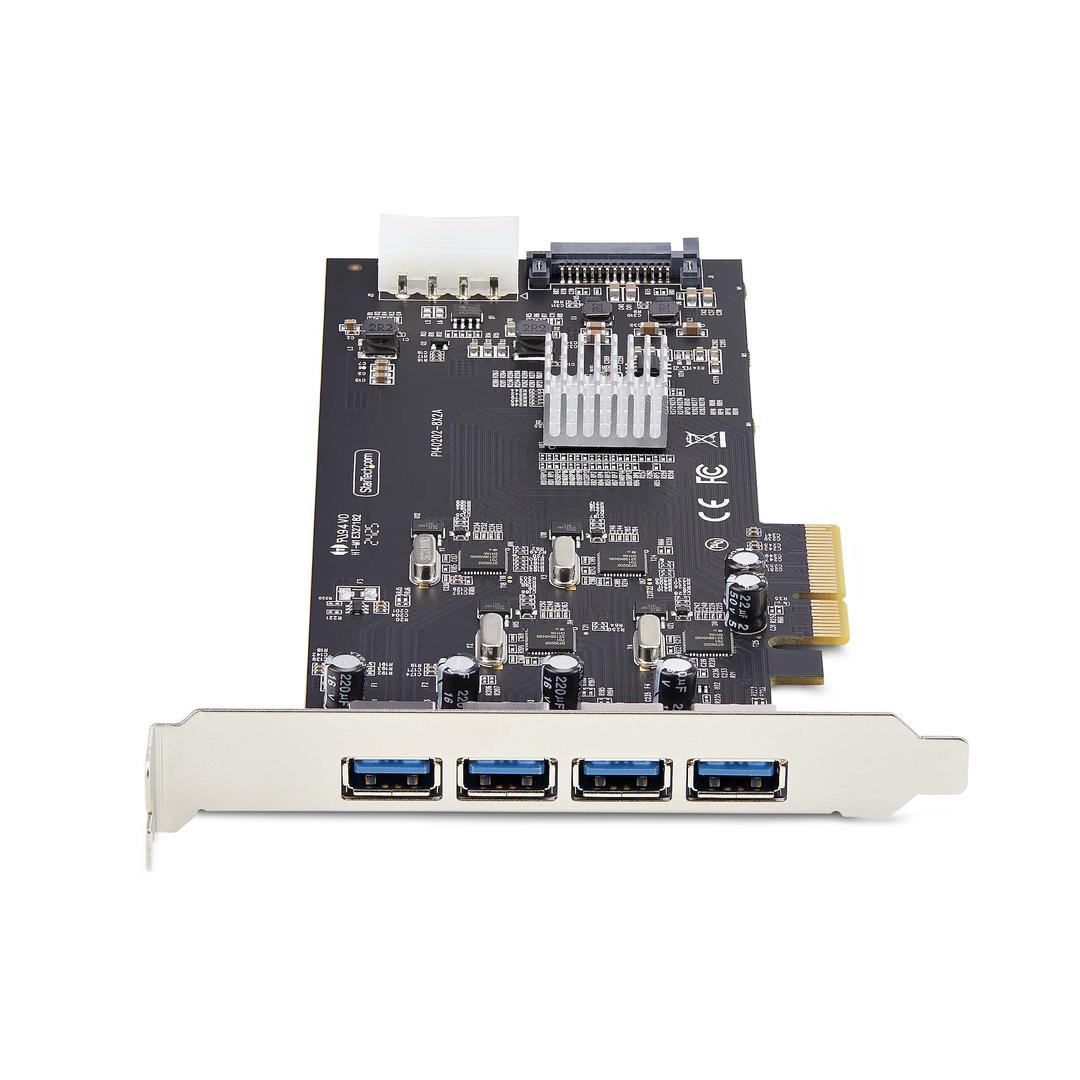

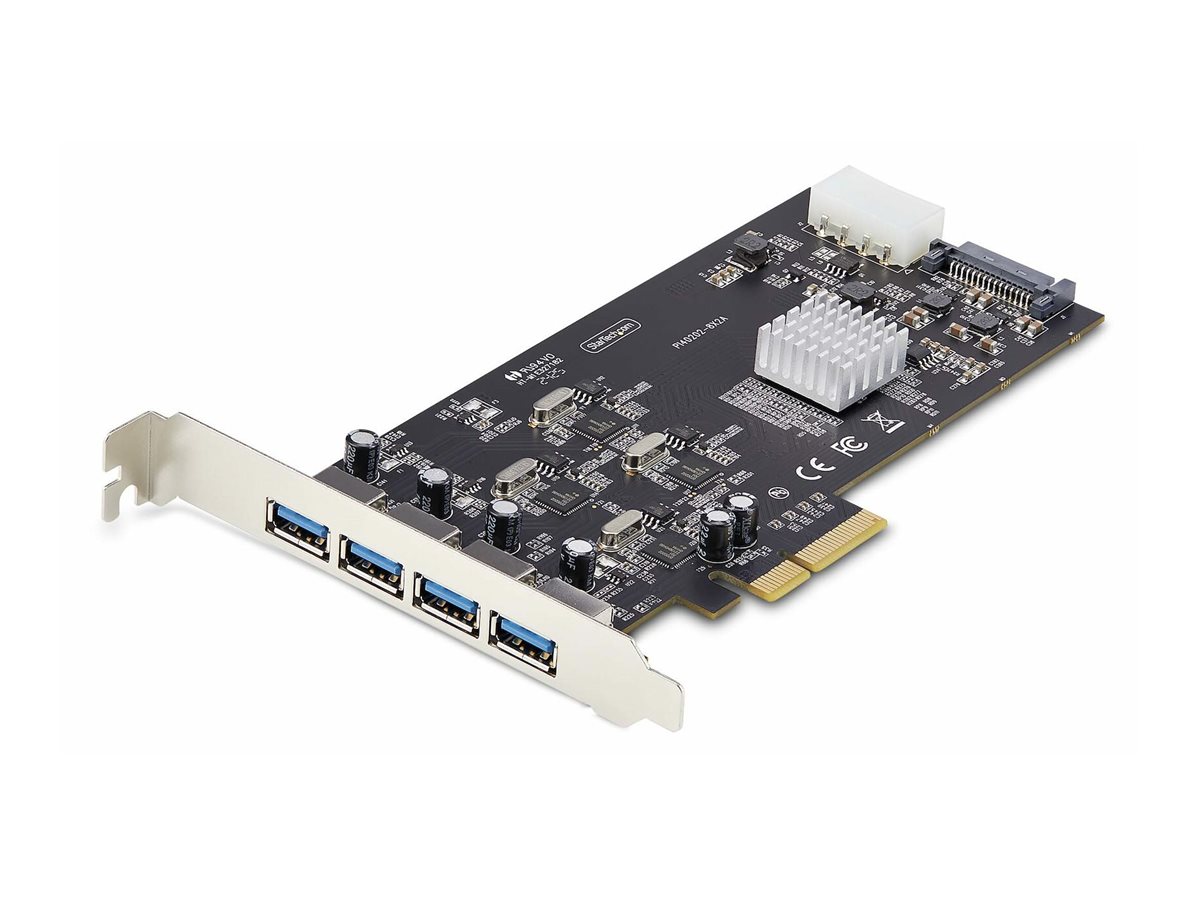

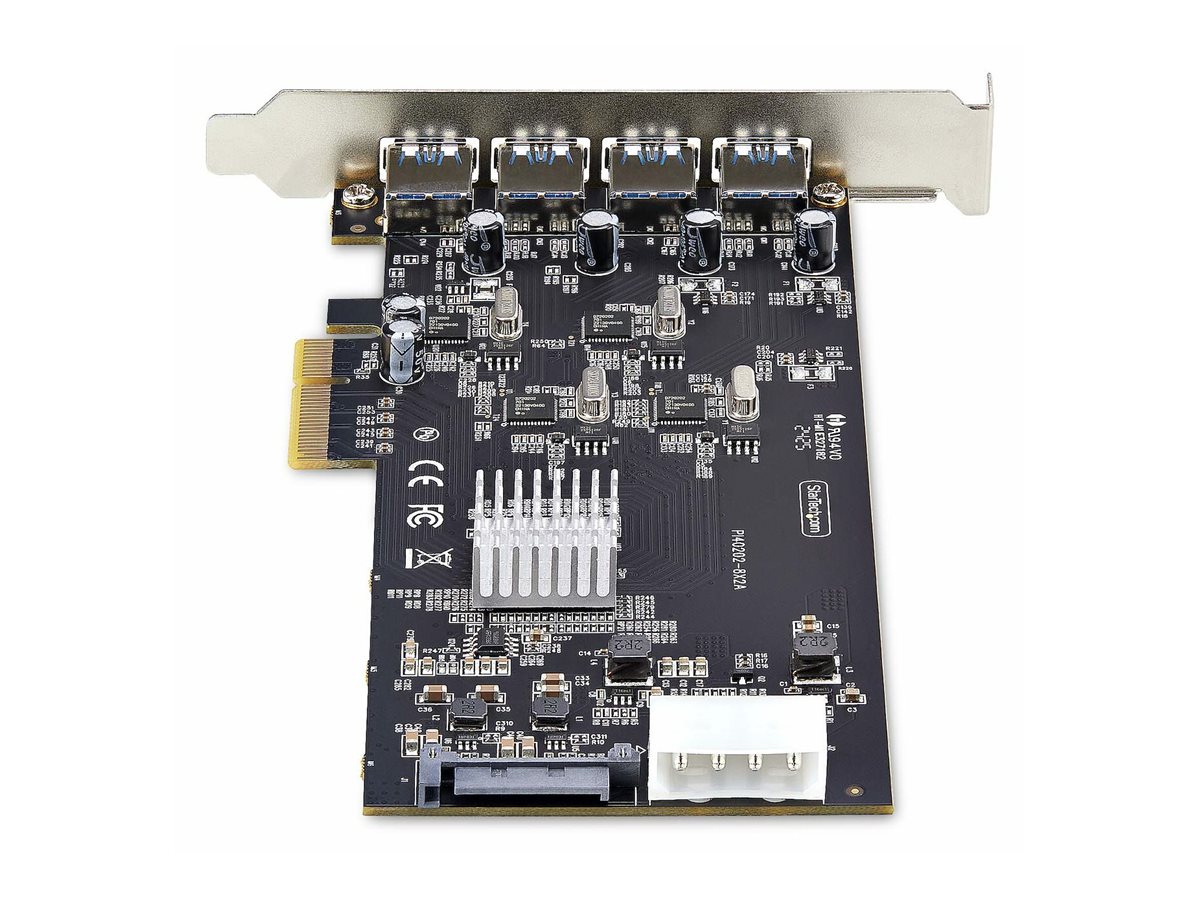

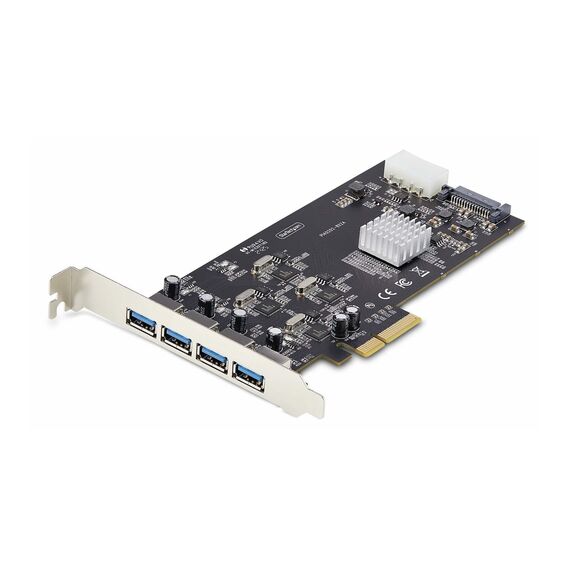

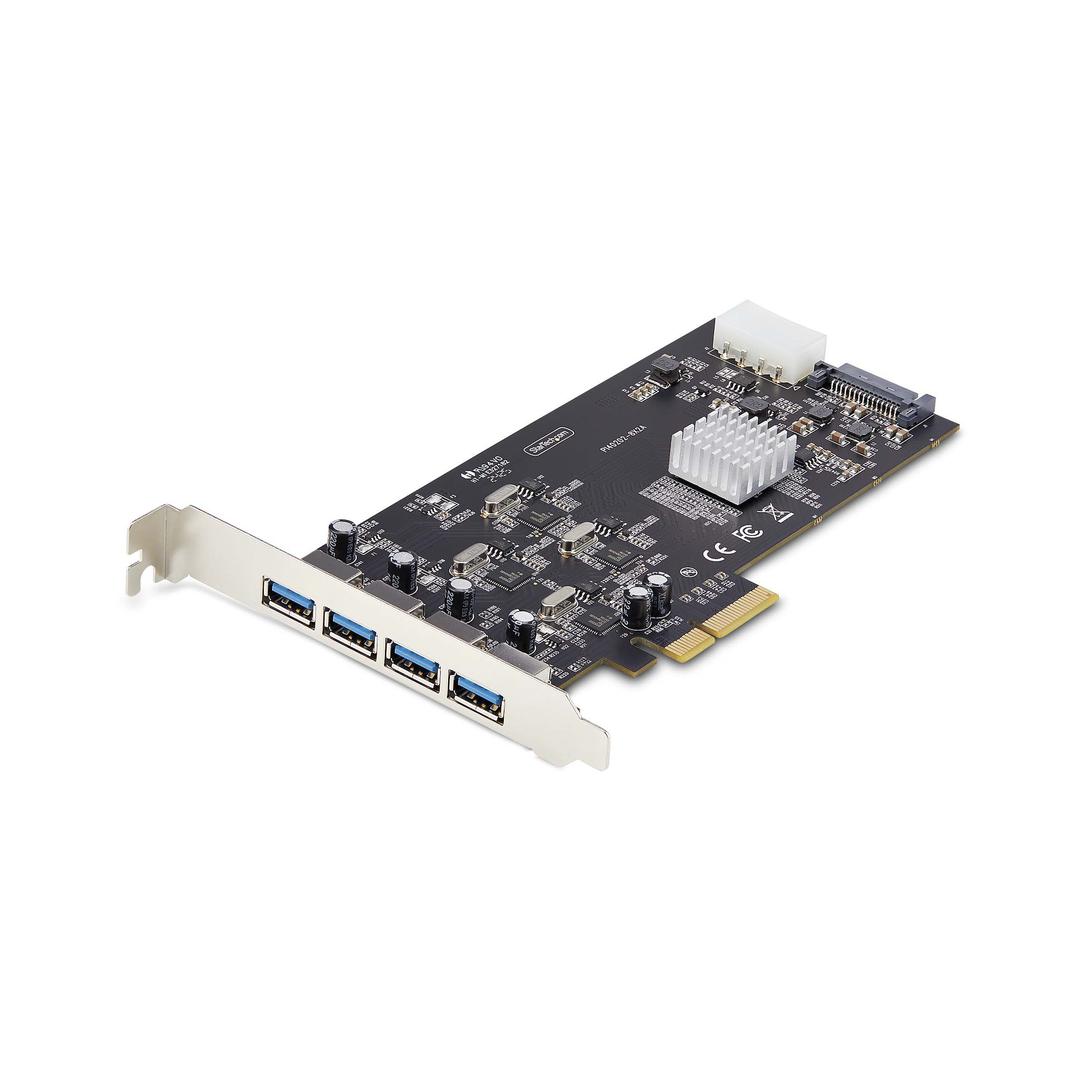

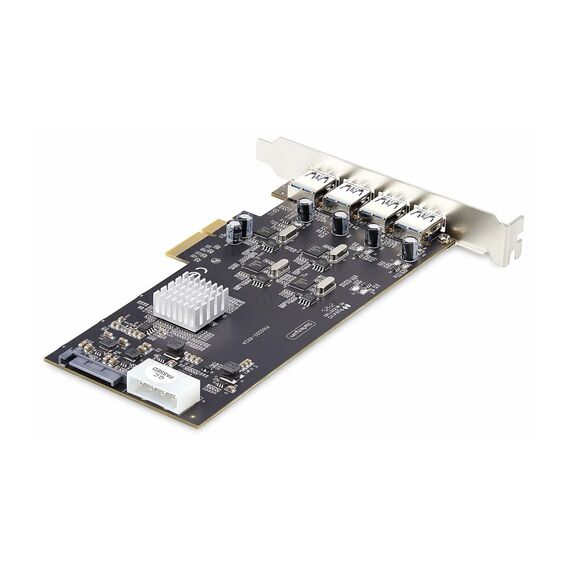

StarTech.com 4-Port USB-A PCIe Card, USB 3.2 5Gbps, 4x USB Controllers - USB adapter - PCIe 2.0 x4 - USB 3.2 Gen 1 x 4 - black - for P/N: FCREADMICRO3V2, USB315AC1M, USB3S2SAT3CB | P5Q4A-USB-CARD
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity

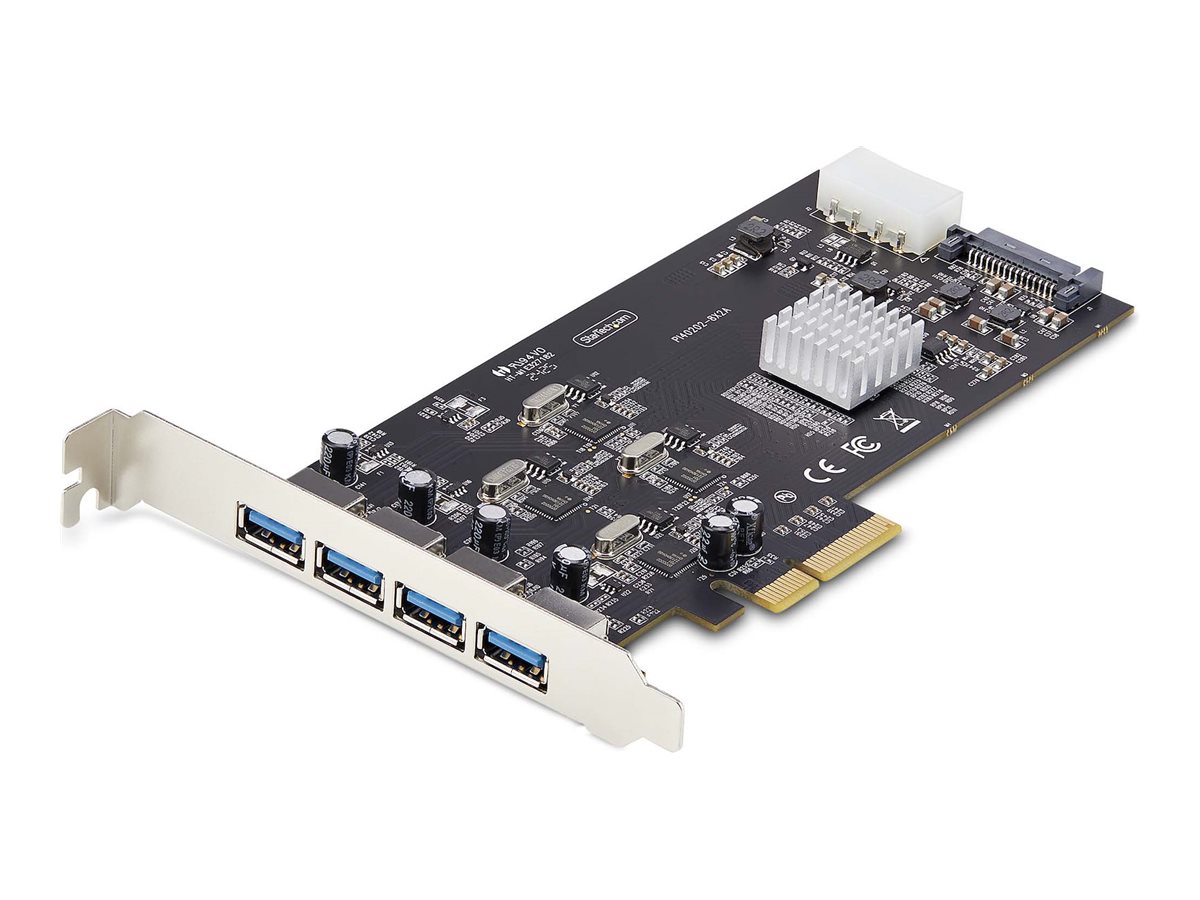

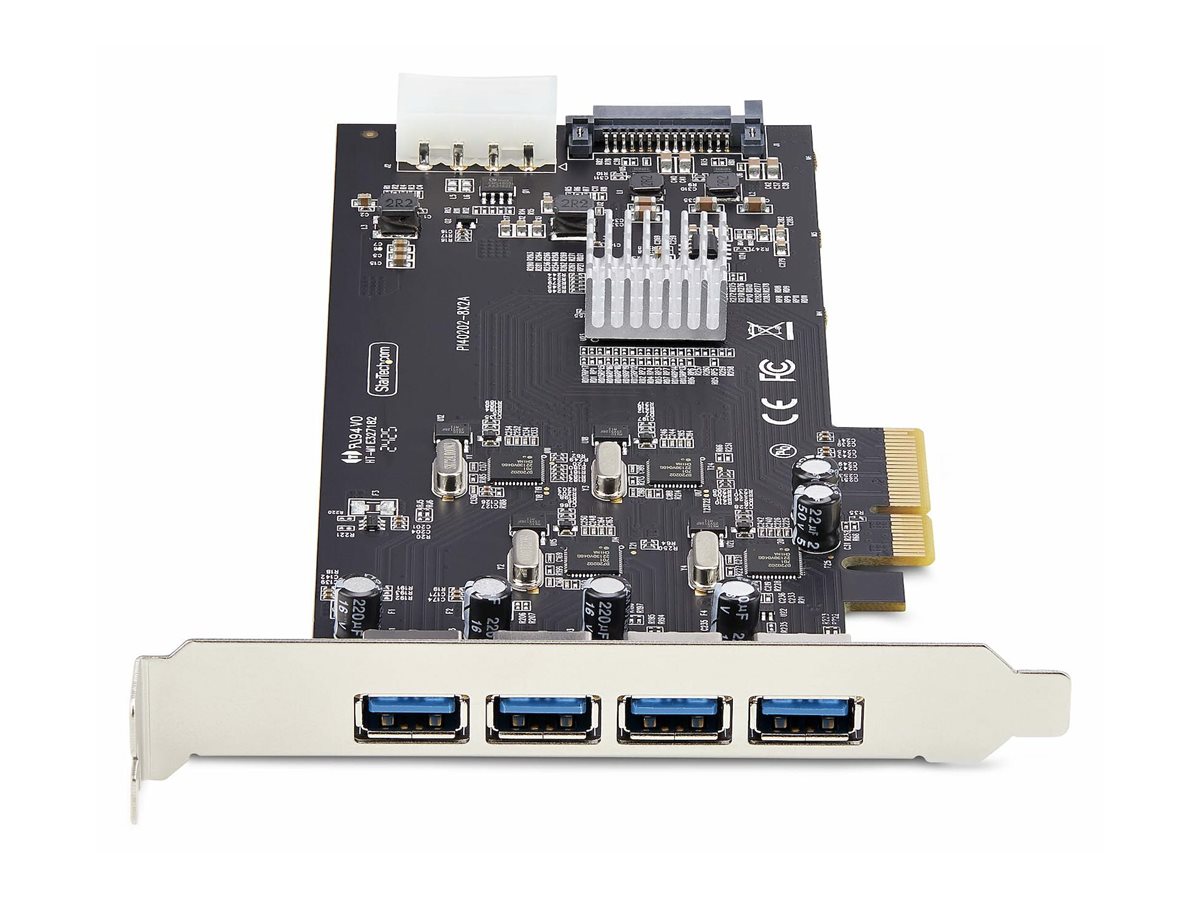

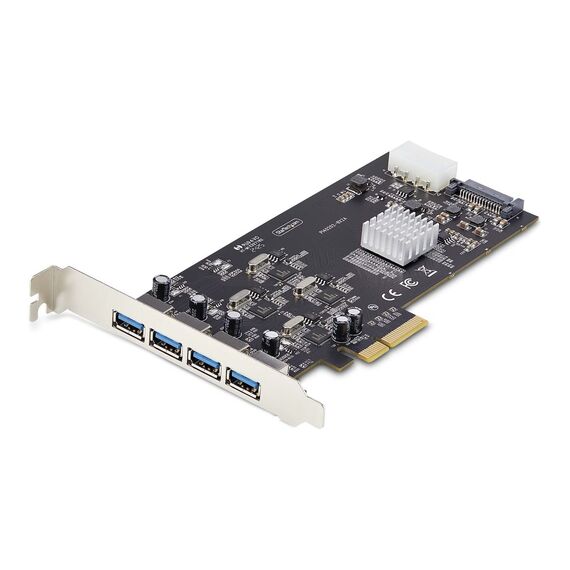

The StarTech.com 4-Port USB-A PCIe Card offers expansive connectivity with four external 9-pin USB Type-A connectors, enabling multiple USB 3.2 Gen 1 device connections for a seamless user experience. - High-speed data transfer
With a data transfer rate of 5 Gbps, this USB 3.2 Gen 1 interface ensures rapid file transfers, making it ideal for high-bandwidth devices such as external hard drives and HD cameras. - Reliable power delivery
Features like USB Power Delivery (up to 10 W) and bus-powered capability ensure that connected devices are charged and operate efficiently, without the need for additional power sources. - Easy installation

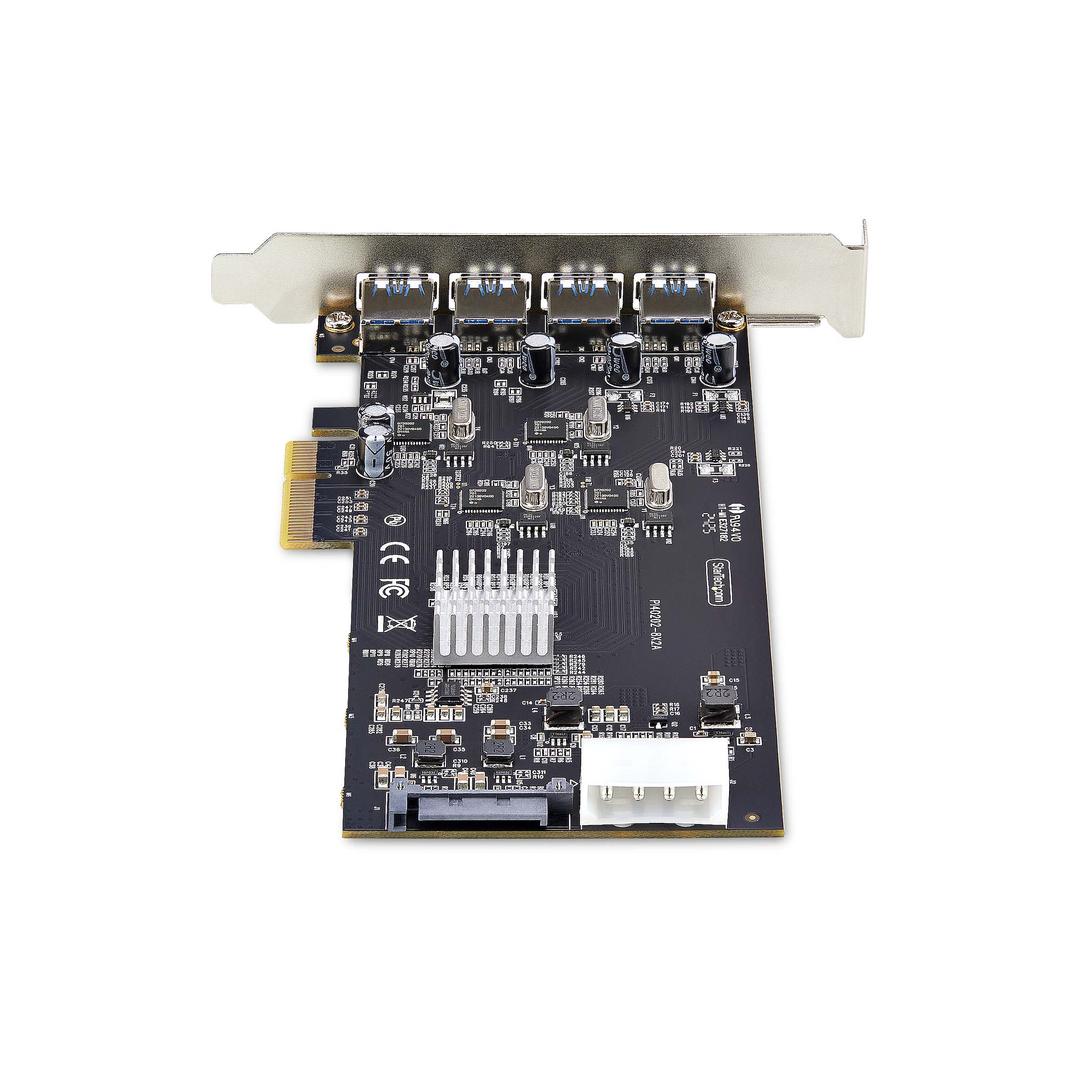

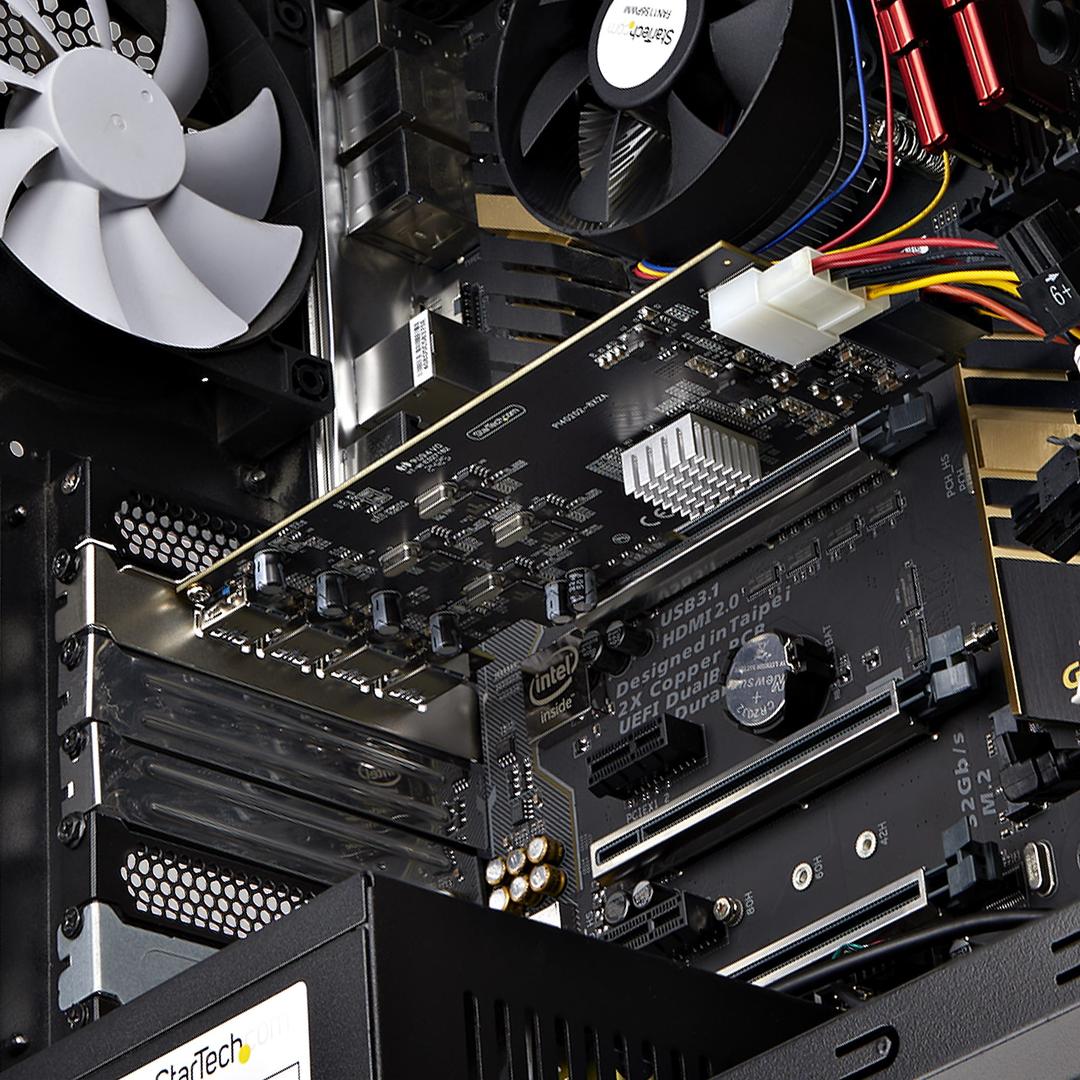

The card's Plug-and-Play form factor, designed for PCI Express 2.0 x4 slots, along with internal power connectors for LP4 and SATA power, ensures a hassle-free setup in a wide range of PC configurations.
Special Fetures
- 4 external USB 3.2 Gen 1 ports for multiple device connections
- 5 Gbps data transfer rate for quick file access and transfers
- USB Power Delivery supports up to 10 W for efficient device charging
- Bus powered for a clean, cable-free setup
- Compatible with PCI Express 2.0 x4 slots for easy installation
Product Specification
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Ports | USB 3.2 Gen 1 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Features | UASP, bus powered, USB Power Delivery (up to 10 watt) |
| Compliant Standards | USB 3.2 Gen 1 |
| Processor / Memory | |
| Processor | Renesas / Diodes Incorporated UPD720202 / PI7C9X2G608 |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 Gen 1 - 9 pin USB Type A - female (external) <br /> 1 x LP4 - 4 pin power - female (internal) <br /> 1 x SATA power - 15 pin Serial ATA power - male (internal) |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | WEEE |
| Colour | Black |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Linux 2.6.31 or later LTS versions only |
| Dimensions & Weight | |
| Width | 1.9 cm |
| Depth | 16.9 cm |
| Height | 12 cm |
| Weight | 100 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.8 cm |
| Shipping Depth | 20.7 cm |
| Shipping Height | 14.4 cm |
| Shipping Weight | 110 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: FCREADMICRO3V2, USB315AC1M, USB3S2SAT3CB |
Features - StarTech.com - P5Q4A-USB-CARD
More Details
Product Code
03:255507
EAN Code
0065030912761
Manufacturer
StarTech.com
