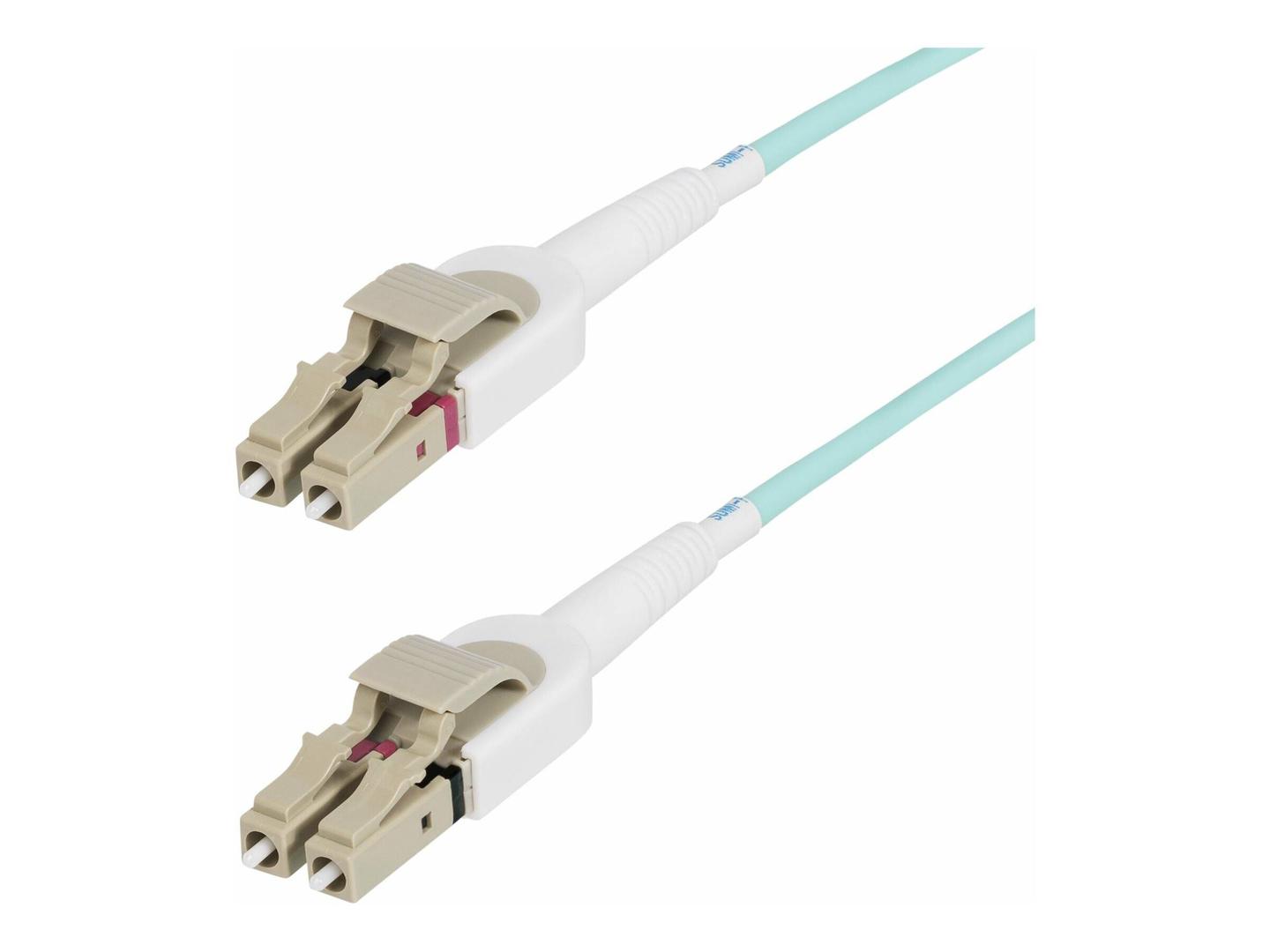

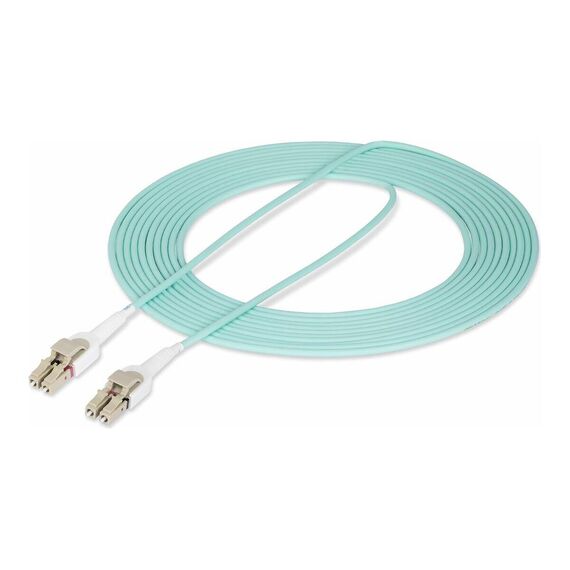

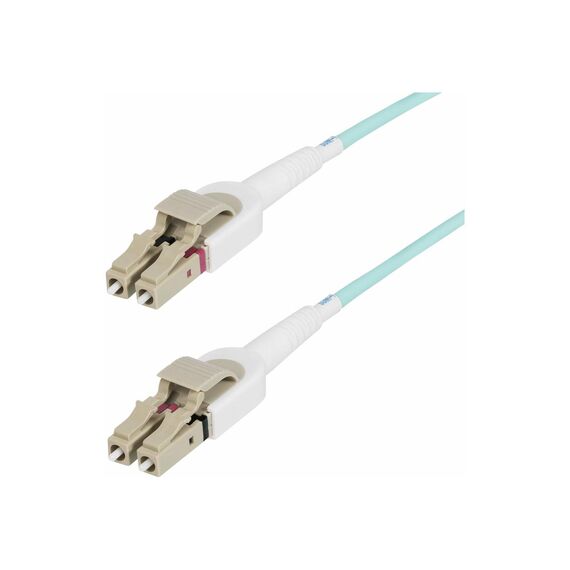

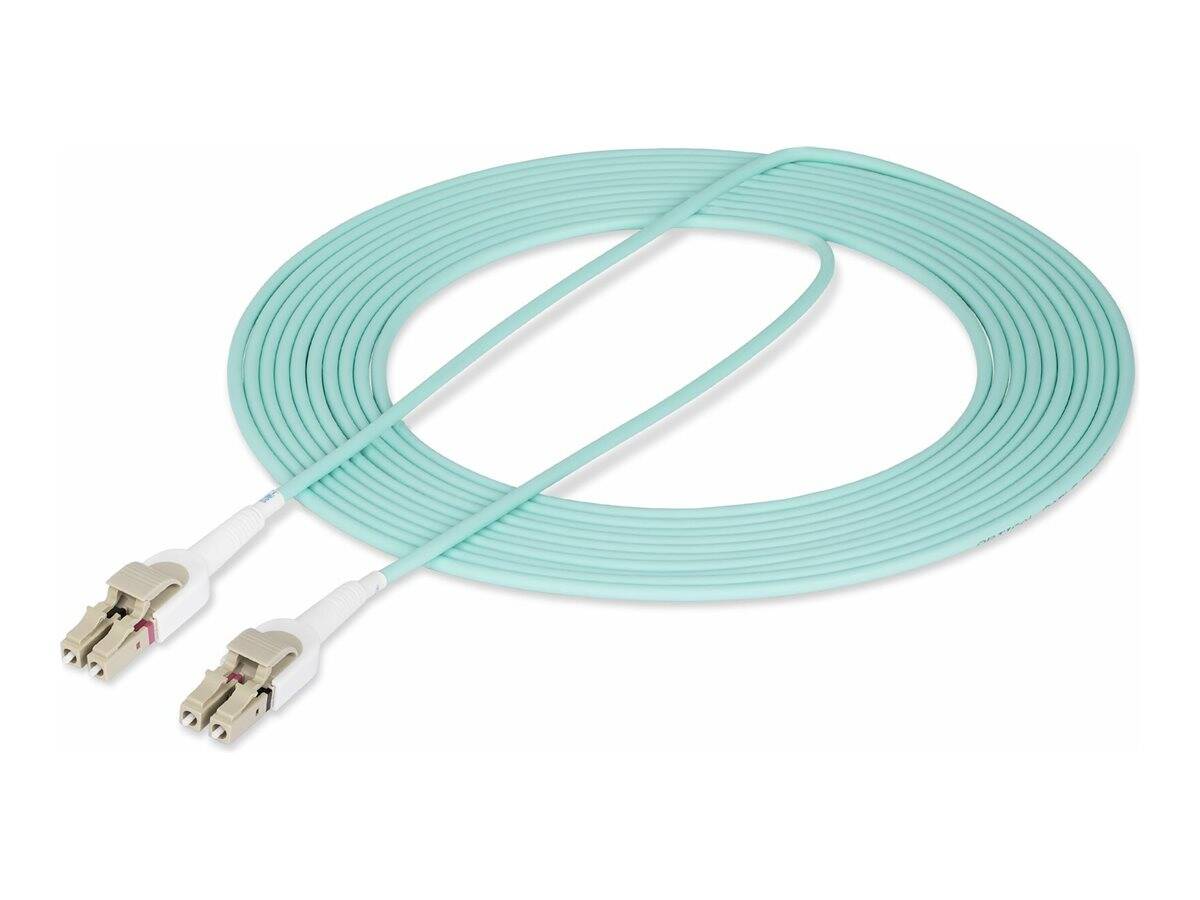

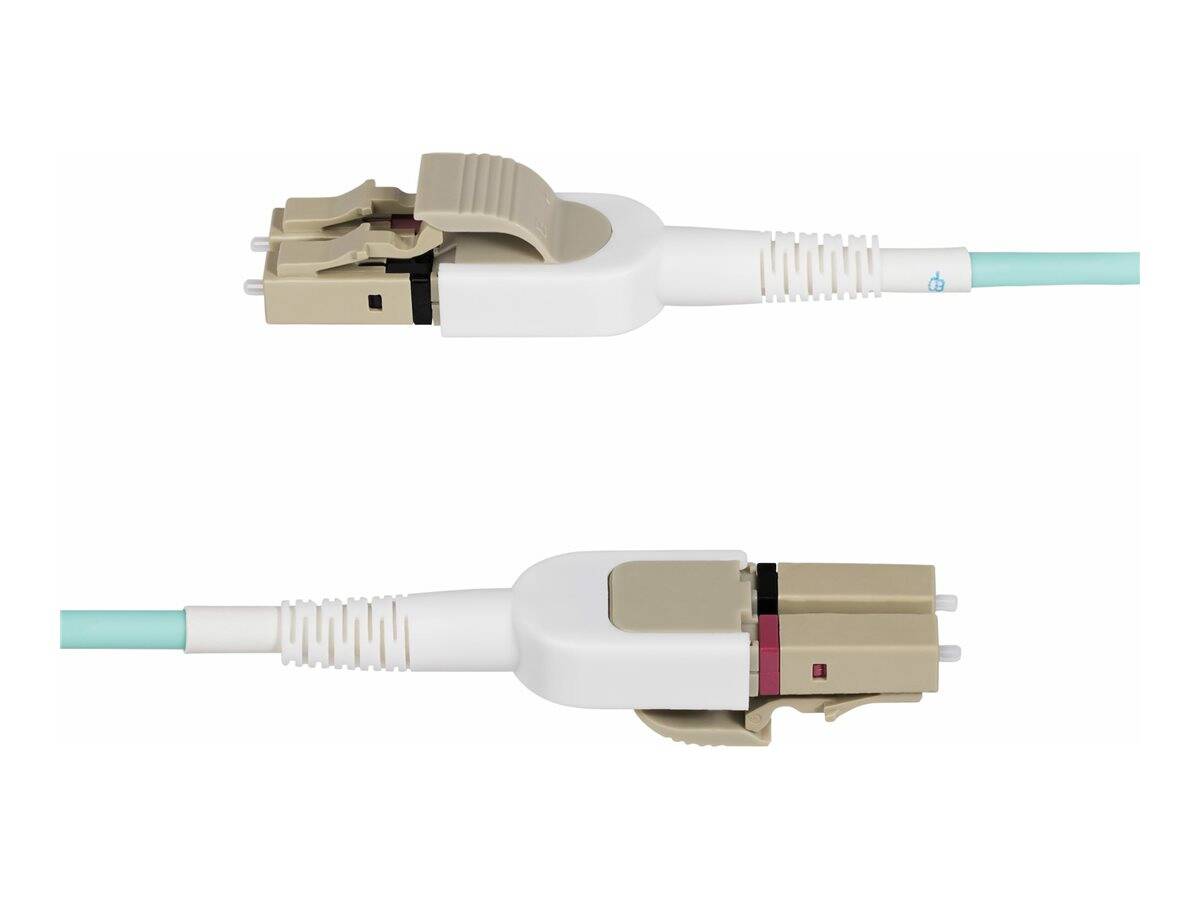

StarTech.com 5m (15ft) LC to LC (UPC) OM4 Switchable Fiber Optic Cable 50/125µm, 100G Networks, Toolless Polarity Switching, Low Insertion Loss - LSZH Fiber Patch Cord (450FBLCLC5SW) - Patch cable - LC/UPC multi-mode (M) to LC/UPC multi-mode (M) - 5 m - 2
450FBLCLC5SW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Engineered for optimal performance

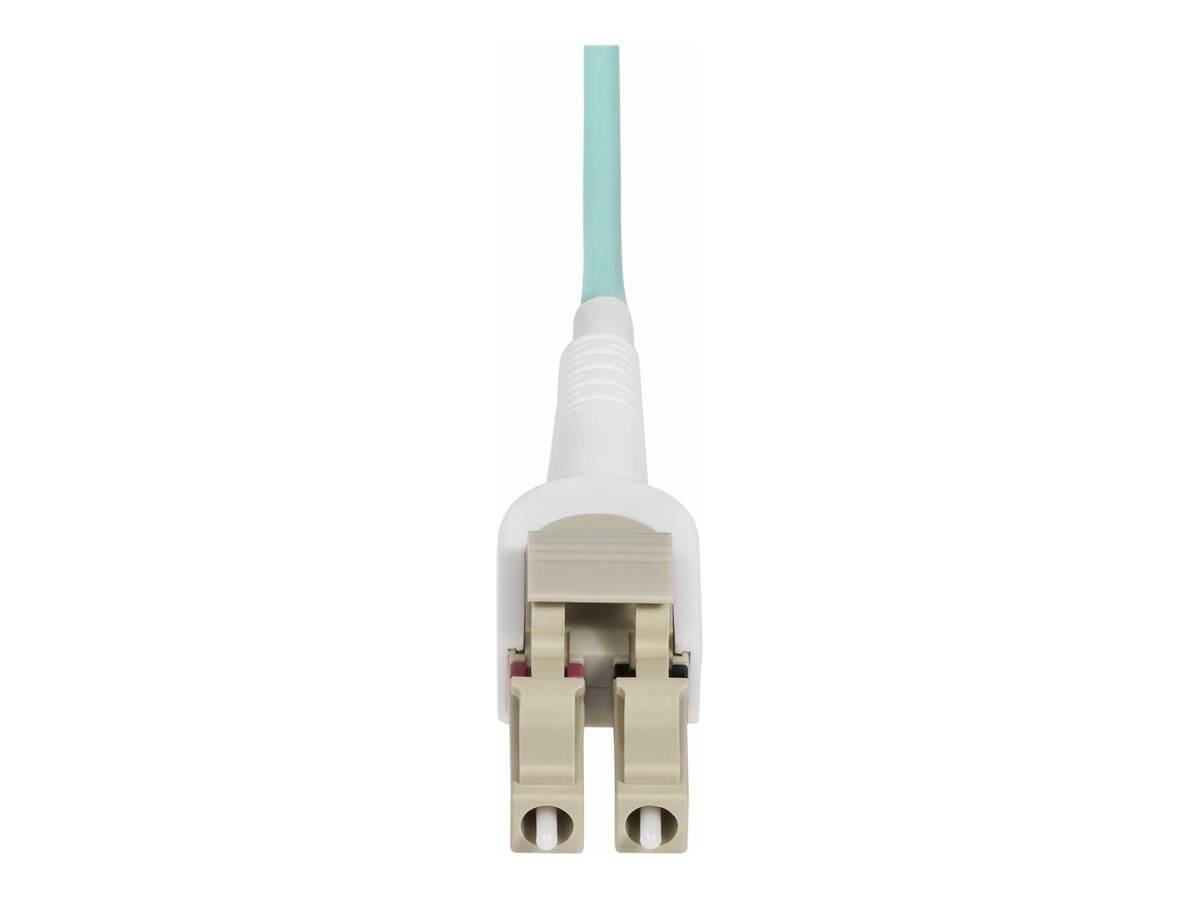

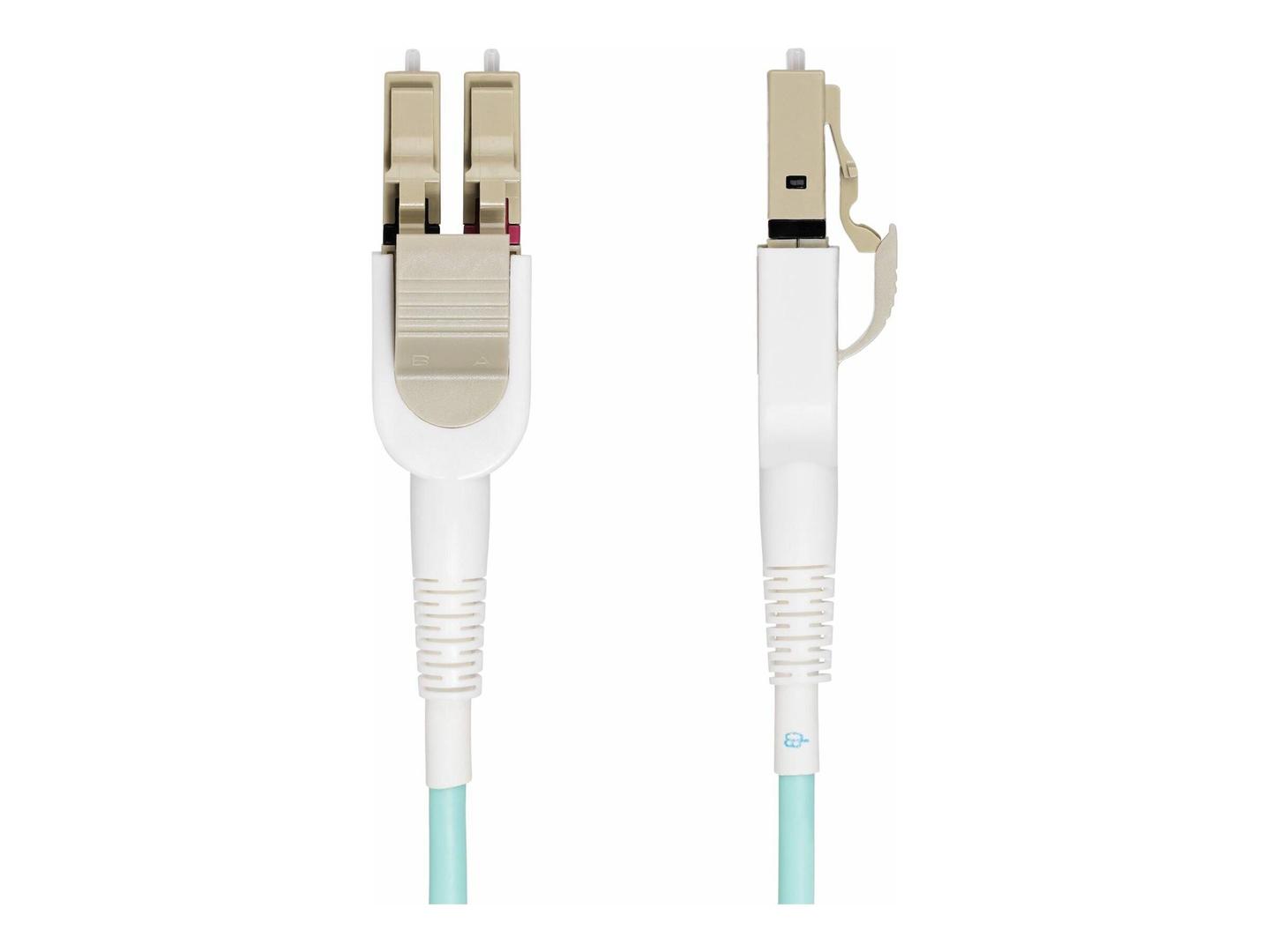

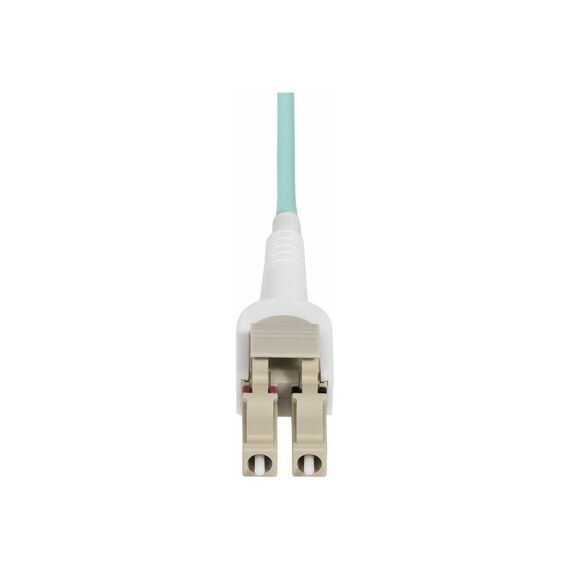

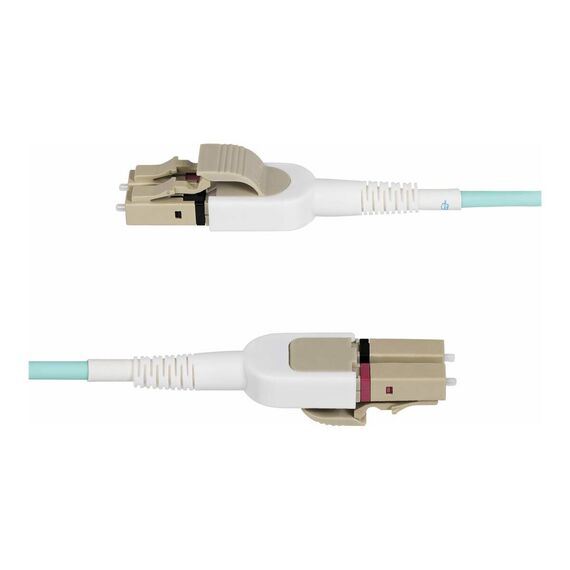

Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources. - Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments. - LSZH cable jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Special Fetures
- Engineered for optimal performance
- Compatibility
- LSZH cable jacket
Product Specification
| Network Cable Type | Patch cable - OM3/OM4 |
| Technology | Duplex fibre optic |
| Type of Fibre Optics | Multimode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Core / Cladding Diameter | 50 / 125 micron |
| Features | Halogen-free, up to 100 Gbps data transfer rate, Laser-optimized multimode fibre (LOMMF), bend insensitive, low insertion loss, aramid fibre reinforced, push/pull tab, wavelength of 850/1300 nm, easy polarity management |
| Length | 5 m |
| Diameter | 2.9 mm |
| Weight | 41 g |
| Colour | Aqua |
| Connectivity | |
| Connector | 2 x LC/UPC multi-mode - male |
| Connector (Second End) | 2 x LC/UPC multi-mode - male |
| Miscellaneous | |
| Compliant Standards | WEEE, EMI, TIA/EIA-568 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 1.6 cm |
| Shipping Weight | 52 g |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
