StarTech.com Industrial Gigabit PoE Injector, High Speed/High Power 90W, 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter, -40C to +75C, Rugged, Gigabit PoE - 90W PoE++ Injector (POEINJ1G90W) - PoE injector - 90 Watt - outp
Please sign in so that we can notify you about a reply
Product Features
- Flexible configurations for a variety of applications

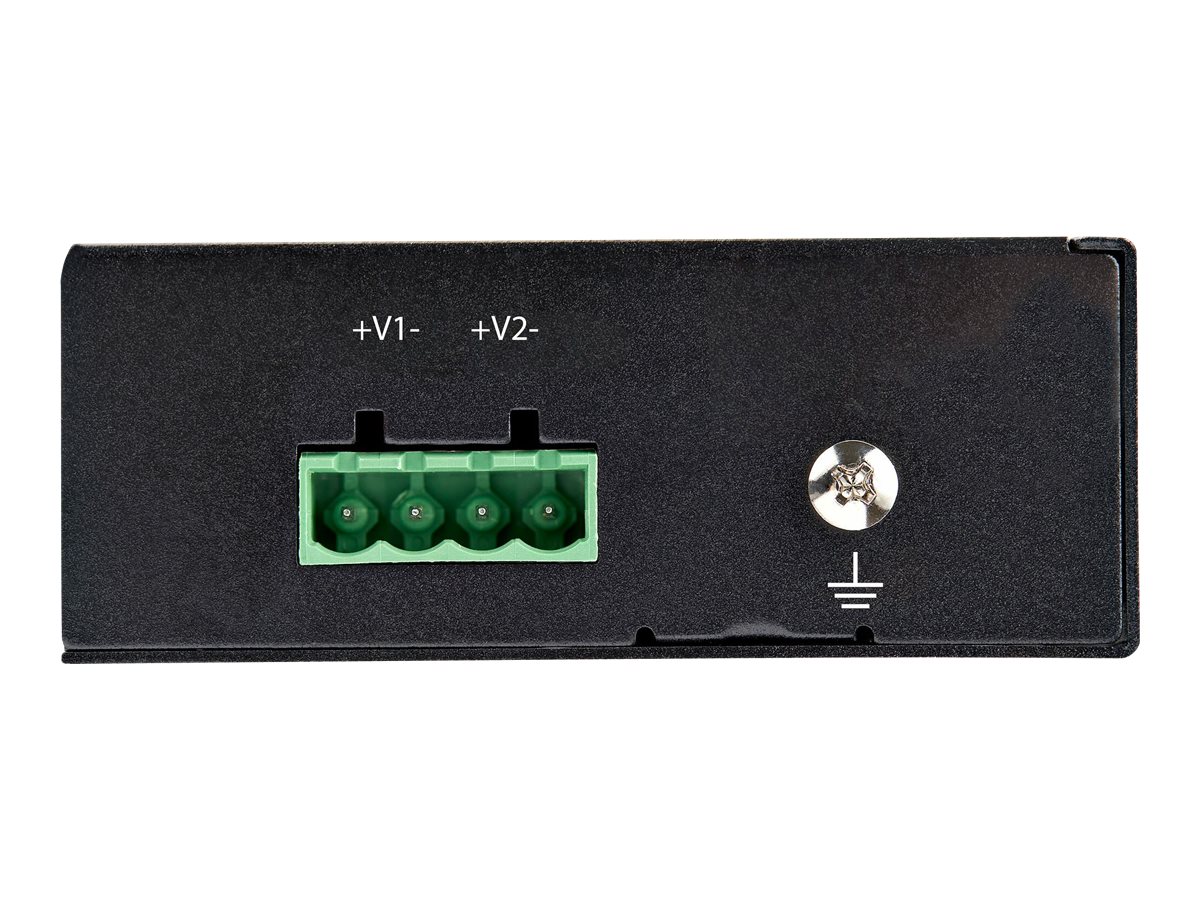

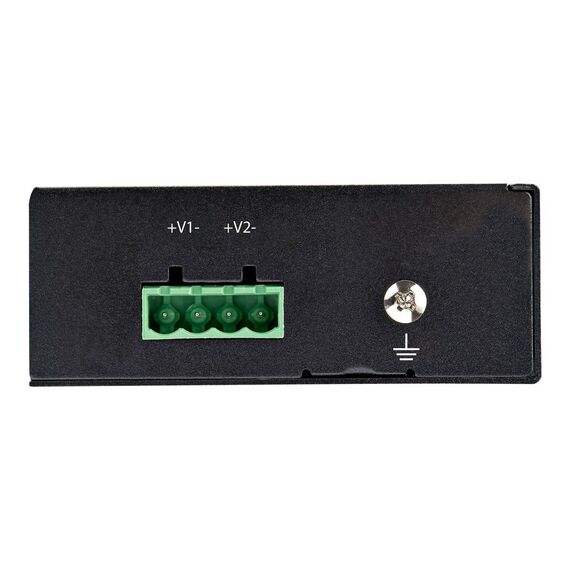

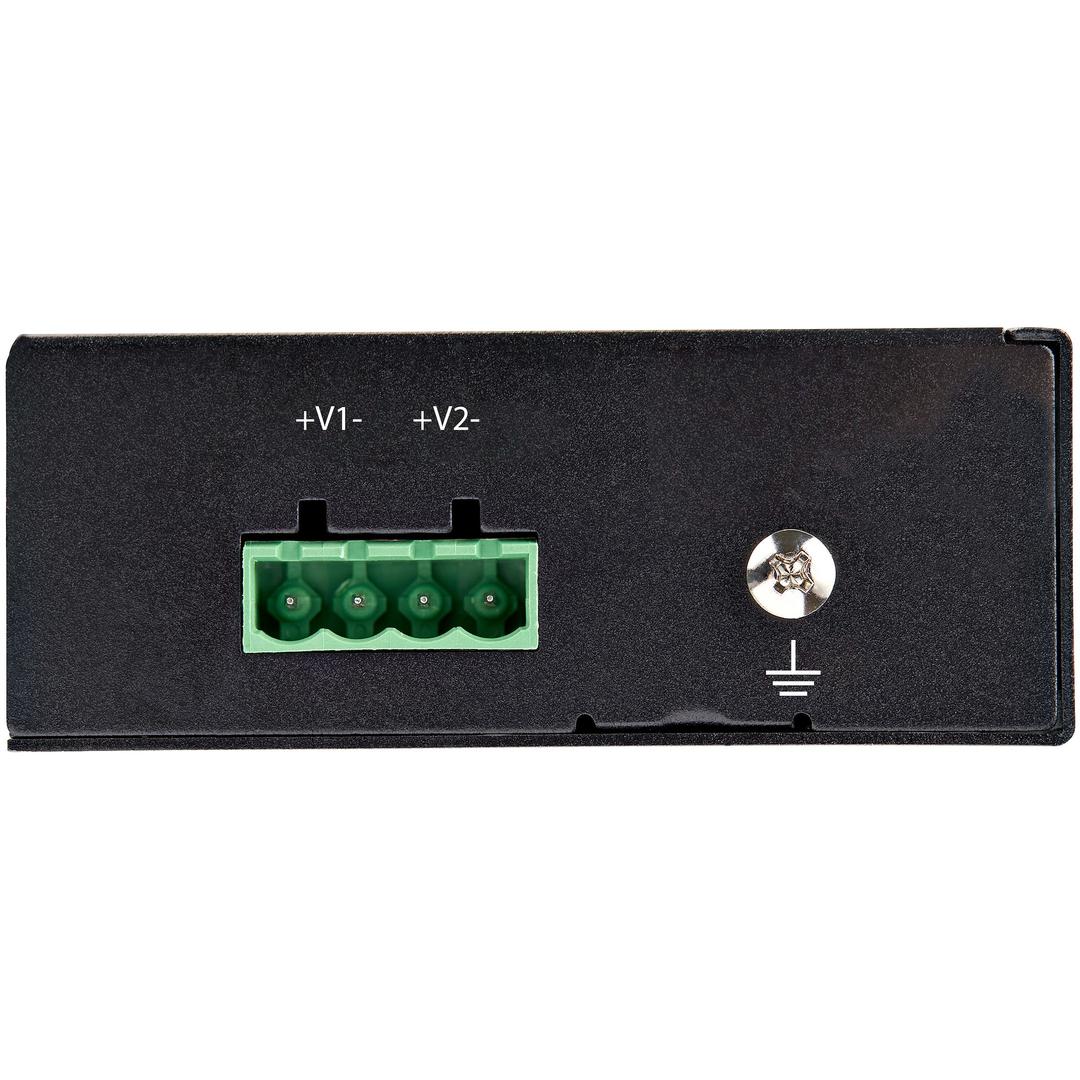

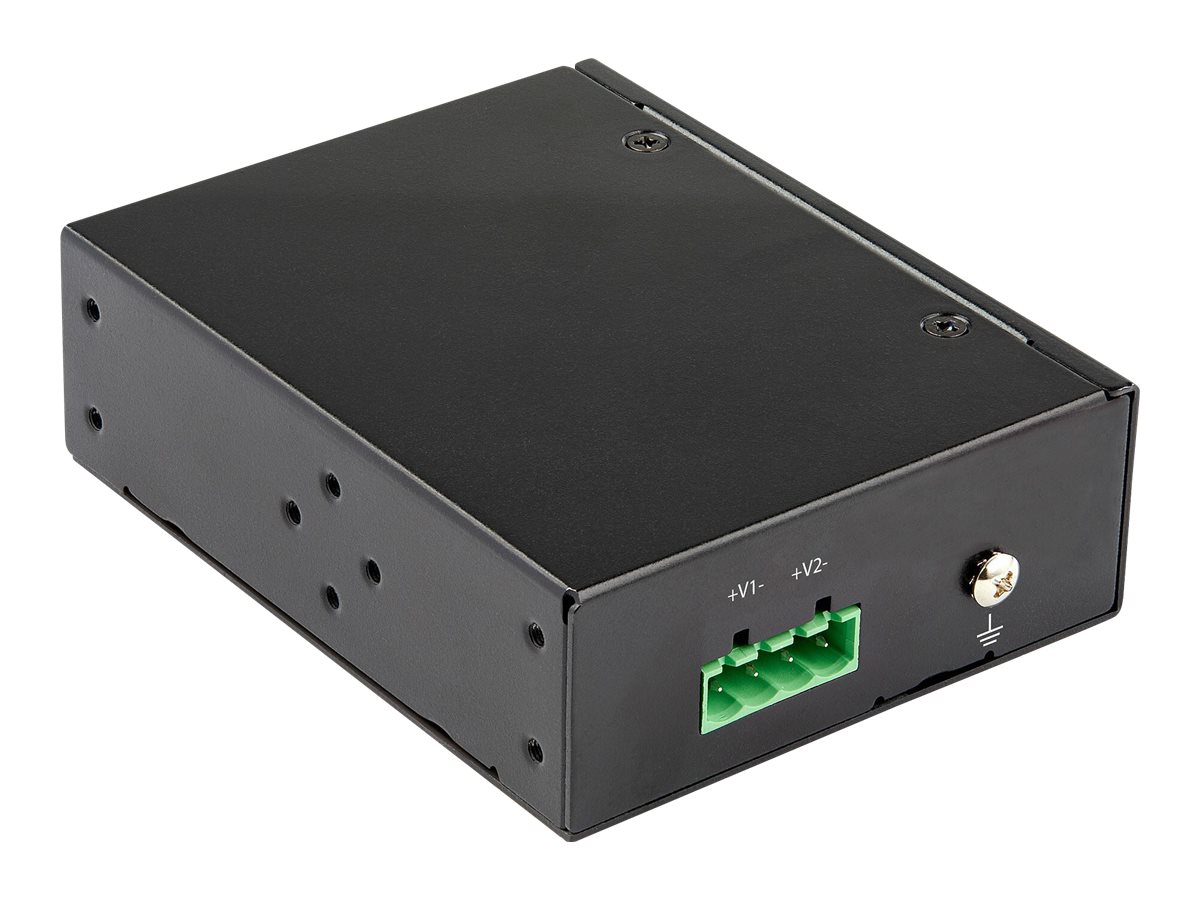

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications. - 90 Watt power budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points. - Designed for harsh environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Special Fetures
- Flexible configurations for a variety of applications
- 90 Watt power budget
- Designed for harsh environments
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Colour | Black |
| Power Device | |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 48 - 56 V |
| Power Capacity | 90 Watt |
| Expansion / Connectivity | |

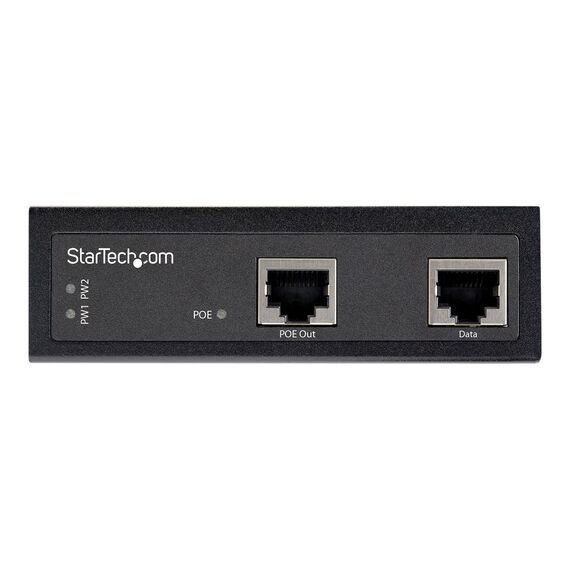

| Interfaces | 2 x Gigabit LAN - RJ-45 |
| Miscellaneous | |

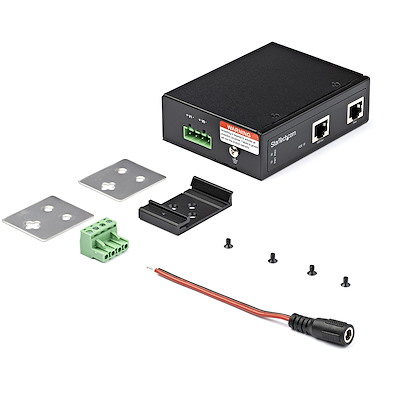

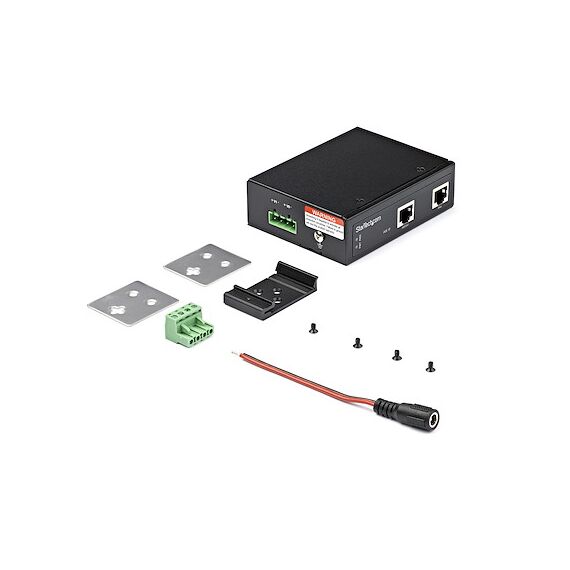

| Included Accessories | Mounting kit, terminal block |
| MTBF | 540,891 hours |
| Features | Rugged, DIN rail mountable, auto MDIX support, LED indicators, over current protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 cm |
| Depth | 8.2 cm |
| Height | 10.4 cm |
| Weight | 174 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.1 cm |
| Shipping Depth | 16.2 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 400 g |
