StarTech.com 10/100 MBIT / S FO / FIBER (ET90110WDM2)
Please sign in so that we can notify you about a reply
StarTech.com ET90110WDM2 StarTech.com 10/100 MBIT / S FO / FIBER (ET90110WDM2)
StarTech.com 10/100 MBIT / S FO / FIBER (ET90110WDM2)

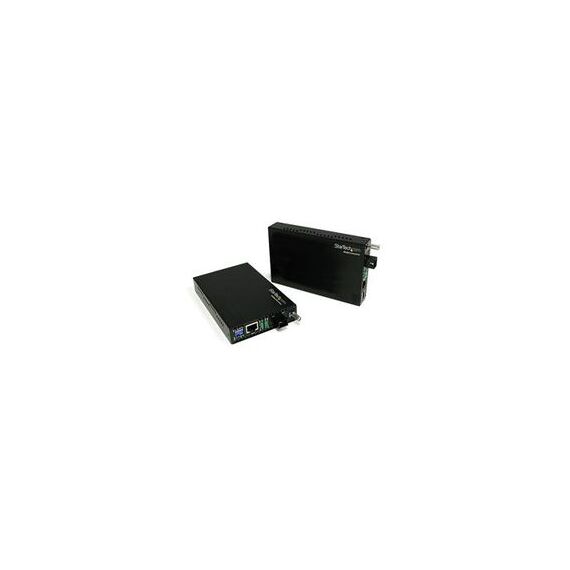

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km 12.4 mi.The converter offers Wavelength-Division Multiplexing WDM, enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.
The Ethernet to WDM Fiber Kit includes both endpoints two interchangeable modules - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis ETCHS2U.
Feature list
| Data transfer rate max: | 200 Mbit/s |
| Converter input interface: | 100Base-TX, 10Base-T |
| Fiber optic connector: | SC |
| Networking standards: | IEEE 802.3, IEEE 802.3u |
| Auto MDI/MDI-X: | Y |
| Duplex system: | Full, Half |
| Ethernet LAN data transfer rates: | 10, 100 Mbit/s |
| Ethernet interface type: | Fast |
| Converter output interface: | 100Base-FX |
| Internal: | N |
| Wavelength: | 1310 nm |
| Maximum transfer distance: | 20000 m |
| Fiber mode structure: | Single-mode |
| Plug and Play: | Y |
| Connectivity technology: | Wired |
| Ethernet LAN RJ-45 ports quantity: | 1 |
| Fiber ports quantity: | 1 |
| DC-in jack: | Y |
| Weight: | 1200 g |
| Dimensions WxDxH: | 95 x 160 x 20 mm |
| Output voltage: | 12 V |
| Output current: | 1 A |
| External power adapter: | Y |
| Operating temperature range T-T: | 0 - 60 °C |
| Storage temperature range T-T: | -10 - 70 °C |
| Operating relative humidity range: | 10 - 90 % |
| RoHS compliance: | Y |
| Certification: | CE, FCC |
| Package weight: | 1400 g |
| Manual: | Y |
| Colour of product: | Black |
| Full duplex: | Y |
StarTech.com 10/100 MBIT / S FO / FIBER (ET90110WDM2)
Features - StarTech.com - ET90110WDM2
More Details
Product Code
V931981
EAN Code
0065030846271
Manufacturer
StarTech.com
