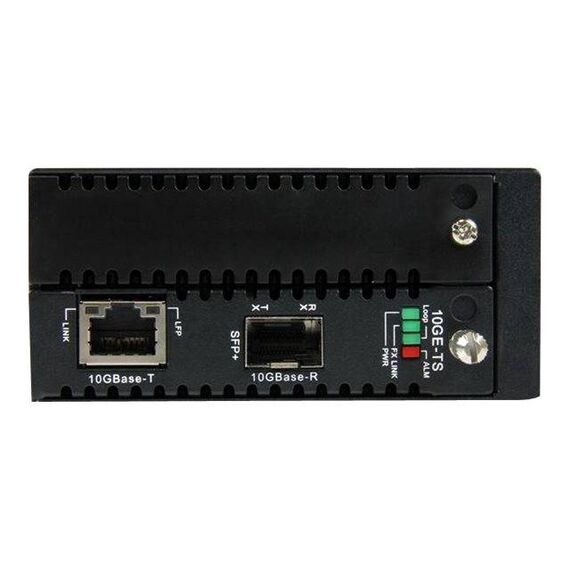

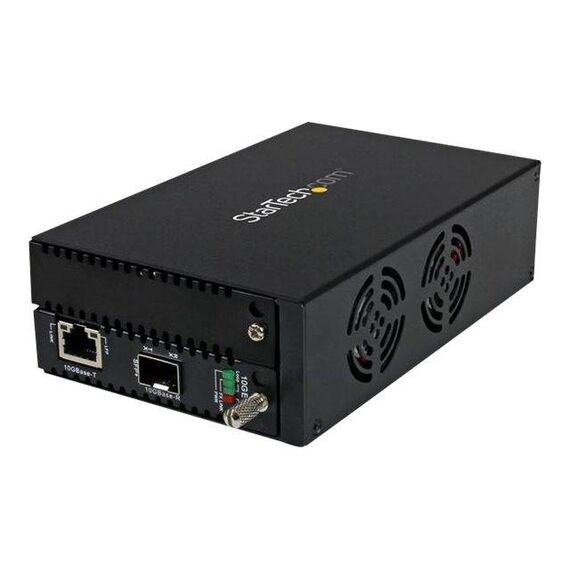

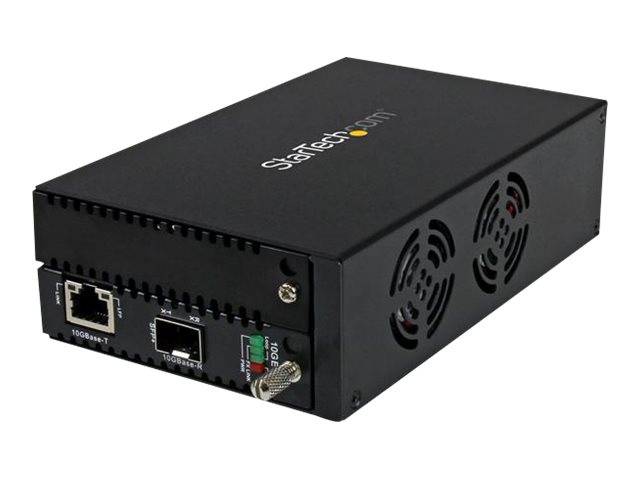

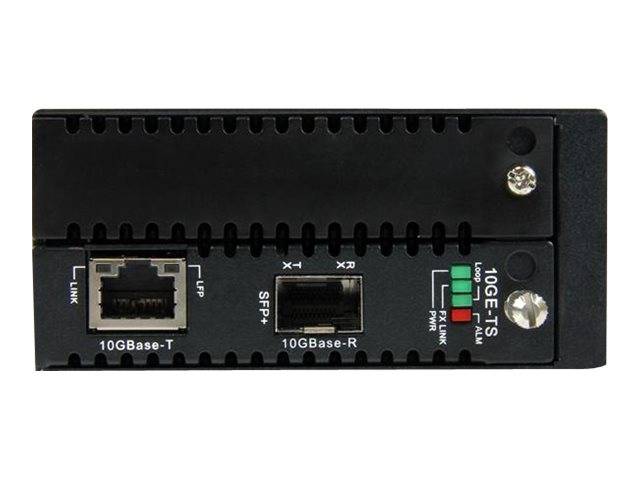

StarTech.com 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed (ET10GSFP)
StarTech.com 10 Gigabit Ethernet Copper-to-Fiber Media Converter - Open SFP+ - Managed (ET10GSFP)
Description Convert and extend a high-speed, copper (10GBASE-T) connection over fiber (10GBASE-R), using the 10Gbe SFP+ transceiver of your choice. This 10GbE fiber media converter lets you scale your network using the 10Gb SFP+ transceiver that best suits your network type and distance requirements. It's a cost-effective way to convert copper to fiber, or fiber to copper, and it integrates easily into a range of 10Gb network infrastructures.The 10G fiber converter delivers fast and reliable network access at longer distances than copper-based networks, making it ideal for server rooms or workstations in remote areas or in other buildings.This high-performance fiber media converter integrates nicely into a variety of 10 Gigabit networks. And, because the card supports up to 10Gbps throughput, you can quickly bridge your traditional 10Gb copper (RJ45) based network across long distances using fiber-optic cable.Now you can transfer large files and access high-bandwidth multimedia content in less time, even in remote locations.With an open SFP+ slot, the 10GbE media converter adapts to your network connection and distance requirements. Plus, because it's compatible with most, it offers more possibilities for connecting devices and users to your network. With support for a wide range of transceivers, the network converter is ideal for dynamic, high-performance data centers.The 10 Gigabit fiber media converter offers built-in management functionality, so you can quickly, yet effectively manage and customize your network settings through the local serial console port.If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP+ ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.This versatile fiber media converter is the perfect way to add users and devices to your network, now or in the future, while simultaneously interfacing your copper and fiber network mediums. Special Features
|
Product Specification
Device Type | Fibre media converter |
Form Factor | External |
Built-in Devices | SFP Module |
Colour | Black |
Localisation | Australia, North America, United Kingdom, Europe |
Connectivity Technology | Wired |
Cabling Type | 10GBase-LR, 10GBase-ER, 10GBase-SR, 10GBase-LW, 100Base-TX, 1000Base-T, 10GBase-EW, 10GBase-T, 10GBase-SW |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 20 Gbps |
Status Indicators | Link activity, power, alarm, loop |
Features | Auto-uplink (auto MDI/MDI-X), full duplex mode, Digital Diagnostics Monitoring Interface (DDMI), Jumbo Frames support |
Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae |
Interfaces | 1 x 10Gb Ethernet - RJ-45 female ¦ 1 x 10Gb Ethernet - SFP+ female |
MTBF | 57,000 hours |
Compliant Standards | FCC, RoHS, MSA, RCM |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
Power Consumption Operational | 36 Watt |
Width | 9.7 cm |
Depth | 15.2 cm |
Height | 4.5 cm |
Weight | 680 g |
Service & Support | 2 years warranty |
Service & Support Details | Limited warranty - 2 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 85% (non-condensing) |
