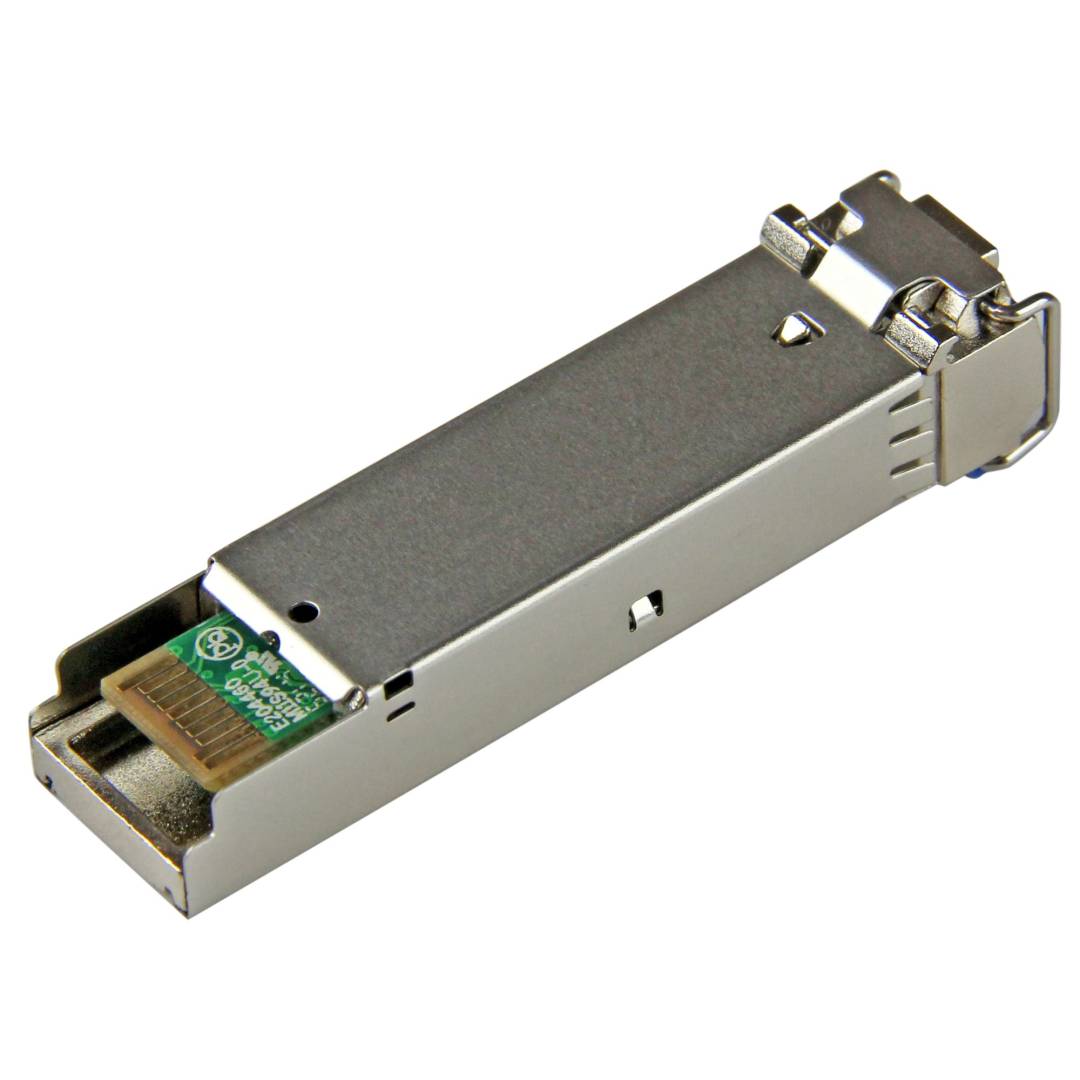

StarTech.com 1000BASE-LX SFP Transceiver Module / 1 Gbps / 10 km / MSA Compliant Fiber SFP (SFP1000LXST) / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX / LC single-mode / up to 10 km / 1310 nm / for P/N: US1GA30SFP, US1GC30SFP | SFP1000LXST
Description

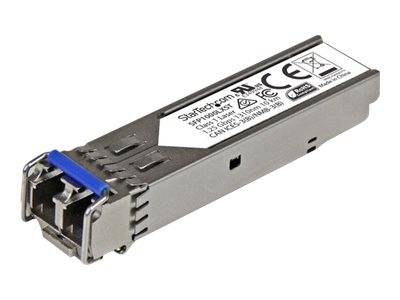

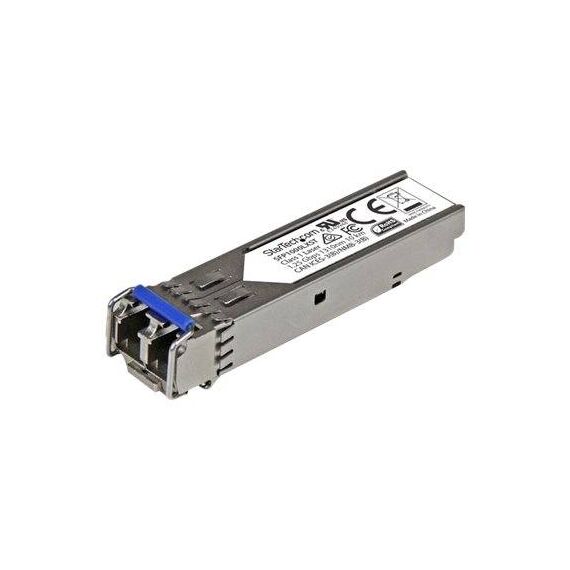

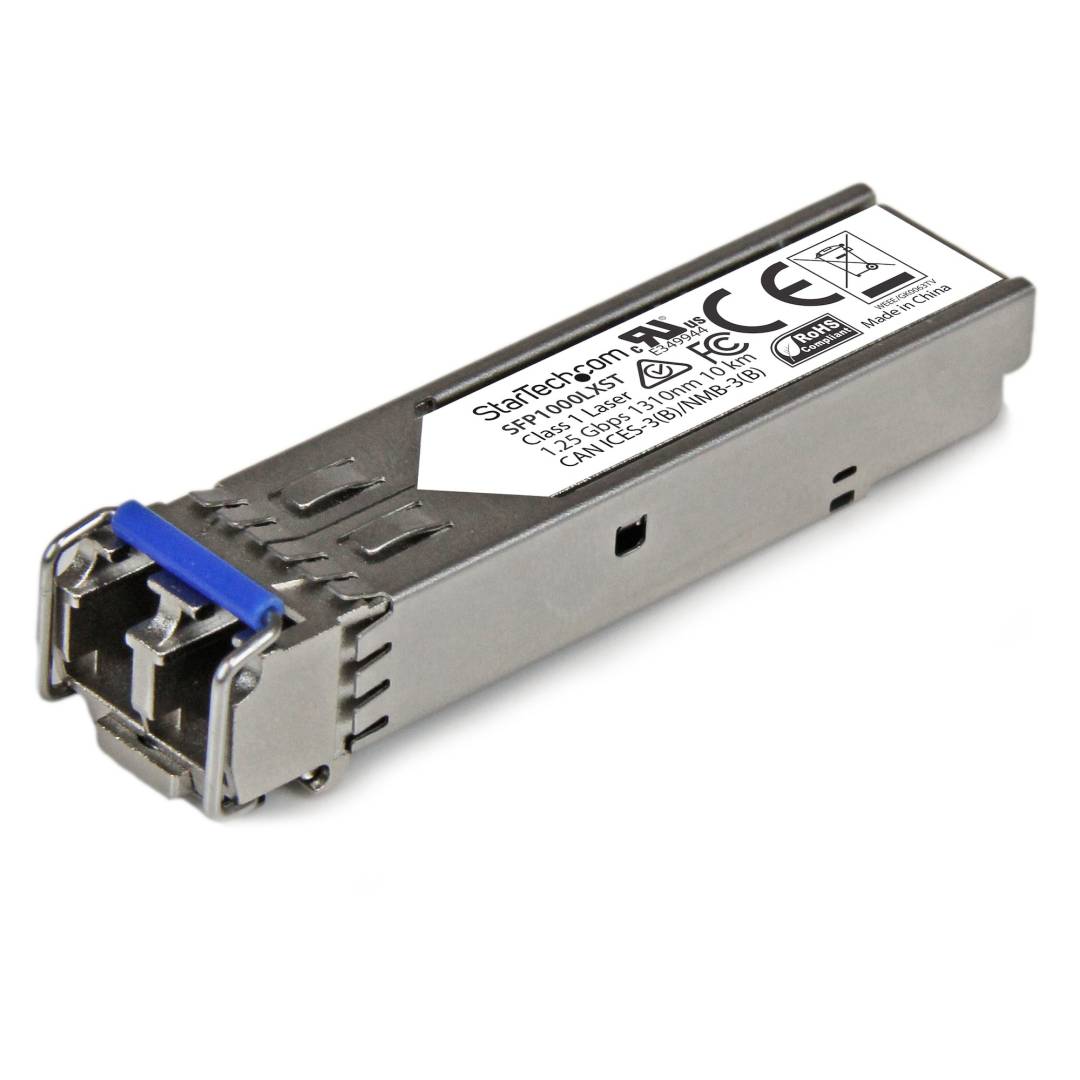

The SFP1000LXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Colour | Silver |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Features | Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3z |

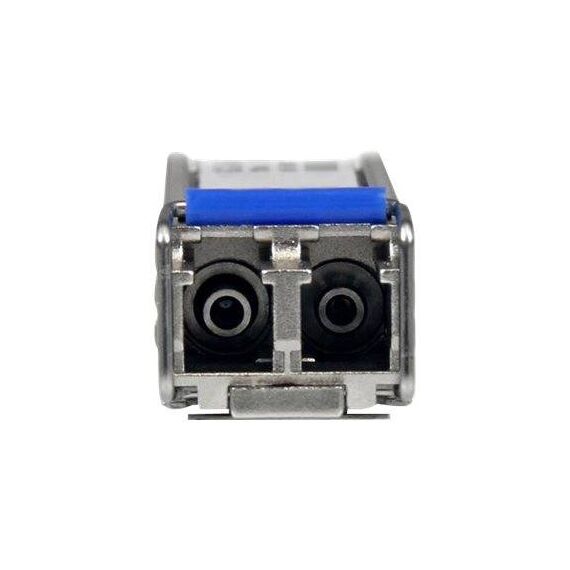

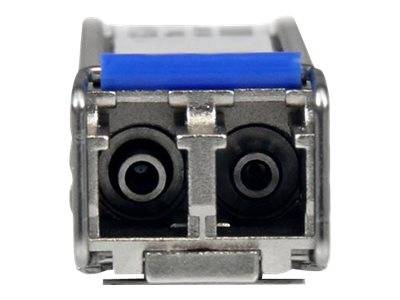

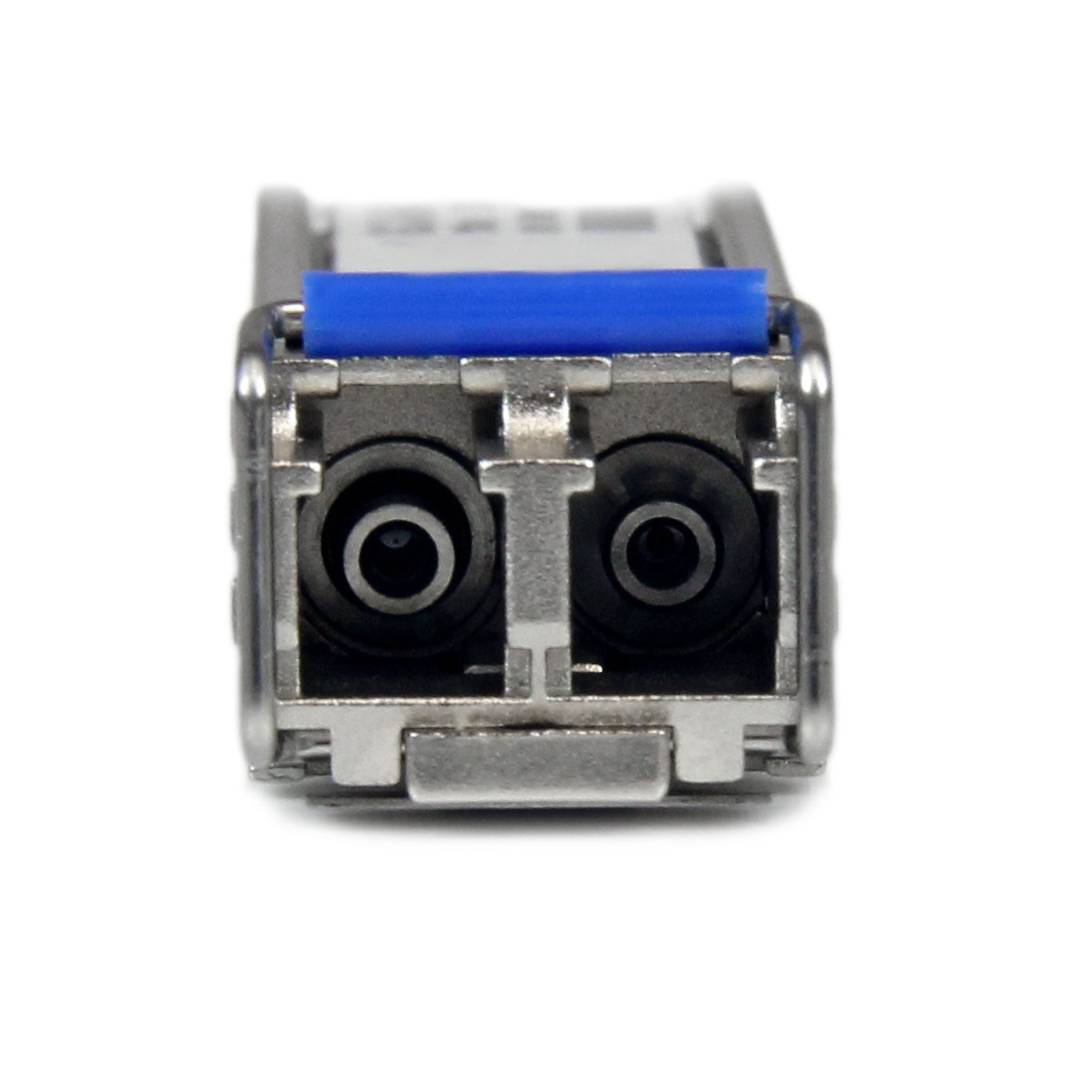

| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode x 2 |
| Compliant Standards | FCC, RoHS, WEEE, MSA, RCM |
| Width | 1.39 cm |
| Depth | 5.84 cm |
| Height | 1.26 cm |
| Weight | 30 g |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% |
| Designed For | P/N: US1GA30SFP, US1GC30SFP |
Features - StarTech.com - SFP1000LXST
More Details
Product Code
V934146
EAN Code
0065030873420
Manufacturer
StarTech.com
