StarTech.com MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310nm, | SFP100BLXST
Please sign in so that we can notify you about a reply

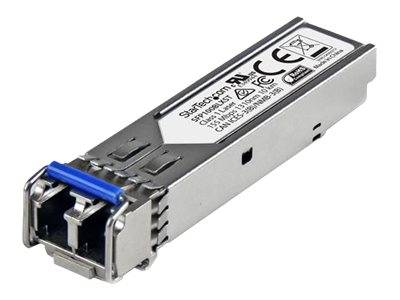

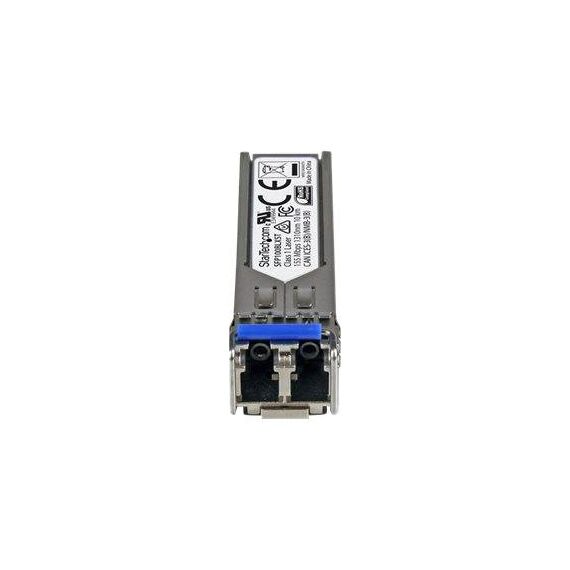

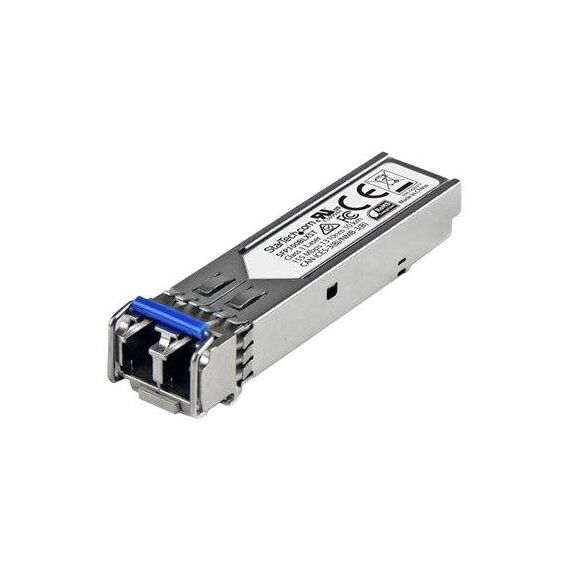

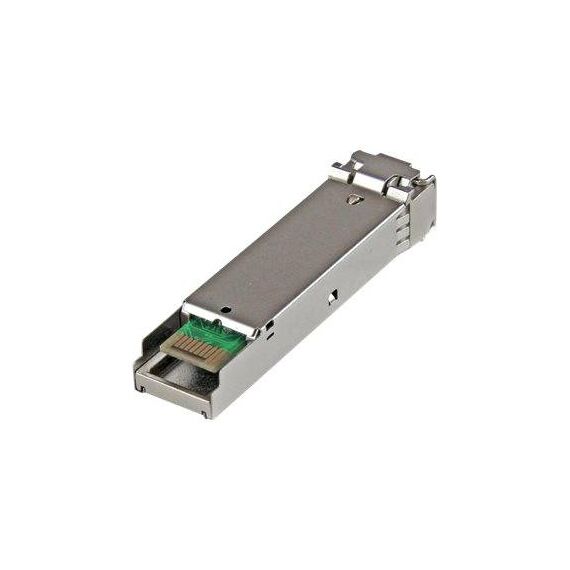

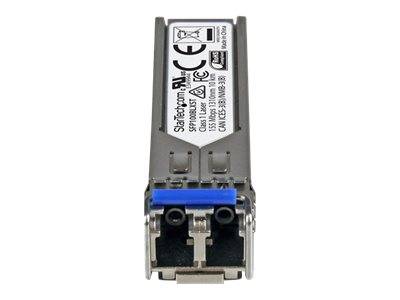

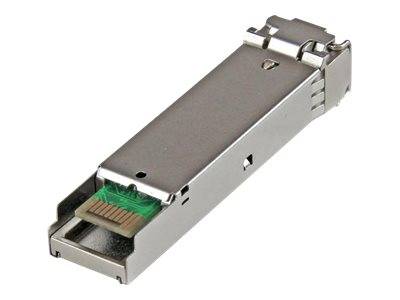

StarTech.com MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module, 100Mbps / Lifetime Warranty (SFP100BLXST) / SFP (mini-GBIC) transceiver module / 100Mb LAN / 100Base-LX / LC single-mode / up to 10 km / 1310 nm / for P/N: US100A20SFP | SFP100BLXST
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Colour | Silver |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-LX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Features | Half duplex mode, full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3u |
| Interfaces | 1 x Ethernet 100Base-LX - LC single-mode x 2 |
| Compliant Standards | FCC, RoHS, WEEE, MSA, RCM |
| Width | 1.39 cm |
| Depth | 5.84 cm |
| Height | 1.26 cm |
| Weight | 30 g |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% |
| Designed For | P/N: US100A20SFP |
Features - StarTech.com - SFP100BLXST
More Details
Product Code
V934154
EAN Code
0065030873468
Manufacturer
StarTech.com
