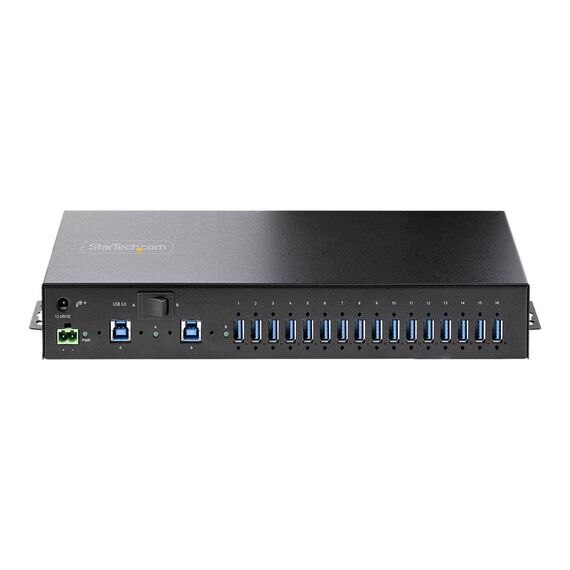

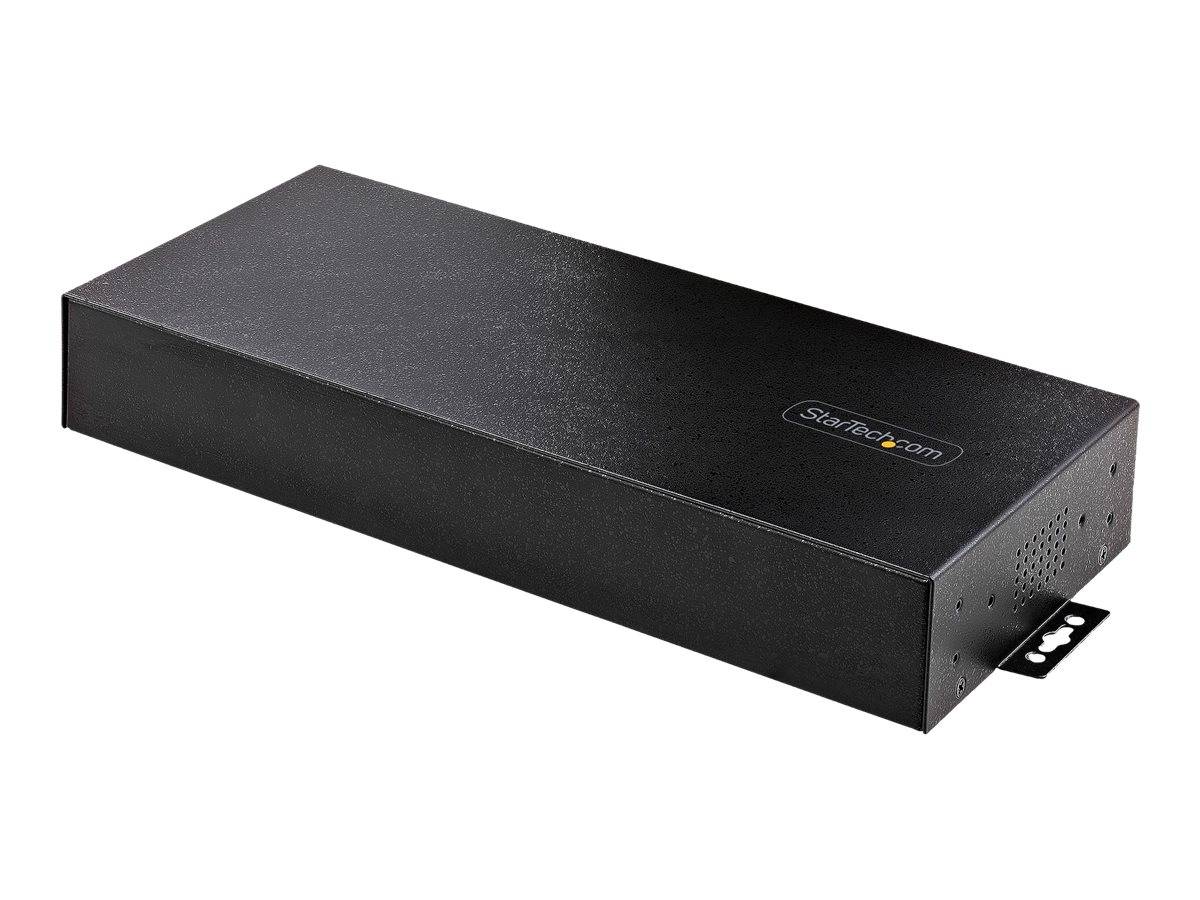

StarTech.com 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W | 5G16AINDS-USB-A-HUB
Please sign in so that we can notify you about a reply
Product Features
- Engineered for use in industrial environments
This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15 kV air and 8 kV contact discharge ratings, to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for use in factories, production lines, and other industrial settings. - Connect and charge USB devices
This USB hub features two 12-24 V DC power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for USB Battery Charging Specification 1.2 (BC 1.2) with 120 W shared across all ports. Ports are grouped in 8 pairs and each pair supports max 3.0 A/15 W combined (1.5 A/7.5 W per port), or max 2.0 A/10 W per port when only one of both ports is used. - Dual-host switch
The USB hub can connect to two separate desktop or laptop computers, and features a dual-host switch that enables easy toggling between them. The dual-host switch provides a convenient solution for applications requiring two host devices.
Special Features
- 16-port industrial USB hub
- Flexible mounting options
- Power and charge
- Dual-host switch
Product Specification
| Device Type | Hub - 16 ports |

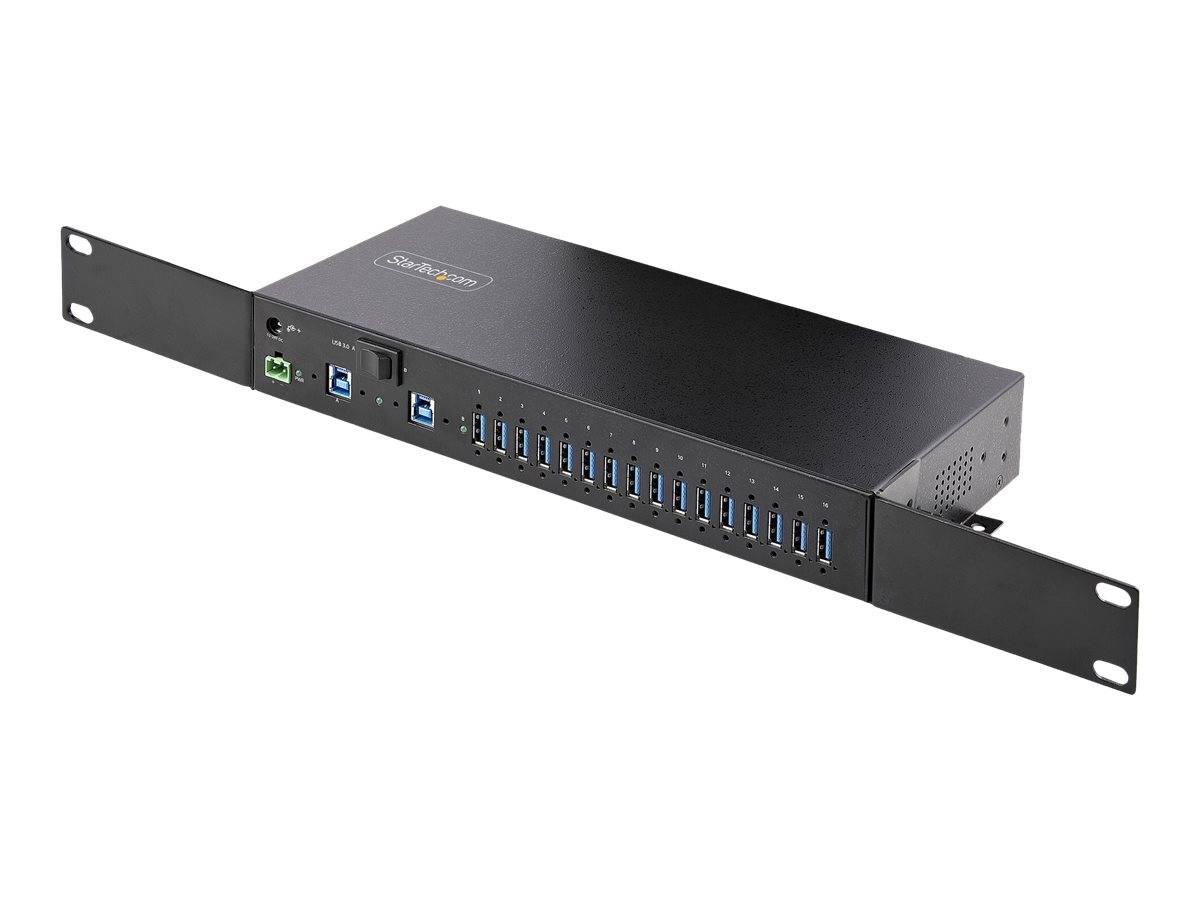

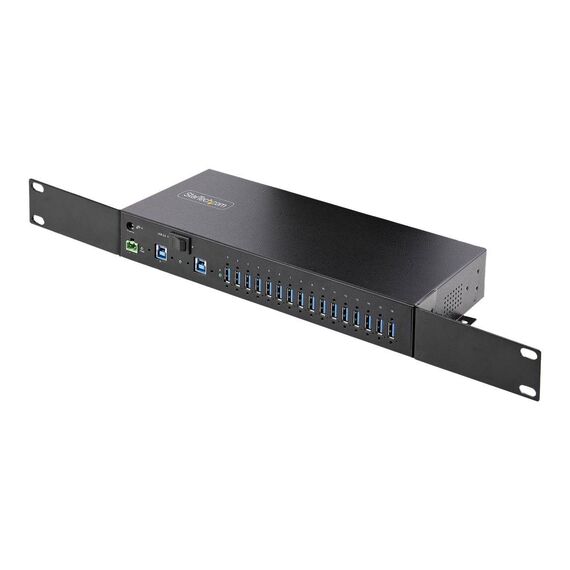

| Enclosure Type | Desktop, DIN rail mountable, rack-mountable 1U |
| Subtype | USB |
| Ports | 16 x USB 3.2 Gen 1 |
| Performance | Data transfer rate: 5 Gbps |
| Features | Metal housing, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), screw lock, switch button, fast charging support |
| Compliant Standards | USB 3.2 Gen 1, Battery Charging 1.2, USB 3.0 |
| Processor | 1 x Genesys Logic GL3523 |
| Status Indicators | Power, host |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x USB 3.2 Gen 1 Type A 2 x USB 3.2 Gen 1 Type B host 1 x 2 pin terminal block |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Included Accessories | Terminal block connector, 2 rack mount brackets, 2 DIN-rail mounting brackets, mounting screws |
| Cables Included | 1 x USB-A to USB-B cable - 3 m |
| MTBF | 122,383.8 hours |
| Compliant Standards | WEEE |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28 cm |
| Depth | 13 cm |
| Height | 4.3 cm |
| Weight | 1.1 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 1.8 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years Technical support - assistance - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% RH |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 75 °C |
