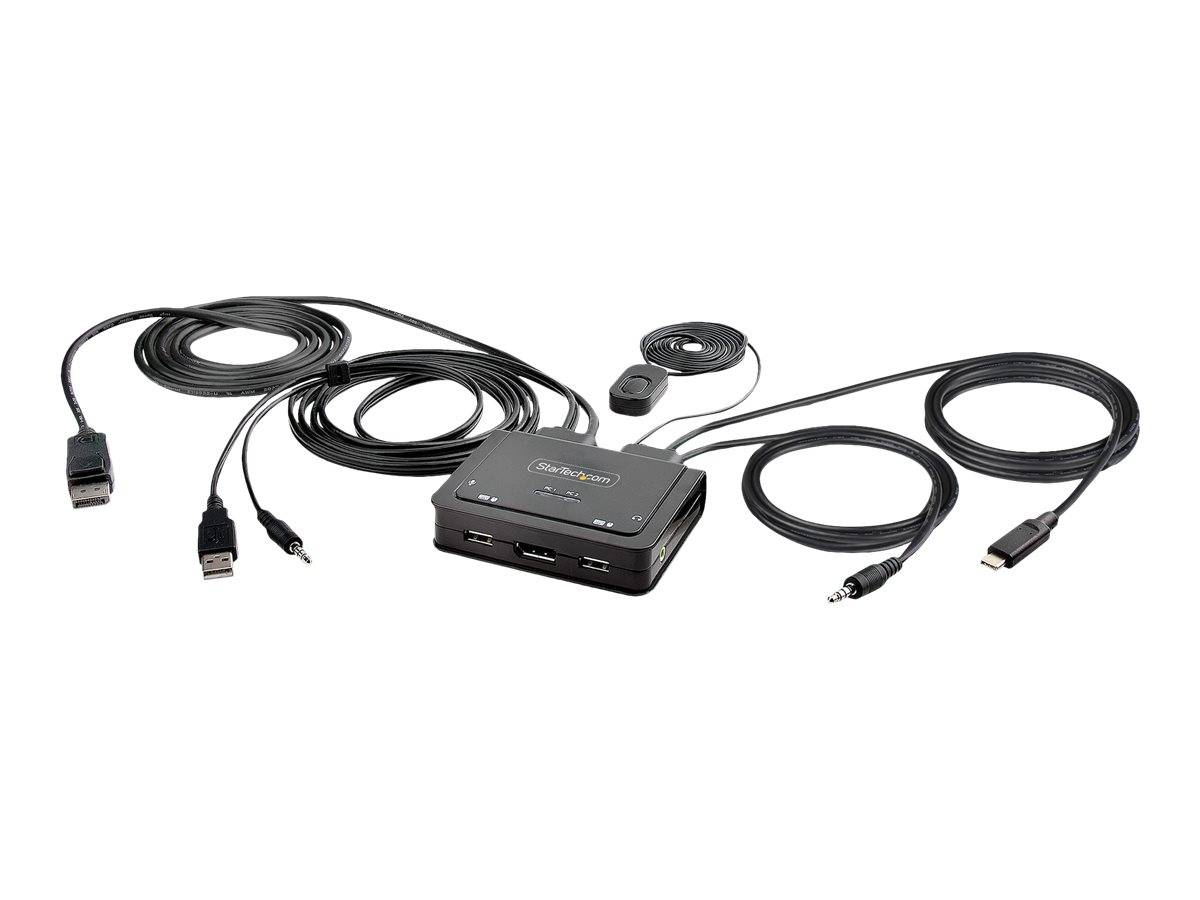

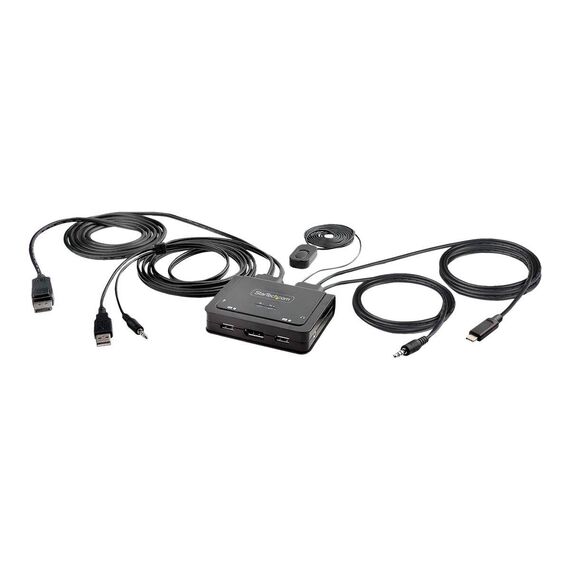

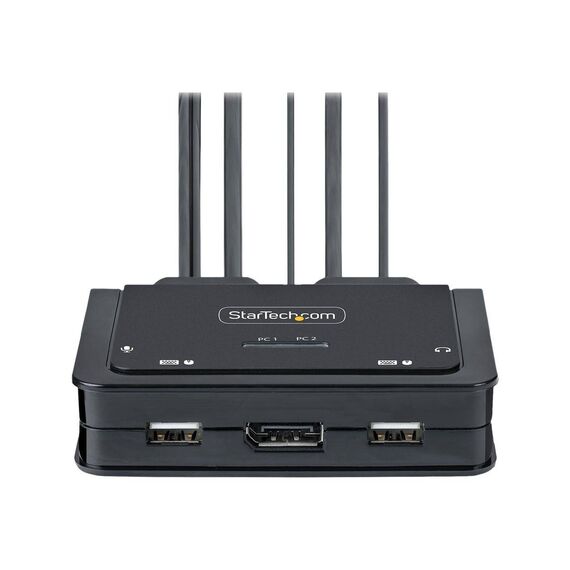

StarTech.com 2-Port Hybrid USB-C DisplayPort Cable KVM Switch / 4K 60Hz | C2-D46-UAC-CBL-KVM
Product Features
- Hassle-free setup
The KVM switch is bus powered and features built-in DisplayPort, USB-A, USB-C, and 3.5 mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections. - Compatibility powerful
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5 mm port the included 3.5 mm Headset Adapter ensures compatibility out of the box. - Intuitive control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5 m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
Special Features
- 4K 60 Hz hybrid KVM switch - enables switching between a USB-A/DisplayPort desktop and a USB-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60 Hz DisplayPort monitor
- Ready-to-use - small form factor, integrated cables, and no external power adapter enable rapid deployment, bus-powered KVM switch features built-in 6 ft/1.8 m USB-A, DisplayPort, and Audio host cables for PC1, and 4f t/1.2 m USB-C and Audio host cables for PC2
Product Specification
Device Type | KVM / audio / USB switch - 2 ports |
Enclosure Type | Desktop |
Subtype | KVM |
Ports | 2 x KVM / audio / USB |
KVM Local Users Qty | 1 local user |
Keyboard / Mouse Interface | USB |
Max Resolution | 4096 x 2160 @ 60 Hz |
Features | USB powered, remote switch, DisplayPort Alternate mode, 2.1 channel audio support, ABS housing, Auto Scan mode |
Compliant Standards | USB 2.0 |
Status Indicators | Port status |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x USB input Type C ¦ 2 x audio input mini-jack ¦ 1 x USB 2.0 input Type A ¦ 1 x DisplayPort input ¦ 2 x USB 2.0 output Type A ¦ 1 x audio output mini-jack ¦ 1 x microphone output mini-jack ¦ 1 x DisplayPort output |
Miscellaneous | Miscellaneous |
Colour | Black |
Included Accessories | 4-position to 2 x 3-position 3.5 mm headset adapter |
Cables Included | 1 x USB-C cable - 1.2 m ¦ 1 x audio cable - 1.2 m ¦ 1 x audio / USB cable - 1.8 m ¦ 1 x DisplayPort cable - 1.8 m ¦ 1 x remote control cable - 1.5 m |
MTBF | 261,196 hours |
Compliant Standards | RoHS, WEEE, DisplayPort 1.2 |
Software / System Requirements | Software / System Requirements |
OS Required | Linux, Google Chrome OS, Apple macOS 10.12 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0 |
Dimensions & Weight | Dimensions & Weight |
Width | 8 cm |
Depth | 9.5 cm |
Height | 2.4 cm |
Weight | 380 g |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 21 cm |
Shipping Depth | 16 cm |
Shipping Height | 6 cm |
Shipping Weight | 500 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 90% RH (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 60 °C |
