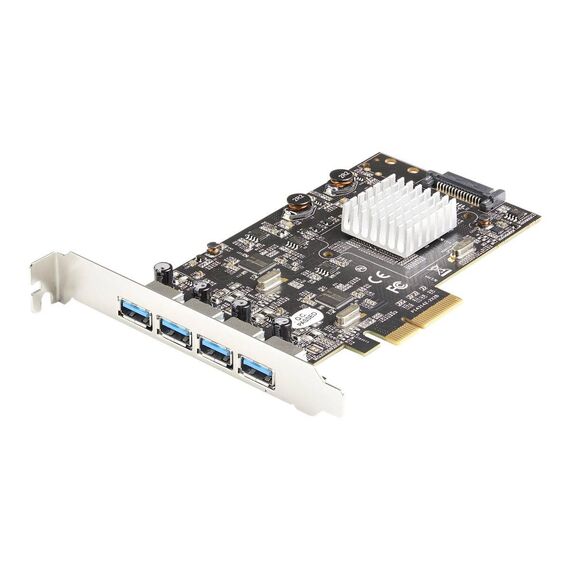

StarTech.com USB PCIe Card / 4-port / USB 3.1/3.2 Gen 2 Expansion Card | PEXUSB314A2V2

Product Features

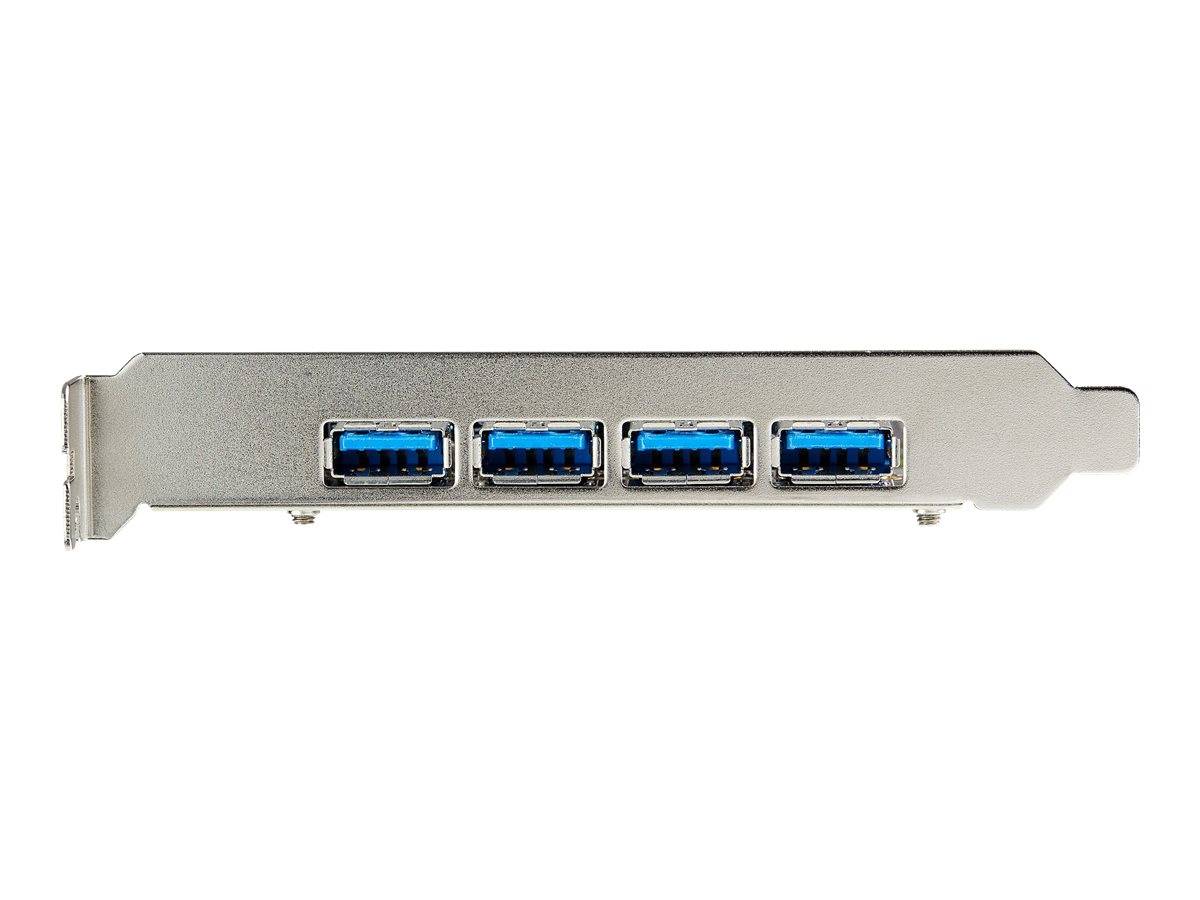

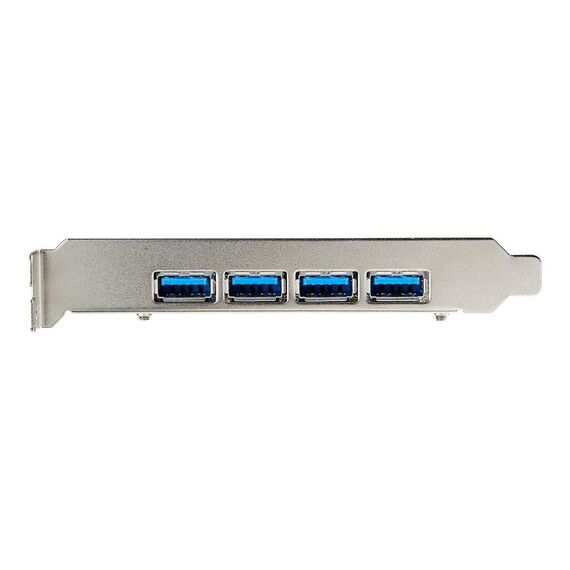

• Add four 10 Gbps USB Type-A ports to your desktop computer
  The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
• SuperSpeed USB 3.2 Gen 2 (10 Gbps) performance
  The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub. The card also supports UASP for improved performance with storage devices.
• Wide installation compatibility
  This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works with USB 3.1/3.0/2.0 devices

Special Features

• USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port, dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports, USB 3.1 Gen 2/USB 3.2 Gen 2x1
• Multiple INs support for max bandwidth when using mixed-speed devices, USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives
• USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports providing up to 4.5W ([email protected]) per USB-A port

Product Specification
