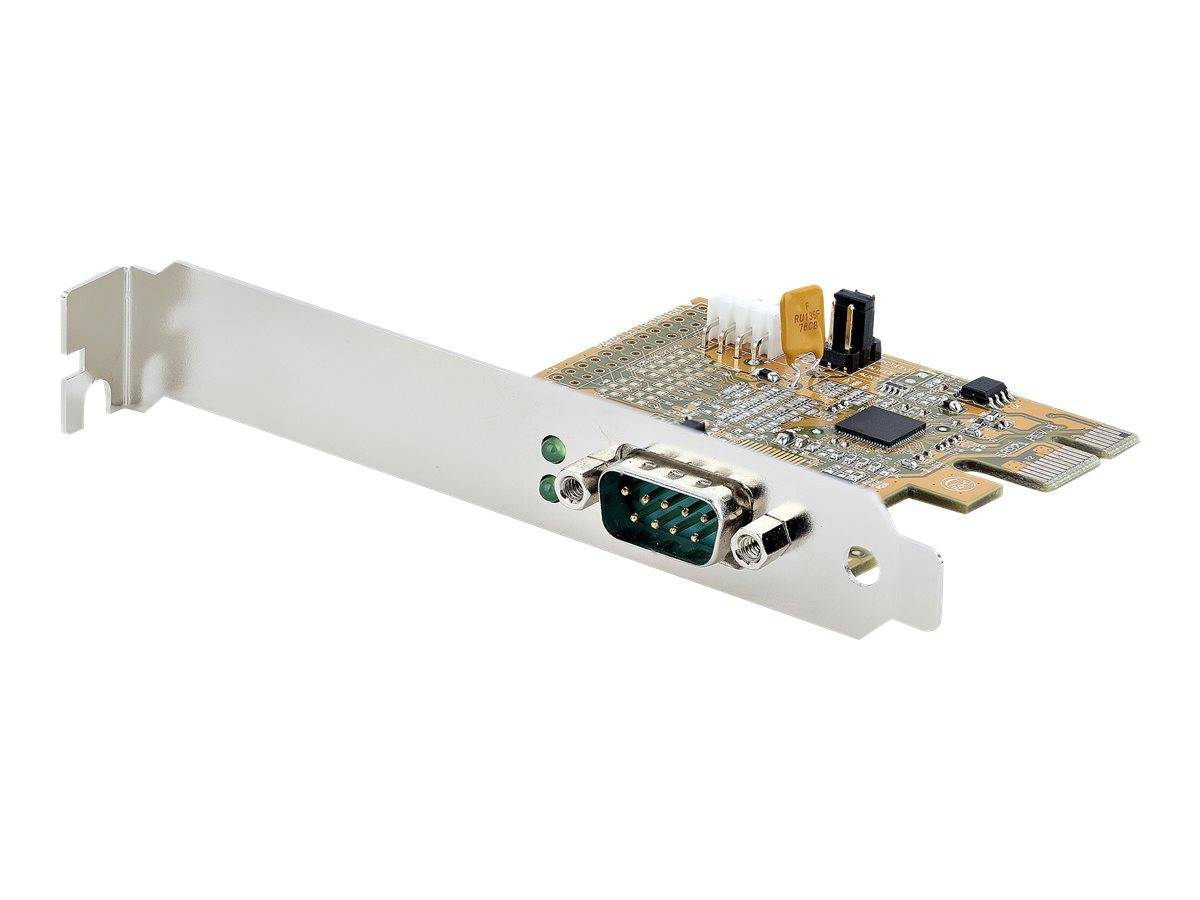

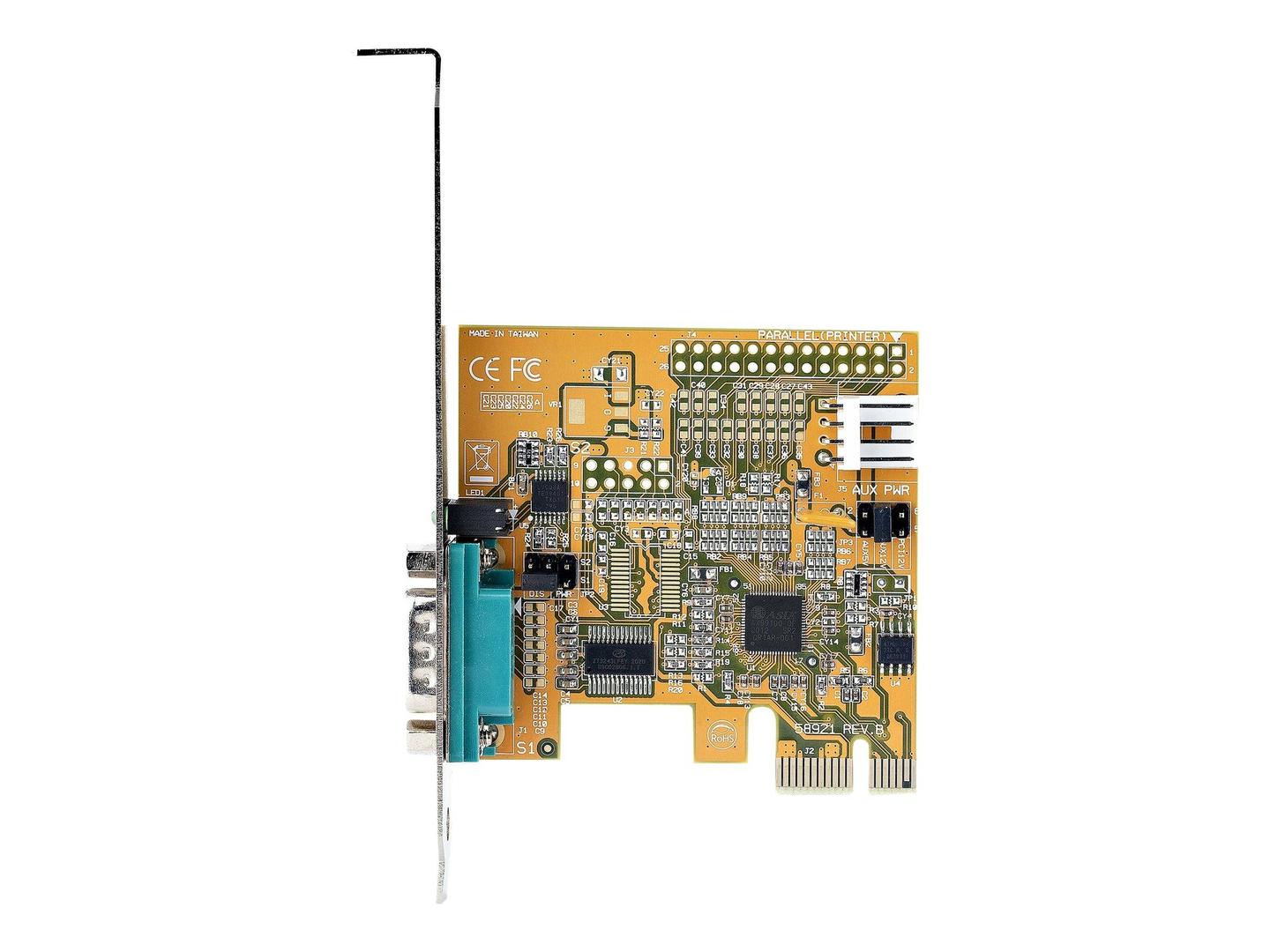

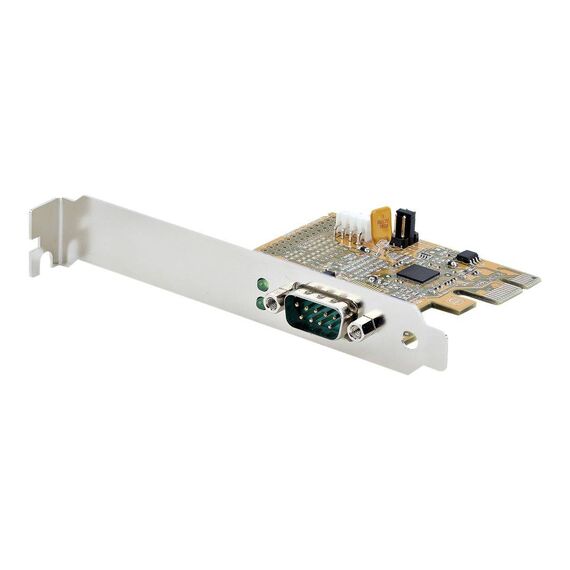

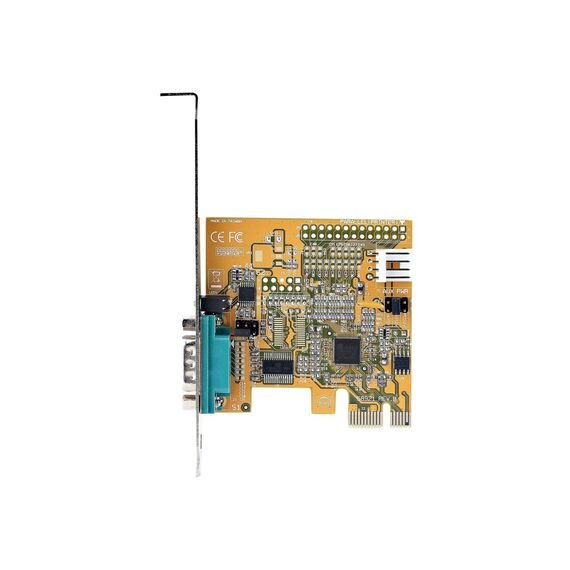

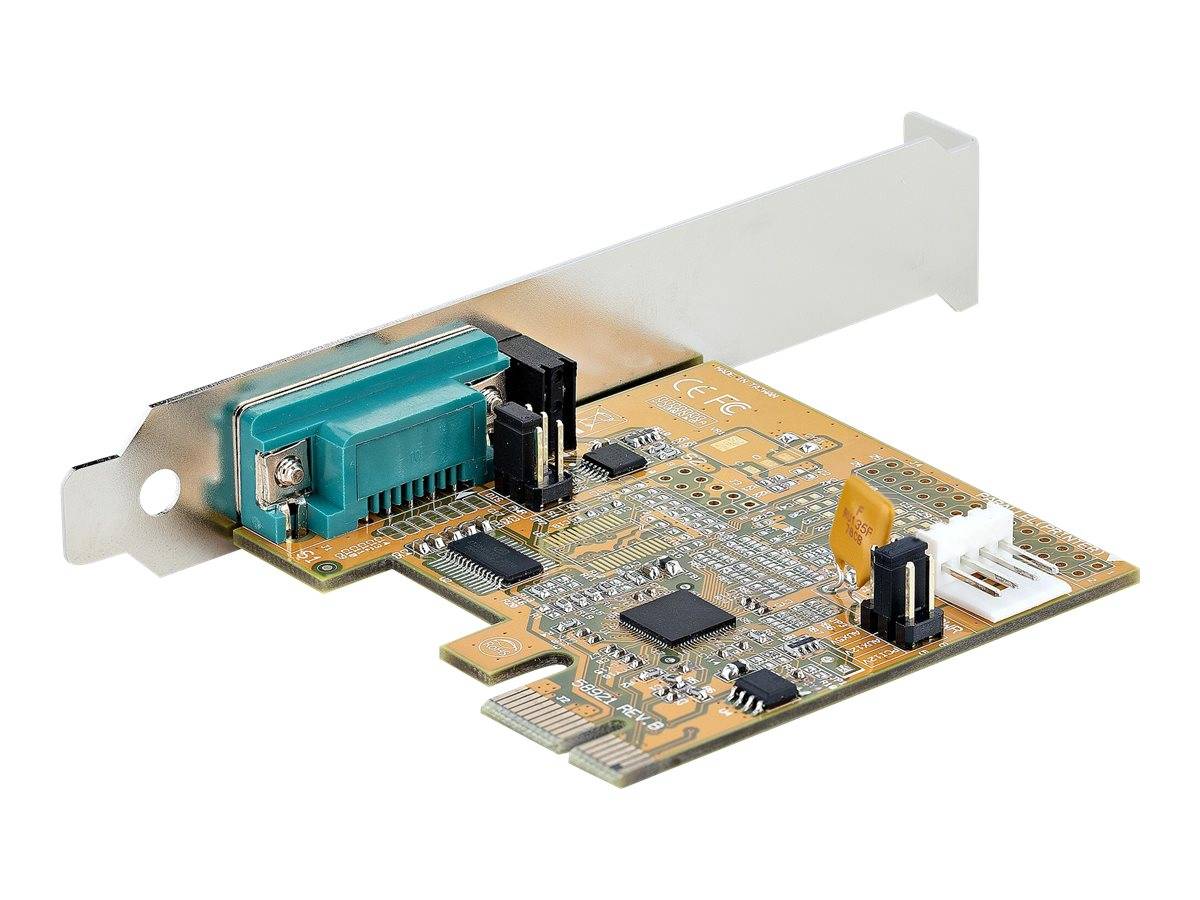

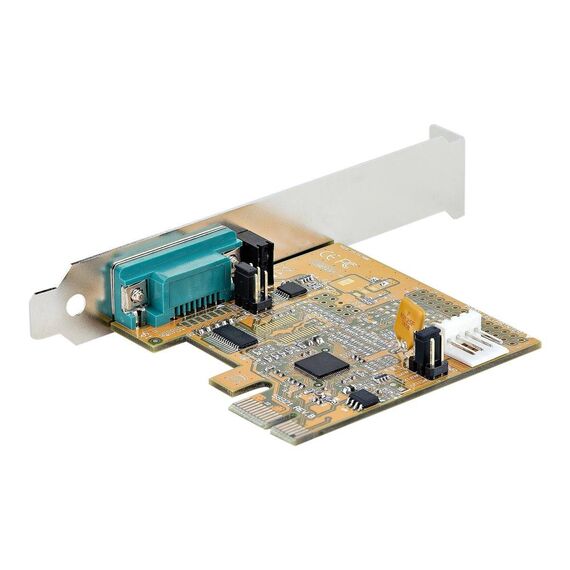

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card with 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux / PCIe to DB9 Card | 11050-PC-SERIAL-CARD
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | Networking |
| Ports | RS-232 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Status Indicators | Status |
| Features | 256-byte FIFO |
| Compliant Standards | 16C1050 UART |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) - male (external) |
| Miscellaneous | Miscellaneous |

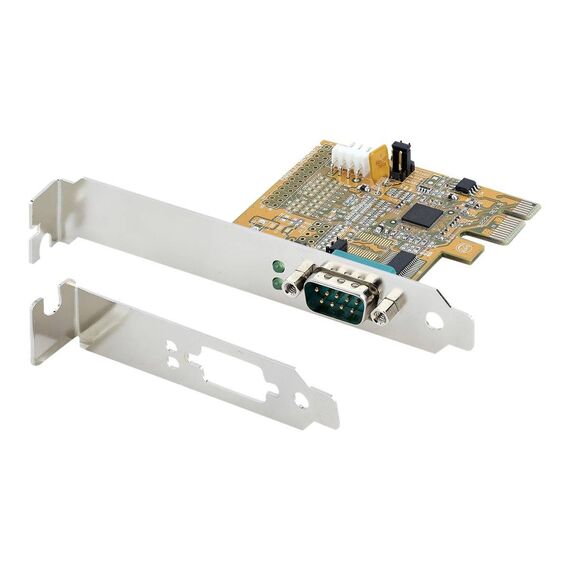

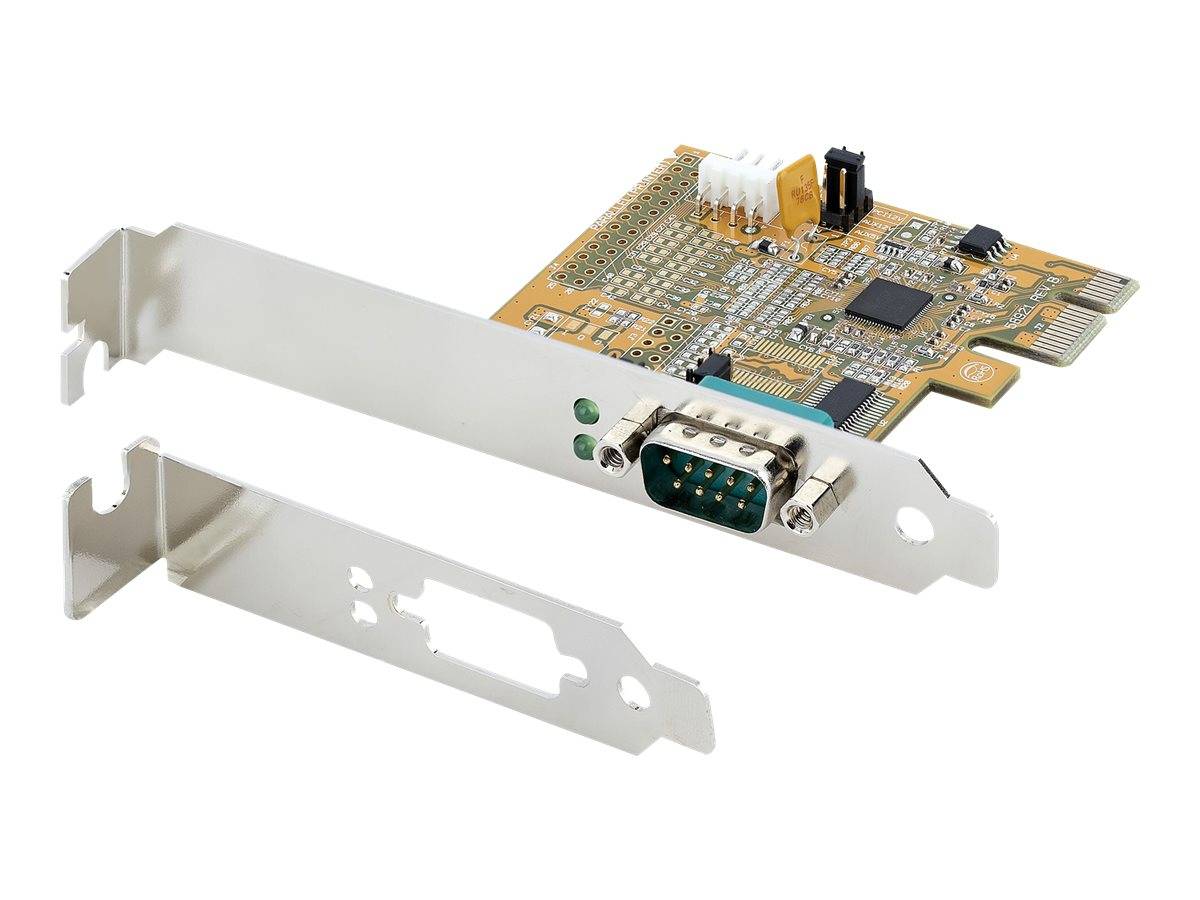

| Included Accessories | Low-profile bracket |
| Colour | Yellow |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.8 cm |
| Depth | 6.5 cm |
| Height | 6.7 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 20.7 cm |
| Shipping Depth | 14.4 cm |
| Shipping Height | 3.8 cm |
| Shipping Weight | 200 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% |
Features - StarTech.com - 11050-PC-SERIAL-CARD
More Details
Product Code
CE72446
EAN Code
0065030894777
Manufacturer
StarTech.com
